Flow-Thru Universal Spa Heater Element ~ 4.0kW@240V (1.0kW@120V) Incoloy

BX5000C
Regular price $24.95
Regular price Sale price $24.95
Save $-24.95
/
Need Help? Send Photos!
Choose Heater Wattage and Service Life: 4.0kW@240V (1.0kW@120V) Incoloy
4.0kW@240V (1.0kW@120V) Incoloy
Please select

Add to Order (recommended):

$6.95
Heater Cables: Element to Circuit Board - Pair
Heater Power Cables
Element to Circuit Board - Pair
$4.95
O-Ring Gasket, 2" (2-15/16"OD) - 2-Pack
2" Union Gasket
(2 ¹⁵⁄₁₆" OD) 2-Pk
$4.95
Lube Tube O-Ring/Gasket Lubricant-Sealant
Waterproof Lube Tube
O-Ring & Gasket Lubricant
Select Title

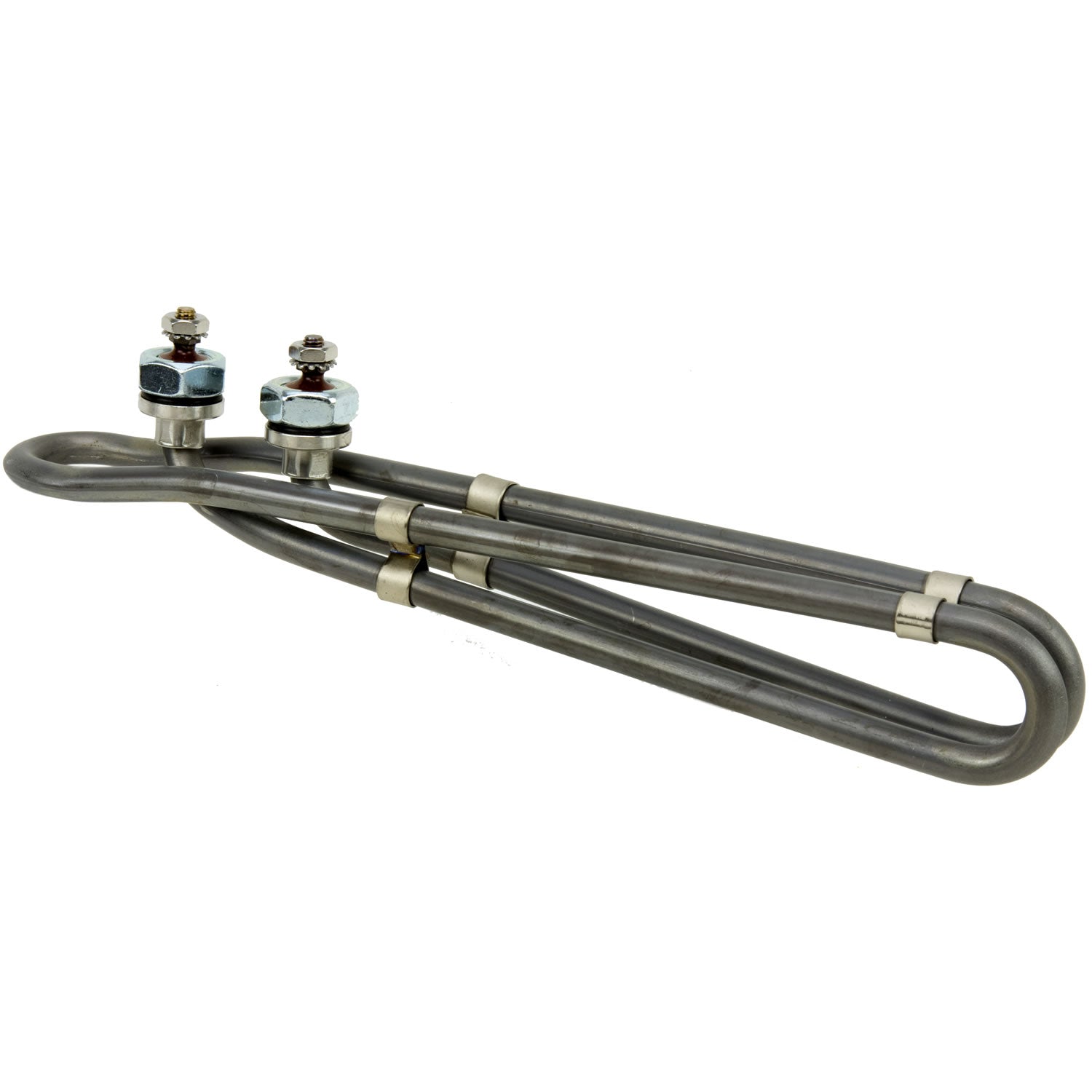

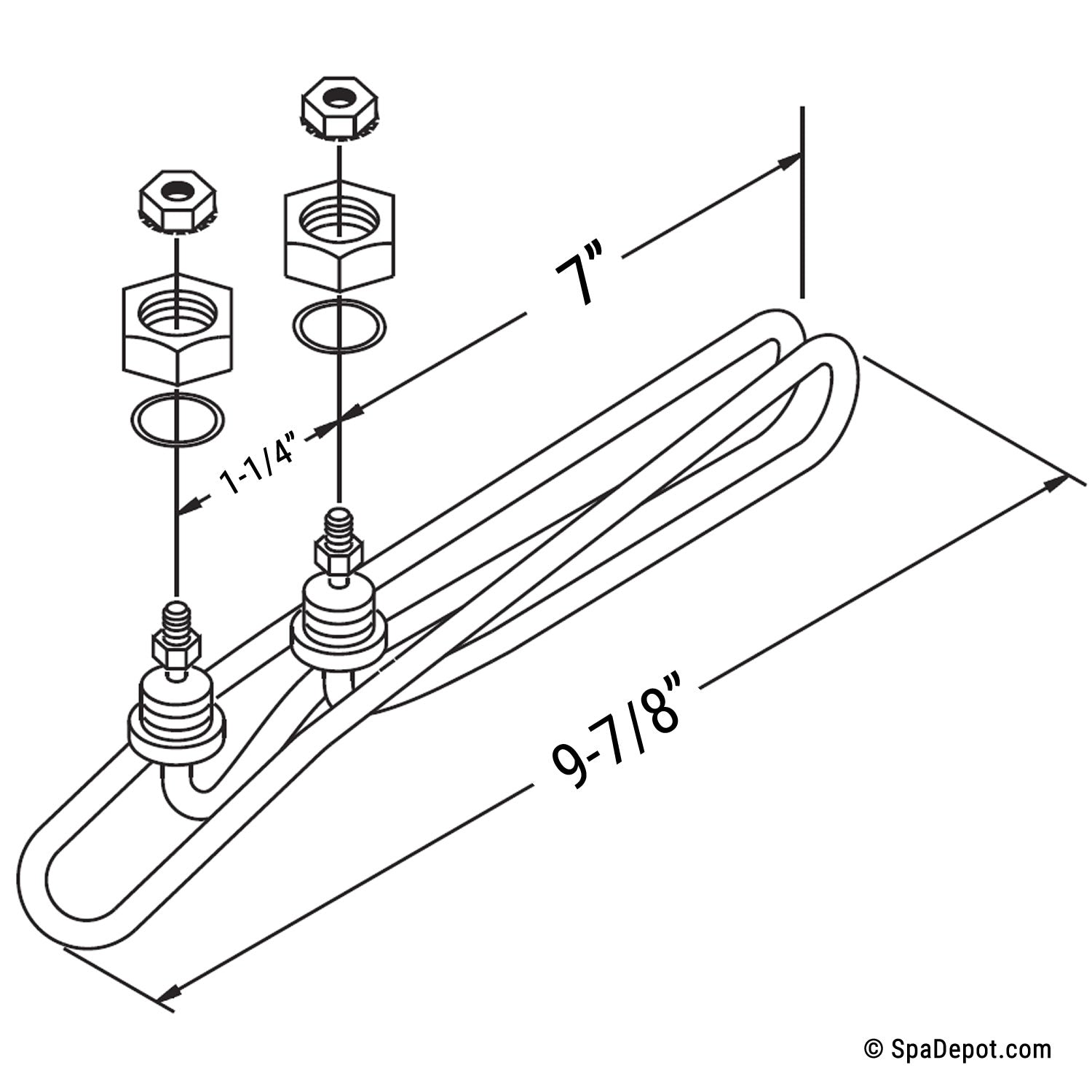

Universal Flow-thru Spa Heater Element. Fits 2" heater manifold tubes including Balboa M-7, Brett Aqualine, many others. Upgrade to Titanium for double service life.

  • 4.0kW@240V (1.0kW@120V)
  • Standard Service-Life Incoloy

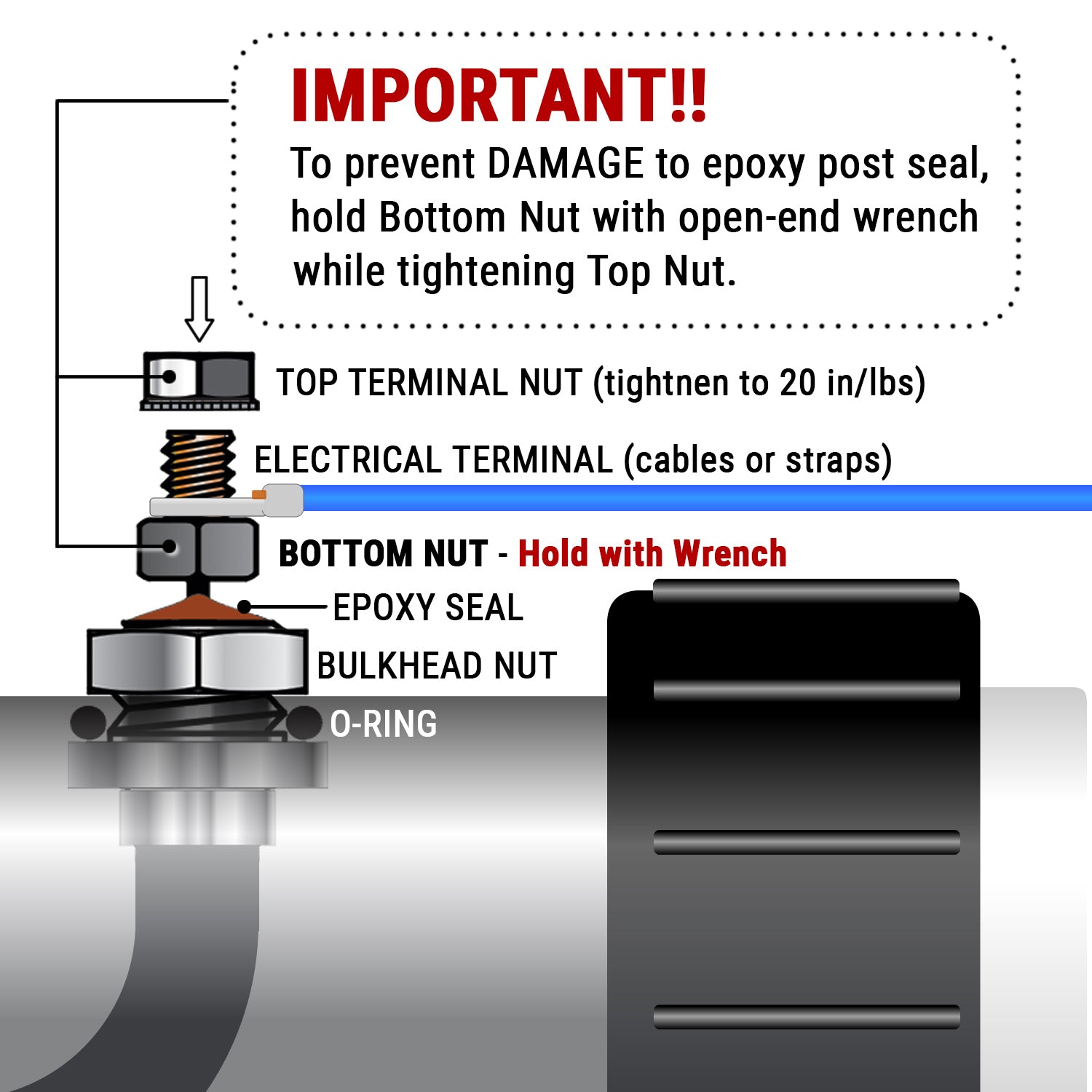

Product notes: Use 2 wrenches for terminal nuts to avoid damage to epoxy seal (as illustrated). Replaces 12-0100F-K, 12-0100-K, 12-0101F-K, 12-0101-K, 12-0102F-K, 12-0102-K, 20-3053, 20-3440, 2-05-0030TI, 25-4030, 25-4031-BI-TI, 25-4034-BI-TI, 25-4041-BI-TI, 25-4022, 4-FLO, 6-FLO. Warranty 1-yr.

Spa Heater Element Installation Instructions

Need Help? Send Photos!

This universal spa heater element delivers reliable performance as a cost-effective replacement solution. Customers praised its "perfect fit" for various hot tub models, including 21-year-old systems. It's approximately 1/6th the price of a complete heater. Installation is straightforward, though some noted wire terminal replacement may be needed.

  • 5 stars: 56 (86%)
  • 4 stars: 2 (3%)
  • 3 stars: 1 (2%)
  • 2 stars: 1 (2%)
  • 1 star: 5 (8%)
Some of the reviews shown are from related products the merchant grouped with this one.
D
Dave T.
Fixed my Emerald Spas heater which had shorted out and was blowing breaker.

Fit my Gecko S-Class. Be prepared to either replace ring terminal ends or buy new wires. The originals are soldered on and have to be cut to remove the heat element.

J
Jeffrey S.
Didn’t last- tripped breaker

After owning my hot tub for over 20 years, I’ve only had to replace the heater one time and I chose this one and immediately started having problems with my GFCI circuit breaker tripping, and just three years now it has completely broken with zero continuity. The previous heater lasted 18 years. It was a Hydro quip.

I'm sorry to hear that you had a negative experience with our heater element. These elements are manufactured by HydroQuip, using the best materials available, and have an excellent track record of reliability. We're always looking for ways to improve product durability. To that end, a technician will contact you shortly to get more information and help correct the issue.

C
Cold T.
Won't last in salt - not covered by Warranty!

paid extra for the titanium with 2 year warranty (bx5000at).. bought two, first one lasted 11 months, 2nd one lasted just over 1 month. SpaDepot service is typically good, they gave me a replacement for the 1st one (but stated it shouldn't be warranty due to corrosion), but won't warranty the 2nd one, again stating warranty doesn't cover corrosion and my salt levels must be off. It was in the tub for just over a month! Going to try a different brand in the future, I think these are just JUNK! I like SpaDepot but question their quality.. If you buy at least don't pay extra for the extended warranty!

B
BILL W.
My dealing with SpaDepot has been fantastic with

My dealing with SpaDepot has been fantastic with excellent service!

R
Rich
Perfect fit for my 21 yr old hot tub

Perfect fit for my 21 yr old hot tub.

N
Nate S.
Spa depot followed through with the order

Spa depot followed through with the order perfectly, very happy.

L
Larry B.
Works great!!! But what a pain to installl

Works great!!! But what a pain to install

R
RJ
Hot tub is 27 yrs old, heater failed,

Hot tub is 27 yrs old, heater failed, find replacement through the Spa Depot, catalog was easy to identify the appropriate replacement element,, unit arrived on -time, installation was easy, detailed instructions helped with the install, unit working well,

A
A1 P.S.H.S.L.
Happy service tech and customers

As a hot tub service repair company, I run service calls with no store as a footprint. I rely on purchasing parts from online sites. Been buying heaters and parts from Spa Depot for years. Spa Depot has great prices, even adding discounts with quantity. Have had no issues with heaters not performing. Spa Depot parts allow me to get customers back up and running quickly.

G
Gerald W.
103 again!

My catalina jacuzzi started dropping temperature. Ohmed out the old element, and it was open. Swapped in this new one and she works like a charm. Super Happy with Spa Depot and their products!

J
Justin
heater

didn't fit perfect, but seems to be working fine. only in like 3 months

D
Daniel G.
titanium

I went with the upgrade. If it lasts more than 5 years it may because it is tougher. I won't know for a long time. It was great to be able to talk to a tech before ordering. My old element was not shorted enough to ring the ohmmeter, but it was enough to trip the gfic.
Regards, Dan

D
DOUG F.
Heater

Part fit like it should. Sales team identified part needed and delivered.

J
Jim B.
Like new again!

The new element works great but I'm mostly impressed with the customer service. They helped me diagnose the problem and sent the correct part for me to complete my repair. Thank you!

T
TJ
Fit perfectly

Was an exact replacement. Sent photos and they got me the right heater element

D
David B.
Heating element

Shipped quickly, in good shape, installed easy

J
Jim W.(.
Satisfied

I own a spa tech service and have ordered from SpaDepot for years as well as refer them to all my customers. Very happy with their products, ease of ordering and fast delivery.

M
Mark1
Easy to install

Easy to install. Buying the tube it goes in as a complete heater unit for $100 more is a waste of money.

T
Timothy K.
spa depot

Very good experience….AGAIN….helpful, knowledgeable, and technically accurate

J
JIm W.
Perfect Fit

Perfect fit a fraction of the cost.

T
Thomas f.

Great service. Exactly what I needed.

R
Robert L.F.
Replacement

My old heater has been working fine over the past few years. This new heater will serve as a spare part in case I need it. Not an easy part to install.

S
Sharon
Great!

Heater works great, thanks to SpaDepot for setting me up with the right part.

J
JORGE D.
JD spa tech

Exelent.

R
Raymond C.
Great fix option......about 1/6 th the price of a complete new heater.

After 9 years my element was shorting out. Amanda was very helpful in troubleshooting. The hardest part of the R&R was draining the spa.
Spa Depot has provided outstanding parts and tech support. I am so lucky to have them nearby.

R
Robert W.
Great Replacement Option

It's a perfect fit and works like a champ!

B
B. H.
Good Heater

It worked great when I needed a replacement. I usually go with the titanium but I'm glad I got incoloy at this point.

J
Jeff d.
Great customer service

Spa Depot answers the phone, answers my questions and the tech support is patient and very helpful in guiding me to the right parts. Orders always shop same day and I get them quick.

J
James O.
Universal flow thru heater element.

The unit fit perfectly. Saved money and have warm water again! Thank you Spa Depot.

K
Keith

Works like better then before
