Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V
Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V
Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V
Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V
Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V
Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V

Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V

BX5003
Save $-159.95
/
Free Shipping
Need Help? Send Photos!
Heater Plug: (Select One)
J&J
NEMA
Please select
Select Title

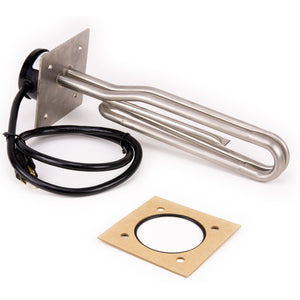

Best quality 1.5kW 120V heater element replacement for Watkins Hot Spring Spas Classic, Home Spa, Personal Spa, Jetsetter, Prodigy, Indoor-Outdoor, and Sovereign models prior to 1995.

  • 36" power cord - choice of plugs
  • 4" x 4" Flange - Integrated ⁵⁄₁₆" thermowell
  • 10⅞" Element immersion length
  • Required O-ring & Fiber Gasket included

Product notes: Model years 1980-1994 - 110-120V. 12.5A. Internal auto-reset high limit. Other part numbers: WAT31255, 25-1464-430AC, 25-1464-430BC, 12-1464-AC-K, 12-1464-BC-K, 1.5-4-1B, 610755, 9330-03, 31255

Spa Heater Element Instructions
Need Help? Send Photos!
Often bought together:
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
ZorbO Oil Scum Absorber
ZorbO Floating Oil Scum Absorber - Spa/Pool
MT1052
Quick View
Laing E5 Spa Circulating Pump 3/4" Barb 120V/240V
Laing E5 Low Flow 7-GPM Spa Circulating Pump ¾" Barb - 120V/240V
BX4218
Quick View
3/4"ID x 10' - Clear PVC Vinyl Tubing
¾"ID x 10' - Clear PVC Vinyl Tubing
BX9009
Quick View
PreFresh Spa & Pool Water Fill Filter
PreFresh Spa & Pool Water Fill Filter
MT1051
Quick View
Tubing Coupler 3/4"Barb x Barb
Tubing Coupler ¾"Barb x Barb
BX9682
Quick View
Spa System Flush - Hot Tub Cleaner
Spa System Flush Hot Tub Cleaner
MT1028
Quick View

This 1.5KW 120V heater element is a direct replacement for older hot tub models. Customers said it "fit perfectly" with gaskets and o-rings working well. The element installs easily, even on 30-year-old tubs. Shoppers recommend calling to specify plug type (JJ or Standard). Instructions could be clearer, but overall experience and shipping are excellent.

  • 5 stars: 9 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
S
SkiDog
Worked Perfectly

My old element was tripping to GFI and I was concerned when I saw it was seal to the tank with a paper gasket but the new one had an o-ring and sort of a paper/laminate around the OD to prevent over tightening of the o-ring and it fit nicely to hold the o-ring in place during installation. Looked like a quality unit and has worked fine for a couple weeks now.

j
james B.
Heater element

Glad to find a replacement heater element at a decent price. My 1987 hot springs spa is back running.

S
Sarah M.
Great customer service.

Edwina and Garth were a great help. The heater element was just we needed for our hot tub. Thank you very much.

V
Victor N.
Heating element

Heater Element for Watkins-Hot Spring 4"x4" Plate - 1.5KW 120V ~ NEMA. Works great, heats up well comes with a good seal, no leaks

C
C. C.
1987 Hot Springs Spa

31255 element fit perfectly. I recommend phoning the order to specify the plug type ( JJ or Standard ). Great overall experience.

M
Mike B.
Heater element for my 1987 Hot Springs Classic was exactly as described

I was very glad to find a heating element seller for my Hot Springs Classic hot tub, and I was able to get this amazing this "ol' girl" (~37 year-old) back running again. :)

R
Robert W.

excellent!

D
Donatello W.
Watkins heat element for hot spring

Direct replacement, fit well, gasket and o-ring, perfect, plug a direct fit

j
jim t.r.
works like i hoped

needed to repair 30yr old hot springs tub, installed easy, weak instructions, fast shipping,

S
Steven S.

Help!
Is this Watkins heater core comparable with the Watkins sku 34742 ?

SpaDepot.com

This element is not compatible with your current manifold. Please call our tech department for suitable replacement heaters for your spa.

A
Amanda W.

Will this work with a 1996 Hot Springs Jetsetter-J

SpaDepot.com

This is the heater element used on your make, model, and year of spa. If you've had the spa since new, and the heater has never been changed, it should work great. If you're unsure of the spa's history, give us a call and we'll walk you through double-checking.
