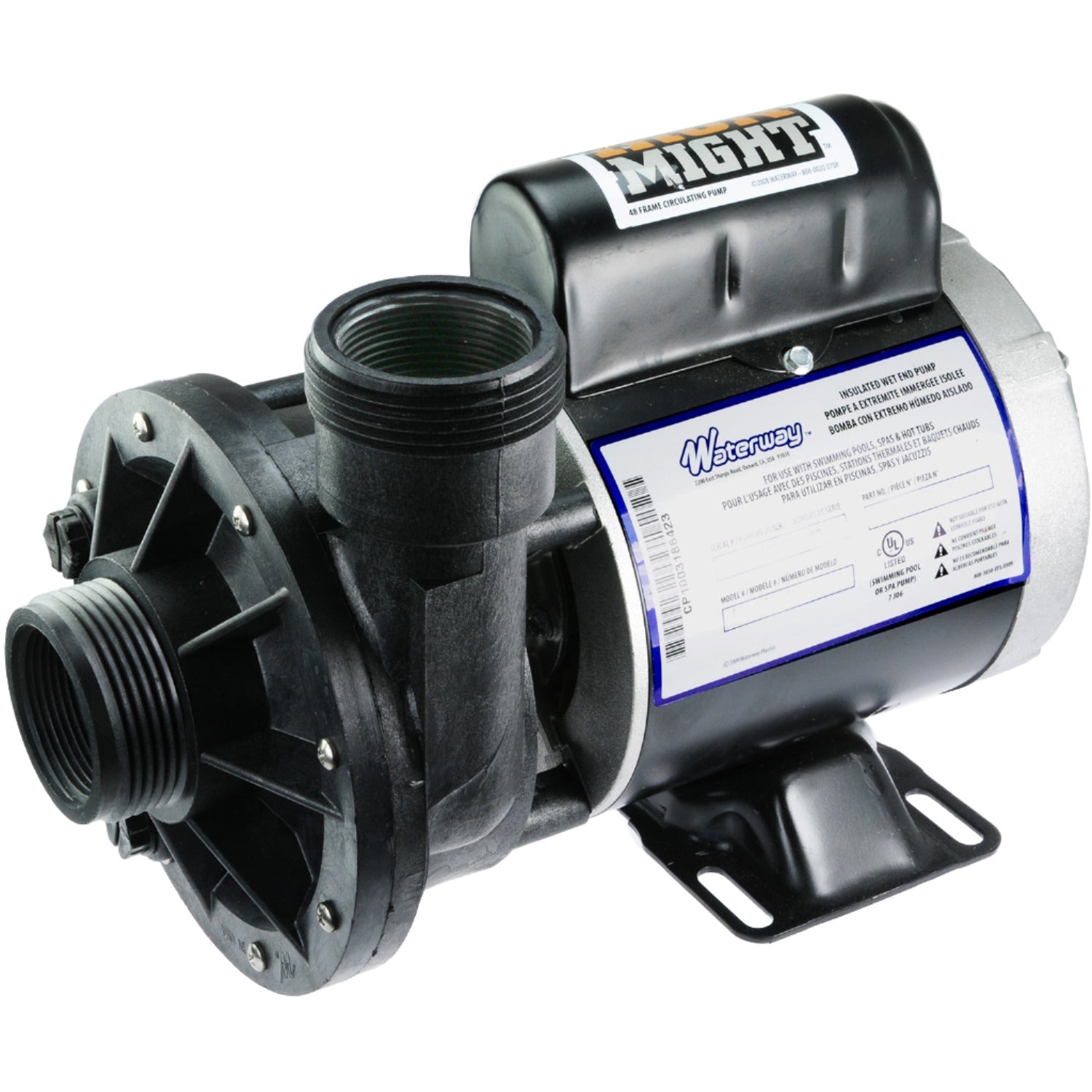

Waterway Iron Might Circulating Pump 1.5" 240V
BX4204
The Waterway Iron Might Circulation Pump is rated for continuous 24-hour operation and delivers 40 GPM.
- Works with high flow 15"x2" heaters
Product notes: 1.5" (nominal) threaded male or female inlet/outlet (2 3/8" O.D. thread to thread). 220-240V, .65A, 1/15 HP. 1-year manufacturer's warranty.
Voltage: 220-240V
Horsepower: 1/15 HP
Amperage: .65A
Gallons Per Minute: 40 GPM
Frame Size: 48 Frame

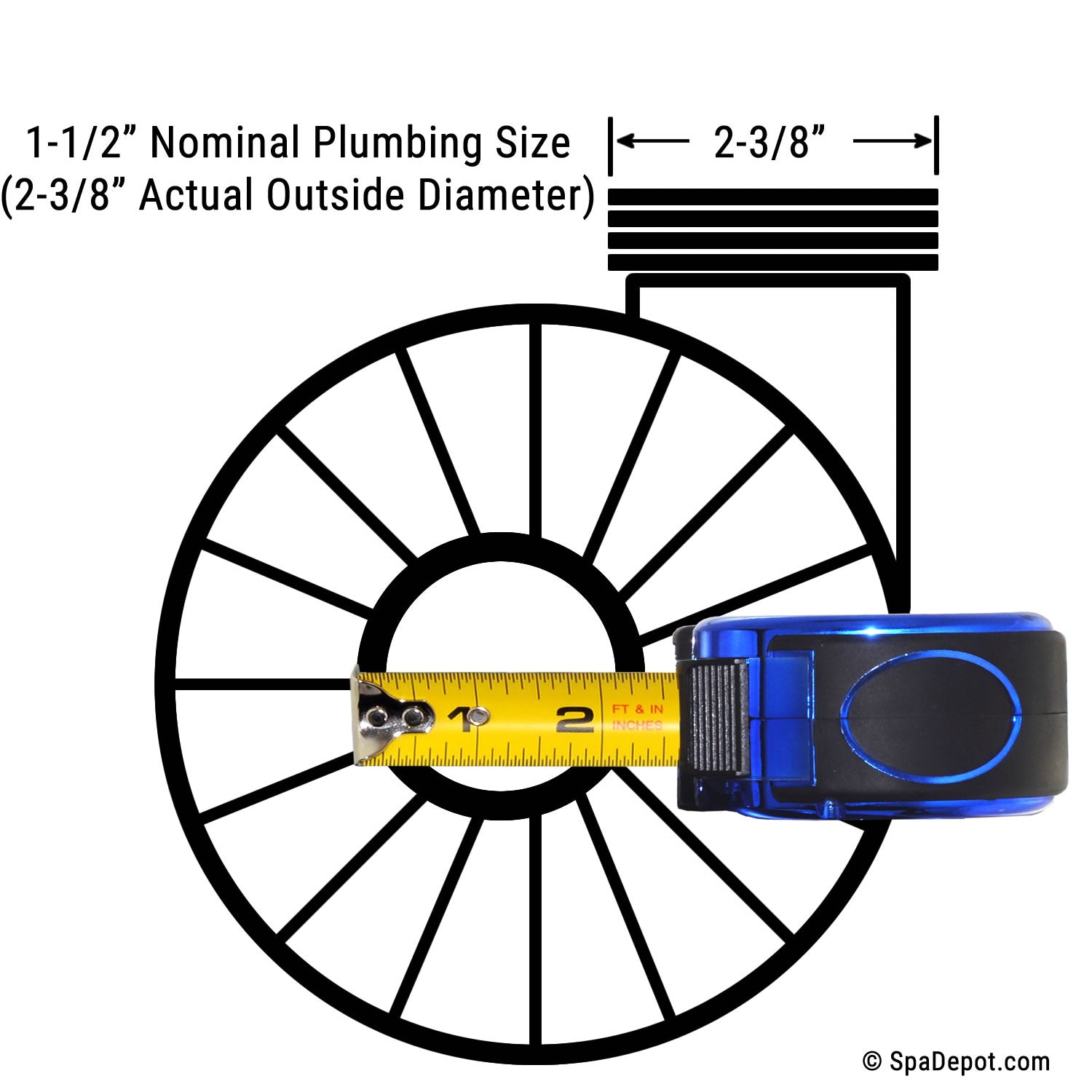

Intake: 1.5” plumbing (2.375” O.D. pump threads)
Discharge: 1.5” plumbing (2.375” O.D. pump threads)
Discharge Type: Side
Wet End Discharge Orientation: Top (can easily be rotated)

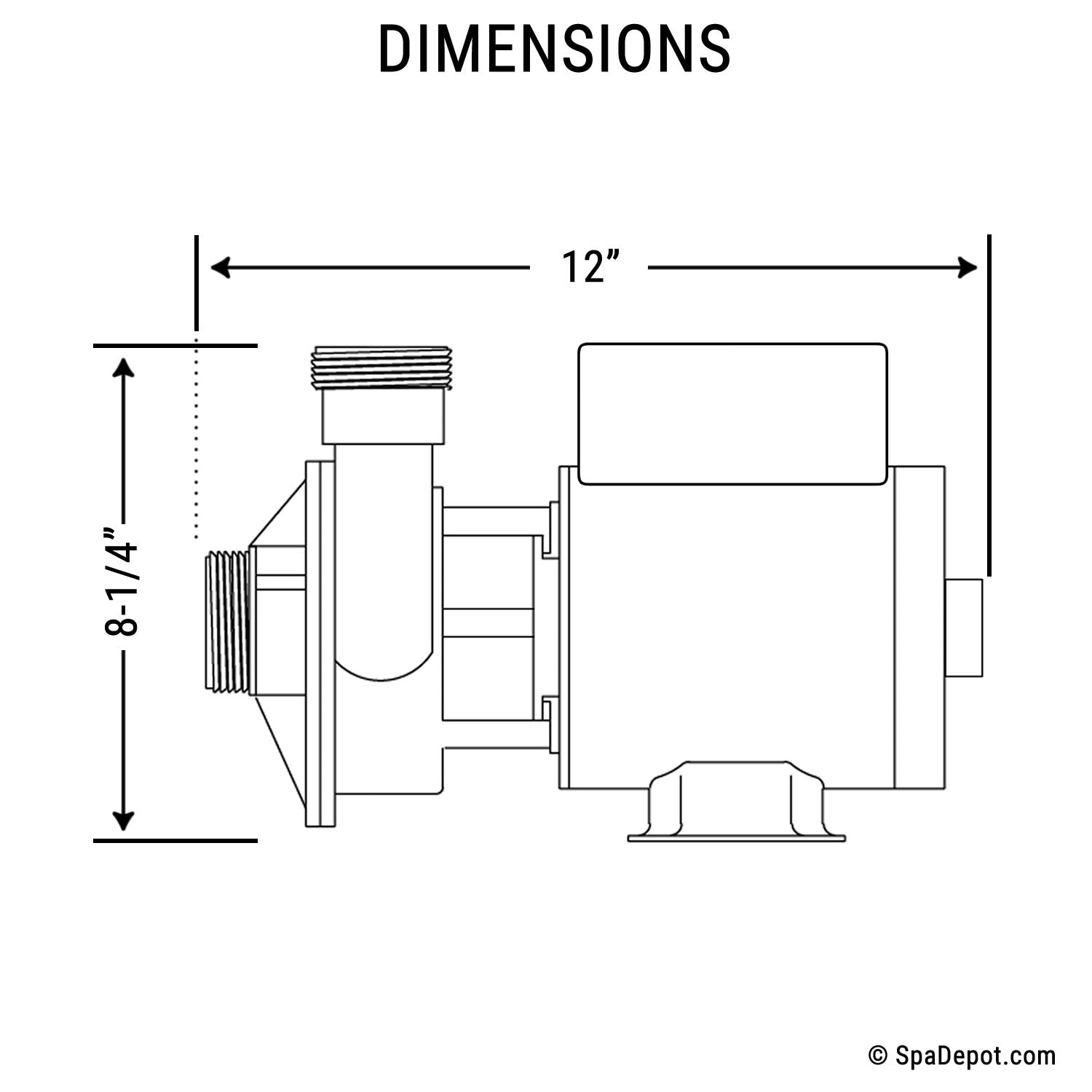

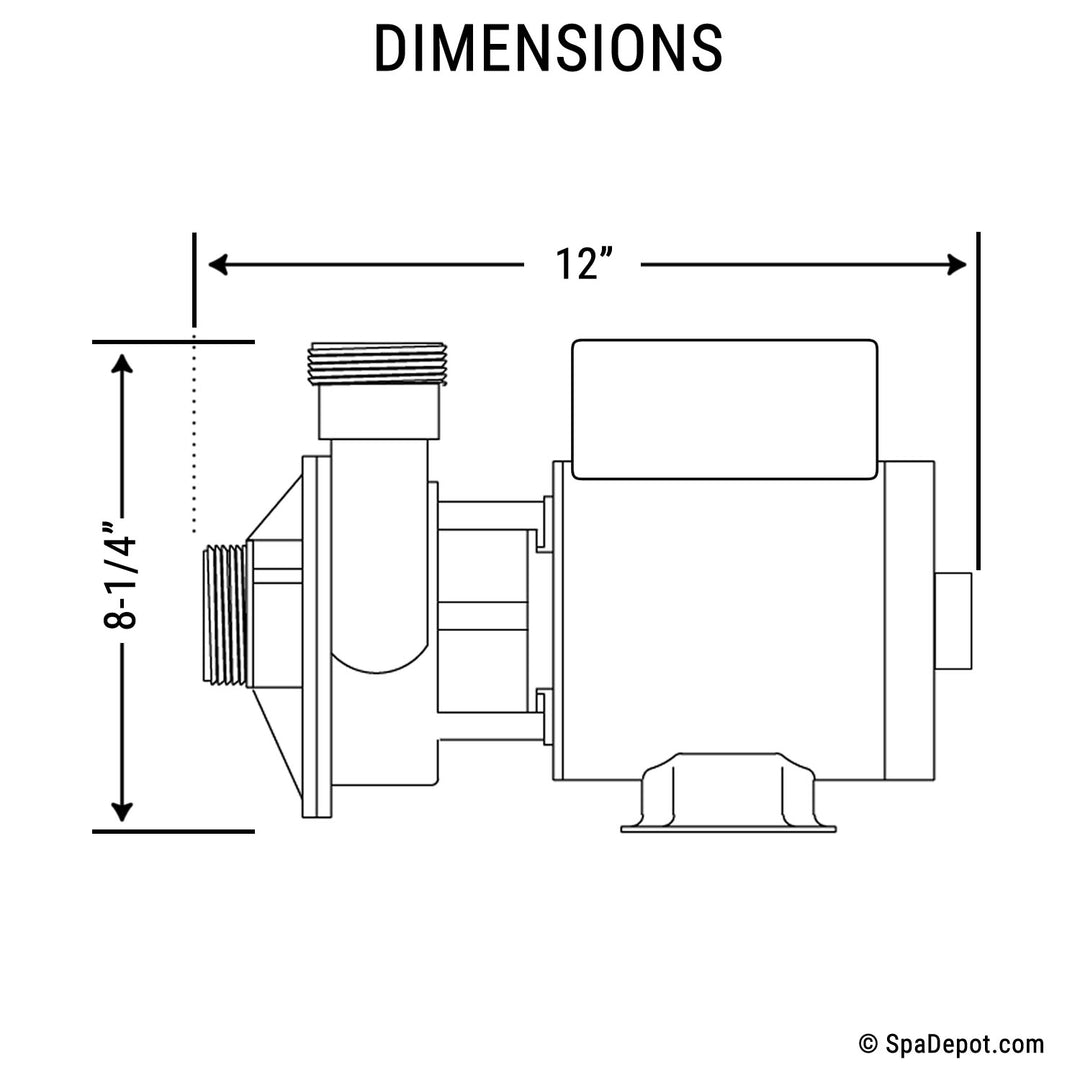

Overall Length: 12”
Waterway Cross Reference: 3410020-1E, 34100201E, 3410020-1EHZN, CP181N22A, WW34100201E
Aqua Flo Cross Reference: 02093001-2010, 02093695-2, 02410512-2, 02093002, 02093003, 02093004, 02093006, 02093007, 02093400, 02093448, 02093466, 02093492, 02093634, 02093638, 02093638, 02093639, 02093656, 02093658
Other Cross Reference: 1-00-0204, 1030011, 10-0265-4A3-K, 10-0265-A, 1030125, 1030057, 104440, 14154, 34-402-1140, 48WTC0153C-I, 6000-907, 6500-907, 993-0380A-A6-S, 993-0265A-L48-S, 993-0265A-L48, 993-0265A-A48,
Warranty: 12 Month Limited Warranty
