Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V
Waterway Iron Might Circulating Pump 1.5" 120V

Waterway Iron Might Circulating Pump 1.5" 120V

BX4205
Save $-242.95
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
  • Low stock - 12 items left
  • Backordered, shipping soon
Ships next business day.

Add to Order (recommended):

O-Ring Gasket 1.5" (2-3/8"OD) - 2-Pack
O-Ring Gasket 1½" (2⅜"OD) 2-Pk
$4.95
Silencer Anti-Vibration Spa Pump Motor Base
Silencer Quiet Spa Pump Motor Base
$9.95

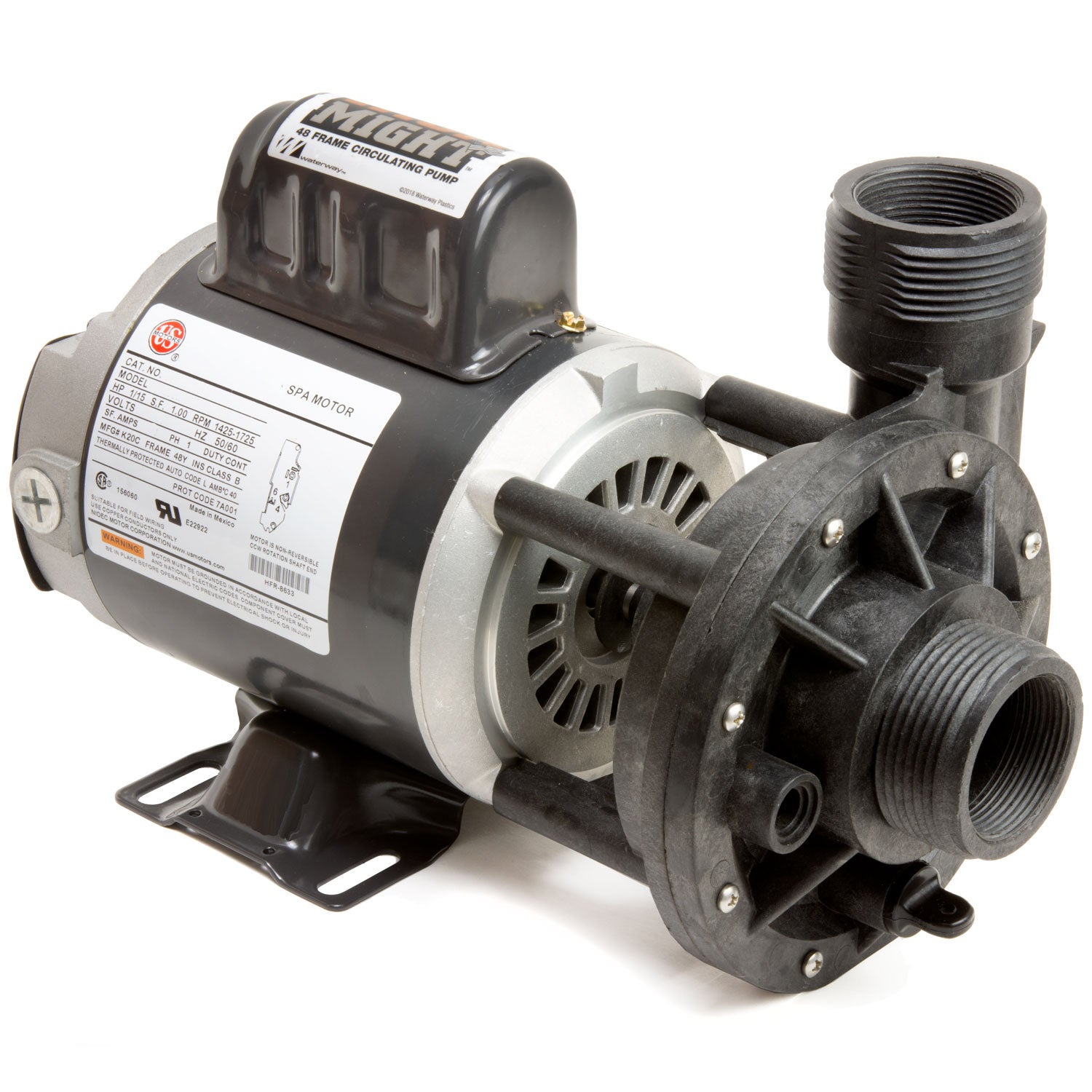

The Waterway Iron Might Circulation Pump is rated for continuous 24-hour operation and delivers 40 GPM.

  • Works with high flow 15"x2" heaters

Product notes: 1.5" (nominal) threaded male or female inlet/outlet (2⅜" O.D. thread to thread). 110-120V, 1.3A, ¹⁄₁₅ HP. 1-year manufacturer's warranty.

Details:

Voltage: 110-120V

Horsepower: ¹⁄₁₅ HP

Amperage: 1.3A (120V)

Gallons Per Minute: 40 GPM

Frame Size: 48 Frame

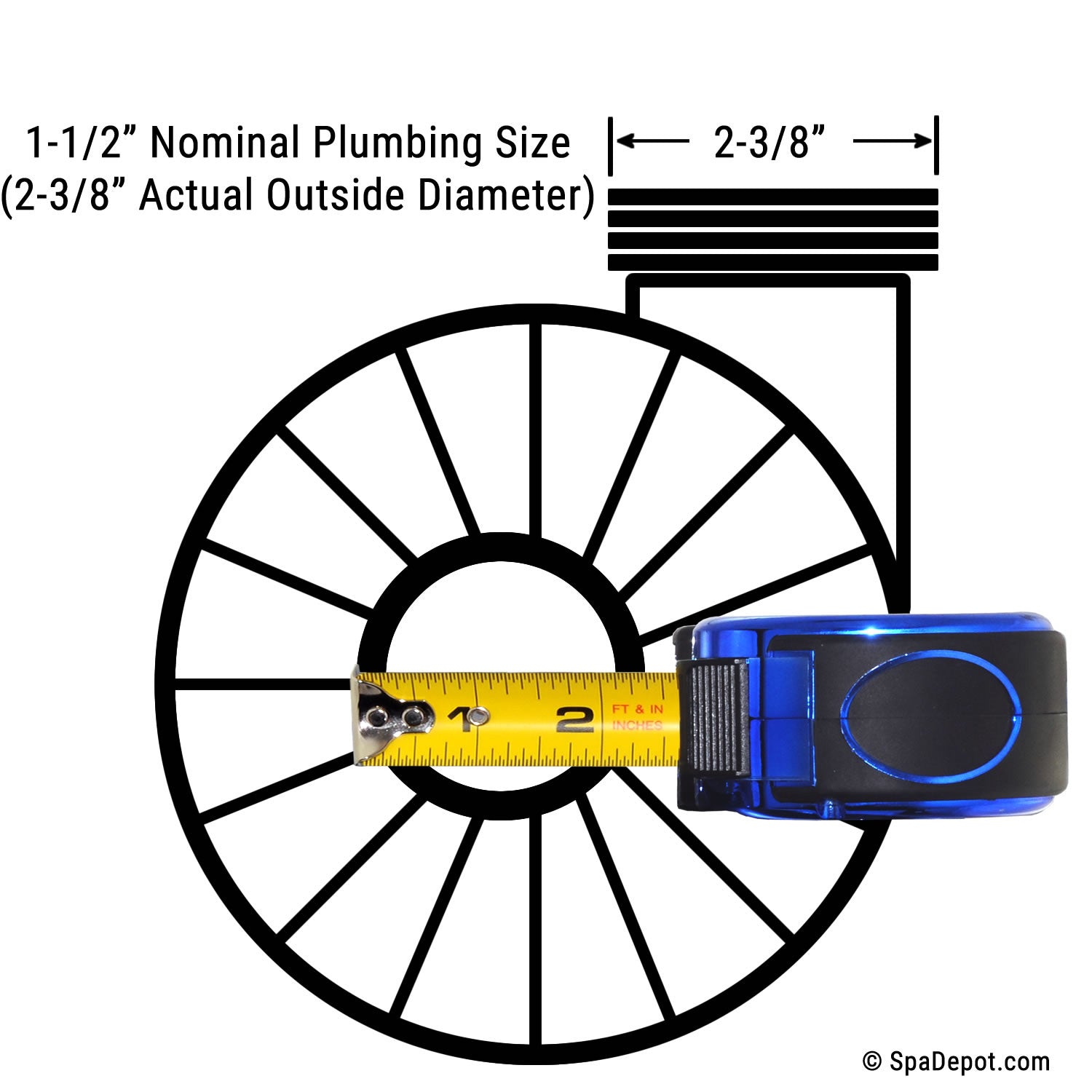

Intake: 1.5” plumbing (2.375” O.D. pump threads)

Discharge: 1.5” plumbing (2.375” O.D. pump threads)

Discharge Type: Side

Wet End Discharge Orientation: Top (can easily be rotated)

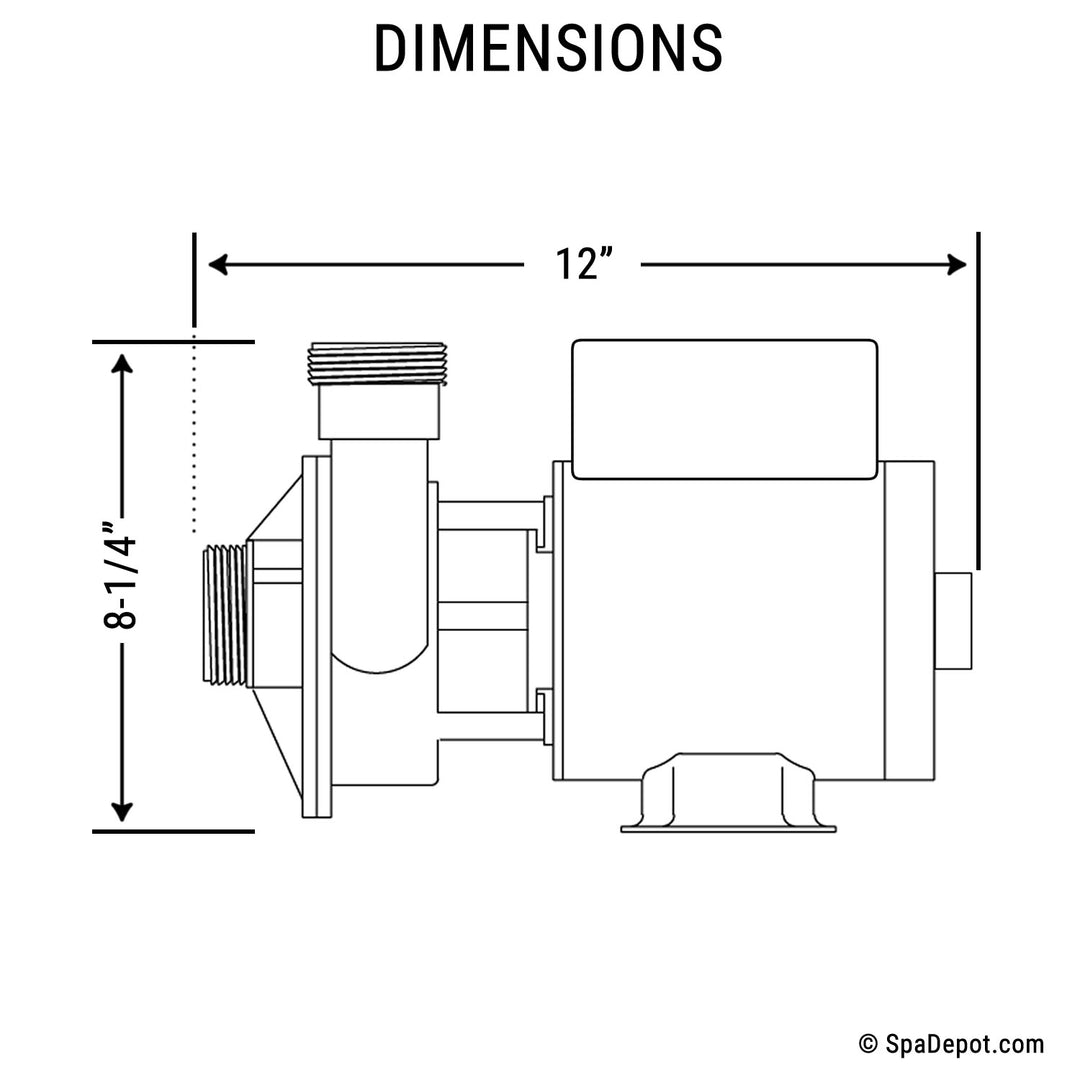

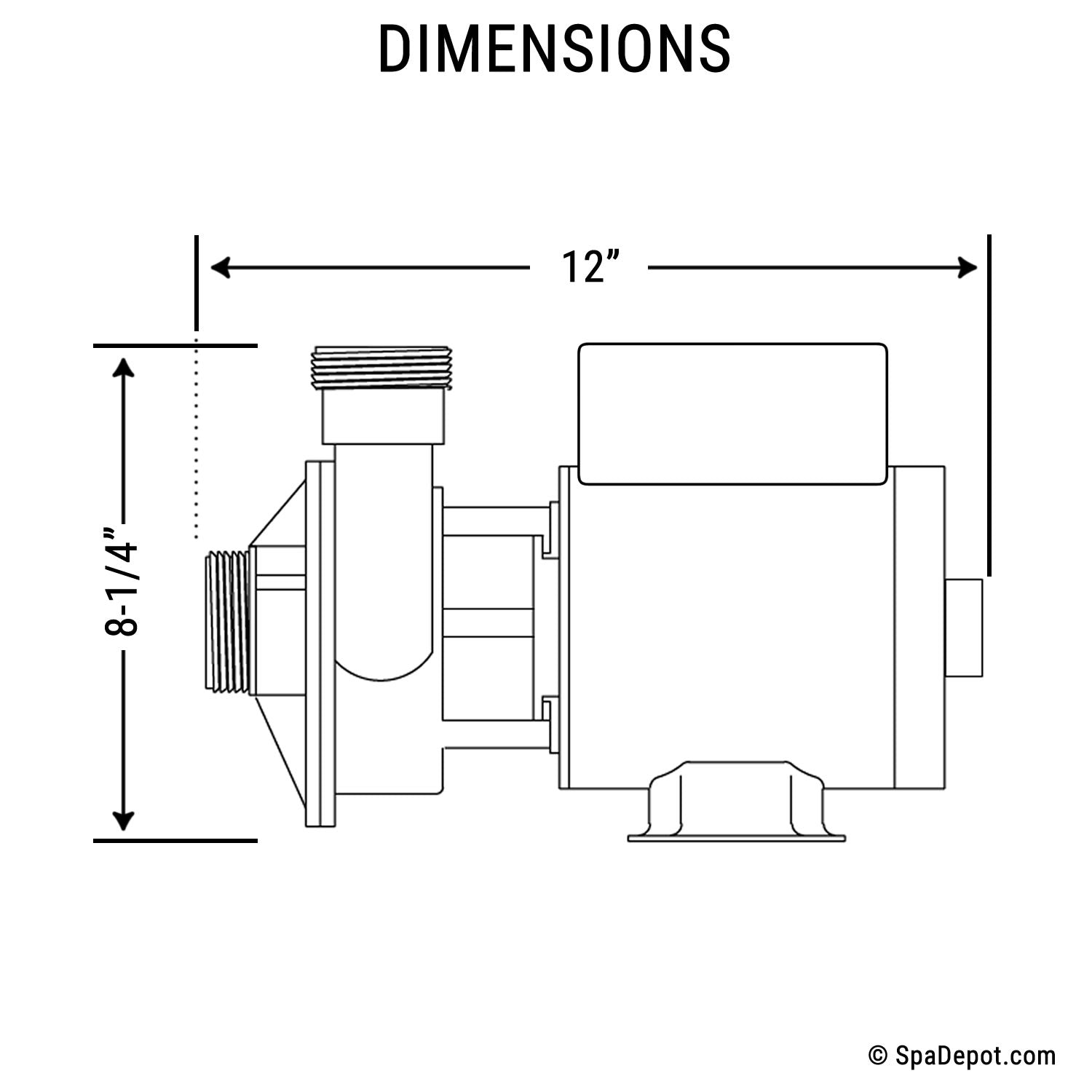

Overall Length: 12”

Waterway Cross Reference: 3410030-0E, 3410030-1E, 34100301E, CP181N11A, WW34100301E

Aqua Flo Cross Reference: 02093000-2010

Other Cross Reference: 1-00-0182, 5175-011, 34-270-1050, 15-350-255, 48WTC0153C-I

Warranty: 12 Month Limited Warranty
