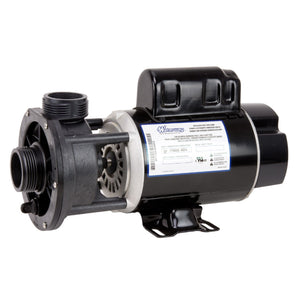

1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V

1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V
1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V
1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V
1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V

1.5 HP Waterway Center Discharge Spa Pump: 1.5" in/out 48Fr-120V

Regular price $309.95
Qualifies for Free Shipping Free standard shipping to US contiguous 48 states for $100+ merchandise total.
Delivery to US-48 Only This item is not available for delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Inventory on the way
Ships next business day.

Durable Waterway eSeries Spa Pumps are simple to install and provide years of trouble-free use. Because of our huge buying power, you'll pay less for a complete new hot tub pump (motor & wet end) than some others charge for just a replacement motor.

  • 1-1/2" Center discharge
  • 2-Speed

Product Notes: 110 - 120V. 2-speed; easily configured for 1-speed. Waterway uses various motor manufacturers, so capacitor location may be external or internal. Order new pump unions if needed. Some brands (such as Hayward, Jacuzzi or Sta-Rite) may use non-standard fittings with different dimensions.

Pump Selection & Installation Guide

Voltage: 110-120V

Speed: 2-speed: 3450 RPM high/1725 RPM low

Horsepower: 1.5 HP

Amperage: 13.3A high/4.1A low

Gallons Per Minute: 130 GPM (high speed)

Frame Size: 48 Frame

Intake: 1.5" plumbing (2.375" O.D. pump threads)

Discharge: 1.5" plumbing (2.375" O.D. pump threads)

Discharge Type: Center

Wet End Discharge Orientation: Top (can easily be rotated)

Overall Length: 16"

Waterway Cross Reference: 3420610-15, SP-15-2N11CD, 311-1110

Aqua-Flo Cross Reference: 02610500-2000

Motor Cross Reference: RB804, BN50, 5KCP39SN4457X, EZBN50

Warranty: 12 Month Limited Warranty

Horsepower Ratings

Choosing a pump based on Horsepower (HP) can be misleading. The horsepower listed in your spa manual or on old pump's label may be overinflated, inaccurate, or even left blank. Horsepower ratings are often listed as Break Horsepower (BHP), which is not the same as continuous horsepower. Selecting a pump with too much power for your spa can cause significant damage.

To avoid choosing the incorrect pump, use the Amperage rating listed on the old pump's label to find the correct replacement instead of the horsepower. The amperage rating is listed with both high/low speed for a 2 speed pump.

Determining Spa Pump Plumbing Size

Pump plumbing sizes are nominal and not actual outside diameter (O.D.) of the threaded intake or discharge. Use a tape measure and check the diameter of your old pump thread size.

  • 1.5” Pump thread measures approx. 2-3/8” O.D.
  • 2.0” Pump thread measures approx. 3” O.D.
  • 2.5” Pump thread measures approx. 3-5/8”

Orientation of Wet End

Pump wet ends can be oriented in 90º increments to meet your installation requirements. Loosen the four through-bolts from the back of the motor and pull them back enough to disengage. Then rotate the wet end to the desired position realign and re-tighten the bolts.

Side or Center Discharge

The two spa pump form factors refer to the outflow or discharge fitting on the Wet End. Your old pump will be either Center Discharge or Side Discharge.

In most cases you need to match the existing form factor to get the components to match up. If you can use either form, select Side Discharge, which is more efficient than a Center Discharge pump of the same horsepower.

Motor Frame Size

The physical size of the pump motor is referred to as frame. Spa main pumps will have a size of either 48 frame, which are approx. 5.5" diameter, or 56 frame, which are approx. 6.5" diameter.

Since motor manufacturers do not label frame size consistently, you should determine a motor's frame size by measuring the spacing between the through-bolts on the back of the motor. Bolt spacing on a 48 frame motor will be less than 4 inches. A 56 frame motor's bolts will be spaced more than 4 inches apart.

Note: Because of their lower cost and compact size, most spa pumps in service are 48 frame. The larger 56 frame motors are a little more expensive and somewhat stronger. They tend to operate a bit cooler than 48 frame units, which can mean longer service life.

Configuring a Pump for 2 or 1 Speed Use

Our 2-speed pumps can easily be configured for 1-speed. Wire the common and high speed terminal connections, while leaving the low speed terminal blank.

Customer Reviews

Based on 55 reviews
Yes I would buy there again

Ever time I need help or answers yall was right there an replayed fast

Spa running without any LEAKS

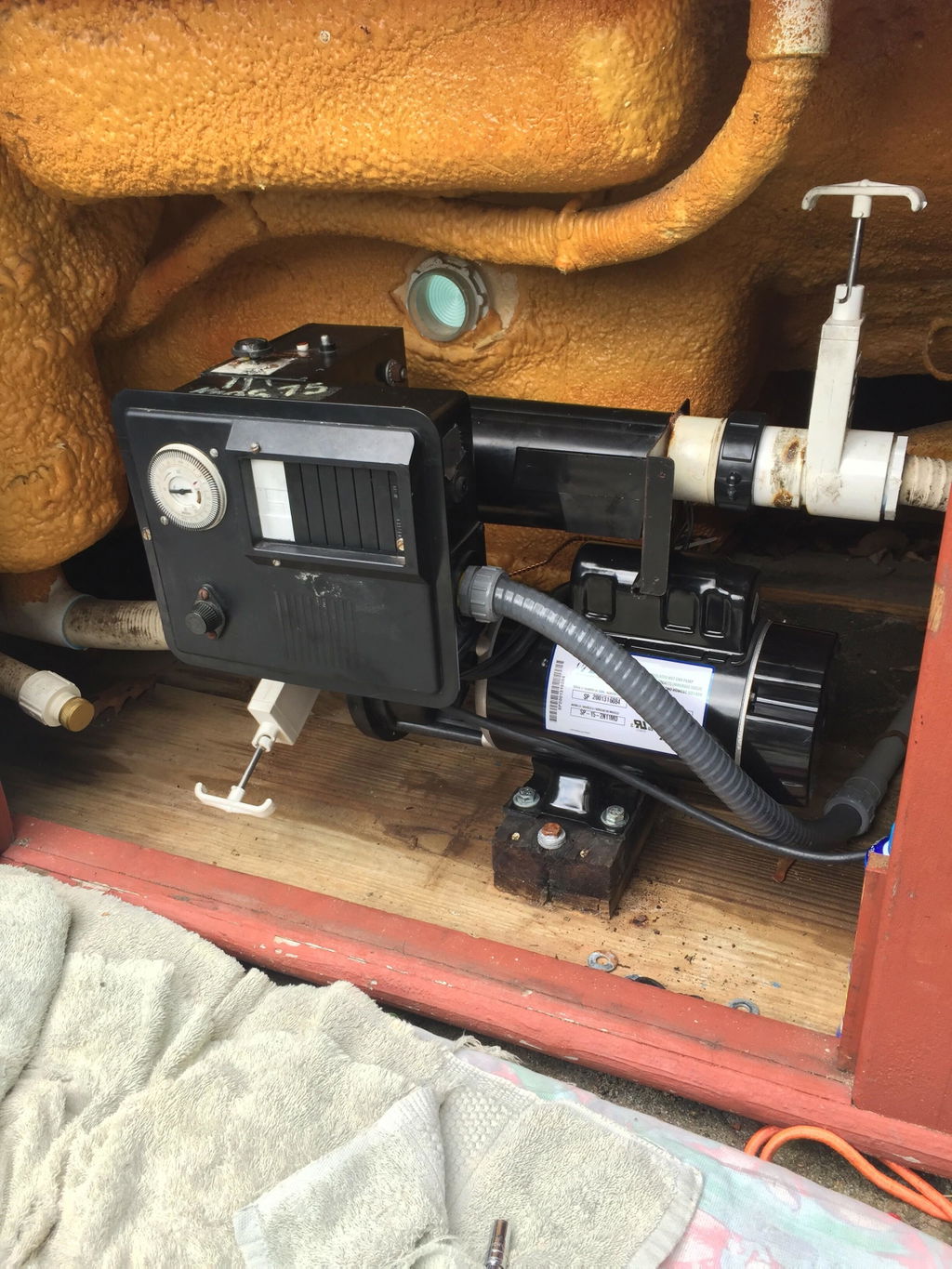

Delivered and installed, back in business, running with low noisy good balance between pump and motor. Easy direct fit using the same horsepower, pump and motor, same frame.

47 jim
Would buy again works great and quietly

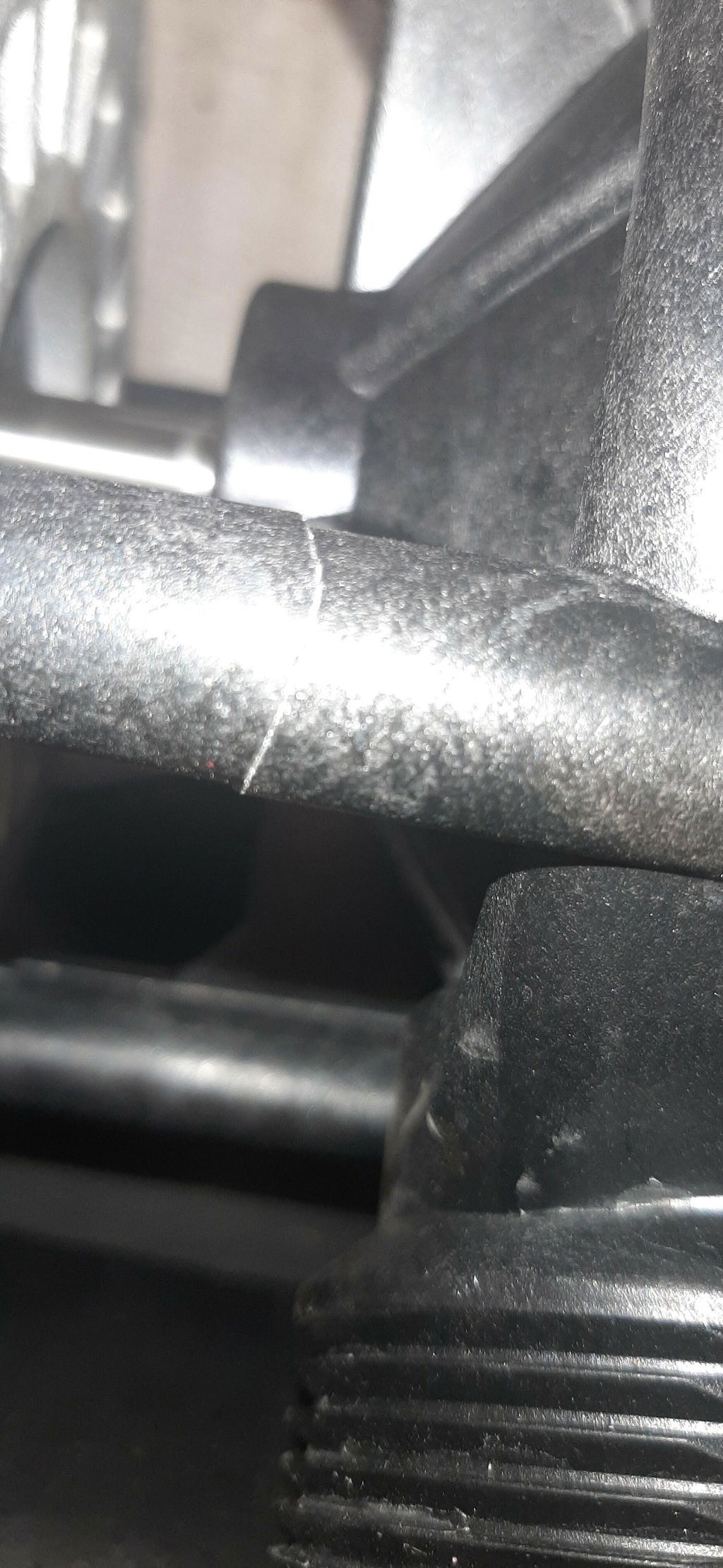

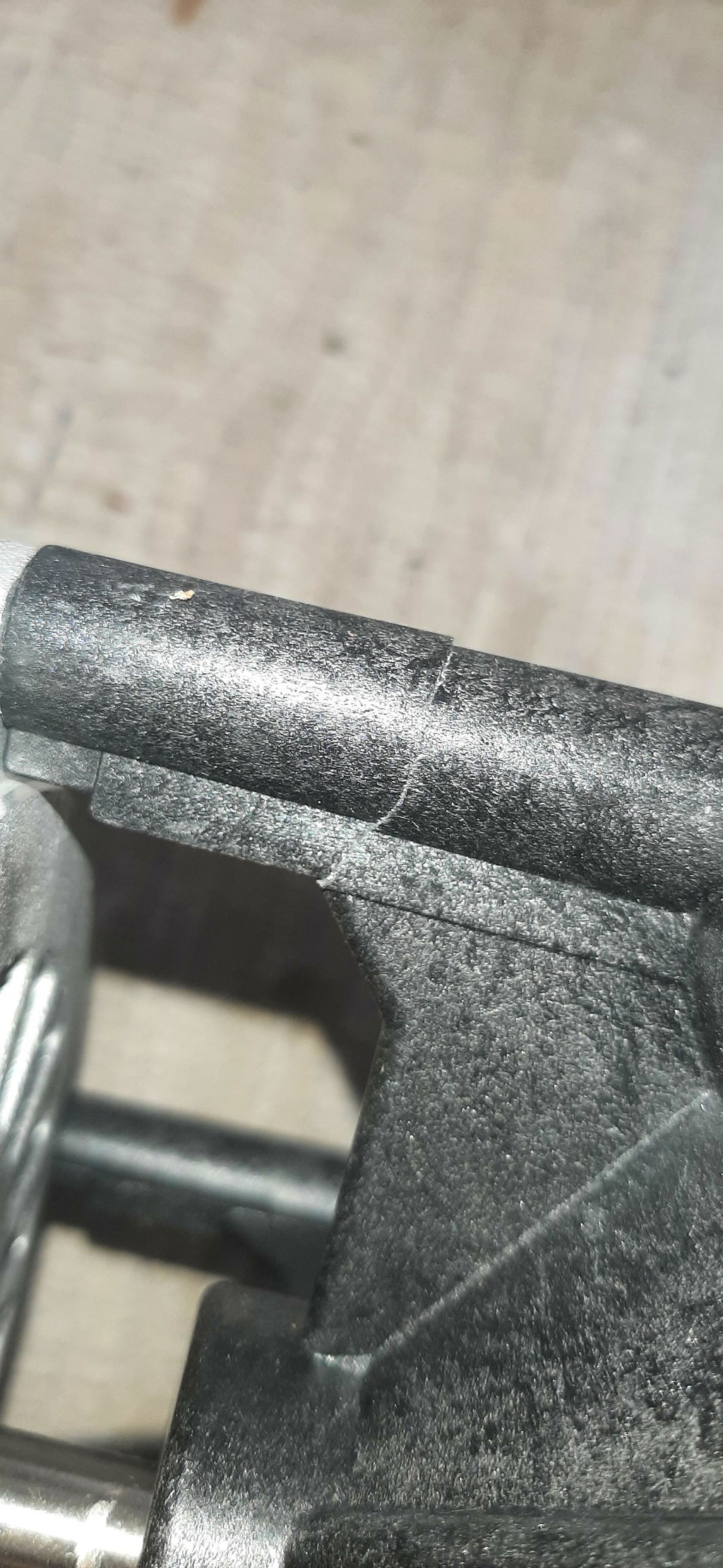

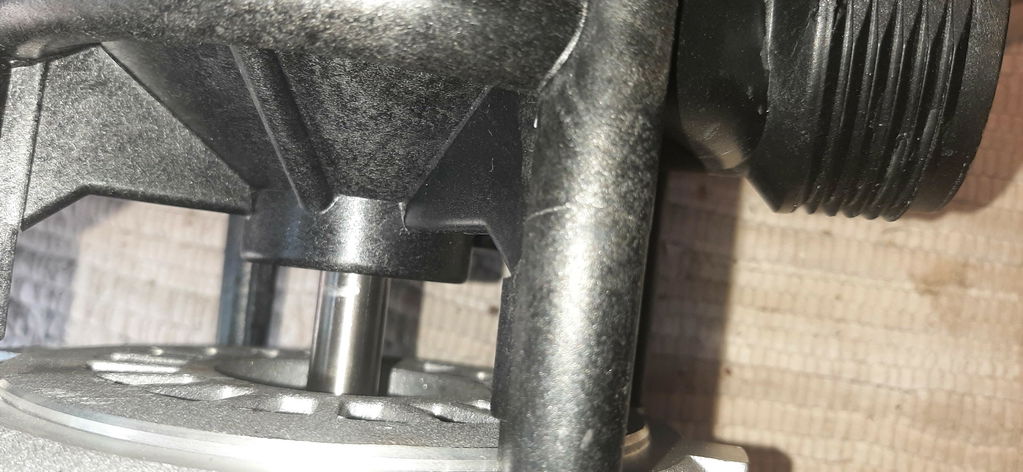

Works great and quietly. People when ordering as always with spa depot were great always know what your products are. Unfortunately two of the mount legs from motor to pump were cracked , didn't want to shut down my tub waiting to ship back and wait. I took it apart glued them and installed it so far its good. I don't belive for a minute it was shipped that way the box wasn't smashed. Have recommended spa depot to others and will continue to.

I would buy again

Replaced pump on hot tub. Went very well. 2hr start to finish and work great.

Fast Service

Spa Depot always has the parts I need and they deliver quickly. Never had a problem with them or their products.

100 % Satisfied

Working as it should.

Clay Martin
Seems like a good product

The 5 start part was they excellent customer service helping get the the correct pump. The pump seems to be middle of the road quality. But is quiet and it uses less electric

Yes I would it was fast shipment and the guy was very helpfu

Thank you so much yes the pump work just fine the people on the phone were very helpful and it was fast shipping I will buy from you again thank you

T. Malan
Perfect 1.5HP Spa pump replacement...

Excellent product design and configuration. Perfect for our older 3-person spa with large size jets. Outperforms many newer spas!

great price perfect fit

Bought to replace old unit vs piece cha$e fix individual parts. Worked and fit great when installed.
