VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
Premium quality made in USA
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
Premium quality made in USA

VersaTherm Universal Spa Heater Assembly

BX5950
Save $-119.95
/
Free Shipping
Need Help? Send Photos!
Choose Heater Wattage and Service Life: (Select One)
4.0kW@240V (1.0kW@120V) Incoloy
4.0kW@240V (1.0kW@120V) Titanium (+$20)
5.5kW@240V (1.375kW@120V) Incoloy
5.5kW@240V (1.375kW@120V) Titanium (+$20)
Please select
Select Title

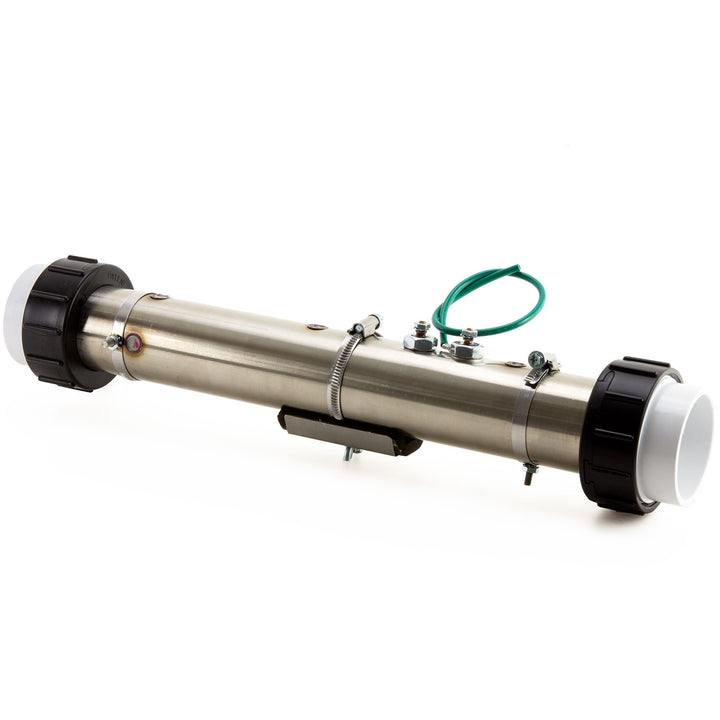

Our VersaTherm Universal Replacement Hot Tub Heater Assembly has the first adaptable heater manifold. Movable mounting studs, multi-positional external thermowell, and (5) pressure tap locations assure fit and proper operation for super easy installation. No more guesswork or retrofit headaches! You cannot buy a better spa heater at any price.

  • 240V/120V - Wattage Choice - Incoloy or Titanium

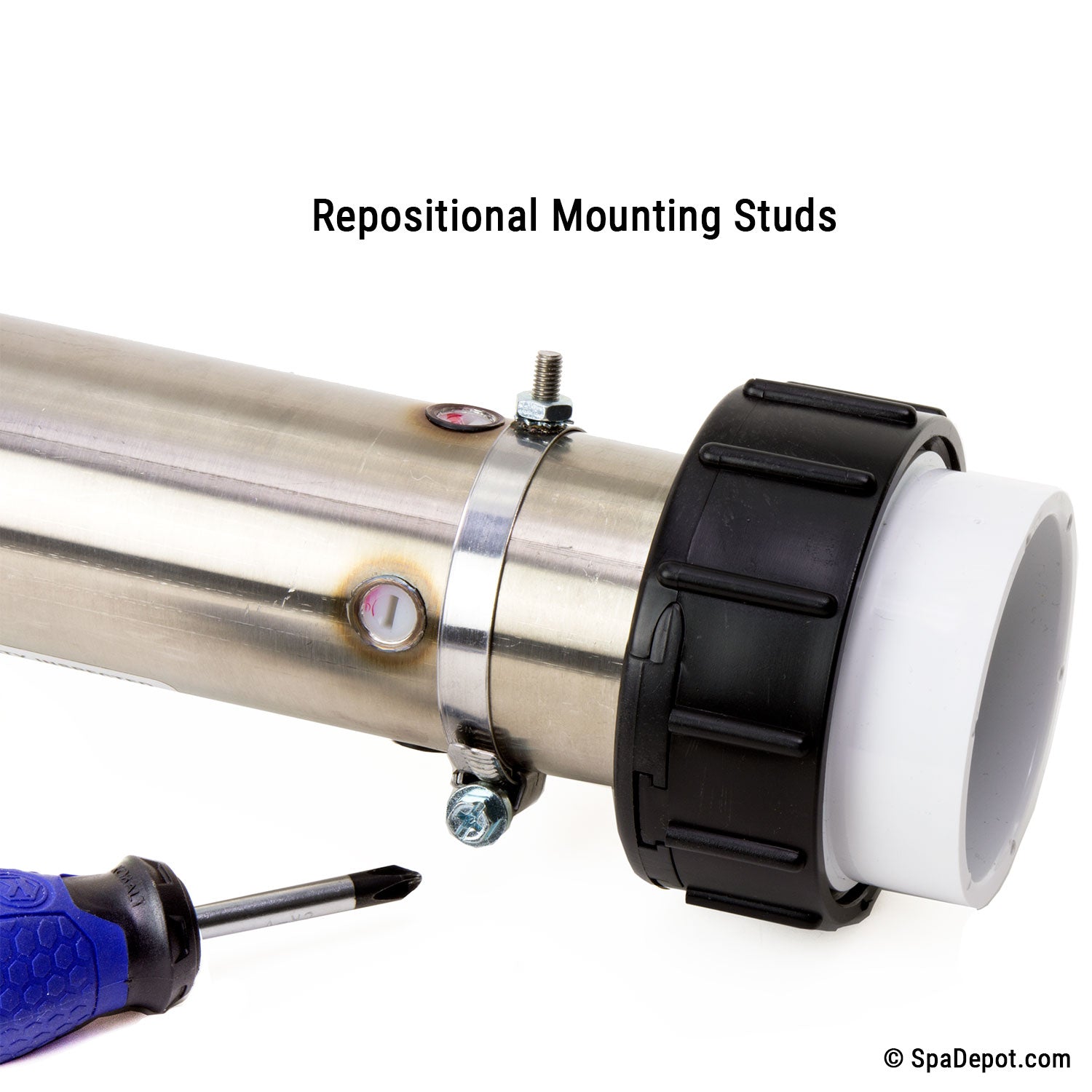

  • Movable Studs & dual capacity Thermowell
  • (5) Sensor Taps with removable plugs

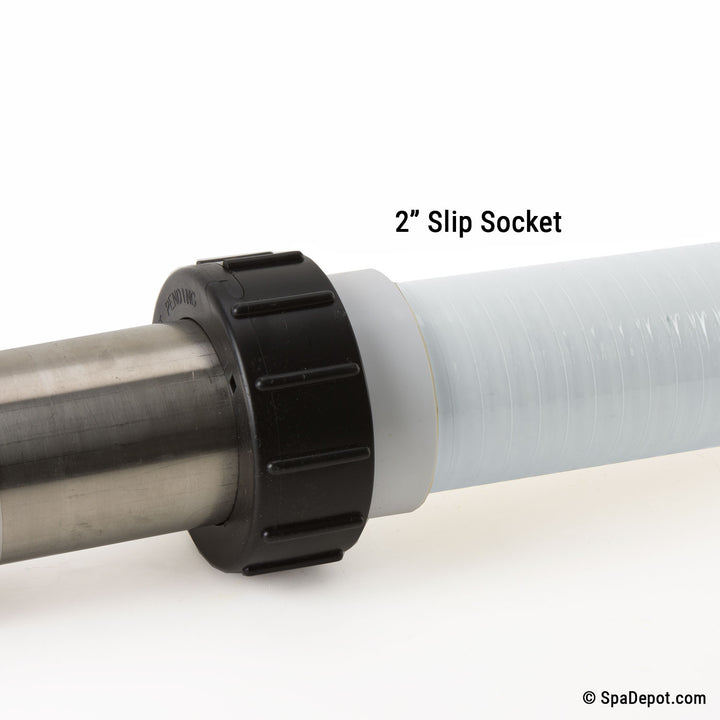

  • 2" Slip Socket tailpieces

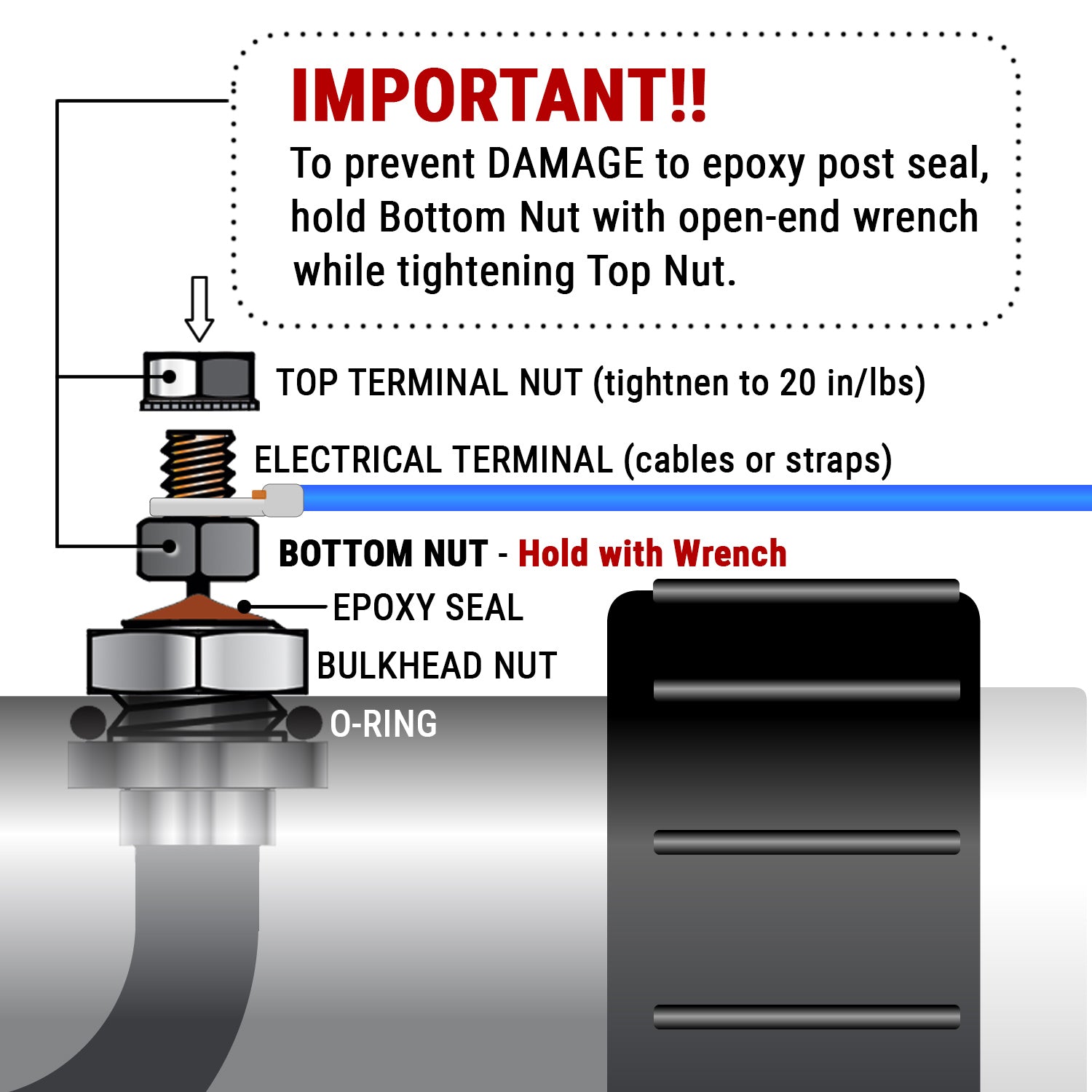

Product Notes: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. Tighten top nut, while holding bottom terminal nut (as illustrated). 1-year element warranty on Incoloy, 2 years on Titanium. See cross ref. guide below.

Details

Length: 15” Stainless Steel Tube (not including unions)

Connection: 2” Slip Socket (Easily Convertible to 1½” Plumbing)

Voltage: 240V/120V

Wattage Choice:   5.5kW | 4kW

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Pressure Taps: (5) Flush Mount w/Plugs (removable with screwdriver)

Thermowell Housing: 360° Adjustable or Removable, Dual Capacity

Ground Wire: Included

Replacement Element: BX5000 Flow-Thru Spa Heater Element

Replaces Part Numbers: View Spa Heater Cross Reference Guide

Warranty:  Long Life Titanium - 2 years / Standard Incoloy - 1 year
Need Help? Send Photos!

CALIFORNIA WARNING

Often bought together:
Pressure Switch - Adjustable, SPST-NO, 3902
Pressure Switch - Adjustable, SPST-NO, 3902
BX9928
Quick View
BX9888 sensor assembly mount
HydroQuip Heater Sensor Mount for Balboa M7
BX9888
Quick View
Reducer bushing 2 in. x 1.5 in.
Reducer Bushing 2"SP x 1.5"SS
BX9901
Quick View
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
BX5000
Quick View
Heater Union Split Nut Assembly - 2"
Heater Union Split Nut Assembly - 2"
BX9902
Quick View
O-Ring Gasket, 2" (2-15/16"OD) - 2-Pack
O-Ring Gasket, 2" (2¹⁵⁄₁₆"OD) 2-Pk
BX9936
Quick View
Spa strap wrench
Nut Wrangler Spa & Hot Tub Wrench - Threaded Fitting Removal Tool
MT1093
Quick View

Customers praised this universal spa heater for its versatility and excellent compatibility. "Near perfect replacement" that "fit right in" with various spa models. Easy installation in most cases, though some needed sizing adapters for different pipe dimensions. Heats "very very well" with strong performance. Exceptional customer service noted.

  • 5 stars: 8 (73%)
  • 4 stars: 3 (27%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
V
Videotechie
Economical way to keep an old spa running...

Second purchase of this item...they last about 3 years it seems. Decent quality and is truly a near universal replacement.
I have trouble getting the plastic plugs out of the sensor tap holes. Not sure what product SpeDepot puts on the threads but the plastic twists away before the plug loosens. I usually have to carefully drill them out.
Overall a great buy - far cheaper then the OEM part...if you can still get it!!

T
Tom M.
Versatile!

Good solution for a tricky problem. Made pressure switch location more accessible!

J
John M.
Spa heater from SpaDepot

Order arrived as scheduled. Great customer service.

D
Don B.
Spa Pack Heater

This was a near perfect replacement. My original heater had a stud to hold on the cover. The new one did not. I was able to hld it in place with tie wraps. Way to go . You guys deliver !

T
Todd

Awesome people to deal with - they researched the part I wanted to purchase to make sure it would fit & sent a confirmation email prior to ordering it

G
Gary
Perfect hot tub heater

Had great difficulty finding this heater tube/ element that would fit my tub. This arrived in only a few days to Canada and with all the universal adjustments my hot tub was back up and running in no time. Will buy from here again as required !!

B
Brian N.
Easy to install and fit perfectly

This universal heater assembly fit our Royal Spa hot tub perfectly. It was easy to install and I didn't have to make any modifications to the spa setup (hose placement or connections).

J
Jay V.
Very nice ..but

Heats very very well ...the installation was a bit of a hassle just because of the extra sizing ..being it was a 2"" heater unit and my old 1 was 1 & 1/2 ""...i had to move main contol box add reducers add extra length to fit up with previos piping ...but over all very pleased with performance

A
Anonymous
nice

the original manufacturer for my spa is no longer in business so I ordered this assembly and it fit right in but the element was bad called and they sent me a replacement took all of five minutes on the phone and now my spa is back up and working great thanks for the awesome customer service

A
Anonymous
Great product

Easy installation and cross reference. Very helpful when ordering.

A
Anonymous
pleasant surprise

Shocked when I received unit & it stated 240 volts on the container. Relooked at Spa Depot information & realized that it was universal 120-240. Shocked again when opening the box & found no instructions. Very happy when I googled Versa-Therm & found the active instructions!!!! I would like to mount outside the hot tub as it is beautiful & extremely well made.

M
Michel

How do you remove the plugs without them breaking away

SpaDepot.com

Heat the plugs and they'll remove easily. Avoid a heat gun, but a hair dryer will work well.

J
Jeannie

We have a versa heating tube and wondering if it makes a difference in what direction the tube is installed for flow? A new heater tube was installed and now we can not get FLO off and spa water is not going thru the filter. Help.

SpaDepot.com

The heater isn't directional but if you're using a pressure switch, the pump MUST discharge through the heater. Email us (help@spadepot.com) a photo of your setup and we'll be happy to troubleshoot and get your spa back up and running.

W
William K.

My versa-therm heater assembly #BX5950AT has a ground wire attached to it, my old heater assembly did not have a ground wire, must this unit be grounded or is that optional? Thanks

SpaDepot.com

Grounding the heater is mandatory, but using the provided grounding wire is optional. Ground the new heater the same way the old heater was grounded. If you have any questions, give us a call and we'll walk you through installation.

S
Steven S.

Which wattage heater do I order?

SpaDepot.com

If you examine the labels on your heater, the wattage should be listed either in watts or kilowatts. If you can't find it, give us a call and we can help you select the correct replacement.
