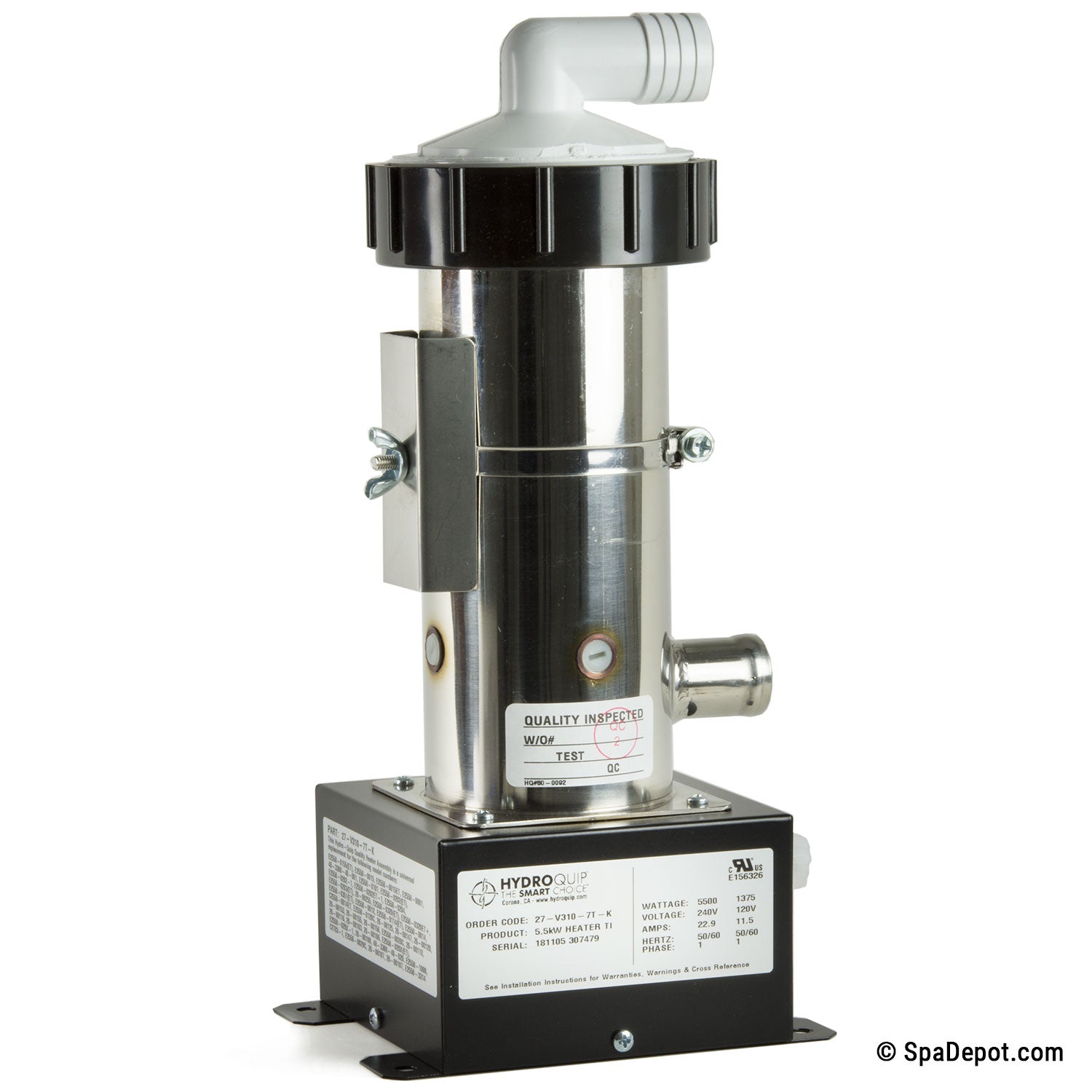

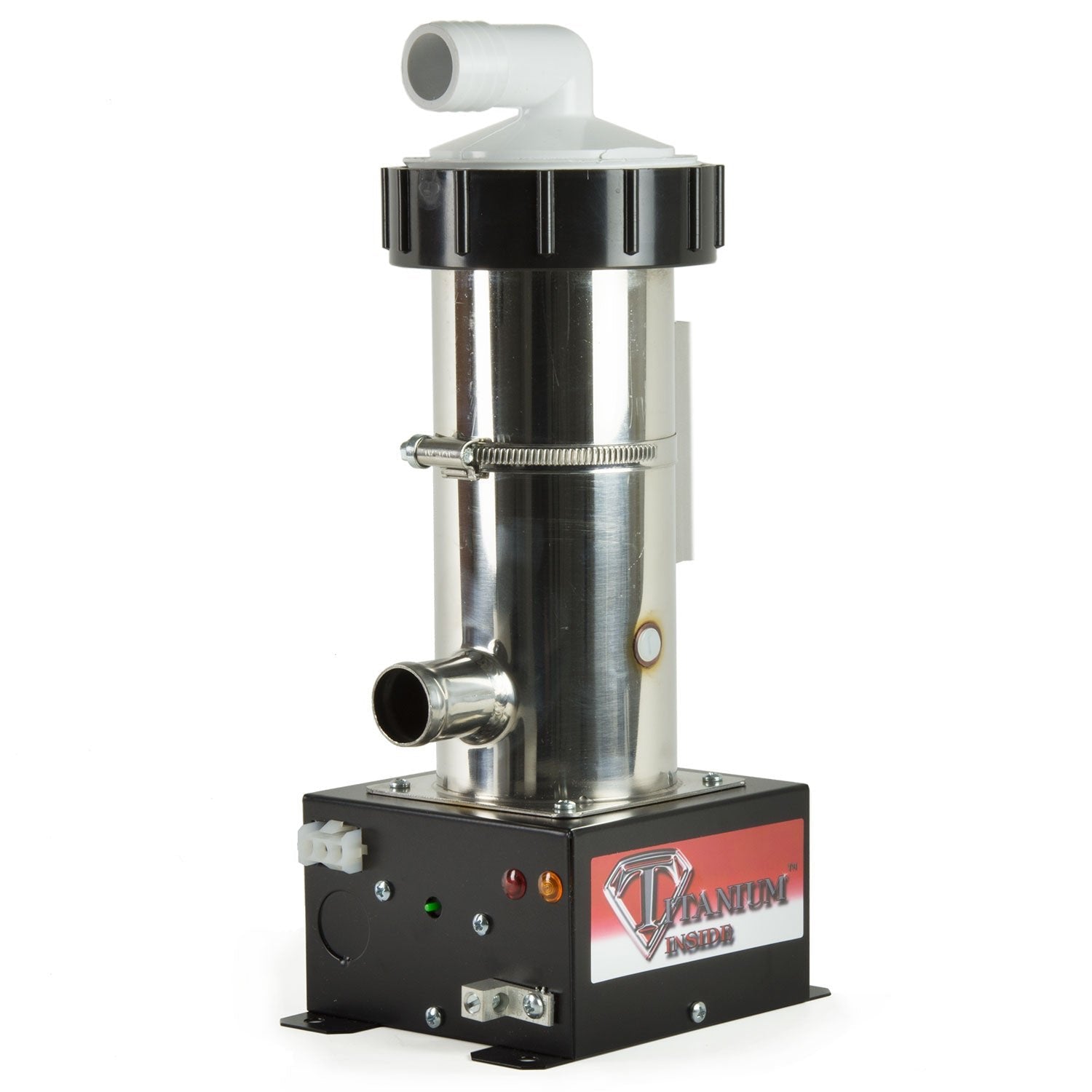

Universal Vertical Low-Flow Spa Heater Assembly

BX5967
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly
Universal Vertical Low-Flow Spa Heater Assembly

Universal Vertical Low-Flow Spa Heater Assembly

BX5967
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Heater Wattage * (Select One)
5.5kW@240V (1.375kW@120V)
4.0kW@240V (1.0kW@120V)
  • In stock, ready to ship
  • Inventory on the way
Ships next business day.

Universal Low Flow Canister Hot Tub Heater Assembly is the adaptable solution for obsolete lo-flo heaters. Reversible foot brackets, positional external thermowell, (3) pressure tap locations for easy installation. Built-in manual reset hi-limit.

  • 240V/120V - Replaceable Titanium Element
  • Movable Studs & dual Thermowell
  • (3) Sensor Taps with removable plugs
  • 90° 1" barb tailpiece with (2) 3/4" barb adapters
  • Indicator Lights for easy diagnostics

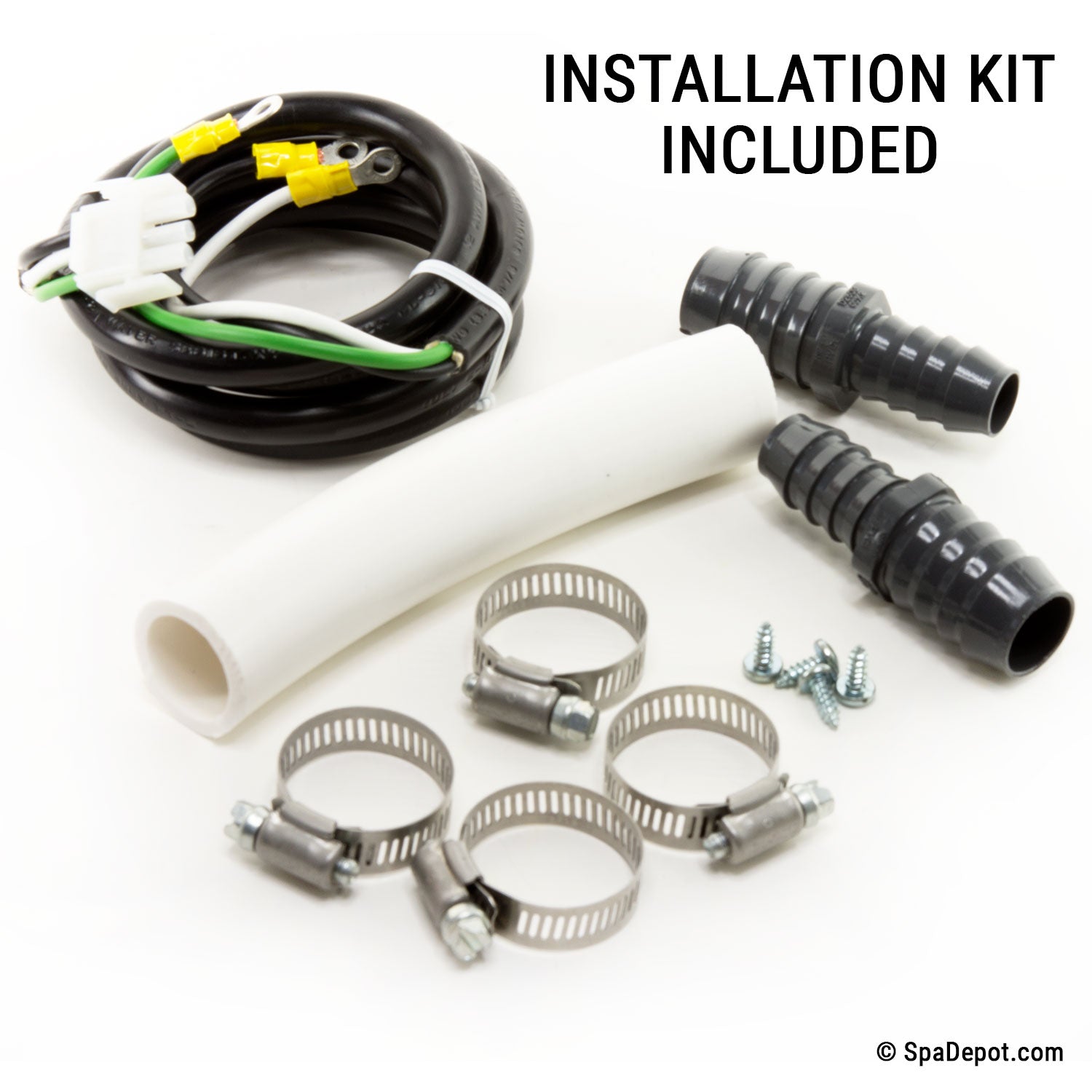

Product Notes: 3/4" plumbing adapter kit included.

Spa Heater Assembly Installation Instructions

Spa Pressure Switch Adjustment Instructions

Details:

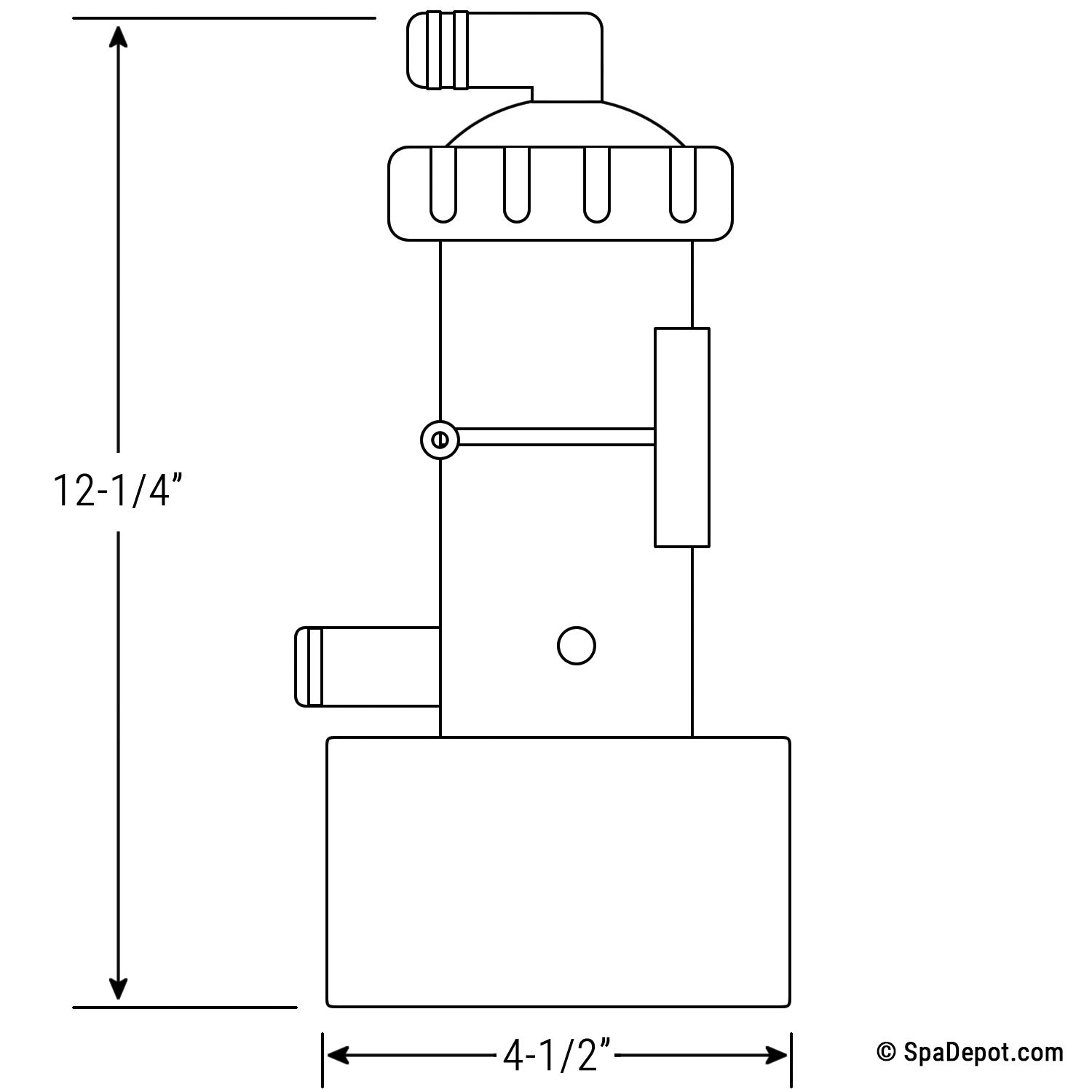

Dimensions: 12-1/4” Height

Connection: 1” Barbed Fittings (Easily Convertible to 3/4” plumbing with included adapter)

Voltage: 240V/120V

Pressure Taps: (3) Flush Mount w/Plugs (removable with screwdriver)

Wattage: A - 5.5kW @ 240V - 1.375kW @ 120V / B - 4.0kW @ 240V - 1.0kW @ 120V

Thermowell Housing: 360° Adjustable or Removable, Dual Capacity

Power Cord: 60" with 3 Ring Terminals

Replacement Element: BX5004 Low Flow Spa Heater Element

Replaces Part Numbers: 27-V310-7T-K, 27-V310-5T-K, E2400-0004, E2400-0421(ET), E2550-0155(ET), E2550-0015, E2550-0015ET, E2550-0001, 48-3300-40-001, E2550-0101, E2550-0202(ET), E2550-0202-1,E2550-0202ET-1, E2550-0204, E2550-0203(ET), 26-00255, E2550-0320(ET), E2550-0320ET+, E2550-0351(ET), E2550-0012, E2550-0114(ET), E2550-0014, E2550-0127-EXT, E2550-0127EXT, E2400-0115, E2400-0115(ET), E2400-0127, C2550-0014ET, E2300-0127ET, E2300-0126ET, E2550-0120C, HQ27V3105TK, 27V3105TK, 27-V310-5T-K, 26-08125, 26-08147, 26-08128, 26-08153, 26-08155, 26-08156, E2550-0028C, 26-08112, 26-08116, 26-08103, 26-08106, E2550-020X(ET), E2550-020X-1, 26-00100, 48-3300-40-020, E2550-1000, C2783-1, E2550-0029C, 26-08107, 26-00107, E2550-3314

Warranty: 1 year Limited Warranty
