Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium

Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium

BX5006T
Save $-39.95
/
Need Help? Send Photos!

Add to Order (recommended):

$6.95
Heater Cables: Element to Circuit Board - Pair
Heater Power Cables
Element to Circuit Board - Pair
$4.95
O-Ring Gasket, 2" (2-15/16"OD) - 2-Pack
2" Union Gasket
(2 ¹⁵⁄₁₆" OD) 2-Pk
$4.95
Lube Tube O-Ring/Gasket Lubricant-Sealant
Waterproof Lube Tube
O-Ring & Gasket Lubricant
Select Title

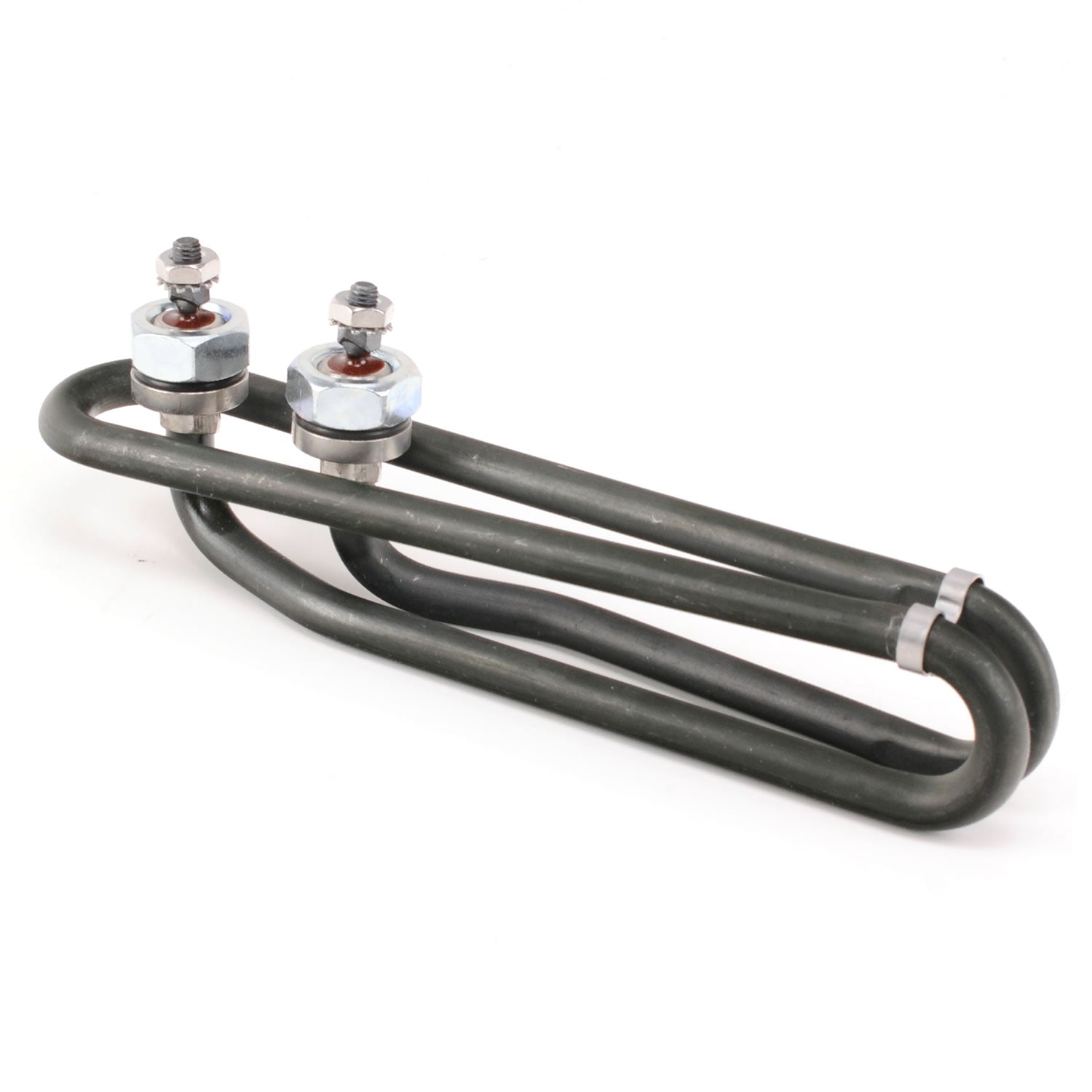

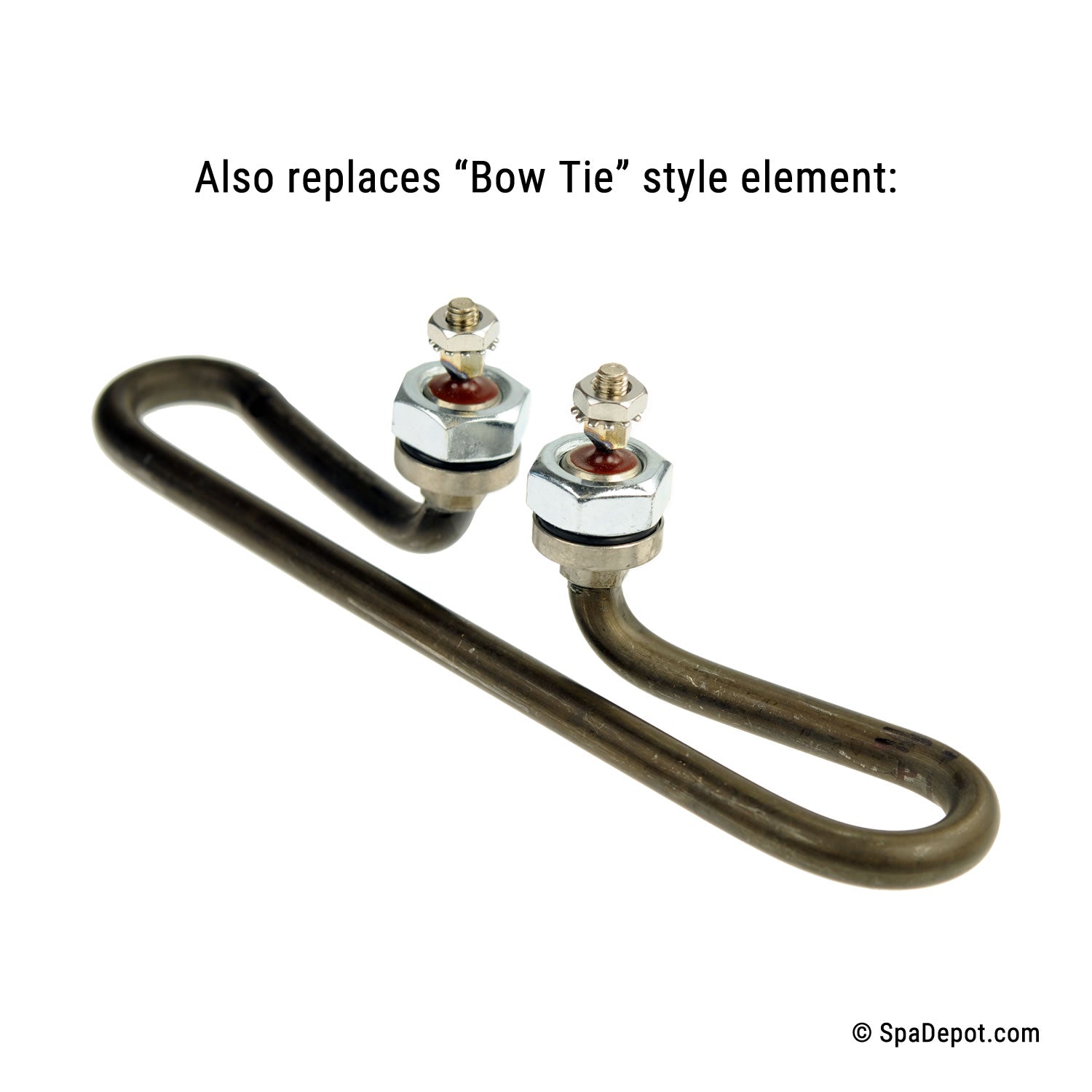

Long-life Titanium  replacement 7" Spa Heater Element fits 2" flow-thru tube heater manifolds. Also a direct replacement for 7" bow-tie style heater element (25-4047).

  • 5.5kW@240V / 1.375kW@120V

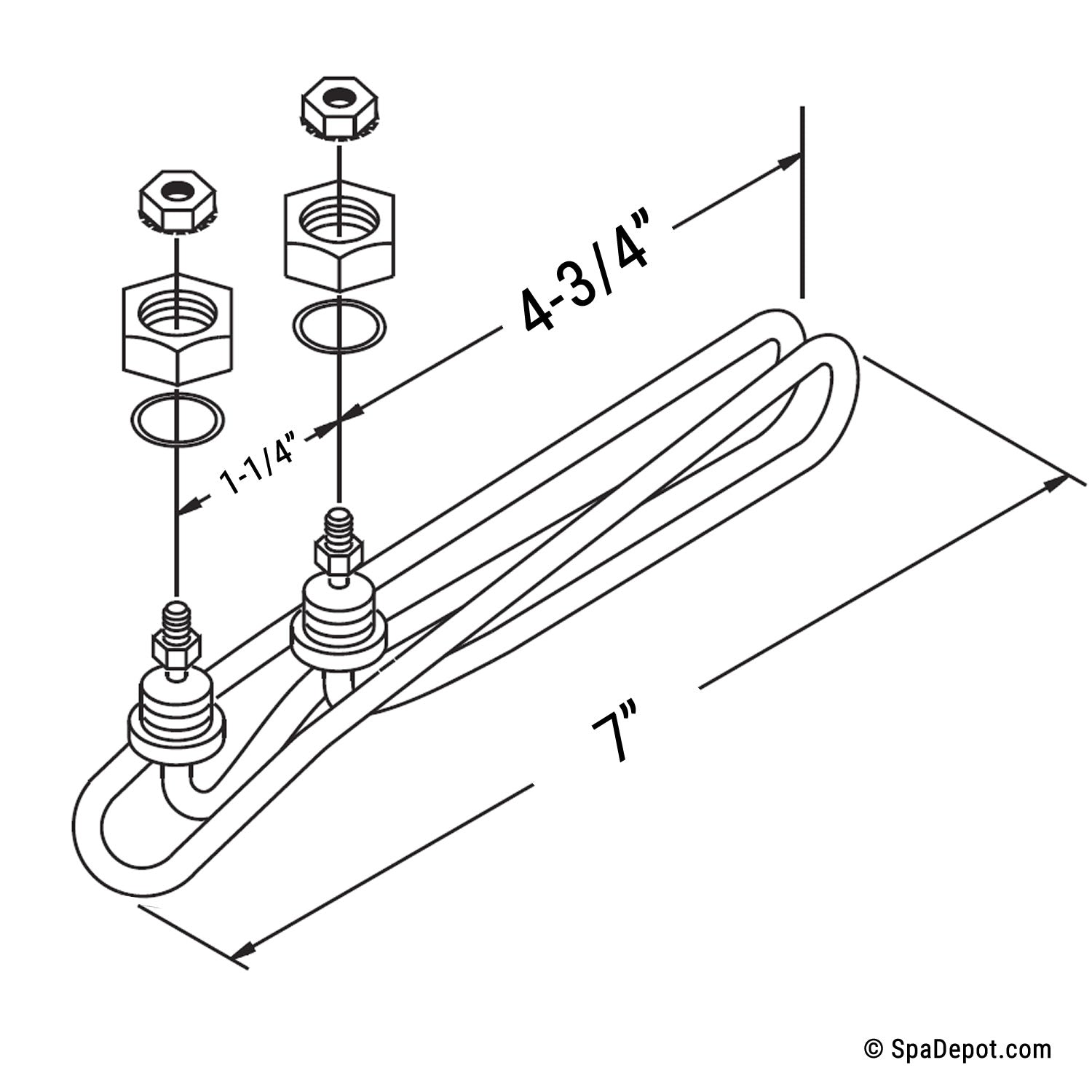

  • Short Version 7"L - 1¼" terminal spacing

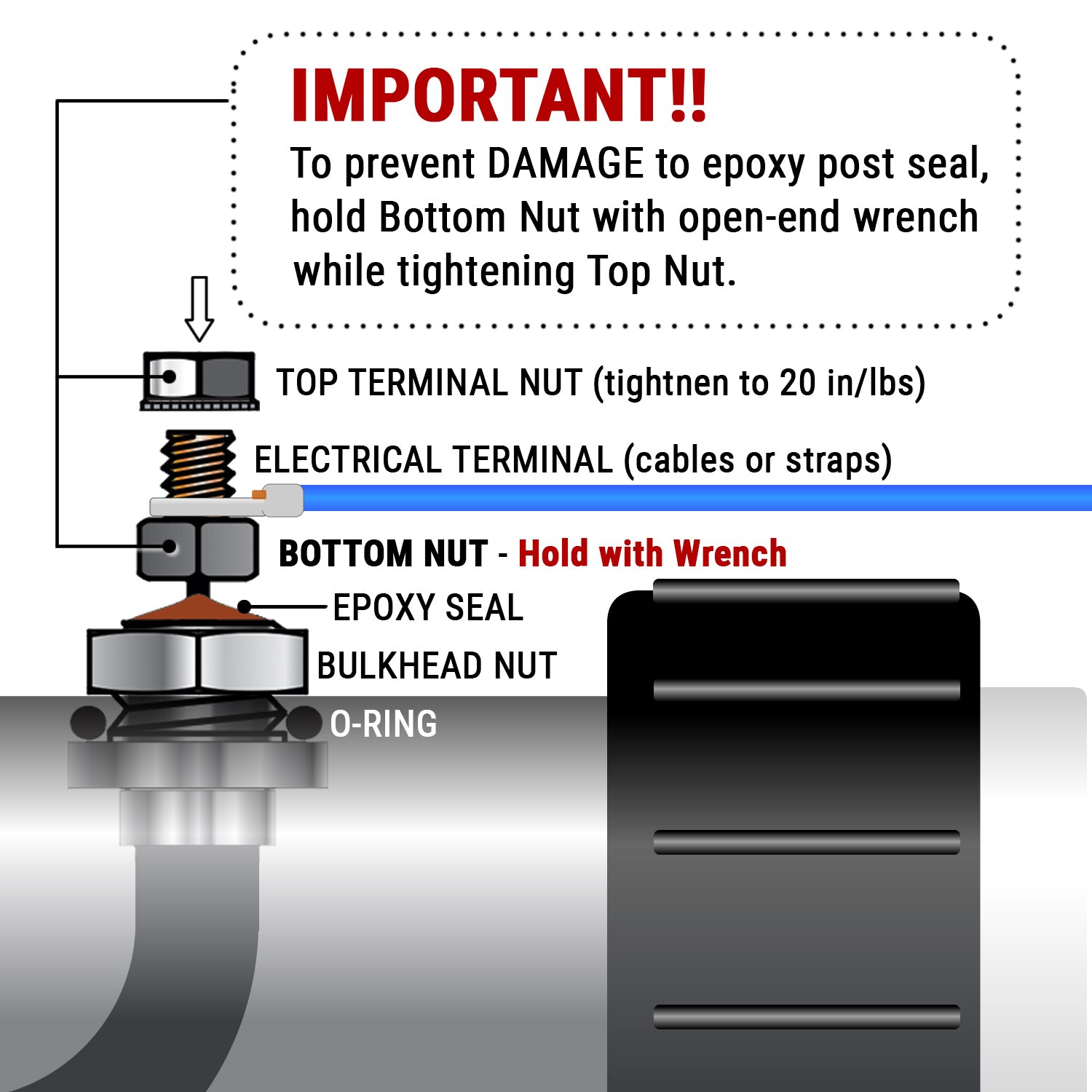

Product notes: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. Tighten top nut, while holding bottom terminal nut (as illustrated). Replaces parts 20-3053, 12-0100D-K, 12-0110G-K. 2-year manutacturers warranty.

Spa Heater Element Installation Instructions
Need Help? Send Photos!
Often bought together:
Pressure Switch - Adjustable, SPST-NO, Stainless Steel 3029
Pressure Switch - Adjustable, SPST-NO, Stainless Steel 3029
BX9913
Quick View
Spa System Flush - Hot Tub Cleaner
Spa System Flush Hot Tub Cleaner
MT1028
Quick View
PreFresh Spa & Pool Water Fill Filter
PreFresh Spa & Pool Water Fill Filter
MT1051
Quick View
Heater Manifold Flow Thru 2" x 15" (No element)
Heater Manifold - 2" x 15" (No element)
BX5908
Quick View
Spa strap wrench
Nut Wrangler Spa & Hot Tub Wrench - Threaded Fitting Removal Tool
MT1093
Quick View
Clear Silicone Sealant
Clear Silicone Spa-Pool Adhesive Sealant
MT1059
Quick View
Bromine Tablets 1.5 lbs.
Bromine Tablets for Hot Tubs ~ 1.5 lbs.
CA1001
Quick View

Customers praise this titanium spa heater element for its "perfect fit" and efficient heating performance. Most found installation easy and appreciated fast shipping. However, some noted durability concerns, with elements lasting about a year in year-round use, and one reported failure after two days. Overall, customers highlight great value and effectiveness.

  • 5 stars: 17 (81%)
  • 4 stars: 3 (14%)
  • 3 stars: 1 (5%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Merrick W.
Installed coil into heater housing quite easily

Installed coil into heater housing quite easily. It works fine. As expected.

R
Robert N.
Yearly replacement

My spa stays open year-round. It seems like these heating elements last about one year before failing. I keep a spare set on hand just in case. We’ll see how long these last.

M
Mike M.
HEATER

Works great fast shipping

T
Timothy K.
good product

…ordered Universal…shocked at size…delighted how EFFICIENT….!!

R
Rick
I received exactly what I ordered in a very short time !

I received exactly what I ordered in a very short time ! It works great!

D
Donald Z.
Great product

Shipping took longer than expected, but the product was good.

D
D W.
YES

GOOD FIT HEATER

C
Cookie
Yes I will continue to buy all my spa parts from here

Arrived on time exact fit working great thanks

D
Deanna
I would buy again

Replacement for hot tub

M
Marcus
Great product at a great price!

The Heater element was a perfect fit for my Artic Spa and was back up and running the day it arrived! 😁

M
Mike
Excellent service, as always delivered in 2 days

Easy to install.

M
Mike C.
I would buy this product again

Part was a perfect match.

D
Dave F.
hope i dont have to buy again...froze and broke

perfect fit

T
Tony
Very good heating Element.

I bought a 10"" replacement element from a different vendor and it did not properly fit in the tube, was touching the bottom. This 7"" fit perfectly and is doing a good job heating the 400 gallons hot tub.

h
henry t.
I buy all my spa products here.

After trying several places I found that SpaDepot: has: 1. The product(s) I need. 2. The most competitive pricing. 3. Highist quality products. 4. Fast, low-cost or free shipping / handling.

J
Jay
fast shipping, product works great

2 new heater coils, fit fine.

T
T.T.
Perfect fix

Perfect fix and hot tub heating again!

R
Robert S.
Heater failed after 2 days of use

Don't know what happened but the heater element burned out after two days of use. Customer service suggested it was a flow problem. Installed a flow meter and the flow remains constant. Plan to install a new element to see if the problem occurs again.

R
Robert P.
Excellent service.

I replaced the heating element in my spa. Works great

F
FRED G.
Heater element

Your support online placed me with the correct heater element for our tub. It was $100 cheaper than the local dealer and it works great. Keep up the great service!

c
craig e.
works great

works great

M
Matt

Can I use a 5.5 kw element to replace a 4.0 kw element? it’s hooked up to 120v

SpaDepot.com

As long as you have the load capability at your service panel to handle the extra amperage a 5.5kW (1.375kW @ 120V) element draws, it's a good upgrade. If you're not sure, stick with the 4kW (1kW @ 120V).
