Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium

BX5002
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium

Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium

BX5002
/
  • Order Soon - Only 9 Available
  • Inventory on the way
Ships next business day.

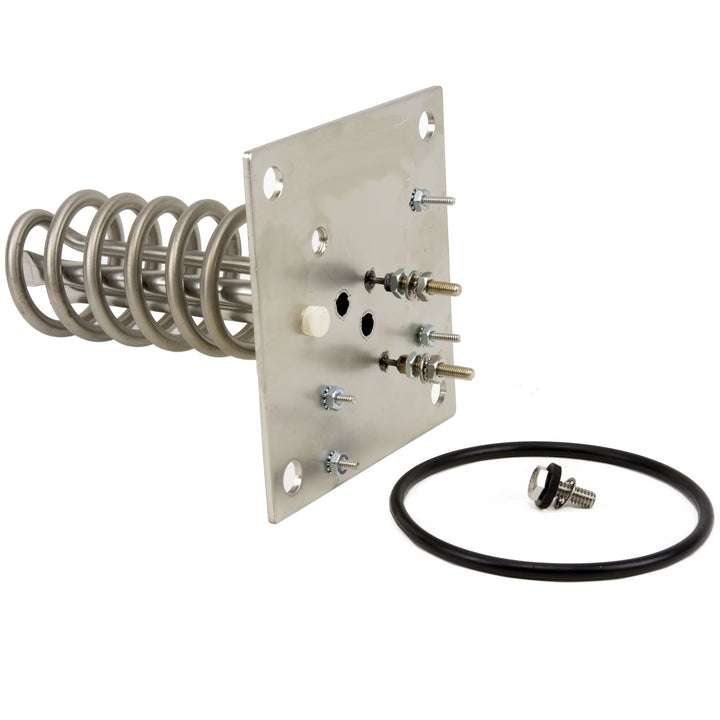

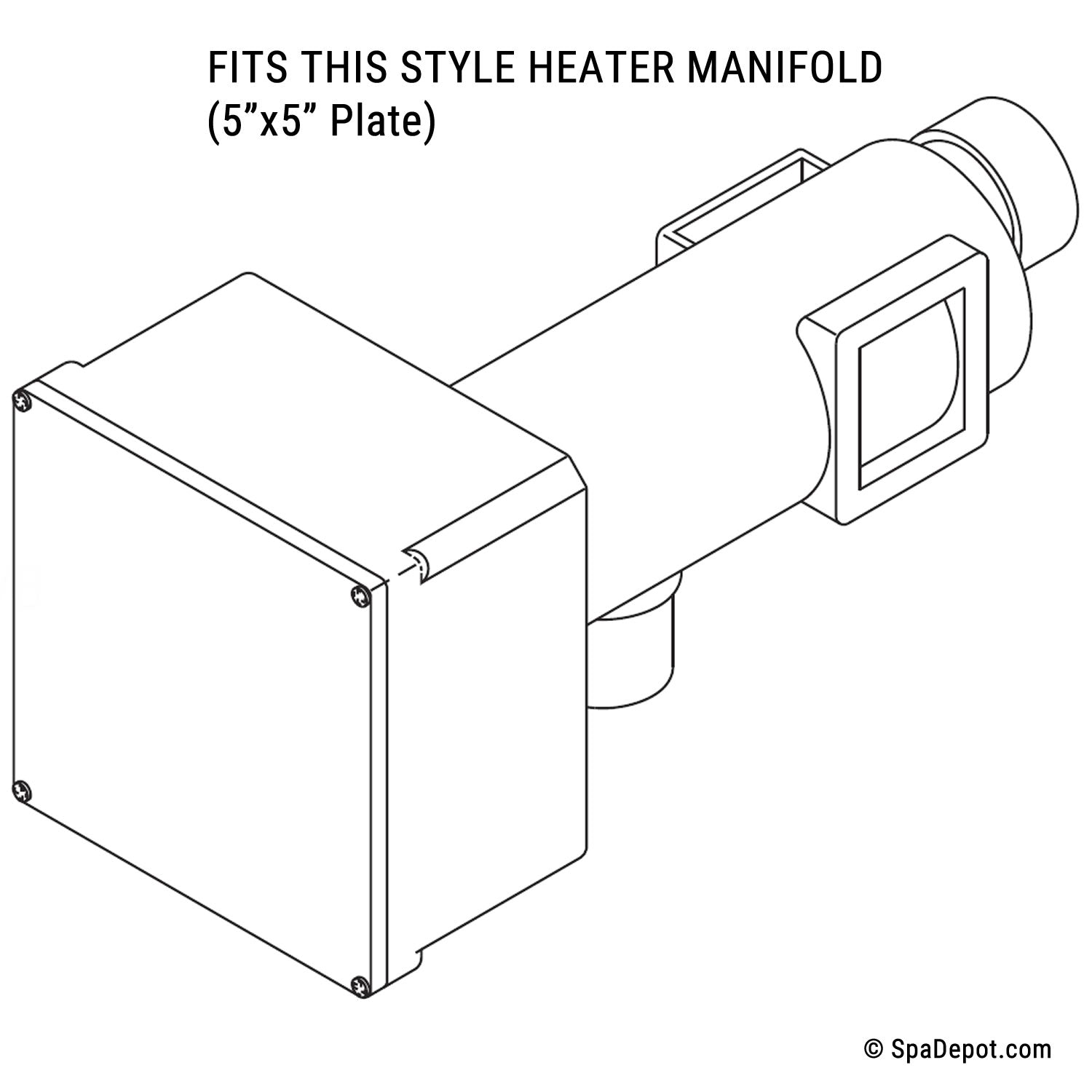

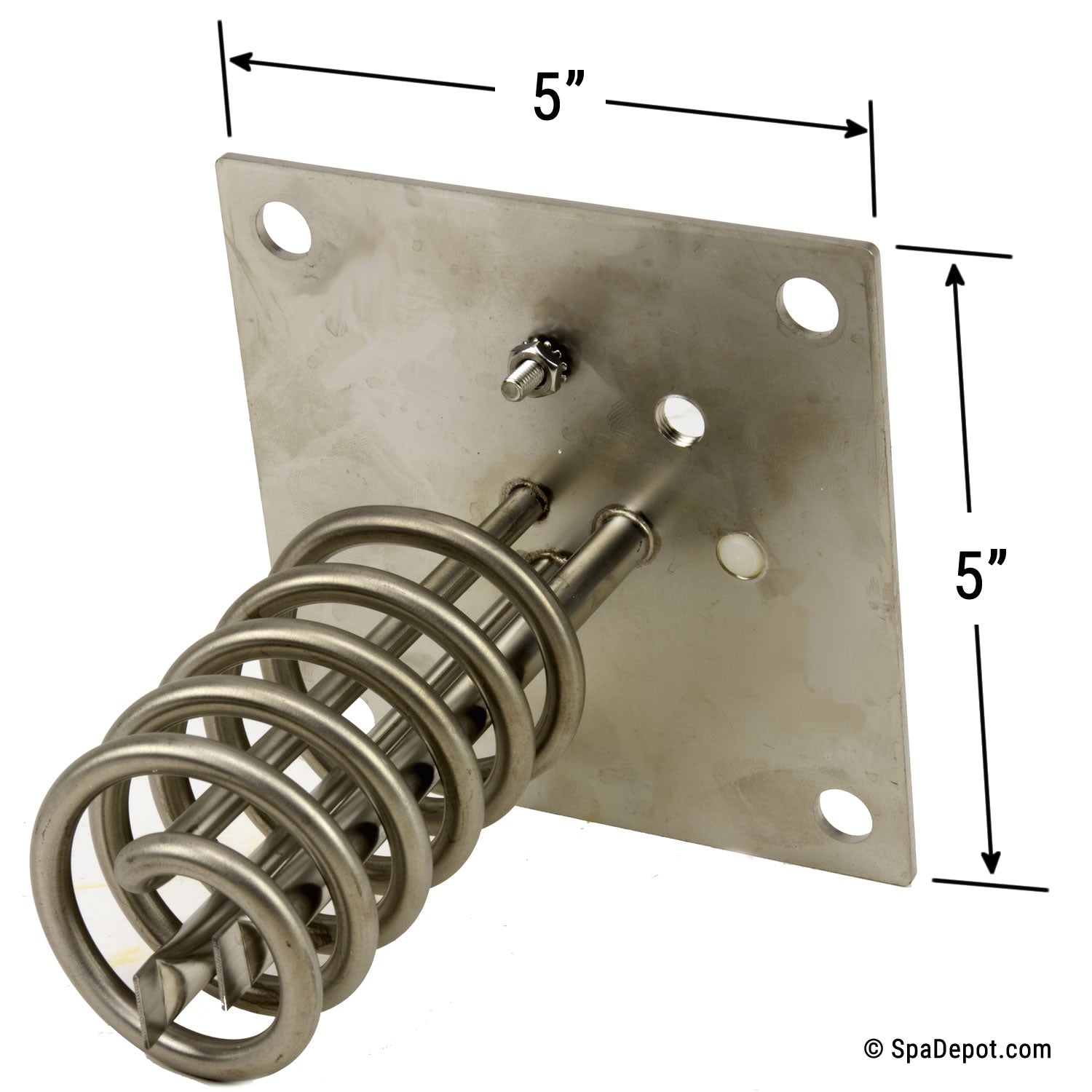

5"x5" Flange Plate Replacement Spa Heater Titanium Element for Brett Aqualine, HydroQuip, Premier, CRL, Vita, Allstate, others.

  • 5.5kW @ 240V / 1.375kW @ 120V
  • Mounting holes 4" on center - O-ring included
  • Dual 5/16" thermowells - thermodisk studs
  • 2 Threaded pressure taps (tap plug provided)

Product notes: 5-3/4" element immersion length. Use 2 wrenches when making electrical connection to terminals, to avoid damage to epoxy post seal. Tighten top nut while holding bottom terminal nut. Replaces 6-5-2, 42-1028, 25-1470-1, 25-1470-1PLO, 25-1470-ET-1PLO, HTE2514701PLO, 12-0010A-K.

Spa Heater Element Installation Instructions

You may need
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EP0500
Quick View
High Limit Surface-Mount Thermodisk
High Limit Surface-Mount Thermodisk
HQ0038
Quick View
Clear Silicone Sealant
Clear Silicone Spa-Pool Adhesive Sealant
MT1059
Quick View
O-ring for 5"x5" Flange Heater Element
O-ring for 5"x5" Flange Heater Element
BX9614
Quick View
Brett Aqualine/Len Gordon Heater Assembly Kit 5.5kW Titanium
Brett Aqualine/Len Gordon Heater Assembly Kit 5.5kW Titanium
BX5965
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
Pressure Switch - Adjustable, SPST-NO, 4010P
Pressure Switch - Adjustable, SPST-NO, 4010P
BX9656
Quick View

Customer Reviews

Based on 29 reviews
83%
(24)
14%
(4)
3%
(1)
0%
(0)
0%
(0)
B
BILL
Square Flange Spa Heater

We are still using a 31 yr. old Appollo spa and have enjoyed the simplicity and low maintenance of the design. Really appreciate that Spa Depot still has "Old School" repair parts available at affordable prices! Thank You Spa Depot!

J
John W.

A+

K
Kenneth W.
Spa Heater

Replacement for my Coleman Spa, Great quality much better built than the after market I used last time that lasted one year. This one is titanium with Stainless frame. I converted my spa to a salt system and the heaters would corrode and fail. I think this one is going to last based on the quality and design.

D
Dfixit1
Works as replacement for 25-1470-1PLO

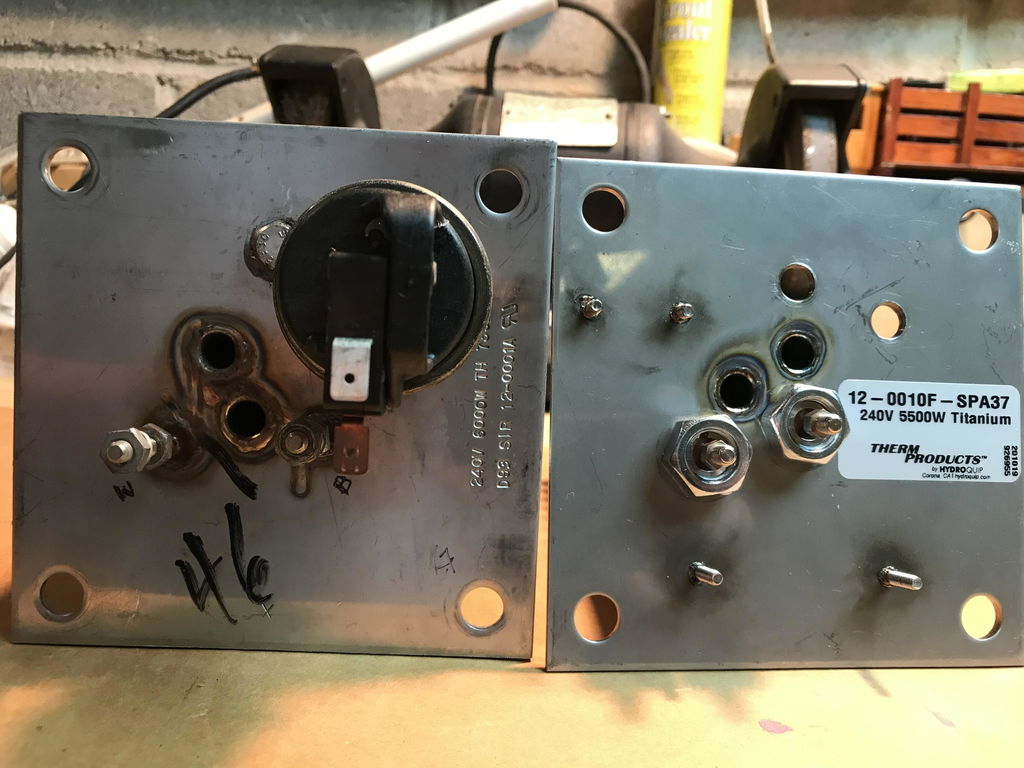

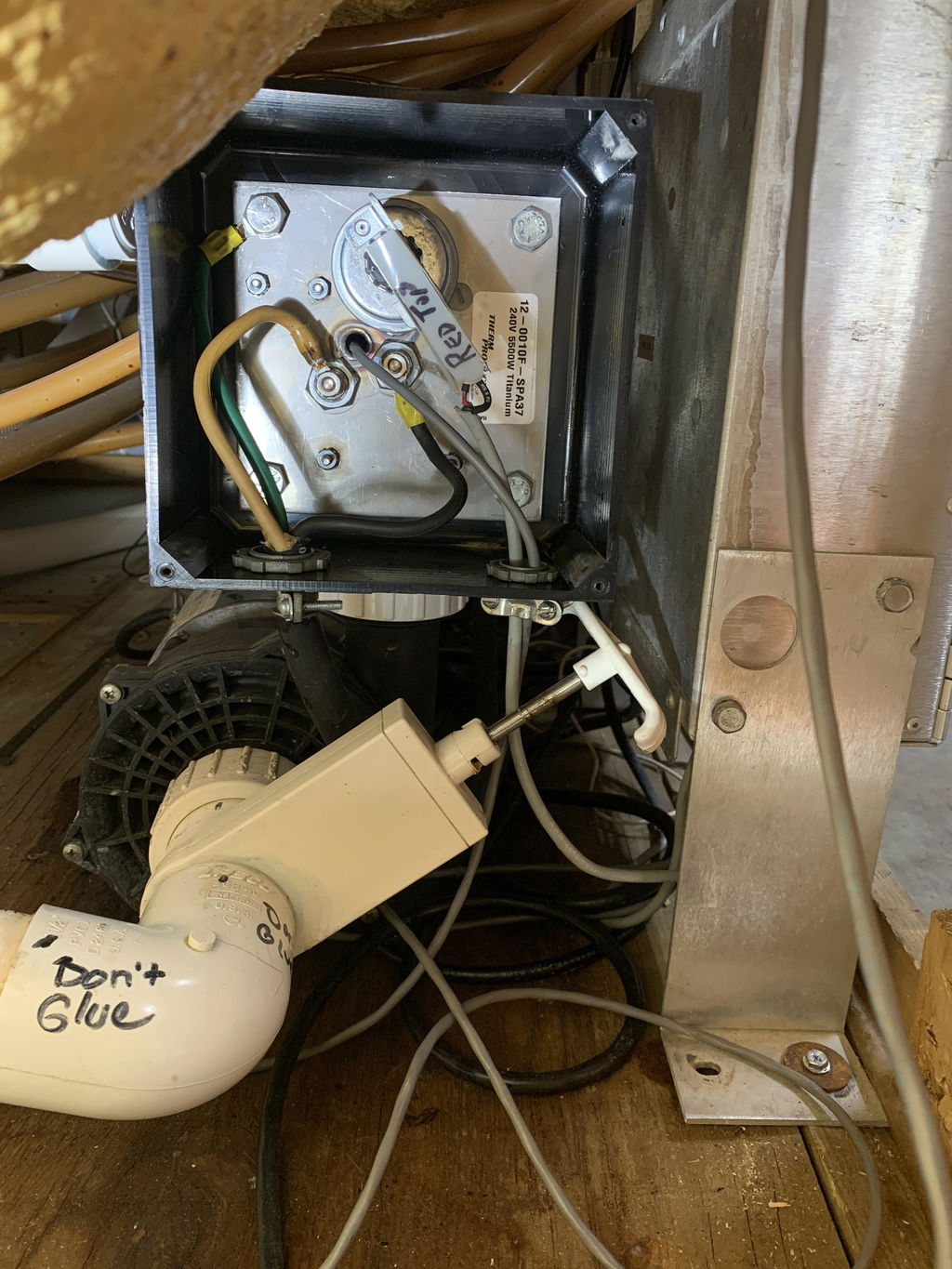

Shipping time reasonable. Was a replacement for my discontinued heater element. Old pressure switch mounted correctly and over heat sensor pushes into hollow tube. New O-ring fit perfect and purchased O-ring lubricant for filter and used some on backside of seal for heater to hold in place while I installed heater. Temperature is a rising. 😀

User picture
D
Dave M.
Great Heater!

Purchased for a friend. Works very well and was easy to install! The FAST SHIPPING was awesome!
