Thermowell Thru-Wall Spa Drywell
Thermowell Thru-Wall Spa Drywell
Thermowell Thru-Wall Spa Drywell
Thermowell Thru-Wall Spa Drywell
Thermowell Thru-Wall Spa Drywell
Thermowell Thru-Wall Spa Drywell

Thermowell Thru-Wall Spa Drywell

BX9980
Save $-13.95
/
Need Help? Send Photos!
  • Order Soon - Only 12 Available
  • Backordered, shipping soon
Select Title

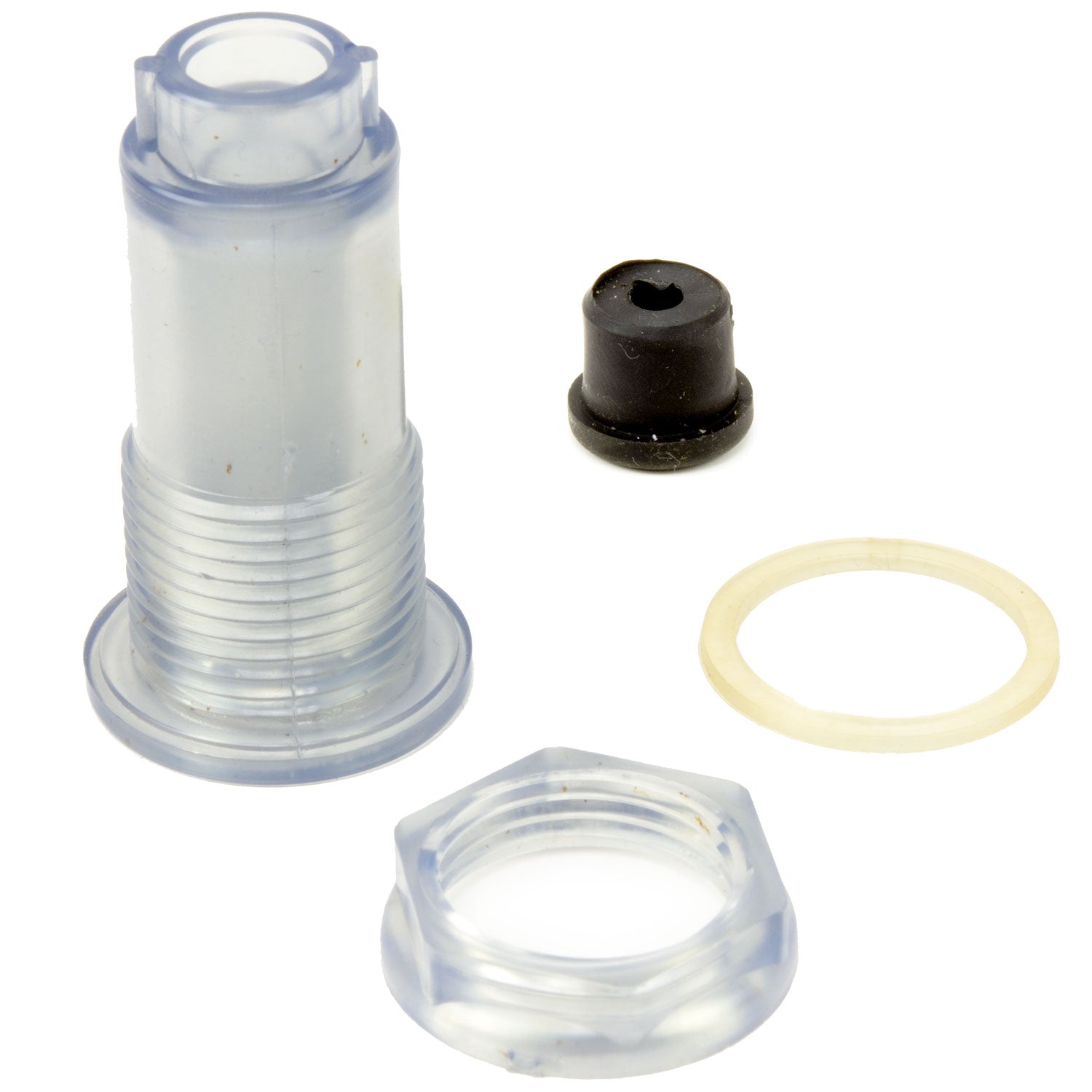

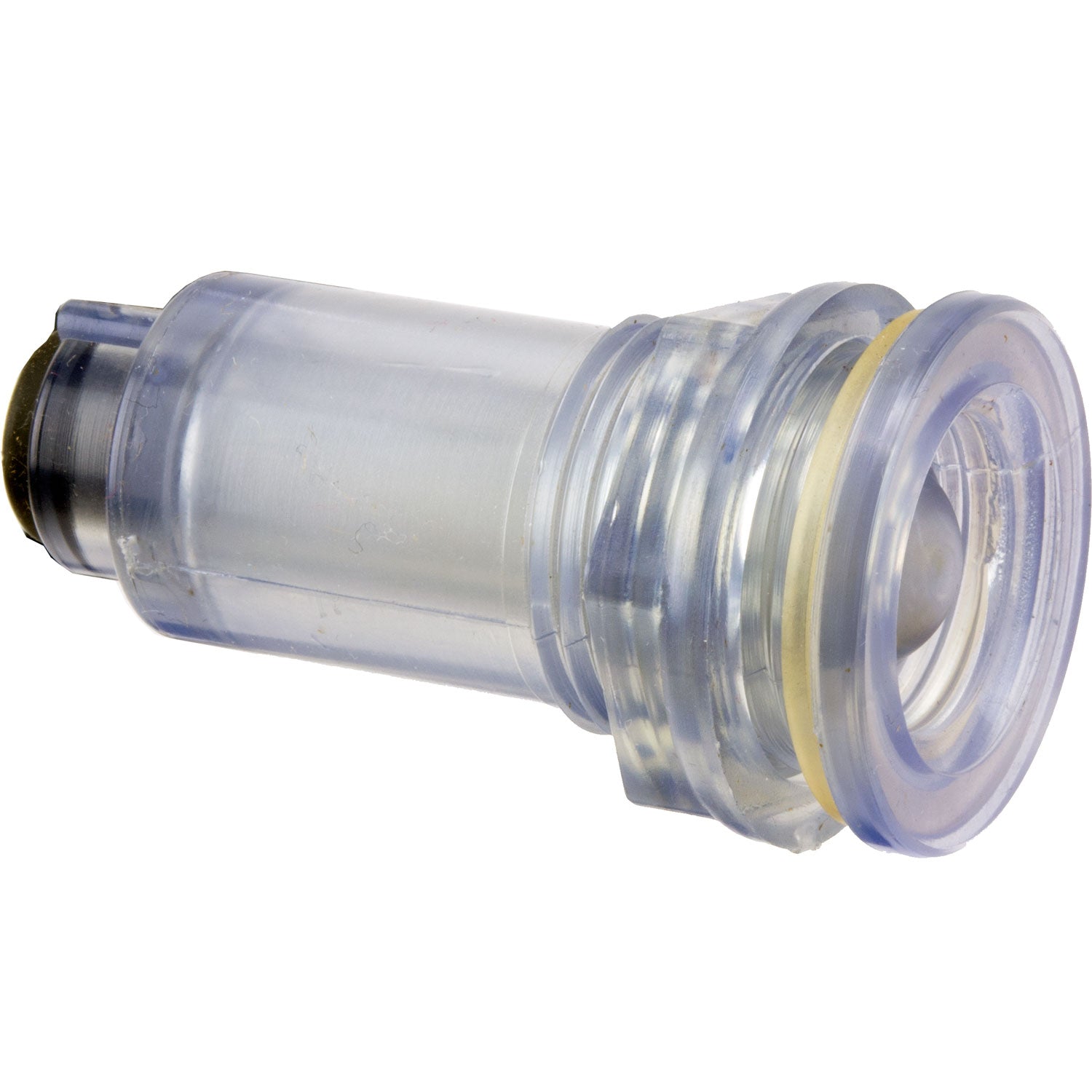

Mini Thermowell Assembly is a high quality through-wall spa drywell for accurate thermostat temperature control.

  • Drywell (⅜" ID)
  • Nut
  • Wall gasket
  • Rubber split bulb bushing

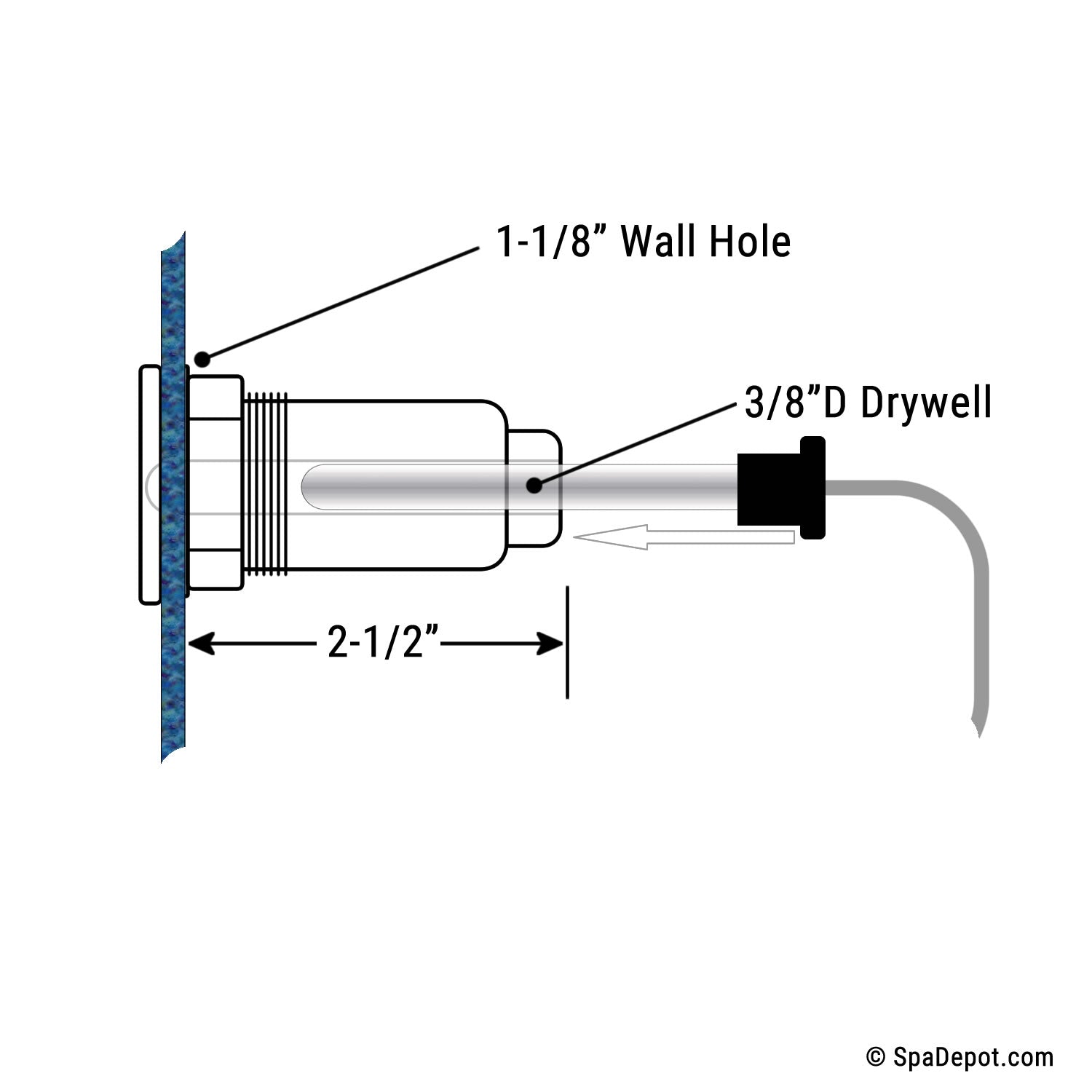

Product notes: Accepts ¼" to ⅜" diameter probe. 1⅛" mounting hole. For accurate sensing, locate dry well at average depth, midway between waterline and bottom of footwell. Replaces: 400-4427, 400-4420, 400-4428, 09-0044B
Need Help? Send Photos!
Often bought together:
Thermowell Elbow - 1.5"SS x SS
Thermowell Elbow - 1.5"SS x SS
BX9922
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
Thermowell Thru-Wall 3/8" Sensor Mount
Thermowell Thru-Wall ⅜" Sensor Mount
BX9887
Quick View
Clear Silicone Sealant
Clear Silicone Spa-Pool Adhesive Sealant
MT1059
Quick View
Tecmark Pneumatic Topside Control
Tecmark Air Button Spa Command Center - 120V
BX2002
Quick View
PreFresh Spa & Pool Water Fill Filter
PreFresh Spa & Pool Water Fill Filter
MT1051
Quick View
ZorbO Oil Scum Absorber
ZorbO Floating Oil Scum Absorber - Spa/Pool
MT1052
Quick View

Customers praised this sensor mount for easy installation and reliable performance. Most found it "works great" with no leaks when properly fitted. Some noted the sensor fit is very tight, requiring drilling to accommodate the probe. Shoppers appreciated prompt delivery and reasonable pricing, though installation may need gasket positioning care.

  • 5 stars: 6 (86%)
  • 4 stars: 1 (14%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dahspur
I would definitely buy this item again if needed.

The Hot Tub Drywell Sensor Mount that I purchased works great, was easy to install and cost me a reasonable amount to purchase. SpaDepot delivered the item promptly and at a good price. I am very pleased.

c
cactus j.
Fits perfectly. no leaks ,

Great service , fast shipping , right price!!!!

D
David S.
yes

I couldn't find a thru wall housing for a 1/4"" Sensor that I was sent with a new controller. I finally called your tech support. They steared me to this one. It came in a timely. Shipping was a flat rate that wasn't outrageous. Everything worked well. I did have to make the hole in the tub bigger. They tell you that in the instructions. People are siliconing every thing. No need for that. It is a dry well so water isn't getting inside of it. It comes with a gasket. Just have to make sure you put it on the water side. Put it in there. Tighten it up. Then put your sensor in. Simple as that. I don't think I'll ever do any controller that doesn't have a sensor in the tub vessel. to much variance between the readout & the actual water temperature

B
Bob C.
Tight fit

First, was unable to insert sensor into well. Was able to drill out without ruining sides, so turned out fine.

J
Jim t.r.
Yes

Works

M
Michele W.
Just what I needed, arrived quickly

It for the dimensions very snug as you would want it to. Very easy to figure out, apply sealant, and set. After it dried I measured probe. It was hard to get in because it needs to be to help completely seal. You do not want it to leak. I used a small smear of olive oil it went in, then put sealant on. It didnt leak.

D
David O.
Great service from Spa Depot.

First Thermowell was not correct size and the promptly sent me a replacement. Great people to work with and their service is fast.
