Spa Light Assembly Kit 12V Jumbo 5" Face

BX9655
Regular price $44.95
Regular price Sale price $44.95
Save $-44.95
/
Need Help? Send Photos!

Add to Order (recommended):

$49.95
36 LED Bulb
36 LED Lightshow
Replaces Standard Bulb
Select Title

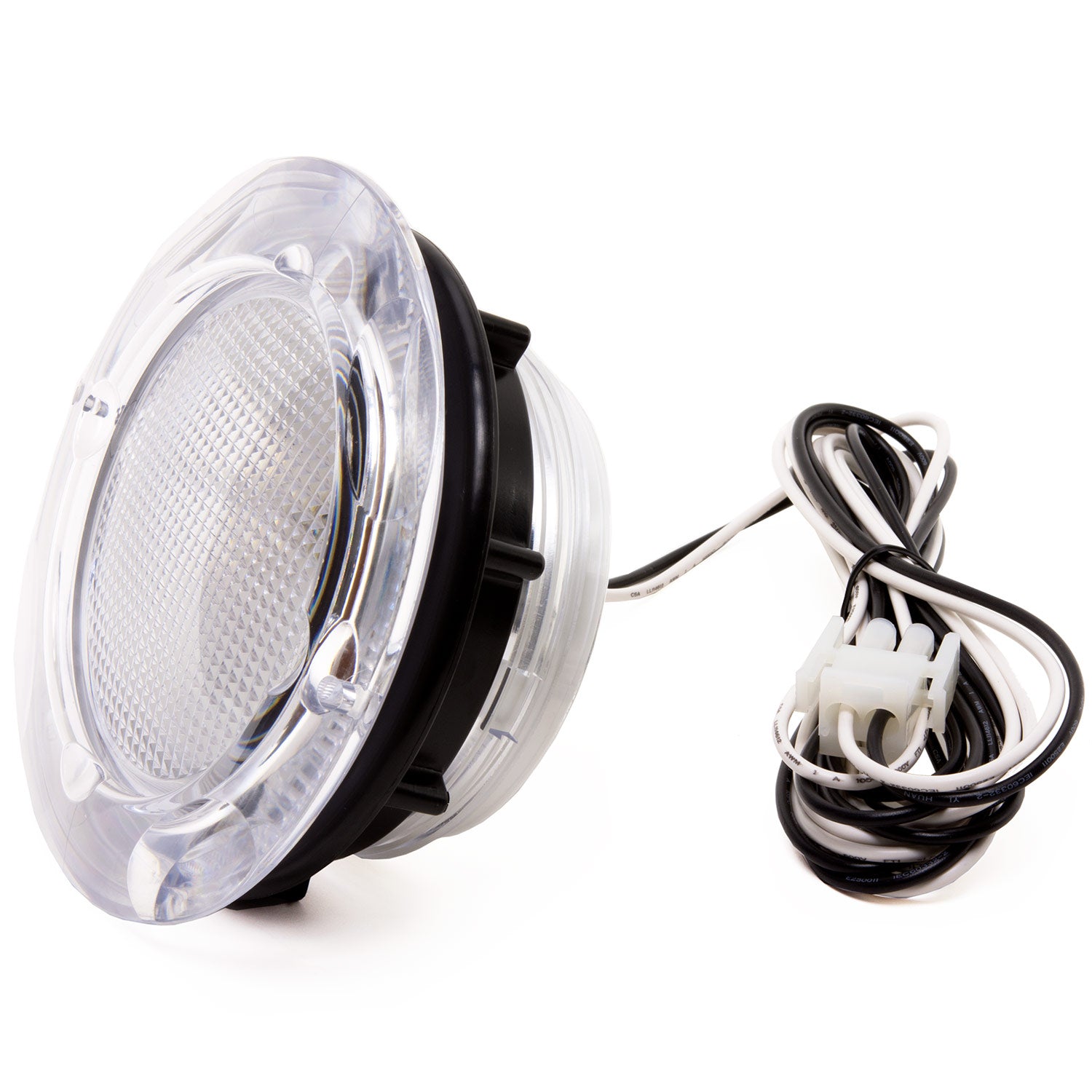

5" Spa Light Assembly with superior diffusing lens is a complete 12V hot tub light kit. Standard 912 bulb included. Rear access.

  • Reflector, nut & gasket
  • 8 ft. wiring harness with AMP-2 connector
  • Twist-lock bulb socket
  • 12V #912 bulb (accepts our color LED lights)

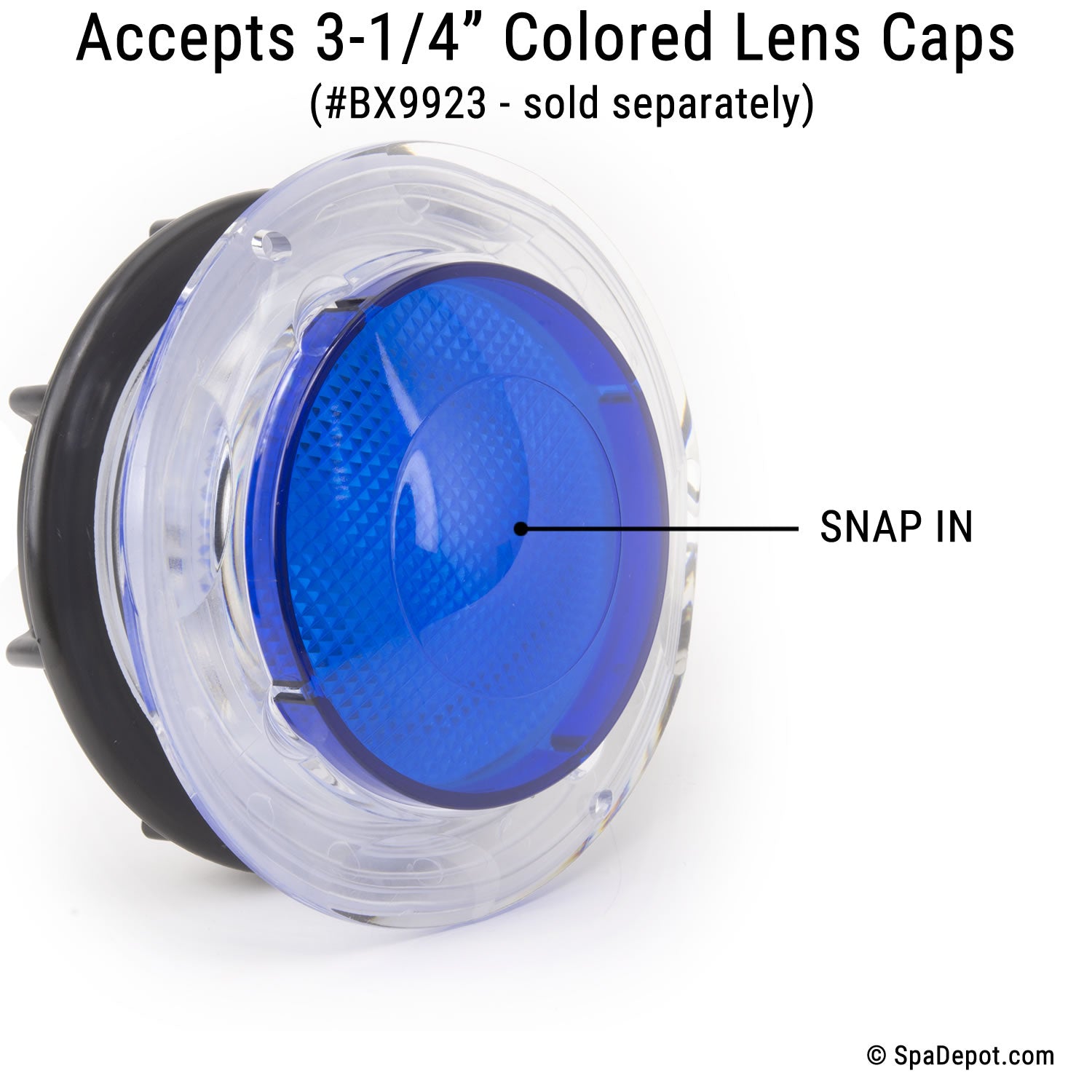

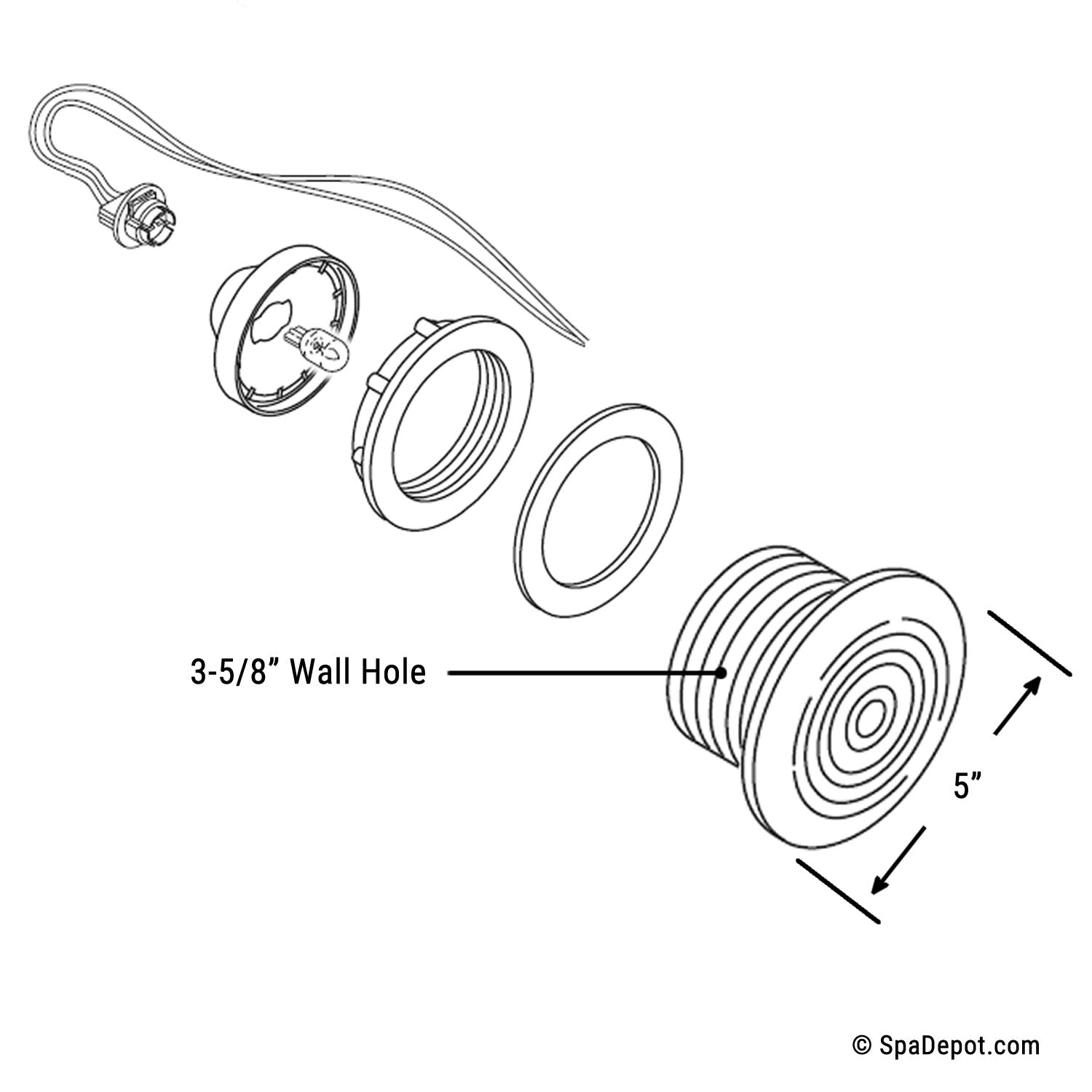

Product notes: For 3⅝" - 3¾" wall hole. Extra bulbs available. Accepts #BX9923 3¼" Colored Lens Caps which snap into center groove, or add color LED. AMP-2 connector may be removed to splice in any other plug type. Replaces: 11013, 319975, 630-K005, & 630-K008.

Need Help? Send Photos!

This 12V spa light assembly kit receives overwhelmingly positive feedback. Customers praise its "easy install" and "perfect fit" as a replacement for various spa models, even older ones. Most report "no leaks" and excellent sealing. One customer noted difficulty with tightening, and another was disappointed the bulb wasn't included. Overall, customers appreciate the complete package and compatibility.

  • 5 stars: 19 (76%)
  • 4 stars: 6 (24%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dennis H.
Great light, easy install, complete package

Great light, easy install, complete package.

m
mark h.
Spa light kit

The light went right in easily and works great .

J
Joe
Yes

I bought this light to replace the original light on my fountain valley spa.Perfect replacement.

S
Stan A.
Perfect fit, easy to change out. (Best spa company 0n-line)

Every thing matched up, spa look brand new again.

A
Anita P.
Large spa light

I did not use this as a spa light. I used it to plug the hole for a jet that was going to be unavailable for quite some time and I needed to get the spa back in service. The hole had to be made just a shade bigger but it did the job

H
Hot T.G.
Spa Light

Great sight for buying spa parts and always deliver quickly. Thank you for the great service.

J
Jeremy K.
Fit well. Difficult to tighten

Everything worked fine so far and arrived on time.

J
John R.
Replacement light fo 17 year old spa

Bought this light to fix the leak at my old light. When in easy and was the right size. After I ordered the light it came faster than what I was told.

C
CS
Hot Tub saved from Junk Heap, again!

Old light was leaking, just slightly. Unfortunately, it was leaking on the electronics box. (replaced last year at no small expense) This would have quickly ruined the entire tub! OEM light for this tub (OLD Master Spa) was impossible to find. But this generic light solved the problem! EZ to install, only difficulty was extracting the old light.

H
Hawley, J.
Excellent service

I had called all over locally trying to this light kit. The place that we purchased the spa couldn't even help. I was so very happy when I found it and received it early that was a huge bonus, since our previous one had began leaking.

n
none
I would buy this again

It was came as I ordered it

T
Tom
Easy replacement. Should have done it sooner.

The light was and easy in and out.

B
Bill W.
Light

I haven't installed light at this time, found leak around light and stopped leak. Will keep light until mine goes bad are develops more leaks. I was disappoint in light assembly it didn't even have a bulb in it.

S
Scott M.
3 5/8"" Light

Was an exact fit for the 3 5/8"" hole. Was very happy with the seal that came with the fixture. No leaks and very easy to install.

T
Tin
This product is great

Bought this as a replacement for my hot tub. It came quickly and just as expected. Customer service was quick to respond to a few questions about the product. Would purchase from here again!

S
Stephen N.
Saved my old spa

My 32 year old spa had a light that was leaking badly. Local pool and spa stores acted like they had no idea on a replacement despite my bringing in the old light assembly to show them. Then I found SpaDepot and order arrived quickly and the spa is now filled with water and not leaking. Hey, maybe I get even more years out of this old spa, thanks SpaDepot

D
Derek J.
2nd time I bought this.

Overall a good replacement product. Installation info would be appreciated. I watched a couple online videos before attempting replacement. I followed the videos only to find out 2 weeks later I had overtighted the nut which cracked and broke off the ring on the inside of the tub. I had enough silicone in place so it did not leak. Second one was ordered and installed hand tight this time (no tools) and siliconed all around the nut at the outside of the tub. So far no leaks and no cracks in the lens.

M
Mark
Perfect!

Purchased this for my 13 year old Cal Spa. The old original light was leaking badly and pretty well frozen in place. Purchased this unit from Spa Depot and pretty much destroyed the old light during the removal process. This new light fit perfectly, works perfectly and doesn't leak a drop. Very satisfied with the purchase from Spa Depot, as usual.

J
Joseph F.
Exact replacement

Easy to install good seal no leaks!!!

G
Greg
Good product

Good product.

S
Steven T.
Good and simple to install

Very easy to install. First delivery was cracked. They sent a replacement right away. Looks good.

Q
Quillgrandma
The light fit like a glove

The folks that answer the phone helped with questions before I purchased the light. Love these folks

M
MG
Great product fast shipping

Made a water tight seal in hottub

J
Jerry O.
Just what I ordered

Worked great, materials are solid. Short instructions would have made it perfect. Online help got me to the end.

D
Donald M.
Fantastic!

The product works perfectly!

L
Lorenzo R.J.

If I get your 5 inch spa light replacement kit what color LED light set up do I need to order?

SpaDepot.com

You can order either our 18 LED or 36 LED bulb: https://spadepot.com/products/starburst-led-color-spa-light

G
Gregory D.

Are there any installation instructions or is the included seal designed to be a enough?

SpaDepot.com

A thin film of silicone sealant on the water side of the shell, in conjunction with the rubber gasket, ensures a leak-free seal.

P
Paul J.

Is this light 5 1/2 diameter on the outside of the lens , and for a 4 inch diameter reseced opening ?

SpaDepot.com

The light's face diameter is 5" and it fits a 3⅝" hole opening.
