Spa Light Assembly Kit 12V Standard 3¼" Face

BX9938
Regular price $29.95
Regular price Sale price $29.95
Save $-29.95
/
Need Help? Send Photos!

Add to Order (recommended):

$49.95
36 LED Bulb
36 LED Lightshow
Replaces Standard Bulb
Select Title

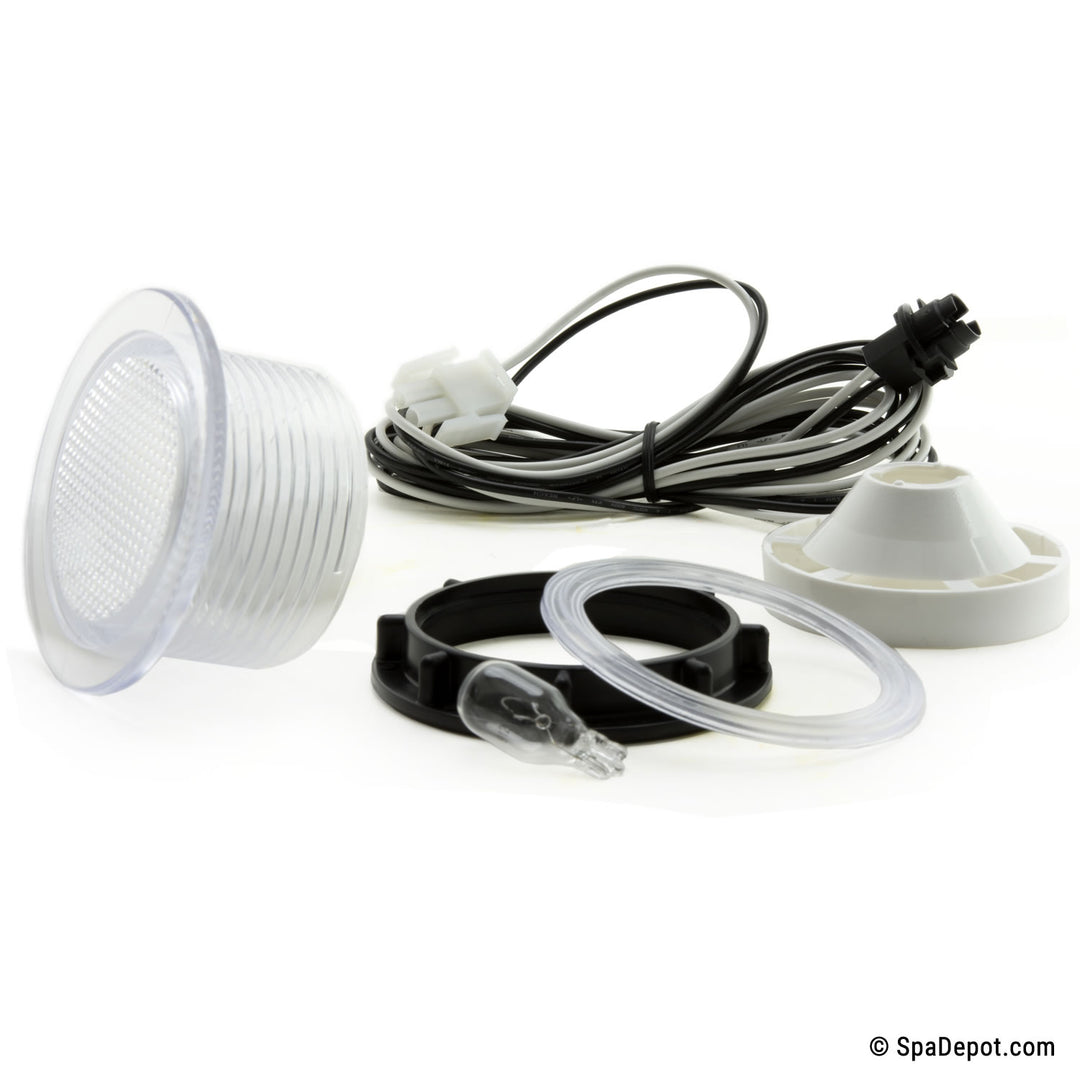

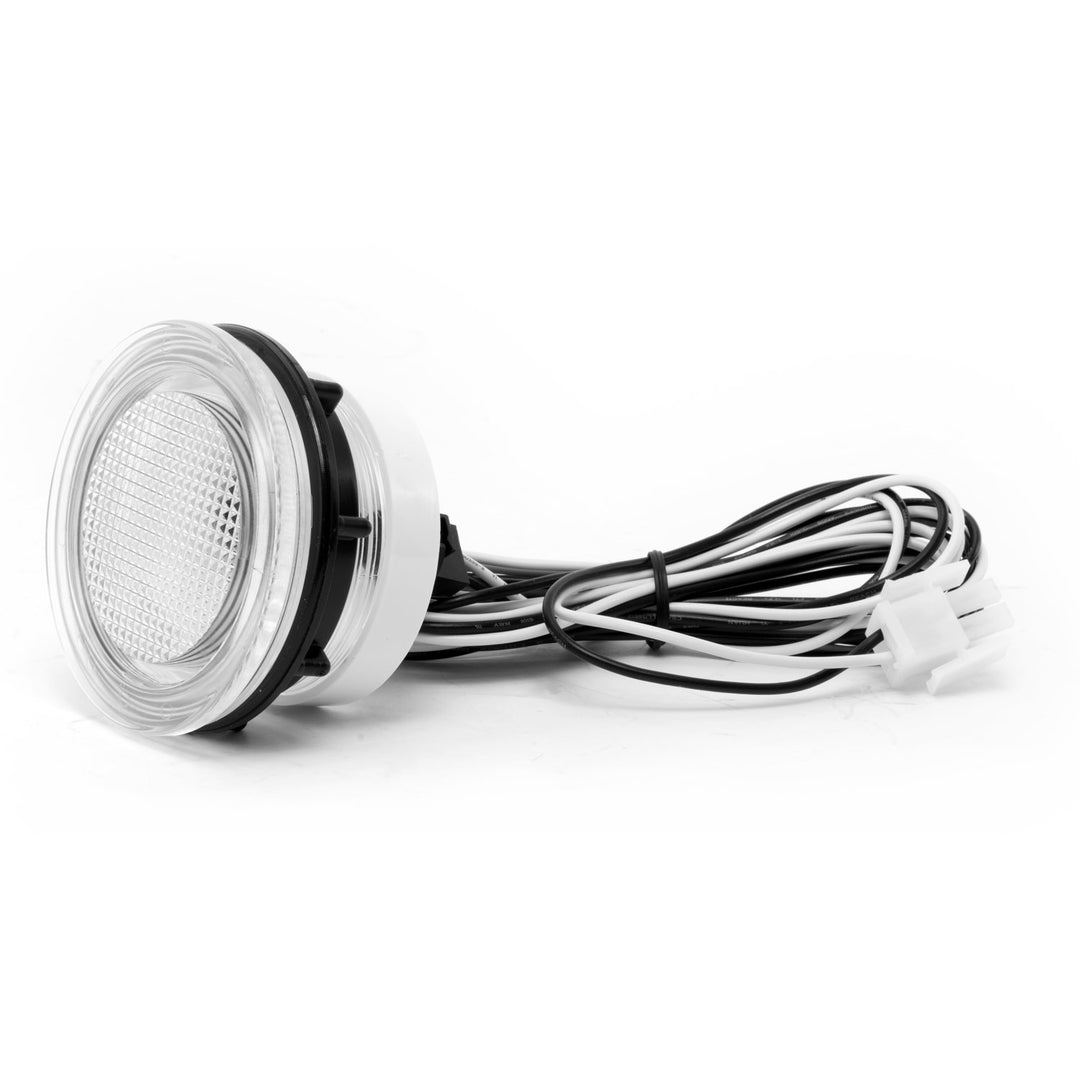

Our 3¼" Spa Light Assembly is a complete 12-volt hot tub light kit, not just some of the parts. Fits standard 912 bulb (included). Rear access.

  • Superior diffusing lens
  • Reflector, nut & gasket
  • 8 ft. wiring harness with AMP-2 connector
  • Twist-lock bulb socket
  • 12V #912 bulb (accepts our color LED lights)

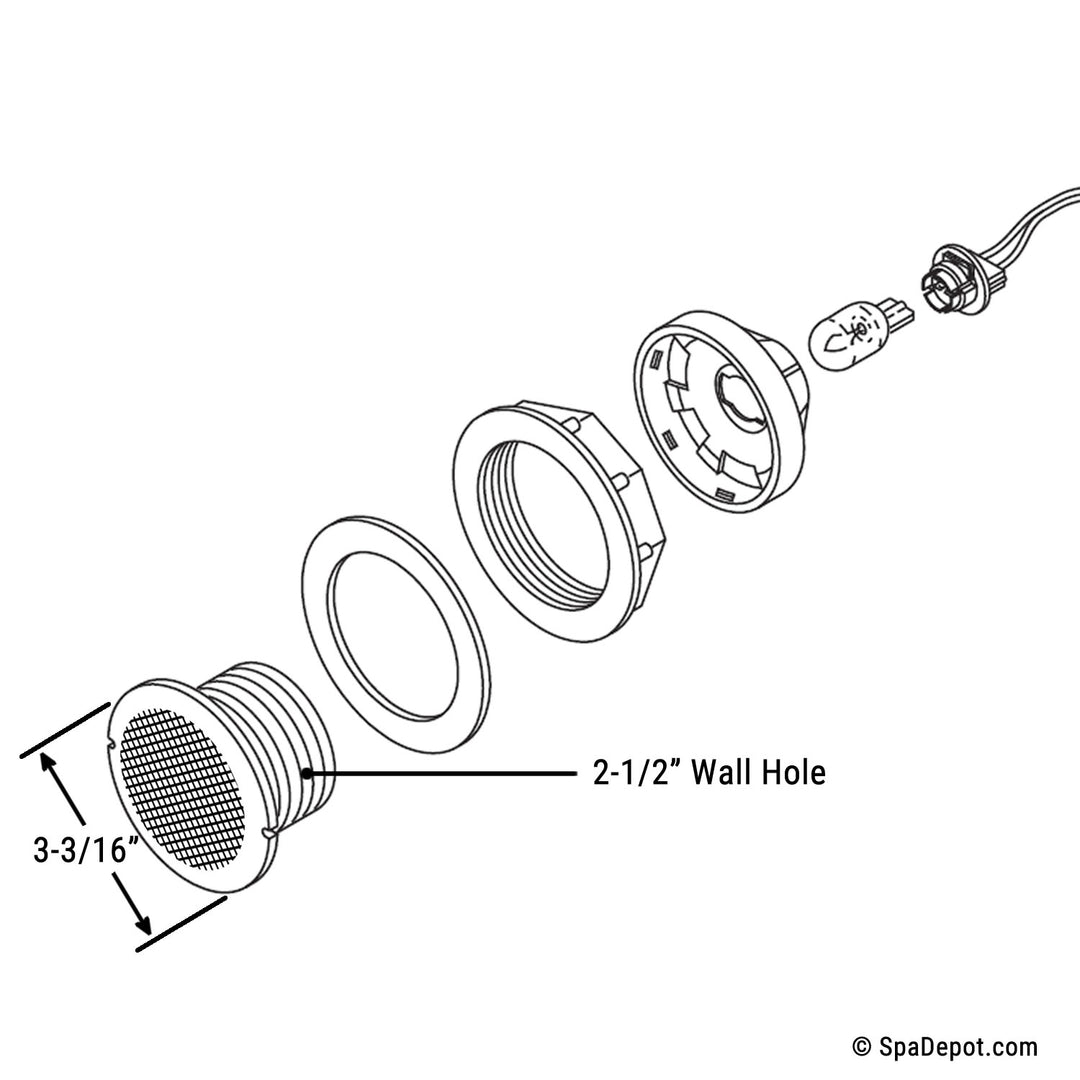

Product notes: For 2½" wall hole. Actual lens O.D. is 3³⁄₁₆". Extra bulbs and colored lens caps available below, or add color LED. AMP-2 connector may be removed to splice in any other plug type. Associated part numbers: 100040S0PY00, 1015, 21095, 319-850, 5-30-0098, 630-5008, 630-5105, 630-5205, 630-6005, 630-6008.

Need Help? Send Photos!

Customers praised this 12V spa light assembly for being a "perfect replacement" with excellent compatibility across spas, hot tubs, and even pedicure chairs. Installation is described as easy, with most reporting perfect fit. However, some noted the gasket may require additional silicone sealant to prevent leaks. Customers appreciated the quality construction and reasonable price.

  • 5 stars: 39 (93%)
  • 4 stars: 2 (5%)
  • 3 stars: 1 (2%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Thomas W.

Perfect replacement

T
Thao T.
Perfect. Thank you!

I purchased this part for a pedicure chair. I couldn't get the stock part since the model was discontinued. I took a chance to buy this, and it fit my chair perfectly. The Light Assembly Kit is very well made at reasonable price. I hope this review can help the others. This part not only works for the Hot tubs, Spa tubs, it works with Pedicure chairs too. Thanks!

T
Thomas O.
Works Well

This could fit a bit more snugly but the gasket and plenty of silicone sealant make it work. Fair price and Spa Depot customer service is first rate.

K
Kevin M.B.
Perfect fit

The replacement light I bought at Spa Depot, was a perfect fit and a direct replacement for my underwater light. No issues.

C
Crystal G.
Easy Peasy

The most difficult part was draining the water. Wew hew. Not really. Installation was a cinch and noticed a huge difference. Spa Depot is the place for whatever you need. Fast shipping, lowest price and quality products. If I more thumbs I would but I’ll definitely give them the two I do have.

m
mark h.
Spa light kit

Everything worked as expected.
Lights are awesome

R
Richard J.
Exactly as described

Perfect fit and exceptional quality

J
JR
Worked great

They fit perfectly, my lights did not clip in but I was able to put an o-ring around the housing to hold it in.

L
Longshot
Great OEM replacement

It was a great OEM fit. Didn't use the actual light bulb as I just needed the housing unit. Original light unit is an LED multi color but the housing fits it perfect.

G
Gregory C.
Fixed my leak

My light was leaking inside and out intermittently so I knew it must be cracked, though I couldn't see the crack until I removed the old lens. It looks like the old lens was installed without the seal washer, presumably at the factory, then cranked tight until it cracked! This was driving me crazy for a while, glad to have it fixed for good. It was plug and play with my old Balboa controller.

M
Mark D.
Product as described, with super fast shipping!

Product as described, with super fast shipping! Will definitely be ordering through SpaDepot.com again.

D
Davep
Worked great

This was direct replacement product that fit properly and worked great.

s
stewie
Just what I wanted

This light was a perfect fit for y ""98 cal spa fit perfect.

C
Craig C.
Great Products. Fast shipping.

Purchased to Inlet Pipe Gaskets and then found the light assembly to leak also so I purchased a new light assembly from Spadepot. Purchase made on my phone. Easy Peassy. Fast shipment Hot Tub up and running again with only minor maintenance costs . Thank you spadepot!!!

l
larry
great service as always

Would buy from them again

J
Jackie
I would buy this again.

This was exactly the part we needed for our hot tub....a spa crest 500 bought in 1997! It arrived within a week.

C
Chris F.
Fixed the light & fixed a leak by replacing with this light.

I was nervous about being able to reach/replace the light. It was pretty easy and I am definitely satisfied. I might try a fancier light in the future. We use SpaDepot for all of our hot tub parts and supplies - thanks!

M
Mike
Fits Bradford spa

Fits most bradford spas, unless its a custom shape model. I would recommend if you have an issue with one light niche, replace all light niches in the spa. The plastic degrades after 7-9 years depending on chemical balance.

T
Theresa
Yes, I would buy this product again.

Replaced the light assembly in a spa and everything works great.

D
D.
The part design is somewhat flawed.i

The light fixture washer is inadequate to its purpose. The initial installation had required a ridiculous mount of silicon caulk, and it still leaked. The washer should have an inside and outside portion that strattles the thickness of the fiberglass wall. That way when the nut is tightened it will pince and seal better without caulk.

C
Cass
Great product. Quick shipment!

Fit perfectly. No leaks. I also bought the LED multicolor light to replace the 12V bulb. Easy install and looks great!

D
DERRICK D.
Fit Perfect

shipped fast and works great

D
DaddyDew
Perfect Fit!

The kit came with all the parts needed to complete the job. No hassle self explanatory. Perfect.

E
Edward J.M.
I will be in touch regarding future hot tub needs.

Light assembly well priced, very happy with the quality and fairly easy install.

S
Spa f.
Spa light replacement

I love that I was able to find the light replacement I needed. No instructions came with it even though it was easy to install. Also I needed silicone which I had to order since I didn't know it was needed. Over all it was a great transaction.

b
back i.t.s.
Exactly the same fit

good price & fast delivery

J
Jeffrey E.
Completely satified with kit, price and quick delivery.

Purchase was to replace broken 12V light fixture in Jacuzzi bath jet tub. New Spa Light Assembly Kit was perfect fit in 2.5-inch hole from original light fixture and was easily installed by self within minutes.

T
Tom
Great Service!

Excellent, fast service. Thanks!

K
Kathy
I would order from Spa Depot again!!

After trying for 2 weeks to get this part ordered from our local spa company, I contacted Spa Depot and had my part in 2 days. The light unit was easy for my husband to install and we will be using Spa Depot in the future.

J
Jeff F.
When I need another I know where to go!

Product excellent, service as well. Instillation obvious but a small direction sheet would be reassuring.

B
Bert G.
yes!

replaced a leaking fixture. It's much prettier.

R
Rick
Excellent service!!

Light was delivered within a day or so even with standard postage. Thank you! 😋
