Heater Cables: Element to Circuit Board - Pair

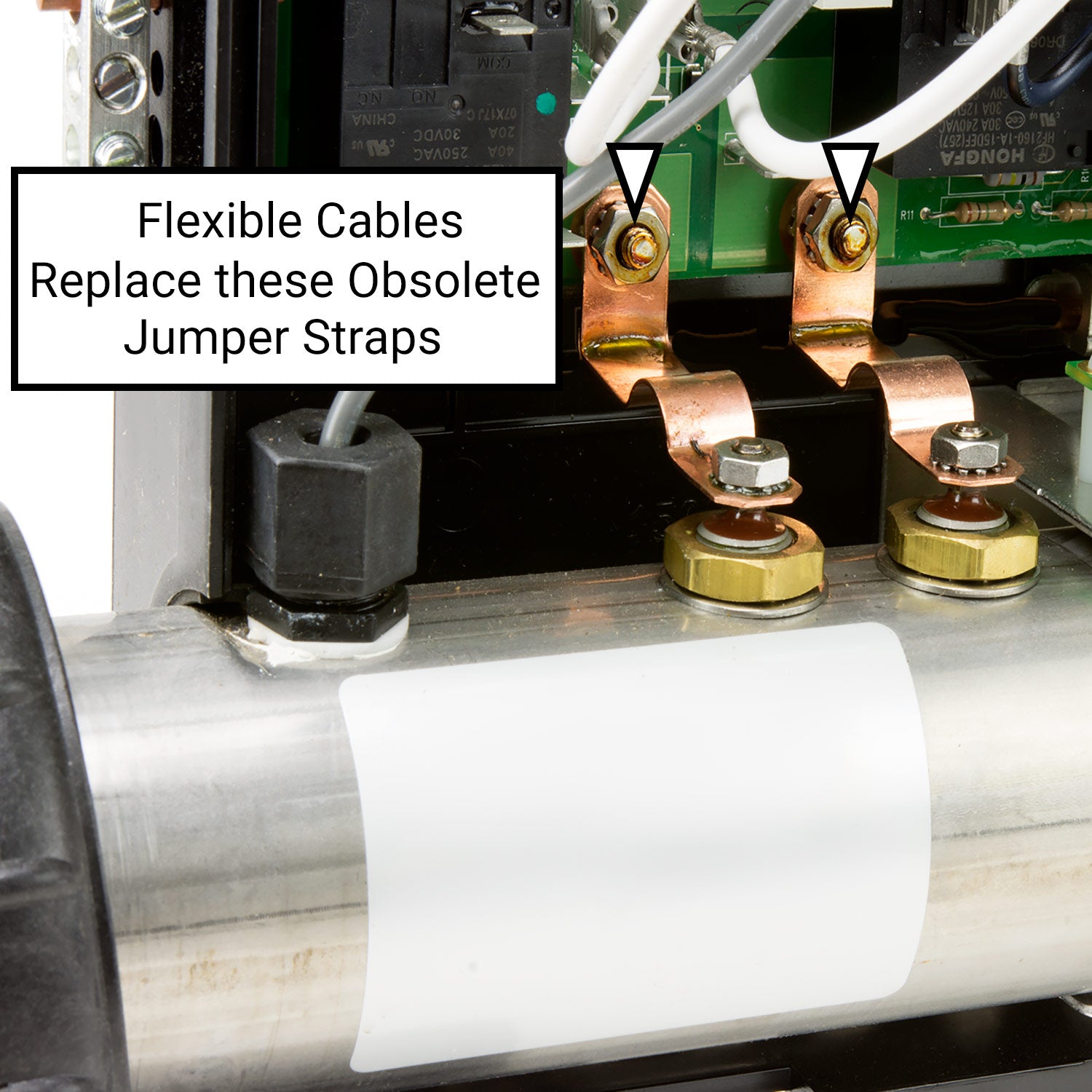

Flexible cables replace these obsolete jumper straps.

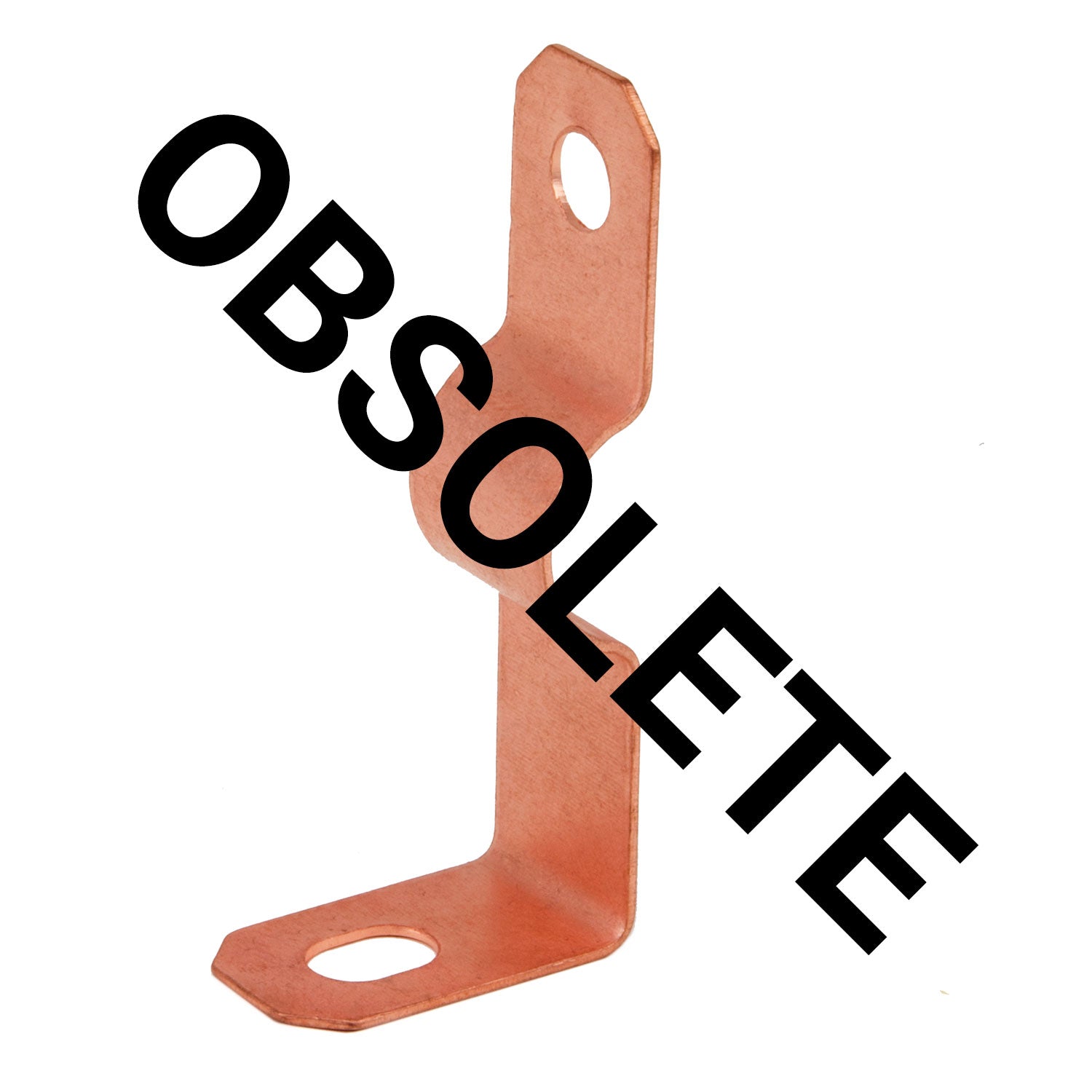

Obsolete copper jumper strap
Heater Cables: Element to Circuit Board - Pair
Heater Cables: Element to Circuit Board - Pair
Flexible cables replace these obsolete jumper straps.
Obsolete copper jumper strap
Heater Cables: Element to Circuit Board - Pair

Heater to Board Jumper Cables - Pair

BX9608
Save $-6.95
/
Need Help? Send Photos!
Select Title

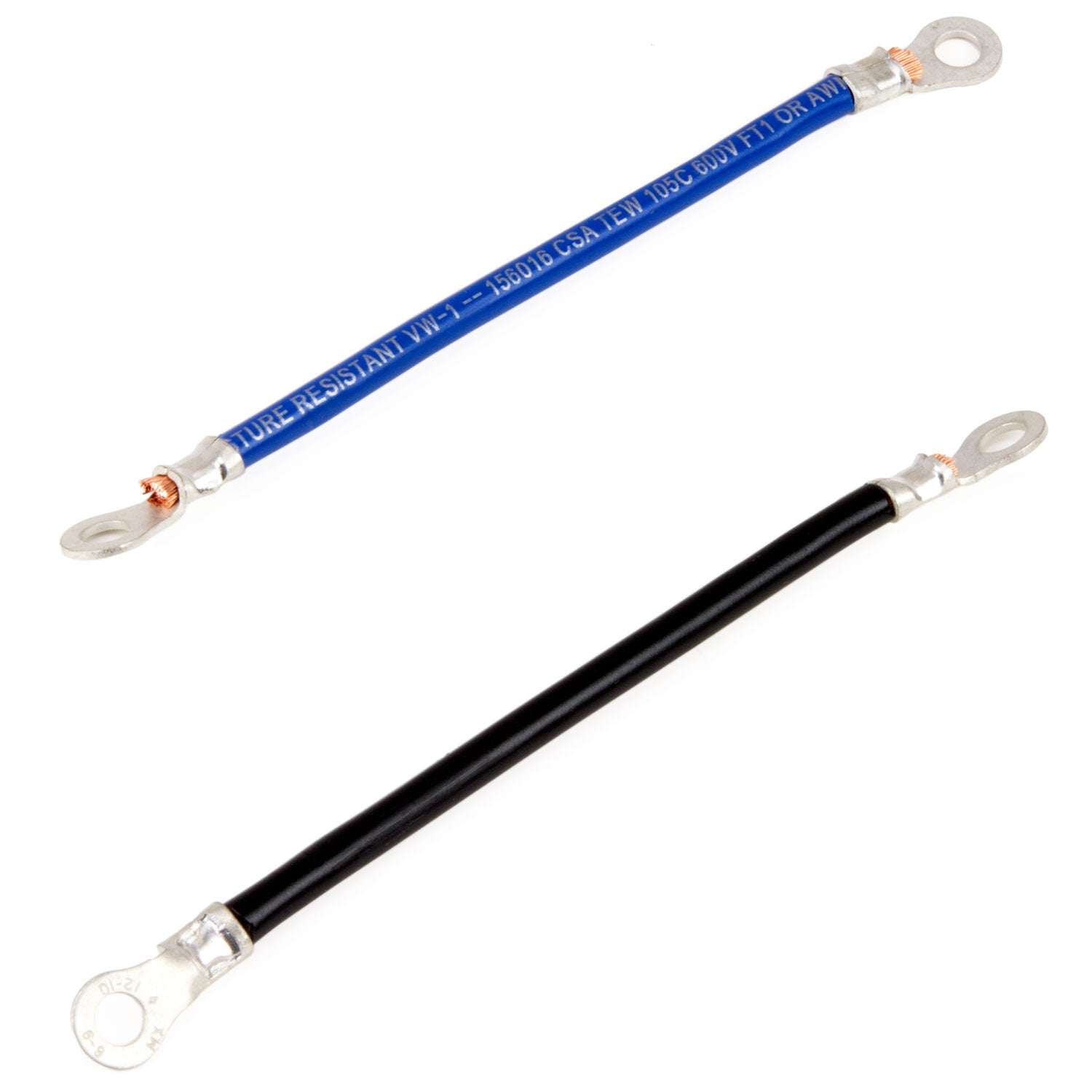

Heavy-duty Spa Heater Jumper Cables are easy-to-install, flexible insulated wires for the heater to circuit board connection. Alternative to failure-prone rigid copper straps.

  • Heater to Circuit Board jumpers
  • Heavy #10 wire gauge
  • Pair of 4" cables

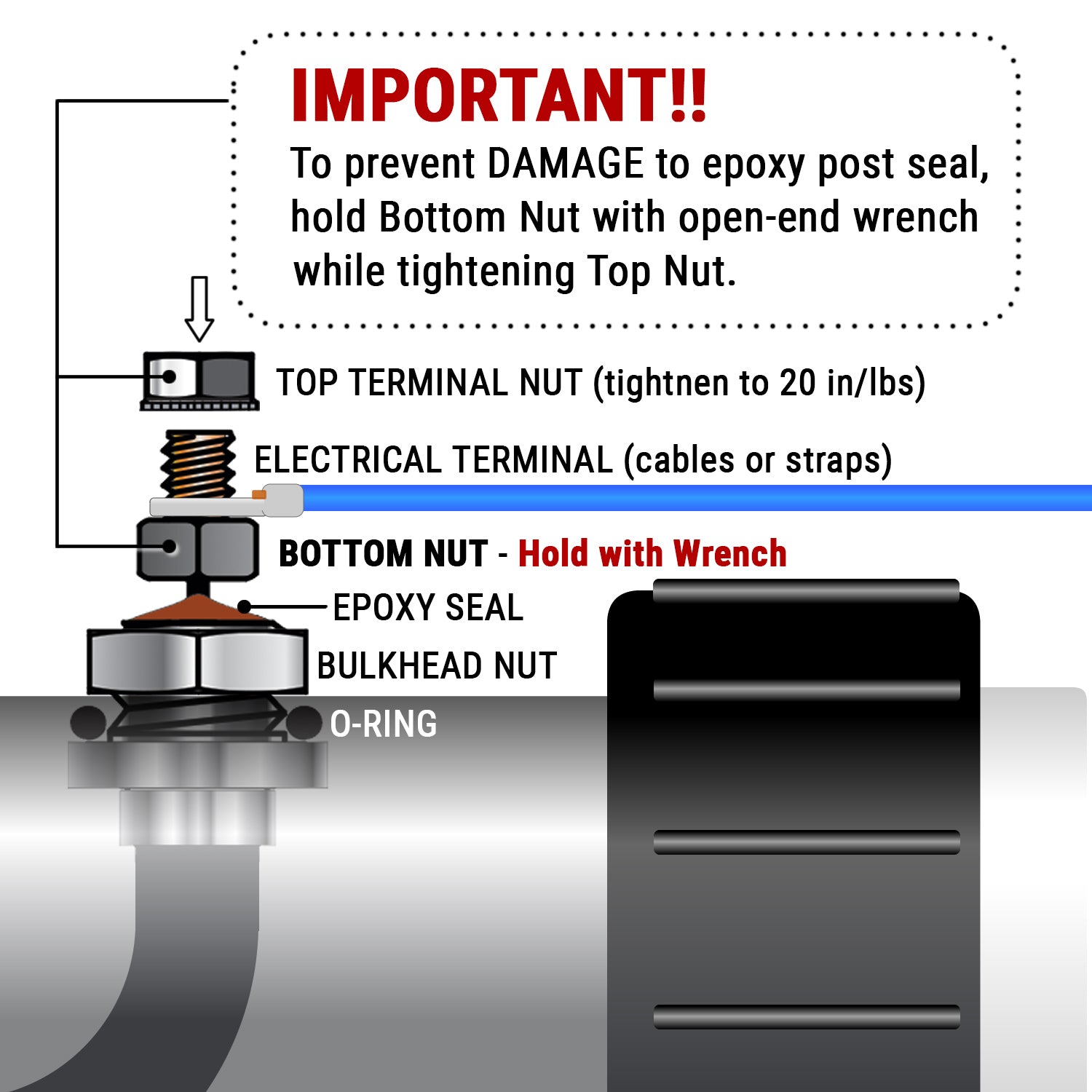

Product notes: Not for Plug-n-Click or remote heaters. Replaces obsolete Balboa 30039 Jumper Strap used in EL, VS, GL, & GS control systems. Torque top nut to 20 inch pounds, while holding bottom terminal nut (Refer to illustration). Torque circuit board nuts to 30-35 inch pounds. Improper installation will result in premature failure and void warranty. 48-0023.
Need Help? Send Photos!

CALIFORNIA WARNING

Often bought together:
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
BX5000
Quick View
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
Flow-Thru Spa Heater Element 7" - 5.5 kW Titanium
BX5006T
Quick View
VersaTherm Universal Spa Heater Assembly
VersaTherm Universal Spa Heater Assembly
BX5950
Quick View
Balboa M7 Flo-Thru Spa Heater by HydroQuip
HydroQuip Heater Replacement for Balboa M7
BX5953
Quick View
Balboa Lite Leader Flo-Thru Heater Assembly 4.0kW
HydroQuip Heater Replacement for Lite Leader Controls
BX5966
Quick View
Spa System Flush - Hot Tub Cleaner
Spa System Flush Hot Tub Cleaner
MT1028
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View

These spa heater jumper cables connect heating elements to control boards with bolt-on connectors. Customers praised the "good quality" and noted they "worked perfectly." Reviews highlight fast delivery, easy installation, and proper fit. One shopper emphasized buying new cables when replacing heaters to prevent board damage. Slightly longer than some needed, but shoppers preferred extra length.

  • 5 stars: 19 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
P
Phillip H.
Spa Jumper Cables

As described!

J
Jon K.
Just what I needed

My original Gecko (very similar to Balboa) spa heater used wires that were soldered onto the element. The replacement heating element I installed used bolt-on connectors so I purchased these wires from SpaDepot with eyelets on both ends and they worked great. They were a bit longer than I required but better to be a bit too long than too short!

p
peter a.
Quick delivery

I paid extra for expedited delivery and it came the next day.

J
JustWantedWarmerWater
Just what I needed

Inexpensive: check! One black: check! One blue: check! Powers the heating element: check! Would I buy again? Hope I never have to but sure!

T
Tommy G.
Definitely buy if you replace heater!!

I learned the hard way when I didnt replace them with a new heater! Old ones burned up and fried my motherboard. Ugh

C
Carl O.
YES!! :)

Excellent and fast delivery

E
Eric W.
Good quality

Good quality. Replaced old ones and all works well

L
Lee W.
Seemed all was according to specs

Just right

C
Chen
I would buy from them again!

Got the correct parts and in a timely manner. Got advice quickly online too! Great experience

S
Shawn M.
As described and shipped quickly.

As described and shipped quickly.

J
Jamie W.
Worked great!

Great service, quick delivery and everything was easy to install and worked perfectly

F
Frank
Very professional people and would definitely buy from them

Need to do to figure out which heater core I needed the parts people were excellent to work with new exactly what I needed and got it coming

s
scott
Simple solution to a big problem??? I hope so

2 wires delivered promptly. recommended as a ""fix"" for another blown board. Simple solution to a big problem?? I hope so.

C
Carol
Heater

I needed to put a new spa heater in and I had my plumber install it and we contacted Spa Depot for technical support and the lady was very helpful. It works very well and my spa is now warm and working like it is suppose to. Thank you Spa Depot.

E
Eddyo
These wires were great. They worked well.

These wires fit perfectly.

A
Anthony M.
Heat elements work great and just in time for Autumn

They install in merely minutes and fit like they should. So nice to have a ""HOT"" tub.

P
Pattycw
Greatly happy

Just what was needed for a repair to our spa.

B
Bill
Spa Heater

Perfect fit. Installation was easy, the new heater was identical to the old one.

S
Slowride K.
Excellent support thru the blog....great help!!

used their blog - answered the next day!!! I have an old hot tub with old parts....they knew the right answer and I was back in business for less than $15 -- I will come back!!
