Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW

BX5961
Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW
Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW
Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW
Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW
Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW

Smart Low-Flow Heater for Sundance/Jacuzzi 6500-310 5.5kW

BX5961
Regular price $199.95
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
  • In stock, ready to ship
  • Inventory on the way
Ships next business day.

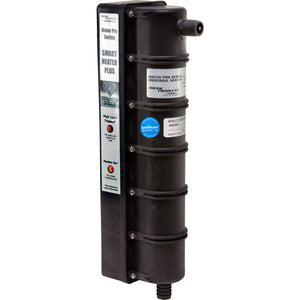

Water Pro Smart Low-flow Heater replacement for Sundance & Jacuzzi Spas. Titanium long-life element meets or exceeds OEM. You cannot buy a better replacement heater at any price.

  • 5.5kW @ 240V Titanium element
  • Fits Sundance spas 1995 & newer
  • Includes High-Limit Sensor & Switch
  • Indicator lights for easy diagnostics

Product notes: Includes 1/4" sensor 6600-168, wire harness, extra 3/4” hose. Fits 1995+ 650 - 850 & 880 series with low flow heaters. Used on 2015+ Jacuzzi J-400 & J-500 spas. Sundance® is a registered trademark of Jacuzzi Brands, LLC.

Sundance 6500-310 Spa Heater Installation Information

Details:

Connection: 3/4” Barbed Fittings

Voltage: 240V

Wattage: 5.5kW

High Limit Sensor: BX9407 - 6600-168

High Limit Switch: BX9615 - 6600-093

Replaces Part Numbers: 6500-310, 6500-301, 6500-316, 6500-843, 58336, 2-00-0066, 323810810, 307878, 46-555-1000, 46-555-1010, 46-355-3025, 58030, 58336, 9143E, C3314-1, C3411-1, E2550-1000, E2550-3314, 26-3314-1-7T-K, 26-3411-1-7T-K

Warranty: 1 year Limited Warranty

Customer Reviews

Based on 55 reviews
89%
(49)
7%
(4)
0%
(0)
4%
(2)
0%
(0)
K
KIRK C.
Best price anywhere for this heater *with* a Hi-Limit Sensor!

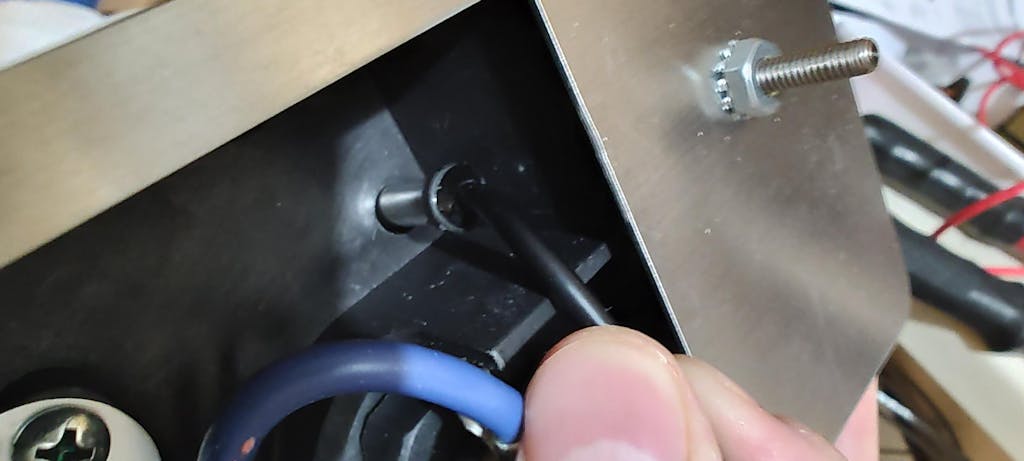

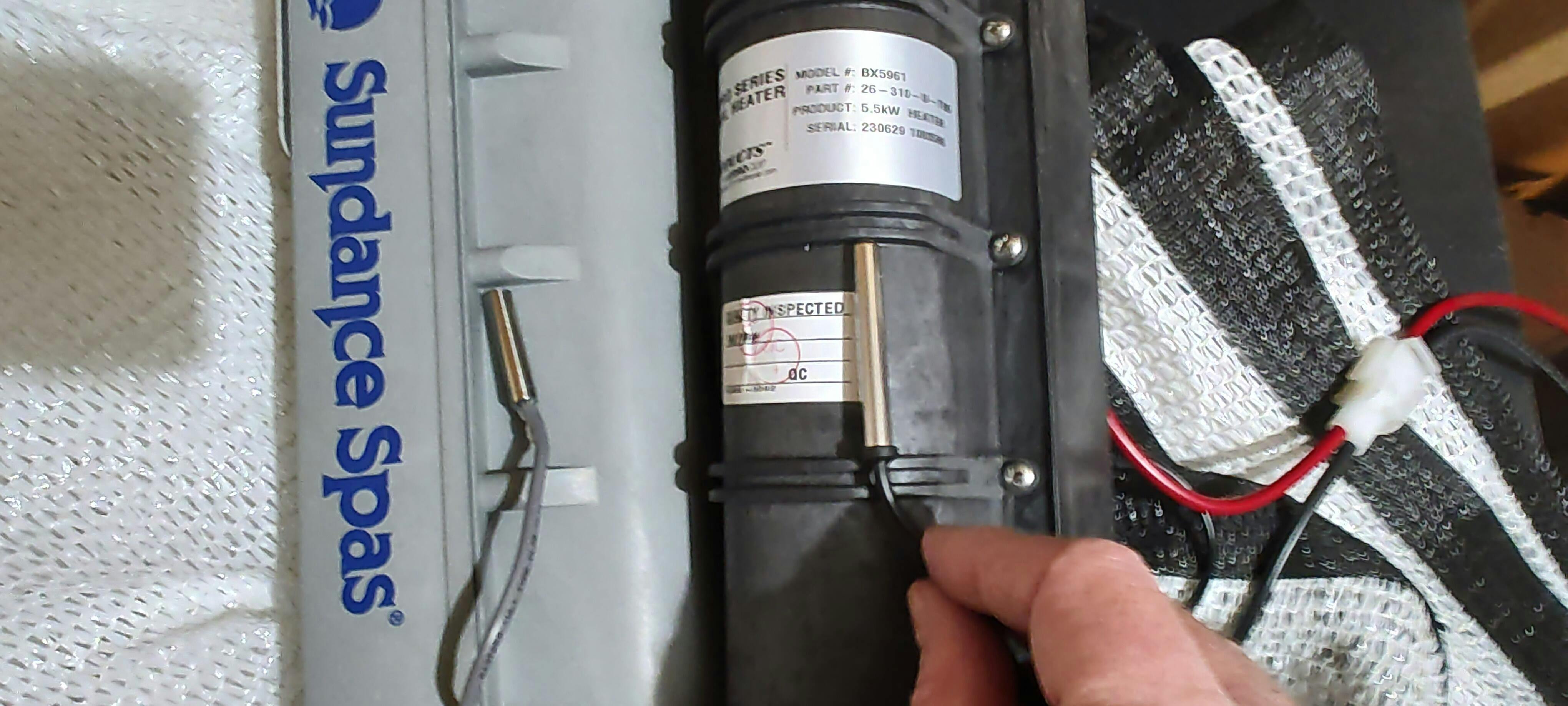

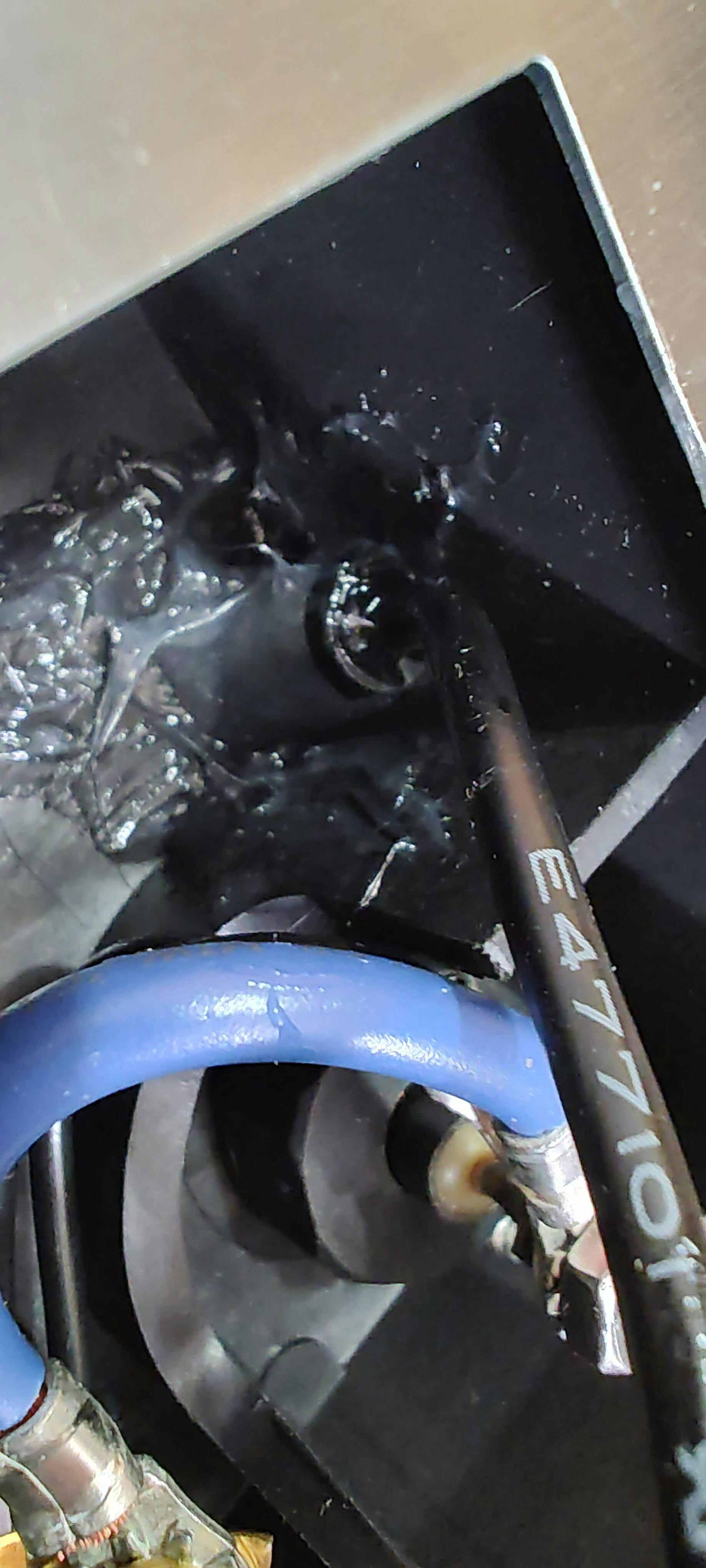

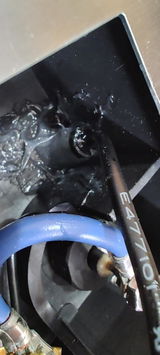

The original (20-year old!) heater was still working until I installed a temp sensor incorrectly and accidentally dry-fired the heater. So I was very pleased to find this unit with a Hi-Limit Sensor included for the price. The one thing they don't say in the instructions is that the new high-limit sensor isn't supposed to seat all the way in as the old one does. But SpaDepot's support was great. They confirmed that it just needed to be caulked with some silicone to hold it in place. (See pics: old heater/sensor on the left, new units on the right.)
And, many thanks to John Reihing, who described in his review on this site how to keep from dry-firing it. Because of him, I was able to self-install with confidence.

W
Wayland
Like it.

Good price and quality. The install wasn’t too difficult. The only problem I had was the two wires that went to the circuit board had a connector on them and I needed them separate so I could just plug them in the back of the existing 14 pin connector. The heater getting power indicator was a nice new feature that I didn’t have before.

m
michael k.
So far so good

Fit 2014 Sundance 880 Marin perfect. Took 6 hours to heat from 51f to 89f.

j
john h.
Great heater, possibly long install

I have a 2019 optima 880. This heater was a perfect fit. Installing it was a bit trickier than what is in the video and comments. I needed an 11/32 (i think) wrench for the ground, my ground post spun with the nut, as did the heater posts. The vice grips only slowed the water leakage….. things were a mess. The upper heat sensor wires did not fit into the plug all the way so they were not making contact with the main board, i ended up removing the unused locking shroud. All in all it was a 1.5-2 hour job, start to finish. I will do this again as needed, i would just overprep before starting..

B
Brad B.
Heater for Sundance Spa

Ordered the heater after oem unit finally died after 20 years. Very easy install when following instructions and very glad they gave some new hose to connect both sides. Really like the additional indicator lights. Works just like clockwork and heats 5 degrees per hour.
