HQ Low-Flow Heater for Jacuzzi/Sundance 4.0kW
HQ Low-Flow Heater for Jacuzzi/Sundance 4.0kW
Premium quality made in USA
HQ Low-Flow Heater for Jacuzzi/Sundance 4.0kW
HQ Low-Flow Heater for Jacuzzi/Sundance 4.0kW
Premium quality made in USA

HydroQuip Low-Flow Heater for Jacuzzi/Sundance 4.0kW

BX5959
Save $-219.95
/
Free Shipping
Need Help? Send Photos!

Add to Order (recommended):

$4.95
Snap-Grip Hose Clamps 4-Pack 3/4" - 1-1/4"
Snap Grip Hose Clamps
¾" - 1¼" 4-Pack
Select Title

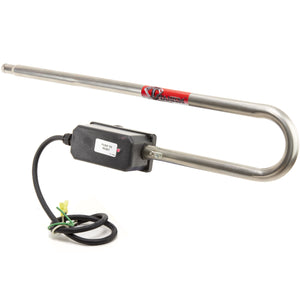

Low-Flow Trombone-Style Hot Tub Heater Assembly by HQ. Extended life element meets or exceeds the OEM heater by Laing Thermotech (Laing no longer makes heaters). You cannot buy a better heater at any price.

  • Long-life Titanium heater element
  • Hi-Limit Reset button
  • 4kW@240V / 1kW@120V

Product notes: Works with Jacuzzi, J-310, J315, J-325 or other hot tub spas using Laing design low-flow heaters such as Sundance Metro, Caprio, Tango, Solo, Bahia, Cayman, Palermo, Sweetwater Lagunas, Watkins Hot Spring. Replaces part# 6518.1. Jacuzzi® and Sundance® are registered trademarks of Jacuzzi Brands, LLC.

Spa Heater Installation Instructions

Details

Dimensions: 26½”L x 5½”W

Connection: ¾” Barbed Fittings

Voltage: 240V/120V

Wattage: 4kW @ 240V – 1kW @ 120V

Pressure Switch/Sensor: Internal High Limit Sensor Disc (TCO) Included

Power Cord: 25” 3-Wire Cord w/ ¼" Female Spade Connectors

Replaces Part Numbers: 6500-063, C3226-1A, C3473-1, 74912, 72494, 26-3226-1A-5T-K, E24060LHS, 26-3226-1A-5T-K, 2-00-0020, SEH-4300-NHW, 6595, 6596, 26-3473-1-5T-K, 46-238-1064, IHH-4300-NHW-7340, SEH-4300-NHW-6596, 26-3473, Laing 6518.1

Warranty: 1-Year Limited Warranty
Need Help? Send Photos!
Often bought together:
Grundfos 3/4 inch circulation pump
Grundfos Long-Life LoFlo 12-GPM Spa Circulating Pump ¾" Barb - 120V/240V
BX4224
Quick View
3/4"ID x 10' - Clear PVC Vinyl Tubing
¾"ID x 10' - Clear PVC Vinyl Tubing
BX9009
Quick View
HQ Lo-Flo Heater for Sundance/Jacuzzi 5.5kW
HydroQuip Lo-Flo Heater for Sundance/Jacuzzi 5.5kW
BX5958
Quick View
Flow Switch for Sundance/Jacuzzi 3/4" Barb x 3/4" Barb x 3/8" Barb
Flow Switch for Sundance/Jacuzzi ¾" Barb x ¾" Barb x ⅜" Barb
BX9650
Quick View
Heater Manifold Plug, 1/8" NPT 2-Pack
Heater Manifold Plug, ⅛" NPT 2-Pack
BX9613
Quick View
Temperature Sensor for Sundance/Jacuzzi 6600-167
Temperature Sensor for Sundance/Jacuzzi 6600-167
BX9412
Quick View
PreFresh Spa & Pool Water Fill Filter
PreFresh Spa & Pool Water Fill Filter
MT1051
Quick View

Customers praised this 4.0kW heater for "perfect fit" and easy installation. Most found it "worked immediately as expected" with fast shipping and competitive pricing. One customer noted wires were "too short," but overall, shoppers appreciated helpful customer support and reliable heating performance for hot tubs.

  • 5 stars: 18 (95%)
  • 4 stars: 1 (5%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
C
Chuck B.
Jacuzzi Heater

Great experience. Ordering was easy. Item is exactly what i ordered

a
allen l.

Spa depot saves me hundreds of $$$$
On labor while teaching me how to service my hot tub

J
Jeffrey P.
Perfect fit and fast delivery

Perfect fit, thanks to good product description details.

J
Joseph
Perfect product, exactly what I wanted! Easy to install

I bought this for my Sundance Spa. I wasn't 100% certain which heater I needed but the representative in the chat was extremely helpful and made sure I got the exact part I needed! Shipping was quick and the product came in perfect condition. Easy to install and worked immediately as expected. I highly recommend purchasing from Spa Depot. I certainly will the next time I need something.

J
Jack i.N.
Good product- Fast shipping!

Heater worked as advertised and received on time. Thanks Spa Depot!

K
Keith
I would buy from Spa Depot again!

I recently installed this heater and it is working perfectly. Thanks to Ryan and Amy I was able to get it installed and wired successfully. Great work and very responsive to my concerns!!

T
Tim
Yes

Works great ... definitely buy again

B
BonBrazin
perfect fit

Easy to install. Fit perfectly.

C
Carol
Quick & Easy

My husband was able to install this with minimal difficulty. Quick shipping!

i
im45us
Perfect fit.

I needed a heater for my hot tub. I looked on line and called my local dealer and it was almost twice as much. I understand a mark up but it was about an 85% mark up. The heater works great and looked just like the original. If needed I will be back.

L
Ladislav J.
Good product

👍

D
Dave
i would recommend this company for spa parts

I recieved this heater in 2 days which for our rural situation is lightning fast. It was easy to change out and heated our tub right out. This price was half of what we found elsewhere.

B
Bull
works great

Installed right into my hot tub with ease

J
James W.
Good quality after market heater.

This heater was built better than the original. Perfect fit...but the wires were too short.

C
Craig
Great heating element

Works great! But found out there was nothing wrong with heater. It was a bad breaker! Working good so far👍

T
Thinkjeremiah
Worked perfectly

Quick ship. Plug and play.

0
03JRB
Easy install...praying it lasts

Product was easy to install and actually heated my tub faster than the last one. I purchased this from a competitor previously and it died at 18 months. This is a different brand and my hope is this one lasts as long as the original (8 years).

R
Robin L.
Works perfectly

Excellent technical help. The product required some tweaking as it was not a direct replacement but your customer support was incredibly helpful. Thank you!

D
Don
Works Great!!

Came on time, no surprises, and it works great. I'm completely satisfied.

A
Al A.

This heater says it has a titanium element, is the housing also titanium or is it Stainless Steel? I am using salt in this tub and the heater housing keeps rusting through

SpaDepot.com

The heater element is Titanium and the housing is Stainless Steel. Corrosion of metal parts with salt systems can be caused by 2 factors: High salt/water ratio (not very common), or too much chlorine generated (very common). Give us a call and we'll be happy to walk you through the finer points of salt water chemistry so you don't have this problem again.

J
Jeremy J.M.

I have a 3/8 fitting that comes out the top as well. Was wondering if I could sent you a picture to verify. Maybe I’ll need to thread a hole for the fitting.
Thank you for your time.

SpaDepot.com

This heater has a threaded port for the fitting you mentioned. Please send us (help@spadepot.com) a photo of your current heater and fitting, and we'll be happy to ensure you get everything you need for a perfect installation in your hot tub.
