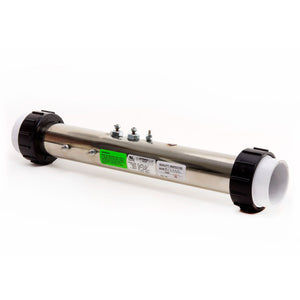

HydroQuip Heater Assembly for Gecko S-Class

BX5962
Save $-129.95
/
Free Shipping
Need Help? Send Photos!
Heater Wattage: (Select One)
5.5kW@240V
4.0kW@240V
Please select
Select Title

Premium Stainless Steel Spa Heater Assembly for Gecko Pro Pack/S-Class. Attaches to circuit board with either metal straps -or- wire cables. If your system has straps, simply attach to existing. If your setup utilizes wires, order Optional Heater Cables (checkbox above).

  • 240V/120V - Wattage Choice
  • Pressure sensor tap
  • Ground lug & bonding bar studs
  • 2" Slip Socket tailpieces

Product Notes: Always use two wrenches when making electrical connection to heater element terminals, to avoid damage to epoxy post seal. 1-year warranty.

Details

Length: 15" Stainless Steel Tube (not including union length)

Connection: 2" Slip Socket (Easily Convertible to 1½" Plumbing)

Voltage: 240V / 120V

Wattage Choice: 5.5kW | 4.0kW

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Pressure Taps: (1) Flush Mount

Replacement Element: BX5000 Flow-Thru Spa Heater Element

Cross Reference Numbers:4.0kW: 20-00242, 20-00280, 20-00284, 20-00285, 20-00294, 26-0800-5S-K, 530AA0078, 530AA0095, 72651, 9920-100338, C2400-0800 / 5.5kW: 20-00272, 20-00274, 26-0800-7S-K, 530AA0107, 9920-100339, B24055GM, C2550-0800(ET-G)

Warranty: 1 year Limited Warranty
Need Help? Send Photos!
Often bought together:
Heater Cables: Element to Circuit Board - Pair
Heater to Board Jumper Cables - Pair
BX9608
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
BX5000
Quick View
O-Ring Gasket, 2" (2-15/16"OD) - 2-Pack
O-Ring Gasket, 2" (2¹⁵⁄₁₆"OD) 2-Pk
BX9936
Quick View
Reducer bushing 2 in. x 1.5 in.
Reducer Bushing 2"SP x 1.5"SS
BX9901
Quick View
Spa System Flush - Hot Tub Cleaner
Spa System Flush Hot Tub Cleaner
MT1028
Quick View
Wire-Rope Plastic Pipe Saw
Wire-Rope Plastic Pipe Saw
MT1087
Quick View
T
Tracy Q.

Will this work on my Solana hot spot rx1f1142.. 1999-2004 and do I need additional parts ie: O rings, wires?

SpaDepot.com

This heater was used on several Solana spas through the years. Most heaters come with all necessary gaskets to and installation necessities. To ensure proper fitment, please email us (help@spadepot.com) a picture of your current heater and we'll be happy to help.

L
Lucinda L.

How can I select the right replacement heater for a Dimension One Sojourn Model 140356?

SpaDepot.com

The easiest way to confirm a replacement heater is to email photos of your current heater. We'll respond quickly with the information you need.
