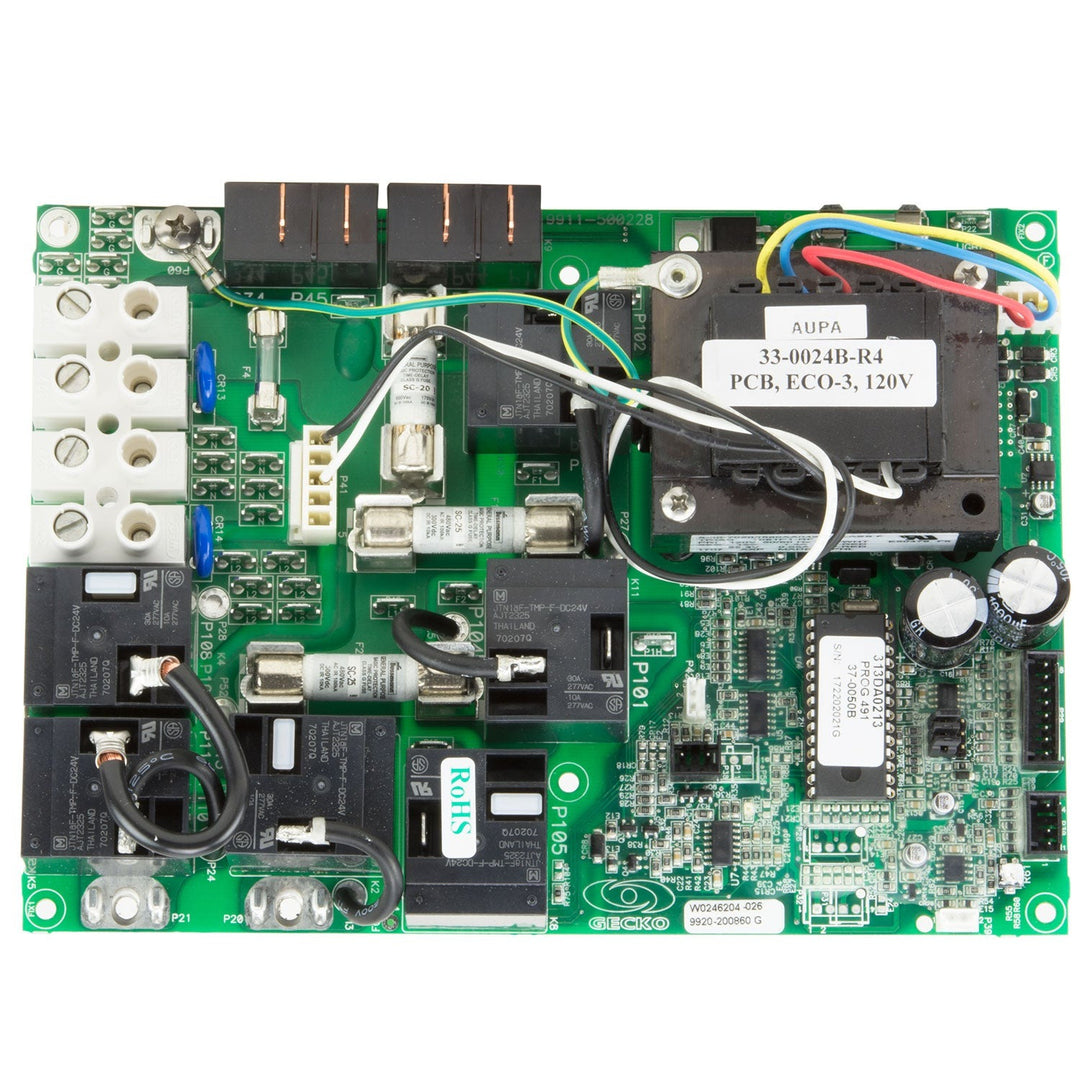

Gecko® Circuit Board for HydroQuip Controls - 33-0024B-K

HQ0042
Gecko® Circuit Board for HydroQuip Controls - 33-0024B-K

Gecko® Circuit Board for HydroQuip Controls - 33-0024B-K

HQ0042
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Inventory on the way



This printed circuit board (PCB) is for HydroQuip hot tub control systems. Supports 2 pumps, blower, circulation pump, ozone/UV-C, and light.

  • Genuine OEM Gecko® Board
  • Compatible with ECO-3 digital topside control keypads

Product Notes: Replacement circuit board for HydroQuip CS4230, CS6230 & CS9230. Circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. See below for associated part and chip numbers. Circuit boards are not returnable, but are covered under warranty.

How to Find Your Circuit Board Chip Number

Details:

Primary Pump Circuit: 2-Speed - 120V/240V

Secondary Pump Circuit: 1-Speed - 120V/240V

Blower Circuit: 120V/240V

Light Circuit:12V Spa Light

Ozone/UVC Circuit: 120V/240V

Circulation Pump Circuit:120V/240V

A/V Circuit:Not Supported

Compatible Control Keypad Type: ECO-3 Digital

Compatible Keypad Part Numbers:34-0197

Chip/Part Numbers: 33-0024B-K, 33-0024-R1, 33-0024B-R2, 33-0024B-R3, 33-0024B-R4

Warranty: 1 year Limited Manufacturer’s Warranty

IMPORTANT:   Damage due to incorrect installation is not covered under warranty.

You may need
SC-25 Fuse, Class G Time Delay - 25A
SC-25 Fuse, Class G Time Delay - 25A
BX9974
Quick View
SC-20 Fuse, Class G Time Delay - 20A
SC-20 Fuse, Class G Time Delay - 20A
BX9973
Quick View
SC-30 Fuse, Class G Time Delay - 30A
SC-30 Fuse, Class G Time Delay - 30A
BX9975
Quick View
HydroQuip/EasyPak ECO-3 Topside Control - 6 Button 34-0197-K
HydroQuip/EasyPak ECO-3 Topside Control - 6 Button 34-0197-K
HQ0006
Quick View
High Limit Sensor - HydroQuip 34-0201D - 18"
High Limit Sensor - HydroQuip 34-0201D - 18"
HQ0009
Quick View
Pressure Switch Cable for EasyPak, HydroQuip, Gecko
Pressure Switch Cable for EasyPak, HydroQuip, Gecko
BX9403
Quick View
EasyPak 2000 Flex-Fit Spa Control Kit - Up to 2 Pumps + Circ Pump & Blower
EasyPak 2000 Flex-Fit Spa Control Kit - Up to 2 Pumps + Circ Pump & Blower
EP2000
Quick View

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mack
Best Price and Circuit Board Worked Perfectly

I was going to replace the two stuck heater relays on the circuit board, but I got lazy and ordered the whole board because I found a good price!

J
Jim S.G.
What I needed

Replacement board. My old one got hit by an over voltage spike. Mostly plug-and-play, but there were some different pin outs, but fortunately they were all explained so it was a non-issue.

D
Dan
Works but be prepared

Works good and actually better than the R2 version, this version seems more efficient and runs the pumps differently, water seems cleaned so maybe the ozone is working now. Be prepared to troubleshoot this yourself and the cross reference is not very accurate. I had two wires going to Pin 33 had to break them up. Also make sure you set the jumpers.
