Gecko® Circuit Board for HydroQuip/EasyPak EP2000 Series Controls - 33-0024E-K

HQ0010
Gecko® Circuit Board for HydroQuip/EasyPak EP2000 Series Controls - 33-0024E-K

Gecko® Circuit Board for HydroQuip/EasyPak EP2000 Series Controls - 33-0024E-K

HQ0010
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Inventory on the way

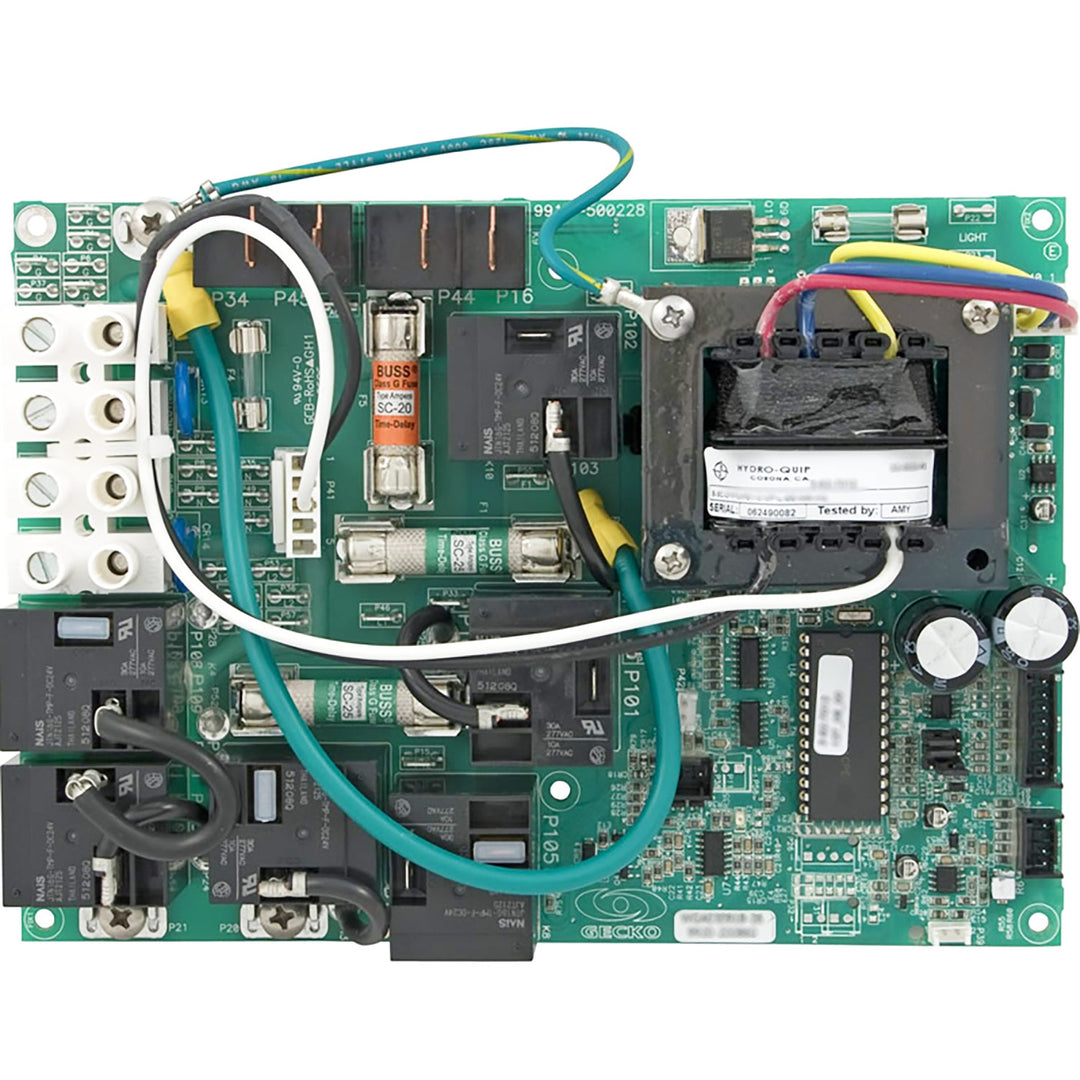

This Gecko® printed circuit board (PCB) is for HydroQuip & EasyPak EP2000 (before June 2018) hot tub control systems. Supports a primary pump and secondary pump, additional pump or blower, circ pump, ozonator & light.

  • Genuine OEM Gecko® Board
  • Compatible with ECO-3 digital topside control keypads

Product Notes:Replacement circuit board for HydroQuip 6330 Series. Circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. See below for associated part and chip numbers. Circuit boards are not returnable, but are covered under warranty.

How to Find Your Circuit Board Chip Number

Details:

Primary Pump Circuit: 2-Speed - 120V/240V

Secondary Pump: 2-Speed pump 120V/240V

Additional Pump or blower circuit: 1-Speed pump or blower 120V/240V

Light Circuit:12V Spa Light

Ozone/UV-C Circuit: 120V/240V

Circulation Pump Circuit:120V/240V

A/V Circuit:Not Supported

Compatible Control Keypad Type: HT-2

Compatible Keypad Part Numbers:HQ0006, 34-0197

Chip/Part Numbers: 33-0024E

Warranty: 1 year Limited Manufacturer’s Warranty

IMPORTANT:  Damage due to incorrect installation is not covered under warranty.
