EasyPak/HydroQuip Heater Assembly for Flex-Fit Pneumatic Controls - 5.5kW

BX5964A
Save $-199.95
/
Free Shipping
Need Help? Send Photos!
  • Order Soon - Only 5 Available
  • Backordered, shipping soon
Select Title

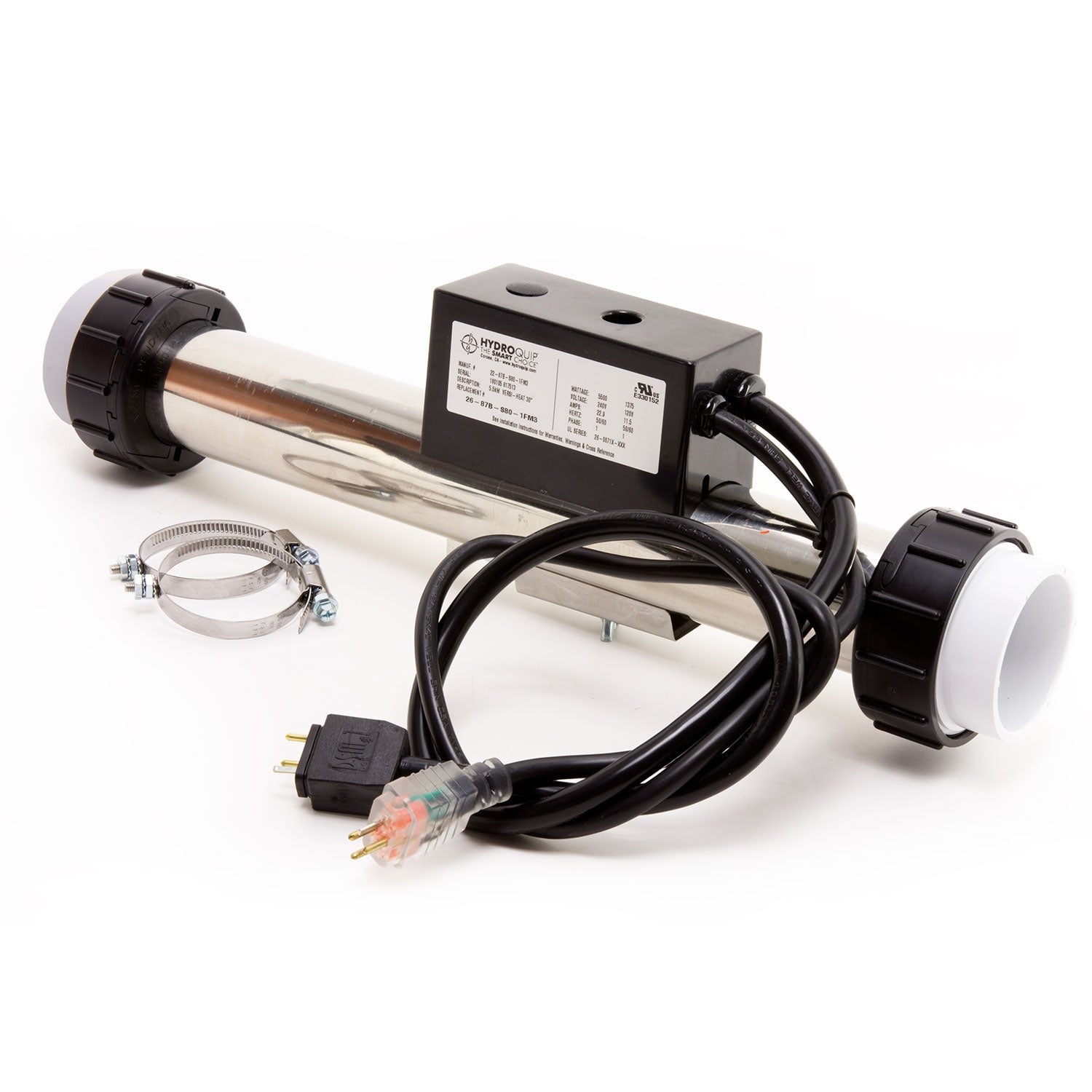

Premium Flow-through Hot Tub Heater Assembly for EasyPak & HydroQuip Flex-Fit pneumatic (air switch) control systems. Genuine OEM part.

  •  5.5kW

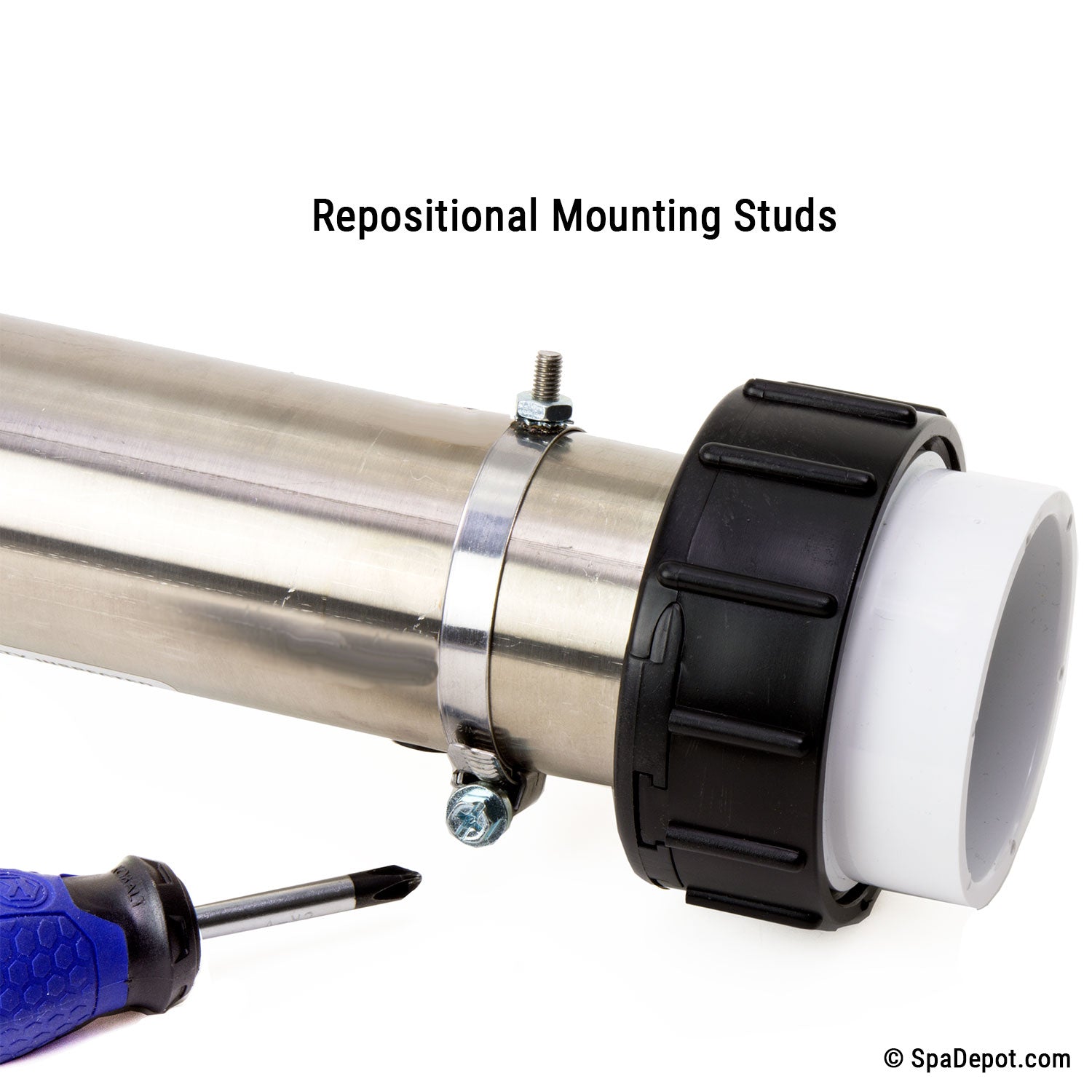

  • Slide Mount for a Variety of Positions

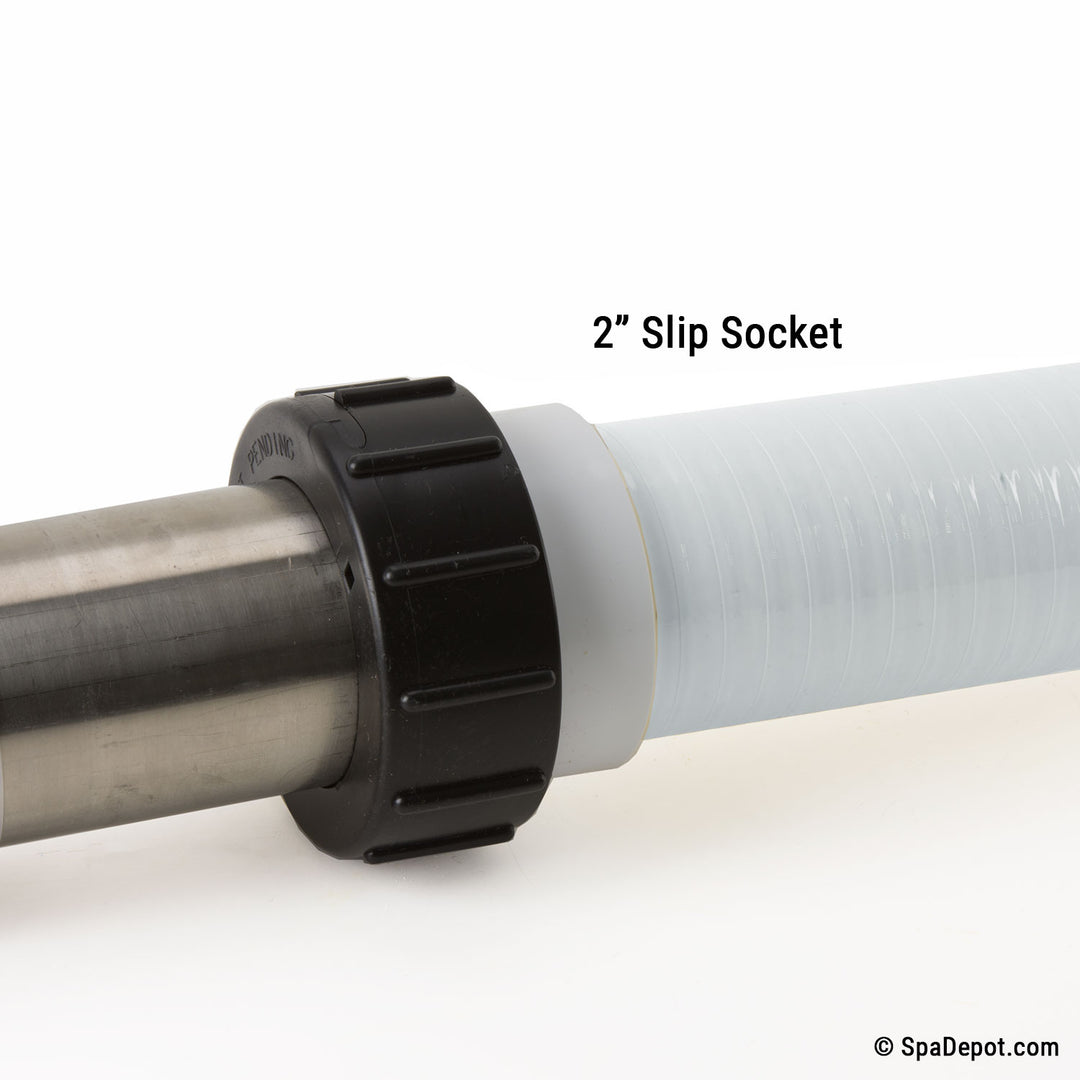

  • 2" Slip Socket (convert to 1½" with BX9901 reducer bushings)
  • Includes Pressure Switch, Auto Reset Hi-Limit & 30" cables

Product Notes: Fits Hydroquip CS6000 Series, & EasyPak 1000 pneumatic control systems with slide heater mounts purchased before 10/2025. [TBD]

Spa Pressure Switch Adjustment Instructions

Details

Length: 15" Stainless Steel Tube (not including union length)

Connection: 2" Slip Socket (Easily Convertible to 1½" Plumbing)

Voltage: 240V / 120V

Wattage: 5.5kW / 1.375kW

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Sensors: Auto Reset Hi-Limit and Pressure Switch included

Cord Length: 30"

Plug Type: Mini J&J

Replacement Element: BX5000 Flow-Thru Spa Heater Element

Cross Reference: 4.0kW - 26-85B-S80-1FM3, 22-85B-S80-1FM3 | 5.5kW - 26-87B-S80-1FM3, 22-87B-S80-1FM3

Warranty: 1 year Limited Warranty
Need Help? Send Photos!
Often bought together:
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
BX5000
Quick View
O-Ring Gasket, 2" (2-15/16"OD) - 2-Pack
O-Ring Gasket, 2" (2¹⁵⁄₁₆"OD) 2-Pk
BX9936
Quick View
Heater Union Split Nut Assembly - 2"
Heater Union Split Nut Assembly - 2"
BX9902
Quick View
Reducer bushing 2 in. x 1.5 in.
Reducer Bushing 2"SP x 1.5"SS
BX9901
Quick View
Pressure Switch - Adjustable, SPST-NO, 3902
Pressure Switch - Adjustable, SPST-NO, 3902
BX9928
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
Spa strap wrench
Nut Wrangler Spa & Hot Tub Wrench - Threaded Fitting Removal Tool
MT1093
Quick View
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous
The part came quickly and on the arrival date

The part came quickly and on the arrival date that was stated when I had ordered it. I ordered the part off of the recommendations from the company and it fit perfect very reliable company.

r
roger j.

The heater quit heating. Thinking the heater failed, I bought a new one, installed it, still no heat. What else could be the problem?

SpaDepot.com

Try seeing if the heater gets voltage when a heat call is made. Simply put your meter probes on each of the heater terminals and record the voltage reading. If you find no voltage, there's a problem with the circuit board. We're happy to walk you through this procedure, simply give us a call when you're ready.
