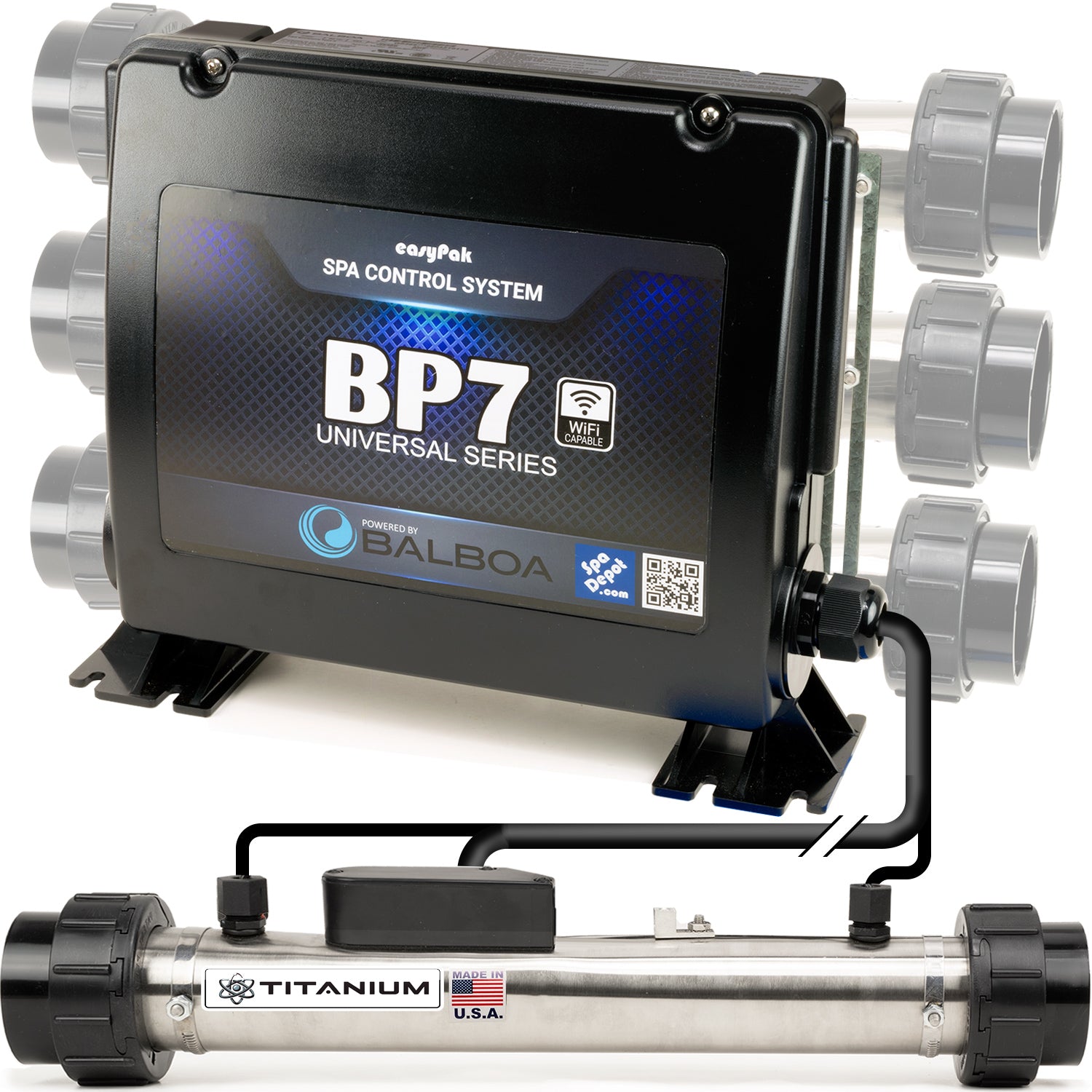

Universal spa control replaces most 1 to 4 pump systems - any brand. When paired with SpaTouch or TP series keypads, it’s a perfect upgrade for Balboa® VS, BP, & EL packs. Positional heater with advanced dual-sensor technology allows plumbing to pump intake or discharge.
Included:
Supported Circuits: Jet Pump 1, Jet Pump 2, Jet Pump 3, Blower or Jet Pump 4, Continuous Circulating Pump, Ozone, Light, A/V (stereo)
Keypad Options: Balboa TP200, TP500, TP600, TP700, SpaTouch Mini, & SpaTouch 3 (add-on pricing, as applicable)
Optional Upgrades:
Product Notes: 120V / 240V (convertible). Suitable keypad required to control functions (see above). If present, circ pump must have 1½" plumbing & produce at least 23GPM. Must be wired by a qualified electrician to an approved, grounded, GFCI-protected service, per code requirements. 240V systems require GFCI disconnect box. Obsolete 3-wire 240V service must be rewired to 4-conductor.
More Information:
Hot Tub Service Wiring Explained
Spa Pack Installation
Balboa BP7 Series Installation/Operation Manual
Jet Pump 1 Circuit: 120V or 240V – 12A max - 2 Speed
Jet Pump 2 Circuit: 120V or 240V – 12A max - Single or 2 Speed
Jet Pump 3 Circuit: 120V or 240V – 12A max - Single Speed
Blower/Jet Pump 4 Circuit: 120V or 240V - 12A max - Single Speed
Heater: 2" High Flow (Easily convert to 1½" with Reducer Bushings)
Continuous Circulating Pump Circuit: 120V or 240V – 4A max - High Flow
Ozone Circuit: 120V or 240V – 0.5A max (Ozone & Circ Pump Circuit voltage must match, if both are present)
Light Circuit: 12V – 2A max (Harness available below)
A/V (Stereo) Circuit: 120V or 240V – 2A max
Communications Ports: Topside, Auxiliary Topside, Control My Spa
Overheat/Freeze Protection: Automatic
Certification: UL listed
Limited Manufacturer's Warranty: 2-year
Alternative To: VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS511Z, VS511SZ, VS520SZ, BP501G1, BP501G2, BP501G3, EL8000, EL2000, EL2001, EL84P, EP6551, Gecko M-Class, X-Class, S-Class Systems, & More
