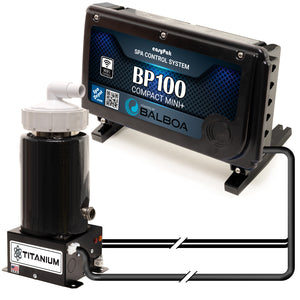

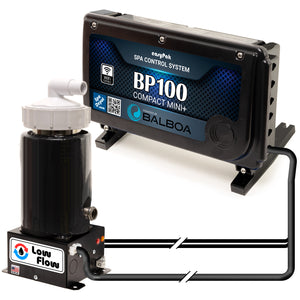

easyPak Powered by Balboa BP100 Pre-Configured Compact Mini+ Spa Control: Low Flow HydroQuip Heater

Compact Mini+ spa control for Hot Spring, Tiger River, Jacuzzi, Sundance, Dimension One, & other spas using continuously circulating, low flow heating. When paired with SpaTouch or TP series keypads, replaces most 1 or 2 pump systems where equipment space is limited.

Included:

• Control System
• Remote Low Flow Titanium Heater w/ 48" Cords - Choice of Wattage
• 5.5kW @240V (1.375kW @120V)
• 4.0kW @240V (1.0kW @120V)
• Hose Clamps & 1" x ¾" Tubing Adapter Kit
• Wall-Mount Plates & Removable Feet
• Detailed Installation Guide

Heater/Circulation Pump Info: Control system heater is designed for use with a small continuous circ pump (¾" or 1" ID hose) delivering at least 10 GPM flow rate @ 6' head. Laing E5, E3, and E1 circ pumps have inadequate flow rates for this high-efficiency heater.

We developed the ideal circ pump for this spa pack. Save money with our Add to Order Bundle Deal & get the correct cord for free!

Supported Circuits: Jet Pump 1, Jet Pump 2 or Blower, Continuous Circulating Pump, Ozone, Light, A/V (stereo)

Keypad Options: Balboa TP200, TP500, & SpaTouch Mini (add-on pricing, as applicable)

Optional Upgrades:

• Grundfos Endurance Circ Pump
• ControlMySpa - Manage hot tub remotely with Balboa CMS app
• High-Output Ozonator Kit
• Starburst 36 LED Vivid Color Light

Product notes: 120V / 240V (convertible). Suitable keypad required to control functions (see above). Required circ pump must accept ¾" or 1" ID hose, with flow rate at least 10GPM @ 6' of Head. Must be wired by a qualified electrician to an approved, grounded, GFCI-protected service, per code requirements. 240V systems require GFCI disconnect box. Obsolete 3-wire 240V service must be rewired to 4-conductor. Jacuzzi® and Sundance® are registered trademarks of Jacuzzi Brands, LLC.

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Balboa BP100 Series Tech Sheet

Details
