EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower ~ 240V

EP0500-2
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower

EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower ~ 240V

EP0500-2
Regular price $399.95
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.
Service Voltage * 240V
240V
  • In stock, ready to ship
  • Inventory on the way
Ships next business day.

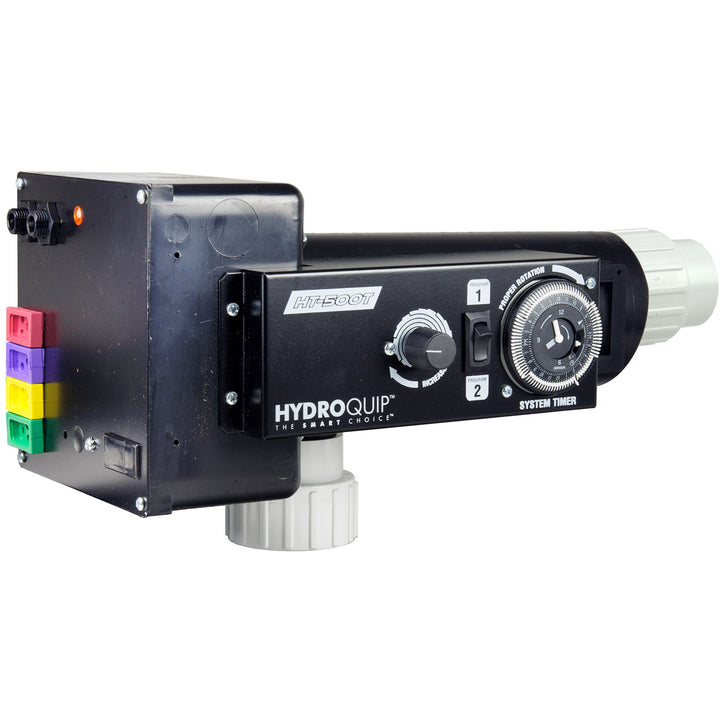

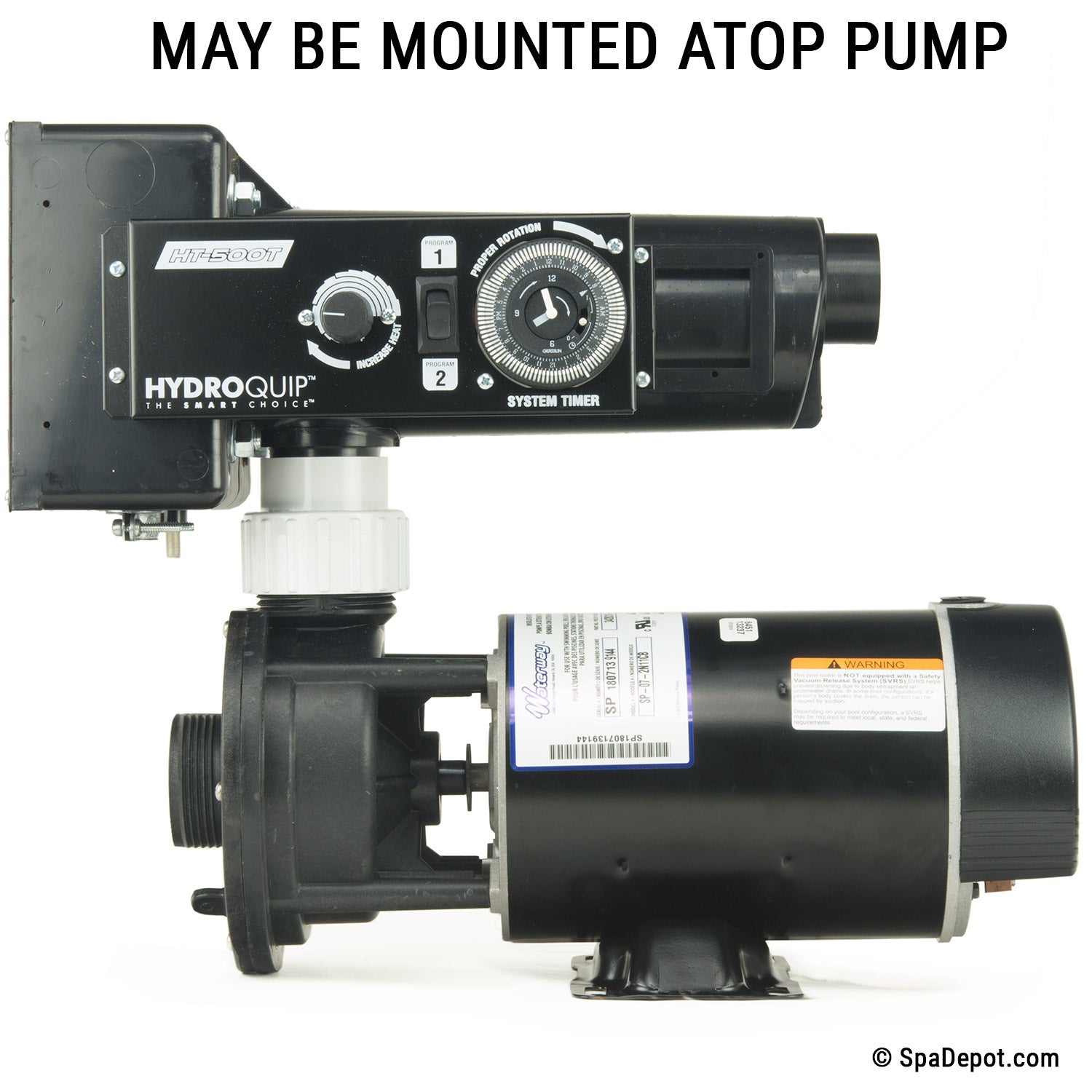

EasyPak EP500 by HydroQuip is the budget-priced, pump-top spa air control system designed for easy installation. Ultra-compact, non-metallic housing mounts directly to the hot tub pump.

You choose the right options for your spa, and the controller comes configured to your preferences. 240V heater systems utilize 4-wire electrical service. Heater is pressure-switch & high-limit protected. Operates on timer or thermostat mode.

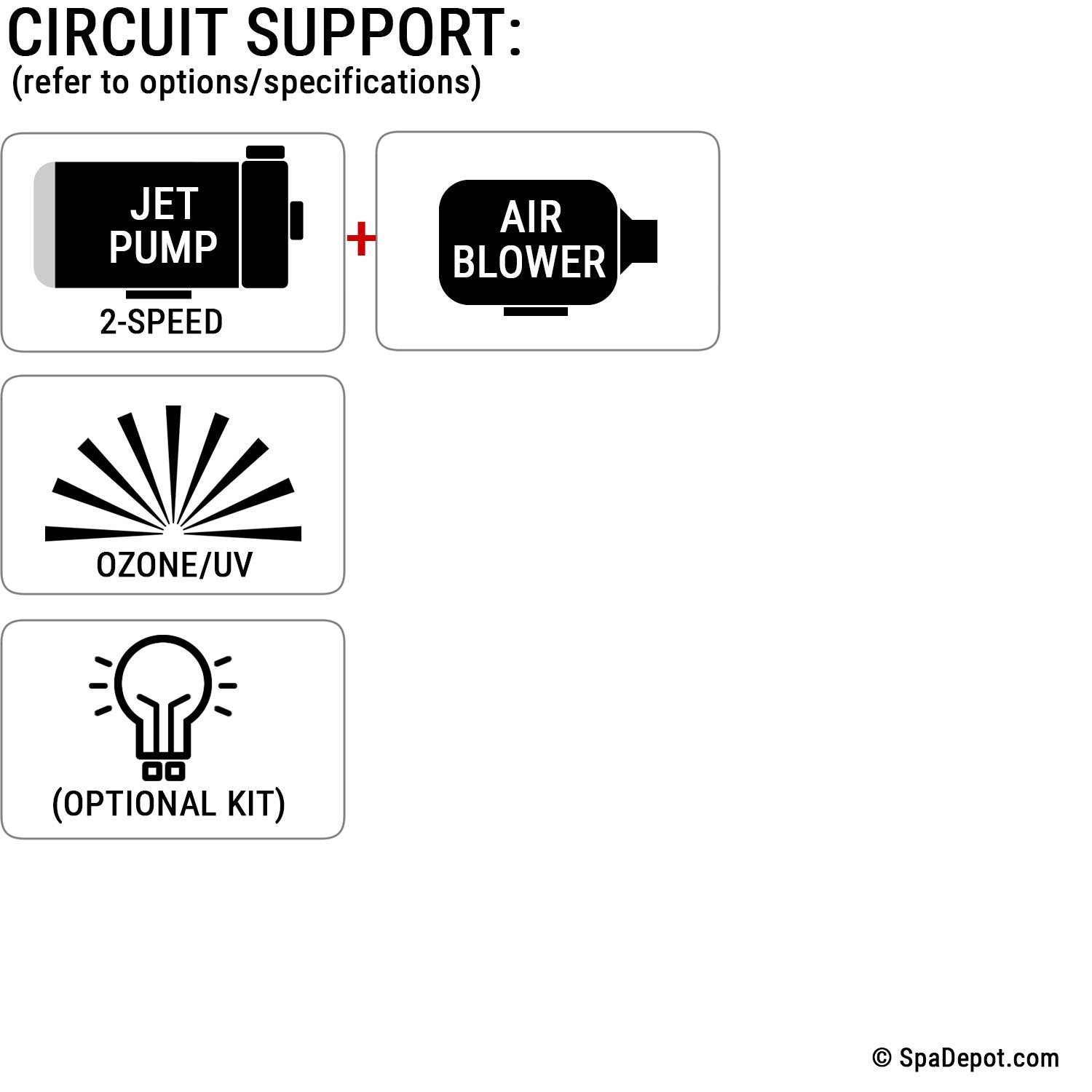

Standard Circuits: 120V Pump, Blower, Ozonator, Heater

Upgrades: Optional Light Kit

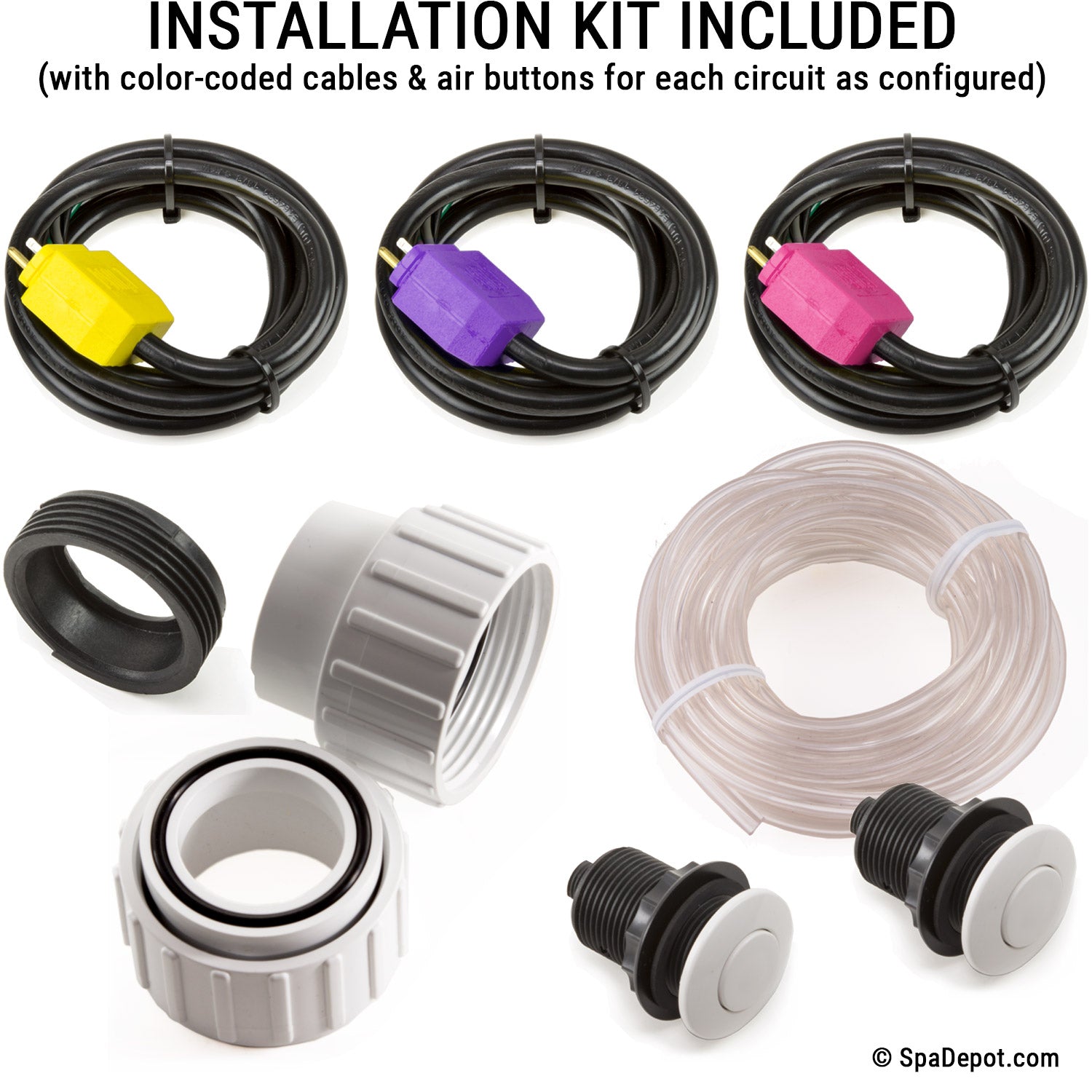

Included with your new EasyPak:

  • Color-coded Power Cords
  • Air Buttons & Tubing for Pump & Blower
  • 1.5" Union Fittings & Gaskets
  • Installation Guide

Product notes: 240V systems must be connected to an approved GFCI-protected 4-wire electrical service.  Voltage selection is not convertible. User and Electrician's Guides included. 2-year factory warranty. For 2" plumbing, see BX9924 Reducer Unions below. Sorry, not shippable outside the contiguous-48 USA.

Operation Manual

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Details:

Pump Circuit: 2-Speed, 120V only (13A max) - With air button & tubing

Blower Circuit: 120V only (8A max) - With air button & tubing

Ozone Circuit: 120V only (2A max)

Timer: 24 Hour

Mode Switch: Timed Heat / Timed Filtration -OR- Thermostat Heat / Timed Filtration

Built-in Heater: 240V (4.5kW)

Heater Indicator: Heat On Light

Thermostat: Full Range

Overheat Protection: Built-in Manual reset button

Pressure Switch: Built-in

Power Cords: Provided for each circuit - 48" & color-coded for easy identification

Light-ready Circuit: 120V Hot receptacle

Light Kit Upgrade: 120V > 12V - Complete installation kit with colored lenses

Case: Rust-free ABS

Replaces: CS500T-A, CS500T-C, CS500T-A-15A, HT500T, HT502T, VOAAB2A-11004EO, 3-70-0091, 3-70-0901A, 58-355-1030, 58-355-1050, & more.



California Proposition 65 declaration:
  WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
25%
(1)
0%
(0)
0%
(0)
I
Ironmn
Temp problems

This unit does not hold a consistant temp. Ranges between 102 - 118. Adjust it down slightly ( 1/16"" ) and it drops to mid 90's.

J
John E.
EasyPak 500

Awesome control box with heater that has a temperature maximum setting of 104 degrees, which is tops for me. My hot tub is over 23 years old and i thought i wasn't going to find a replacement bur SpaDepot came to the rescue and matched a picture i sent them. With a couple of small plumbing adjustments, i am off and running again. Thanks for your fantastic help SpaDepot

t
timothy w.
Spa part fit perfect and

Spa part fit perfect and works perfect!

A
Anonymous
perfect fit

I was very pleased to find this was a direct replacement for my older 2 person hot tub . It even had the same plastic heater housing as the original unit . Inlet and outlet pipes were a perfect fit and they included the required PVC unions . you have to glue them on yourself which is OK since you might have to adjust the lengths of the 1.5 pipes to fit your particular situation . It was nice to get the 2 new air control buttons which fit the old holes just fine . The wire & plugs for the motor and air blower were different than my original but I just took my time and wired them up proper so they are safe . The only drawback was that the 220V model did not have a built in GFI like my original so that was a bit of a pricey suprise that I acquired locally . If your tub is over 10 yrs old like mine I strongly suggest you replace the sliding gate valves on either side of this unit since the chemicals turn them into mush to the point that they dont turn off anything . I wish I had just ordered them from Spa Depot at the same time . Instead I had to run to the nearest spa store 120 miles round trip. The thermostat on this unit pegs out at a maximum temp of around 105 deg which is about as hot as you should ever go anyway. It took about a week to get the unit but that was right after the hoiday rush .
