EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower

EP0500
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower
EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower

EasyPak 500 Pump-Top Mount Air Switch Spa Control Kit - 1 Pump & Blower

EP0500
Regular price $399.95
/
Qualifies for Free Shipping Free standard shipping to US contiguous 48 states for $100+ merchandise total.
Standard Delivery to US-48 Only This item is not available for air shipment, nor for delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Inventory on the way

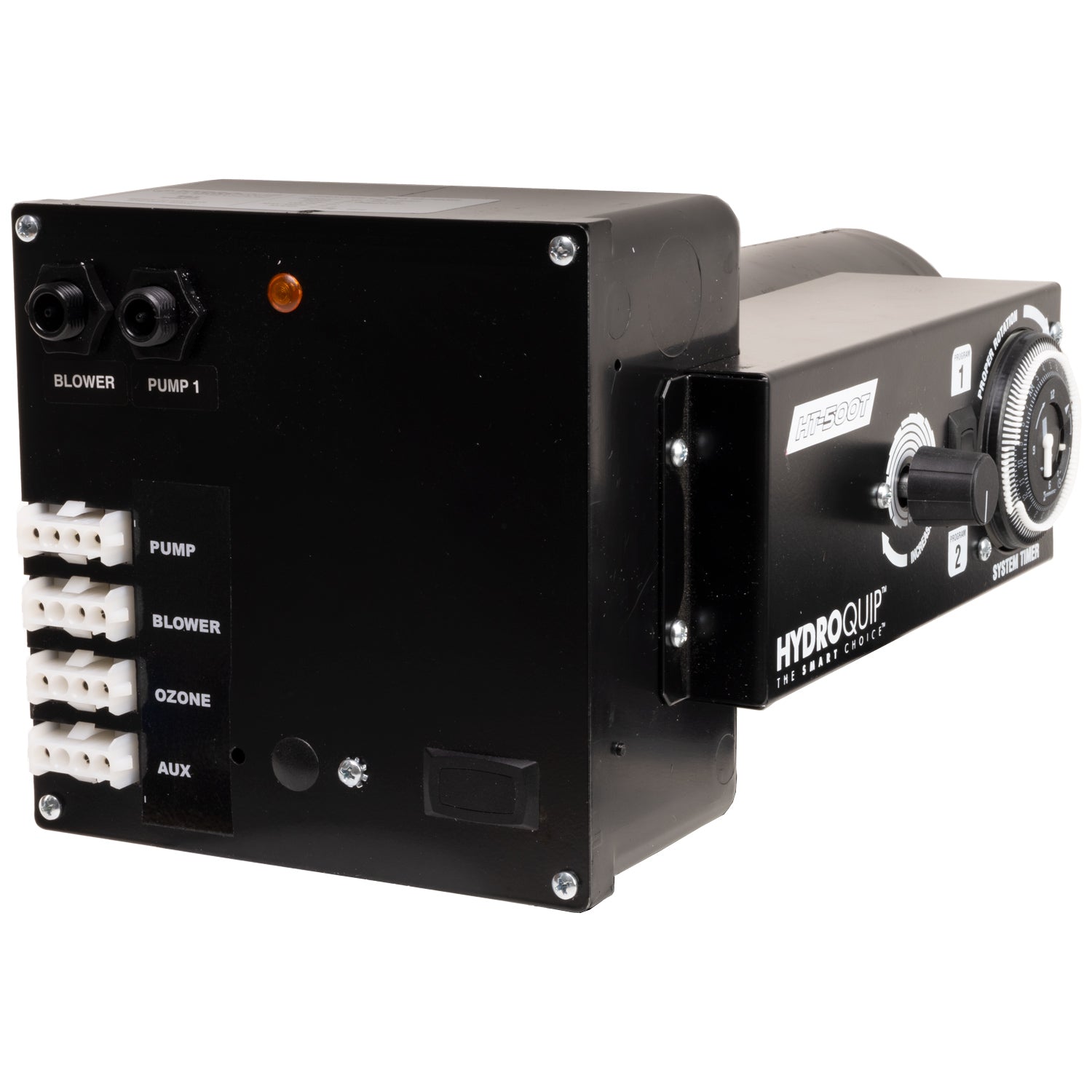

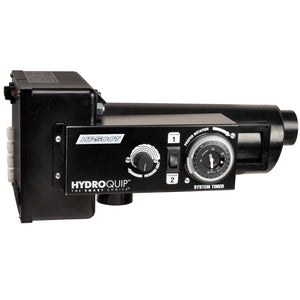

EasyPak EP500 by HydroQuip is the budget-priced, pump-top spa air control system designed for easy installation. Ultra-compact, non-metallic housing mounts directly to the hot tub pump.

You choose the right options for your spa, and the controller comes configured to your preferences. 240V heater systems utilize 4-wire electrical service; 120V systems come with 3-prong GFCI cord. Heater is pressure-switch protected. Operates on timer or thermostat mode.

Standard Circuits: 120V Pump, Blower, Ozonator, Heater

Upgrades: Optional Light Kit

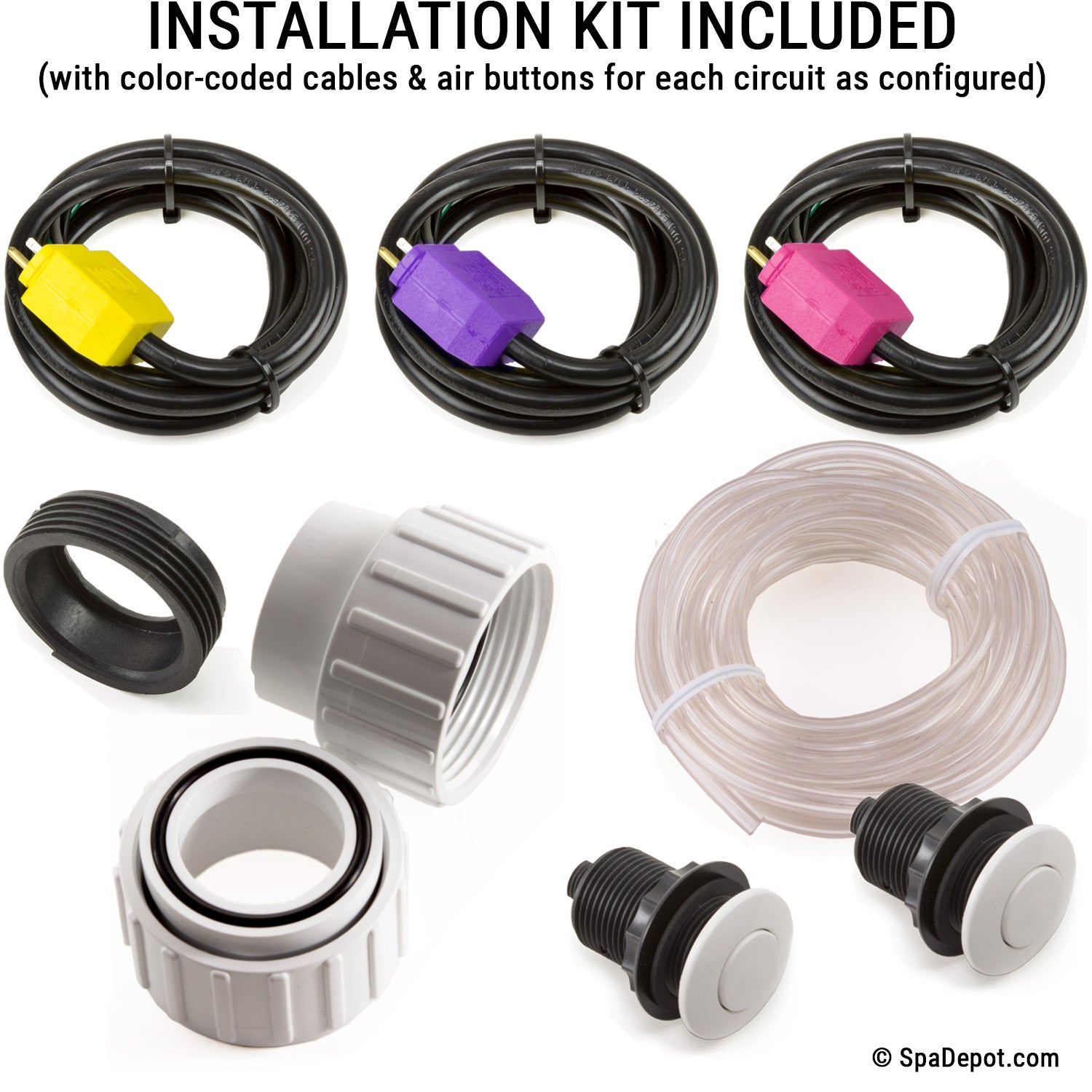

Included with your new EasyPak:

  • Color-coded Power Cords
  • Air Buttons & Tubing for Pump & Blower
  • Heater Union Fittings & Gaskets
  • 15A GFCI Power Cord (120V model only)
  • Installation Guide

Product notes: 240V systems must be connected to an approved GFCI-protected 4-wire electrical service. GFCI cord on 120V systems must be served by a properly grounded outlet. Voltage selection is not convertible. User and Electrician's Guides included. 2-year factory warranty. Sorry, not shippable outside the contiguous-48 USA.

Operation Manual

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Details:

Pump Circuit:

2-Speed, 120V only - 13A max
With air button & tubing

Blower Circuit:

120V only - 8A max
With air button & tubing

Ozone Circuit:120V only - 2A max

Timer:24 Hour

Mode Switch:

Timed Heat / Timed Filtration -OR-
Thermostat Heat / Timed Filtration

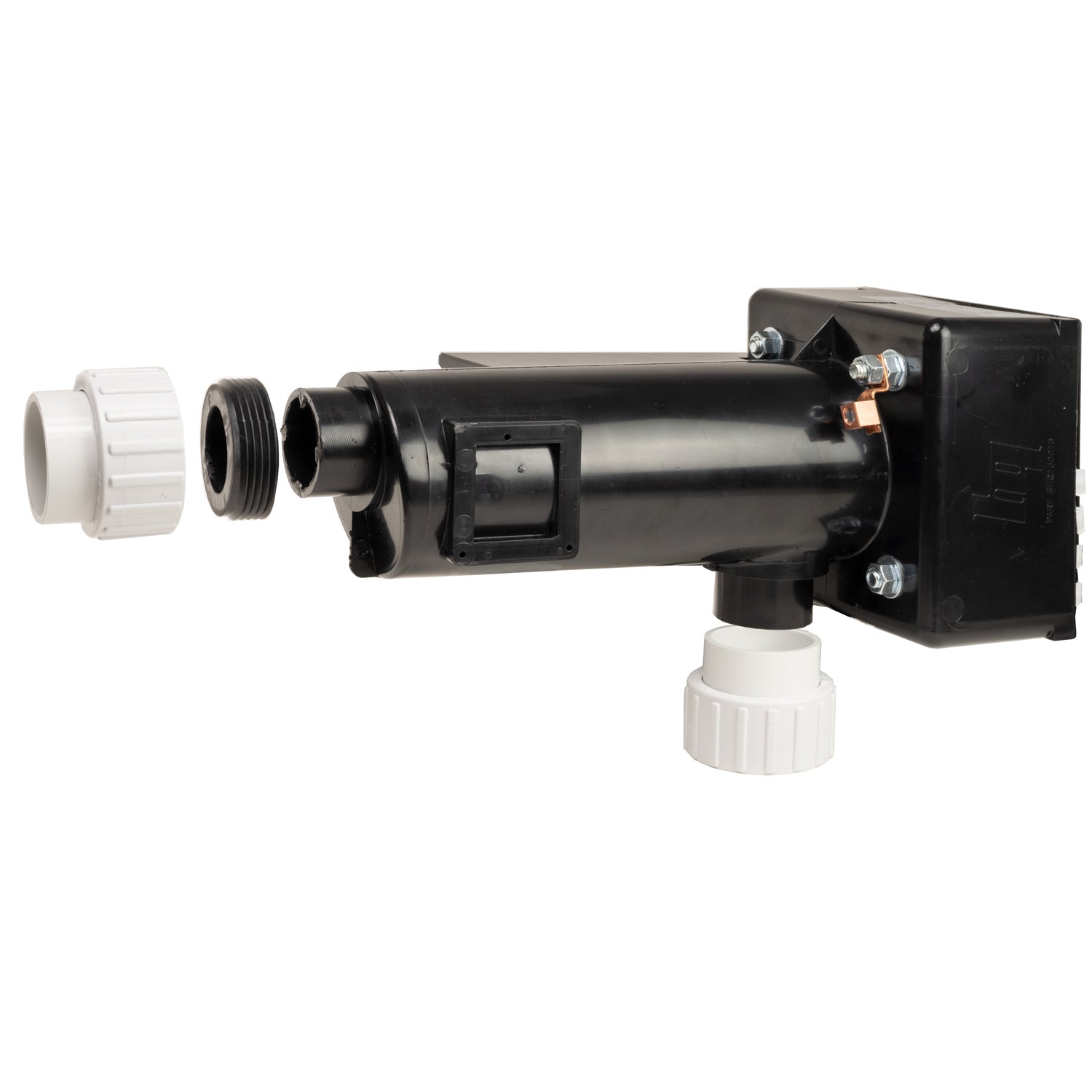

Built-in Heater:

120V or 240V
1.25kW / 4.5kW

Heater Indicator:Heat On Light

Thermostat:Full Range

Overheat Protection:

Built-in
Manual reset button

Pressure Switch:Built-in

Power Cords:

Provided for each circuit - 48"
Color-coded for easy identification

Light-ready Circuit:120V Hot receptacle

Light Kit Upgrade:

120V > 12V with colored lenses
Complete installation kit

Case:

Non-metallic
Rust-free ABS

Replaces:CS500T-A, CS500T-C, CS500T-A-15A, HT500T, HT502T, VOAAB2A-11004EO, 3-70-0091, 3-70-0901A, 58-355-1030, 58-355-1050, and more.


  WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
25%
(1)
0%
(0)
0%
(0)
J
John E.
EasyPak 500

Awesome control box with heater that has a temperature maximum setting of 104 degrees, which is tops for me. My hot tub is over 23 years old and i thought i wasn't going to find a replacement bur SpaDepot came to the rescue and matched a picture i sent them. With a couple of small plumbing adjustments, i am off and running again. Thanks for your fantastic help SpaDepot

I
Ironmn
Temp problems

This unit does not hold a consistant temp. Ranges between 102 - 118. Adjust it down slightly ( 1/16"" ) and it drops to mid 90's.

t
timothy w.
Spa part fit perfect and

Spa part fit perfect and works perfect!

A
Anonymous
perfect fit

I was very pleased to find this was a direct replacement for my older 2 person hot tub . It even had the same plastic heater housing as the original unit . Inlet and outlet pipes were a perfect fit and they included the required PVC unions . you have to glue them on yourself which is OK since you might have to adjust the lengths of the 1.5 pipes to fit your particular situation . It was nice to get the 2 new air control buttons which fit the old holes just fine . The wire & plugs for the motor and air blower were different than my original but I just took my time and wired them up proper so they are safe . The only drawback was that the 220V model did not have a built in GFI like my original so that was a bit of a pricey suprise that I acquired locally . If your tub is over 10 yrs old like mine I strongly suggest you replace the sliding gate valves on either side of this unit since the chemicals turn them into mush to the point that they dont turn off anything . I wish I had just ordered them from Spa Depot at the same time . Instead I had to run to the nearest spa store 120 miles round trip. The thermostat on this unit pegs out at a maximum temp of around 105 deg which is about as hot as you should ever go anyway. It took about a week to get the unit but that was right after the hoiday rush .
