easyPak Pre-Configured Air Switch Spa Control: Multiway Heater

EP1000
Save $-522.95
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Backordered, shipping soon

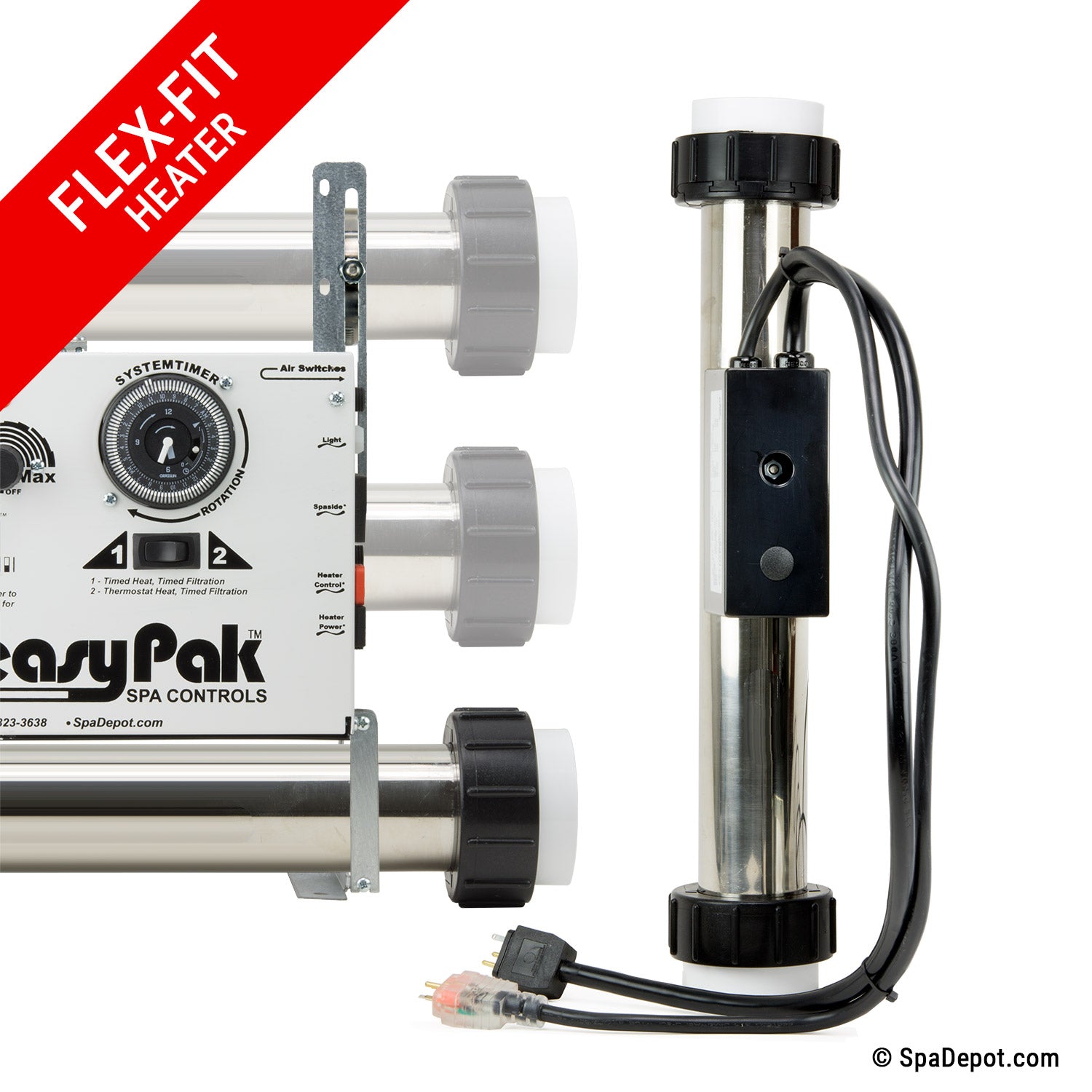

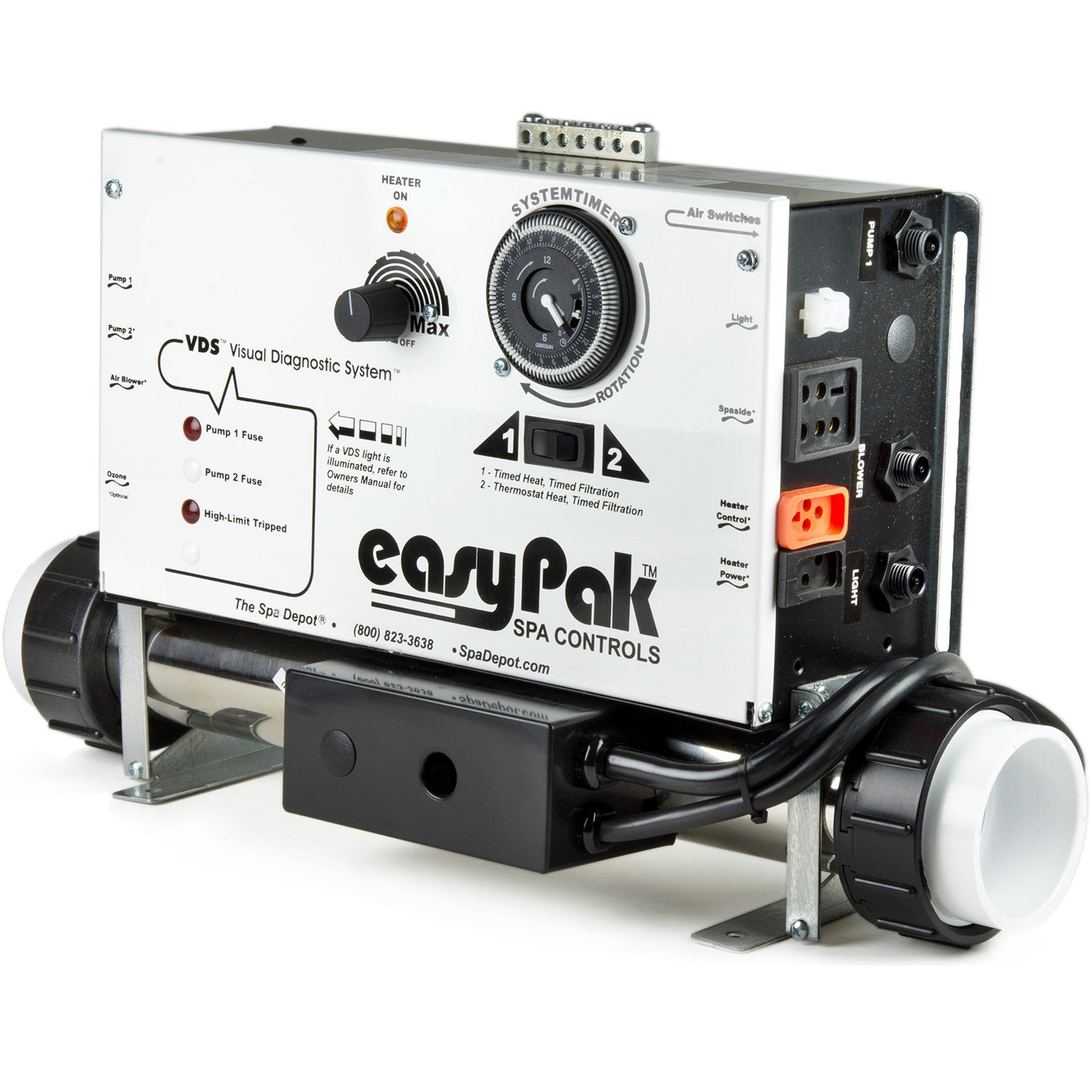

EasyPak EP1000 Flex-Fit is our best heavy-duty hot tub pneumatic air control system. Compact and designed for easy installation, the Flex-Fit heater mount allows your heater to be mounted in a number of positions. You choose the right options for your spa, and the controller comes configured to your preferences. Voltage selections are easily convertible at any time (240V/120V). 240V systems utilize 4-wire electrical service.

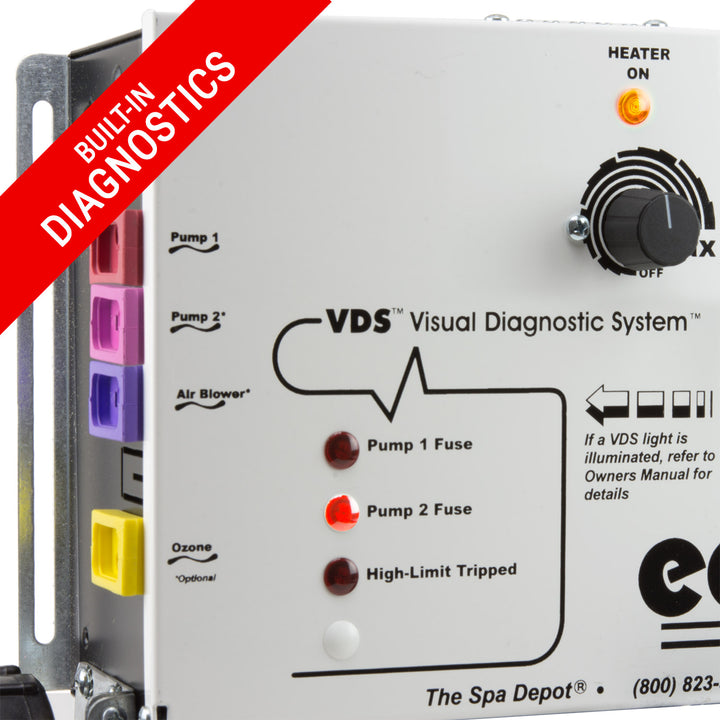

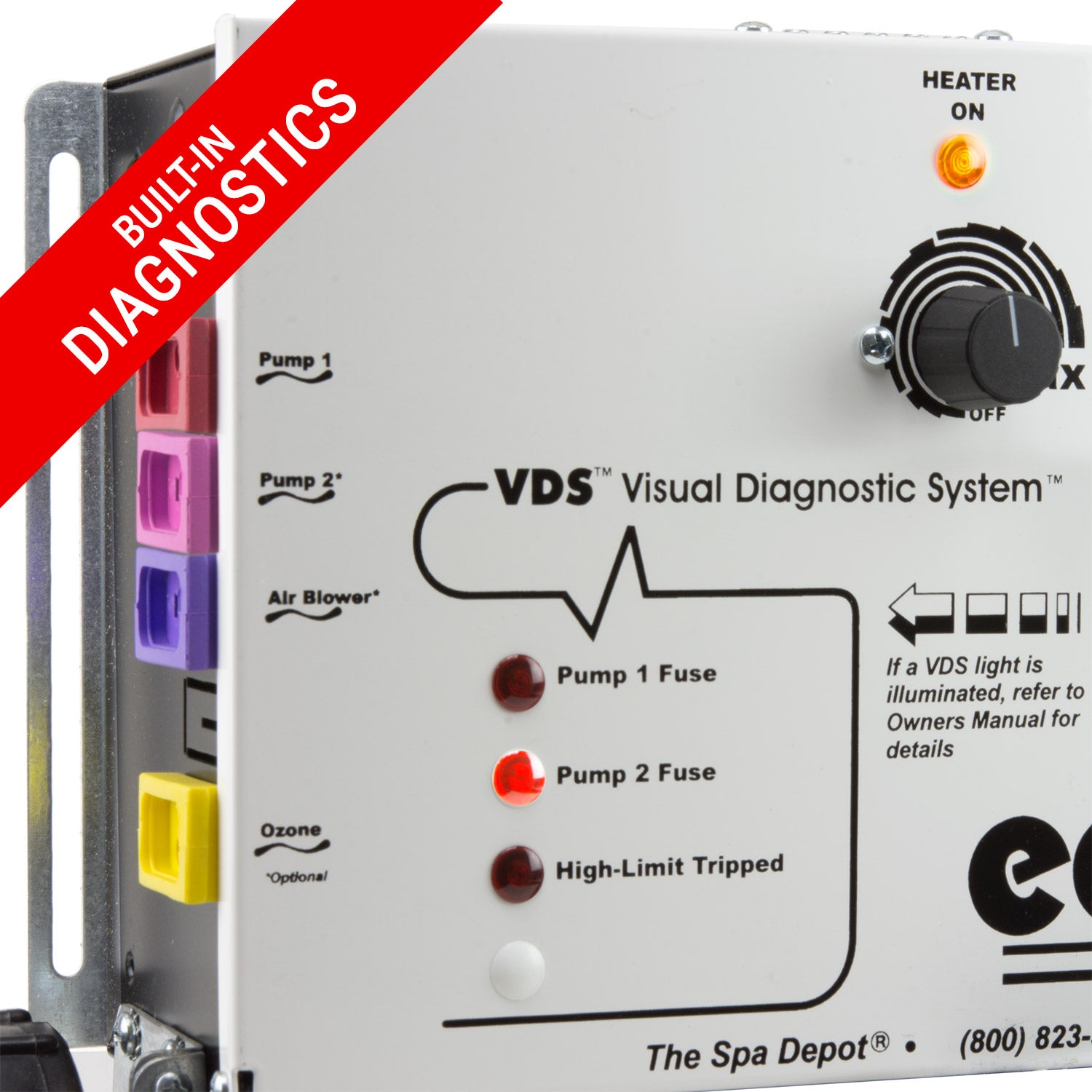

Your EasyPak comes with the easy-to-use VDS™ Visual Diagnostic System, making future troubleshooting a breeze. Labeled indicator lights illuminate when an malfunction occurs, targeting any issues with components & avoiding time-consuming repairs or costly service calls.

Add the topside keypad upgrade temperature control and readout. Electronic thermostat with bulb and 60" cable for remote temperature sensing. Plugs directly into the EasyPak receptacle, controlling up to 2 pumps, blower, light and heater.

Standard Circuits: Pump 1, Ozonator, Light, Heater

Optional Circuits: Pump 2, Blower

Optional Upgrades: Topside with Thermostat

Included with your new EasyPak:

  • Heater in your choice of wattage:
    • 5.5kW @240V (operates at 1.375kW @120V)
    • 4.0kW @240V (operates at 1.0kW @120V)
  • Color-coded Cords
  • Air Buttons & Tubing for Each Circuit
  • Light Cord
  • Split Nuts, Tailpieces, and Gaskets
  • Installation Guide

Product notes: 240V systems must be connected to an approved 4-wire electrical service with manual disconnect, and GFCI protected. The EasyPak 1000 does not support a continuous circulating pump. User and Electrician's Guides included. 2-year factory warranty. Sorry, not shippable outside the contiguous-48 USA.

Operation Manual

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Details:

Pump 1 Circuit:120V or 240V - 13A max - 1 or 2 Speed with Air Button & Tubing

Optional Pump 2 Circuit:120V or 240V - 13A max - 1 Speed with Air Button & Tubing

Optional Blower Circuit:120V or 240V - 8A max - With air button, tubing & 48" cord

Ozone Circuit:120V or 240V - 2A max - Must be same voltage as Pump 1

Light Circuit:12V - 1A max - With air button, tubing & 8' cord

Topside Keypad Upgrade:Air Control Pad with Thermostat - 5.5' cord

24-Hour Timer:Multiple heat & filtration cycles

Mode Switch:Timed Heat / Timed Filtration -OR- Thermostat Heat / Timed Filtration

Flex-Fit SS Heater:120V or 240V Detachable Slide Mount - Wattage choice - 30" cord

Heater Indicator:Heat On Light

Temperature Sensor:Heater mount

Overheat Protection:Heater integrated - Automatic reset

Power Cords:Color-coded - Provided for each circuit - 48"

Case:Enameled Steel

VDS™:Visual Diagnostic System
