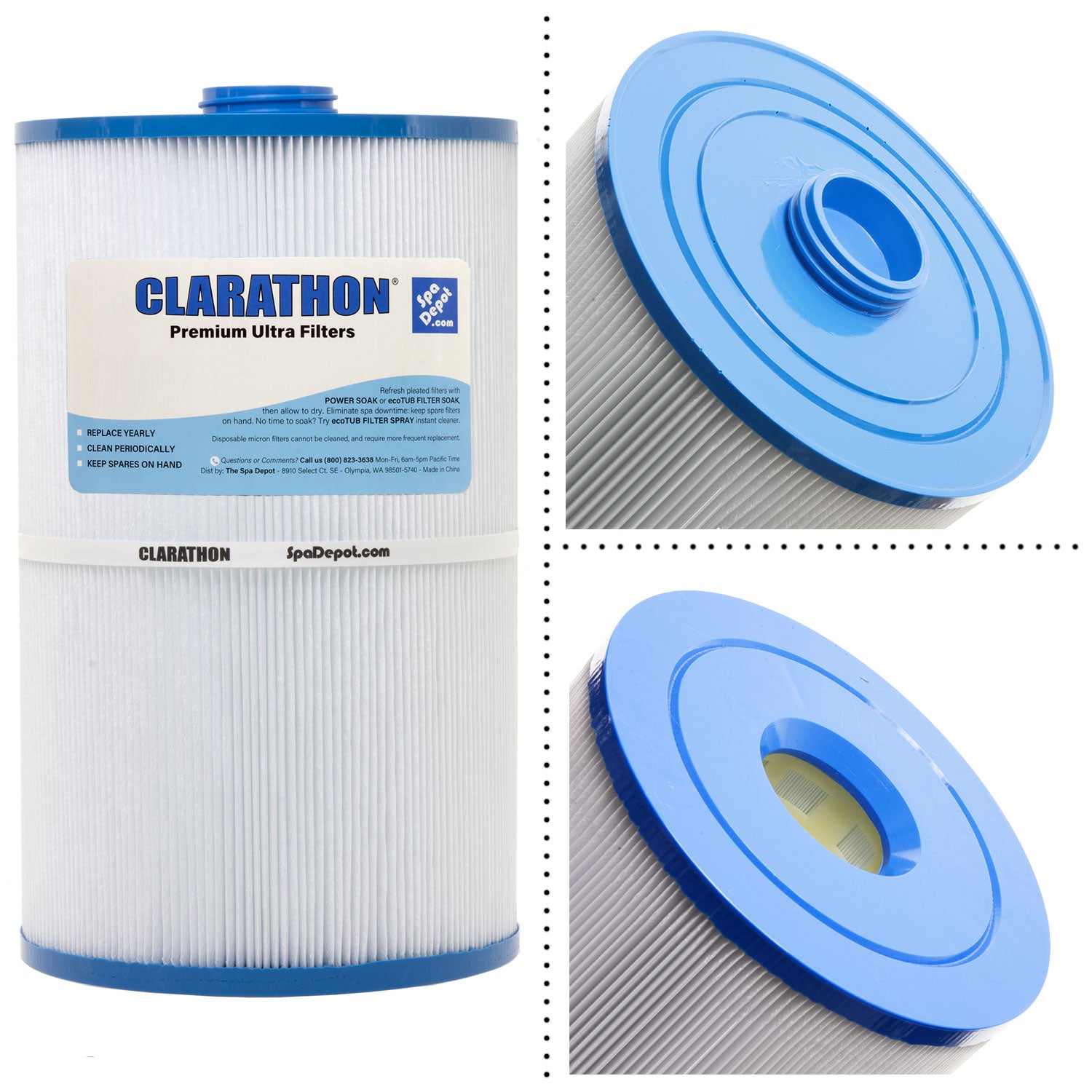

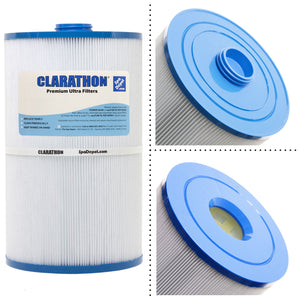

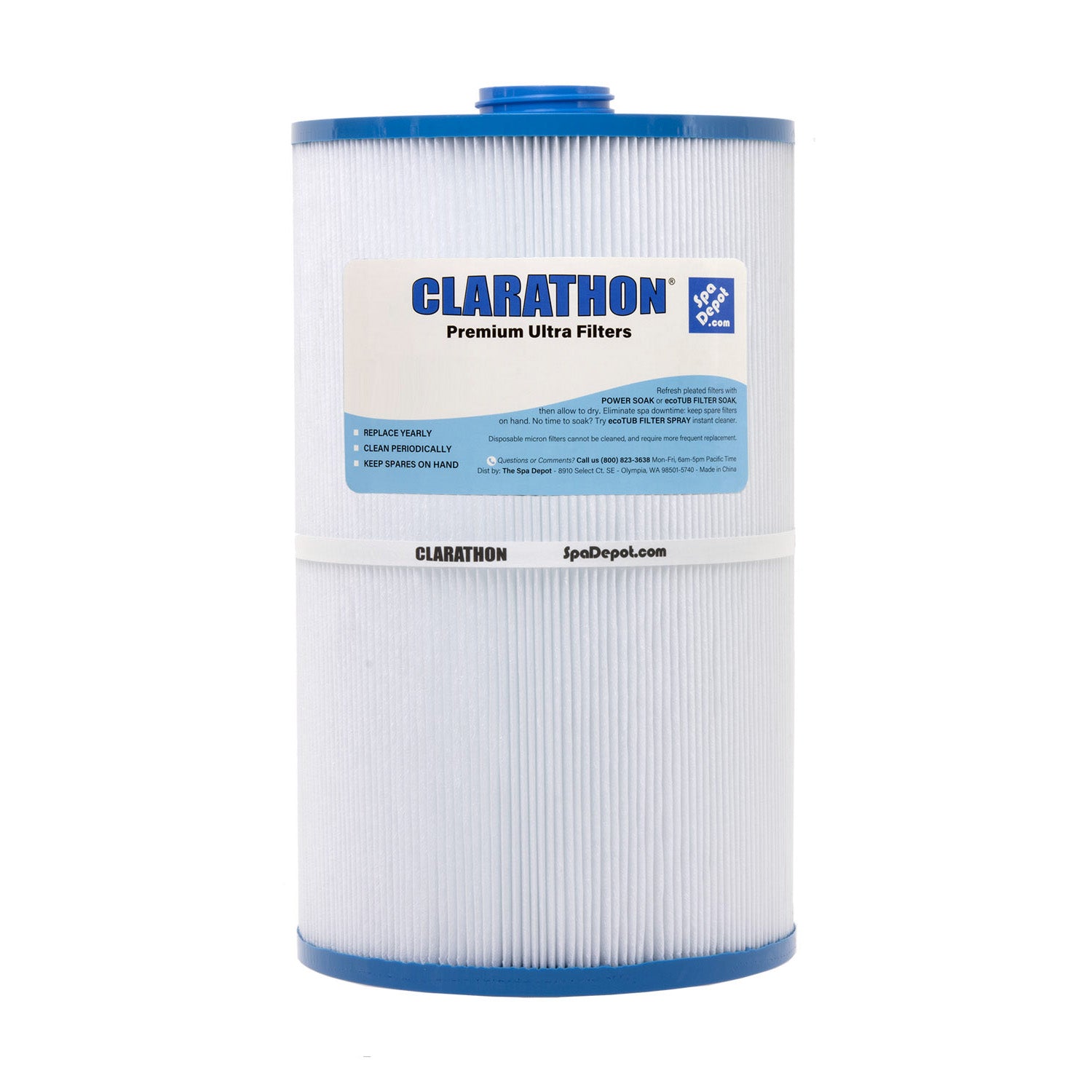

Clarathon Threaded Filter for Sundance/Sweetwater FC2810
FC2810
Specifications:
Diameter:Filter cartridge diameter (width) is measured across the outside edges of the end cap at its widest point.8-1/2"
Length:Length is measured from the outside edge of end cap to end cap, not including any handles, threads or slip fittings. 14"
Top:Outer Diameter (OD) of threads measures approx. 2-5/16.2" Closed Coarse Thread

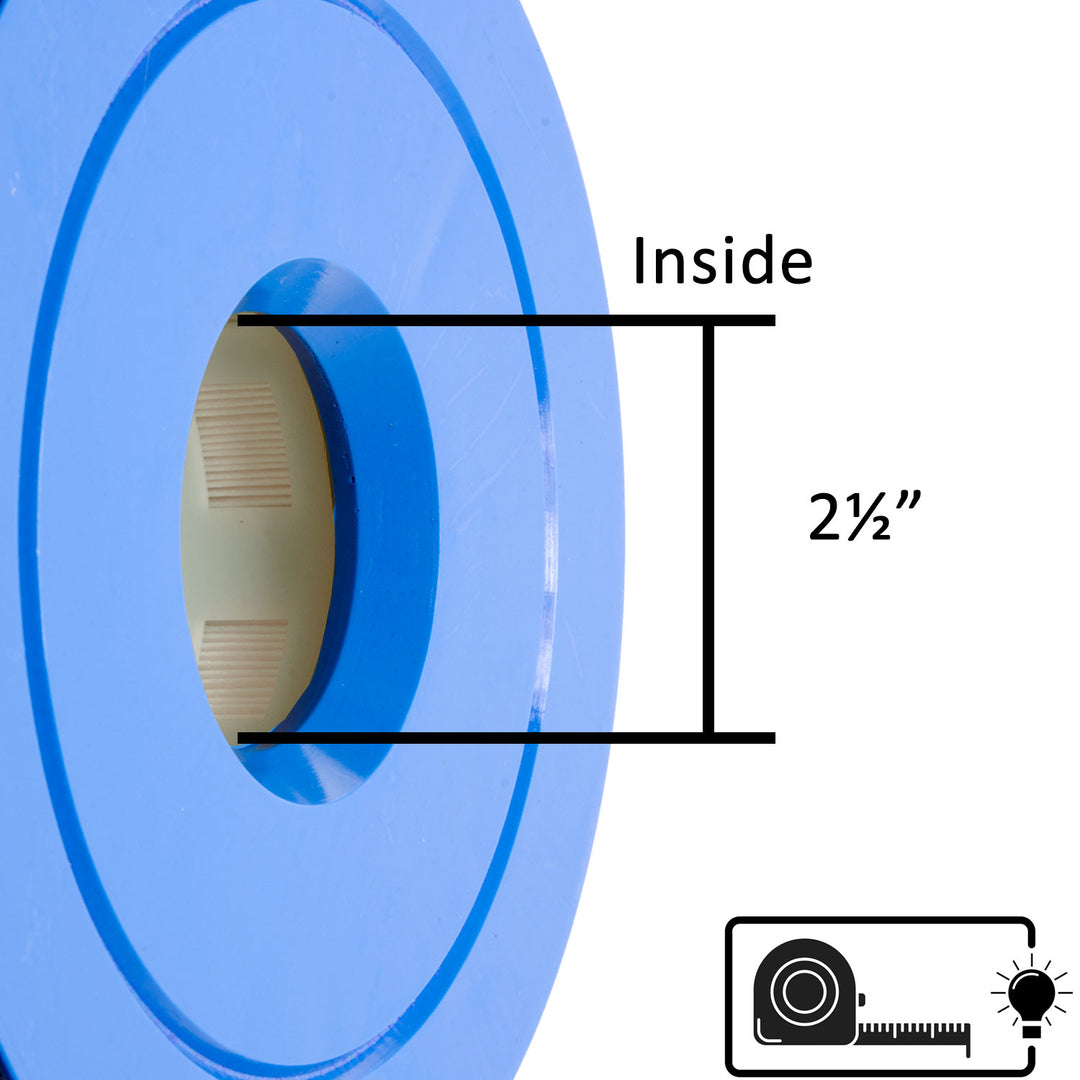

Bottom:This is the actual inside hole diameter, excluding any taper.2-1/2" Open Beveled Edge
Media:80 SF
Length:Length is measured from the outside edge of end cap to end cap, not including any handles, threads or slip fittings. 14"
Top:Outer Diameter (OD) of threads measures approx. 2-5/16.2" Closed Coarse Thread
Bottom:This is the actual inside hole diameter, excluding any taper.2-1/2" Open Beveled Edge
Media:80 SF
Premium replacement for:
Unicel:Unicel part numbers either start with a "C" or contain a "CH" like "C-8475RA" or "6CH-49".C-8380Pleatco:Pleatco part numbers start with a "P" like "PWW100ST".PSD85-2002
Filbur:Filbur part numbers start with an "FC-" like "FC-0360".FC-2810
Other:6540-501, 18007

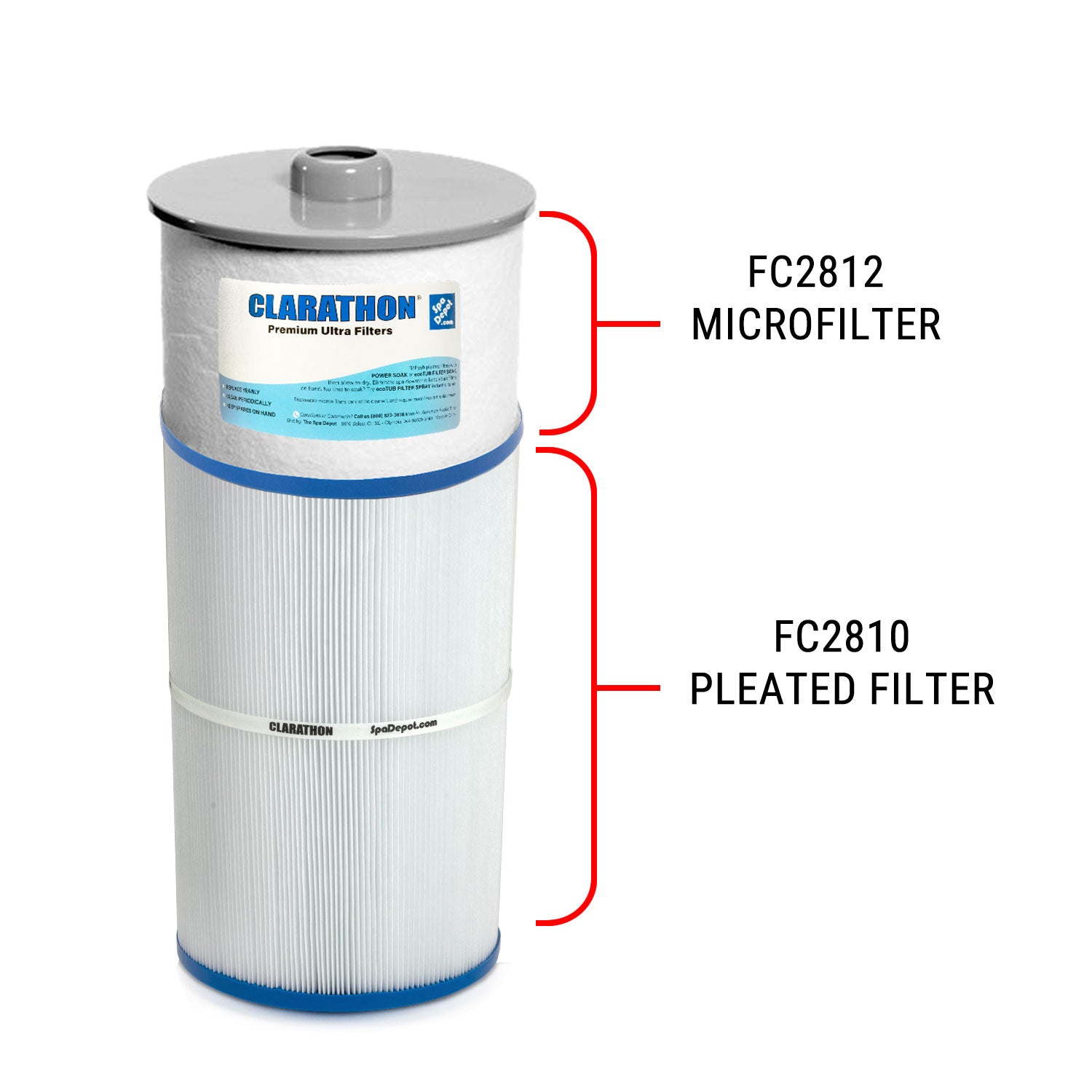

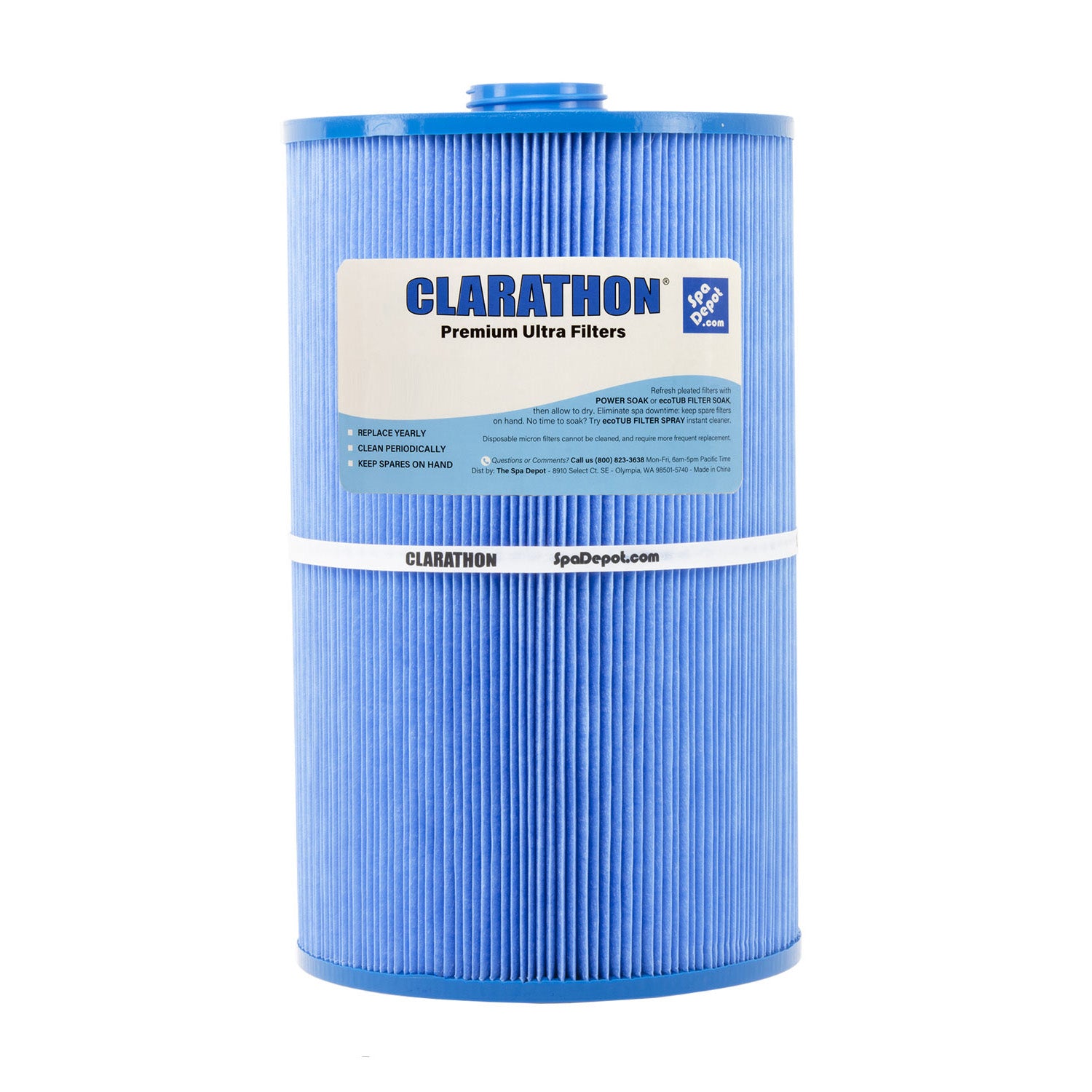

Notes:Pleated cartridge of Sundance MicroClean system. Use with FC2812 disposable top cartridge. Also available in Antimicrobial version: FC2810M (below).
