Clarathon Universal Spa Ozonator Kit

PX1000
Regular price $79.95
Regular price Sale price $79.95
Save $-79.95
/
Need Help? Send Photos!

Add to Order (recommended):

$19.95
Ozone Turbo Mixer for Hot Tubs
Ozone Turbo Mixer
SAVE $2 (Reg. $21.95)
$16.95
Ozone Venturi Injector Kit 3/4" Smooth-Barb x 1/4"
Ozone Injector
SAVE $3 (Reg. $19.95)
Select Title
Installation Complexity Level 3

Clarathon Universal Ozonator redefines excellence in ozone generators. Exclusive dual O₃ setpoints: 50 mg/hr for Hot Tubs up to 500 gallons - 200 mg/hr for Swim Spas as large as 2500 gallons. Ultra compact. Perfect for Cold Plunge Tanks too. UL Recognized.

  • Universal OOutput: 50 or 200 mg/hr
  • Adapts to Any Size Hot Tub/Swim Spa

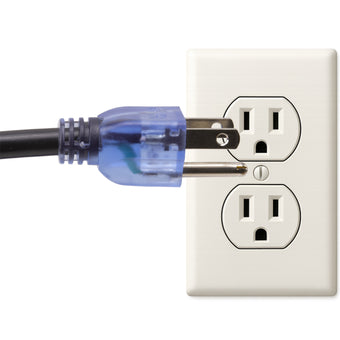

  • Voltage Smart-Sensing 120V/240V

Product notes: Add the Turbo Mixer for a 50% boost in dissolved ozone. Replace OEM units at 18-24 mos. Longer-life Clarathon ozonator has 30 mo. replacement interval. All spa ozonators must be used with an EPA registered residual sanitizer.

Clarathon Ozonator Installation Instructions

Ozone Spa Guide & Troubleshooting

Details

Suitability: Hot Tubs, Swim Spas, Cold Plunge Tubs

Output Settings: 50/200 mg/hr

Type: Corona Discharge (CD)

Electrical: 100-240VAC Smart-Sensing / 0.06A / 6 Watts

Cord Length: 6'

Dimensions: 3"W x 4"H x 1½"D

Kit Contents:  Ozonator, 6' of ¼" Tubing, Clamps, Check Valve, Zip Ties

Warranty: 2 Years

Replaces Many Ozonators Including:

Clarathon: HCD-55, Clarathon-XL

Aqua-Sun: XL-30, XL-50, XL-60, XL-70, XL-80

Del Ozone: APG-U, T3, UO3, Eclipse, MCD-50, DelZone ECS-1, ZO-300, ZO-302

Ultra-Pure: BFO3 Spa, Blue Force, EUV3, UPS350

JED Engineering: JED 003, JED 103, JED 203, JED 303

Balboa: UltraZone, Ultrazo3ne, 52468, 54449, 59024, 59088, 59087, 59297

Jacuzzi/Sundance: Clearray Pro 6472-515, ClearZone, SunZone MCD-250

Hot Spring: Freshwater 1, Freshwater 2, Freshwater 3

Cal Spa: Cal Zone, Hydro Clear, Coast Zone

Prozone: PZV, PZV-240, PZIII-X13, PZIII-X24A, 11106-05IA-A15, 11206-05IA-A15

A2ZOzone: Aquatic2, Aquatic

Green Rain: GR-SPA-200

HydroQuip/Water Pro: 34-2722-50-K, 34-3922-AMP-K, Water Pro 2, 34-3923, 34-3924

Ambohr: SPA-124

BlueZone: AQS637-D, XL-BX-AMP, 637A, 637C

Gecko: SPA.03, 0604-201001

Dimension One: Crystal Pure, UltraPure, 01781-16Y-A, 01781-01

Sytek: SYO-050, SYO-131, SYO-134, SYO-228, 338-1131, 338-3124

Atek: AO3+, 94009, ATEK-03-050

Ozone Joes: OJ-10S

Need Help? Send Photos!

CALIFORNIA WARNING

Customers praised this spa ozonator for its easy installation and reliable performance. Shoppers appreciated the multi-voltage capability (120/240V) and universal fit. One customer noted "the installation instructions were the best I've seen," highlighting helpful tips to prevent water damage and extend product life.

  • 5 stars: 46 (90%)
  • 4 stars: 3 (6%)
  • 3 stars: 1 (2%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (2%)
Some of the reviews shown are from related products the merchant grouped with this one.
F
Forrest B.
Excellent customer service, the kit arrived

Excellent customer service, the kit arrived very quickly and was easy to install.

T
Tim
Works well, but even with the alternate input

Works well, but even with the alternate input capped, seems to put out too much ozone for my taste. I have it connected but not plugged into power.

A
Anonymous
Working perfect

Working perfect. Easy insalation. Love the multi voltage ability. 120 or 240 volt

J
John G.
It fit my Wellis SPA

It fit my Wellis SPA perfectly

A
Anonymous
Very easy to install, works as promised,

Very easy to install, works as promised, Thanks

U
Ulrich B.
Helpful instructions.

I haven’t used it long enough to review it on its performance, but the installation instructions were the best I’ve seen. Why? After having purchased three ozone generators over the past three years, this one’s instructions were the first ones to tell me to rout the vacuum line high enough so that water cannot travel back into the generator if the check valve(s) fail. This will hopefully prevent me from having to buy yet another generator soon. I’m happy about the manufacturer giving me this little tip.

G
Guy P.
Ozonator kit

This kit has everything that I needed to replace the ozonator on my hot tub. There was more tubing than what I needed. It was an easy process to pull out the old system and install the new one. I can use less chemicals with the ozonator working.

A
Anonymous
Works like a charm.

Plugged it in, waited for the filter cycle and it worked.

b
bob C.
Service

Great service here by Dustin. I realized that I was purchasing at the right place when he asked for photos and information so he could help figure out the repair and parts needed,

J
Joseph S.K.
Ozonator

My old Ozonator was discontinued.
Emailed the support group and received a quick response at a good price.

r
rolland c.
pool bubbles

last ozonator expired with age. installed the new one and works great. came very fast, like 2 days, having changed one a few years ago, it was easy. just make sure you order the one with the right power plug.

J
James W.
Easy install

I just installed this today. Replaced a different ozonator. Was a pretty simple plug and play.

D
Daniel B.
Simple install replacement

Changed the one that was in the hot tub because it was time and not sure the old one was up to par. The new tubing and clamps made it easy to install the new one. I looked around at several others from other sites and there were similar ones that were a little cheaper, but I trust SpaDepot and have been doing business with them for years now.

J
Jake M.
Works great!

It took me a while to diagnose that my cloudy water was due to a dead Ozonator. I was extremely frustrated trying to maintain my tub for a couple of weeks before I realized the cause. I ordered a new unit from Spa Depot and, as I have come to expect from them, it arrived the next day. It took only minutes to install and the effect was transformative. It’s now three weeks later and my water is crystal clear! I can’t recommend Spa Depot highly enough! They rock!

R
Robert G.
Excellent unit for small spa

Perfect for my smaller spa (and probably larger ones too) and more affordable than most. Drastically reduced my use of chemicals to almost nothing (despite the disclaimers, etc)

S
Steven K.
One way valave fails in two months

This is the second one way valve that has failed after only 2 months, drains the hot tub down to the level of the jet where the ozone is injected and fills the ozinator with water. I ordered new teflon one way valve from a seperate source and hopefully the ozinator is not damaged. Works great when it works, but getting tierd of buying new ozinators when the one way valve goes bad and allows flow in both directions. Surely I am not the only one having this problem...

Thank you for your feedback! We apologize the one way valve failed after only 2 months. This is definitely not the experience we want for our customers. Customer Care is reaching out directly to get more information and will help resolve this issue. Thanks for your business!

M
Mike W.
So far so good

Easy install as a replacement part. Super fast shipping and good customer service. Would do business again for sure.

D
Dennis J.
Great customer service

I verbally spoke to the tech about what was the correct unit to replace my 20+ year old recently burned-out control board and she was very helpful. The installation was easy and straightforward. A month later it stopped working so I called for tech support and Amy stepped me through the troubleshooting and now we are fully functional again. Vibration must have loosened one of my power connections and I had missed that check before calling. She was very patient and knowledgeable. She didn't make me feel stupid as it ended up being a very simple issue to resolve.

S
Steven C.M.
Excellent Ozonator and a Best Buy

This is the second HCD-55 we purchased from Spa Depot. The first lasted exactly 3 years. The output is high and makes a clear difference in our environment and setup.

We've purchased various ozonators for our Hot Springs spas since 1998. We're sticking with this model.

R
Ralph B.
Clarathon Ozonator

I installed it a few days ago. It seems to be working well-lots of ozone bubbles! I did have a technical question about the wiring, and the person I spoke to had the right answer and eliminated the hesitation I felt about doing the install. Good product and good customer service!

A
Aleksandr M.
Ozonator

Great product, but I can't find any videos how to install it

D
Dan P.
Great replacement

I thought my old ozone generator was working but I was wrong! Upon installing this unit water is clearer and you can actually smell the ozone.

G
Gerald B.
Replacement on Hot Springs Tub

Replaced the OEM Ozonator that quit working after 5-years with HCD-55 and it is working great. OEM replacement was $400 while this unit was less than $100. Had to mount it in another location as it is quite a bit larger than the original unit. Made a couple of brackets to hold it and it looks like it belongs there.

M
MICHAEL S.

EZ to install with the extra adapter and the product is working great.

F
FG
had to mount vertically its wider than most Ozonators

it works

R
Richard T.
It makes the ozone

Simple instructions correct plug. Couldn't be easier and the customer service from spadepot made a life long customer out of me for all my spa accessories need's truly a one stop shop!!!!

J
JA
Product perfect, Shipping slow

Product exactly as described. Seems to be working well. Easy installation. Slow delivery.

T
Thicks123
Great price and easy installation

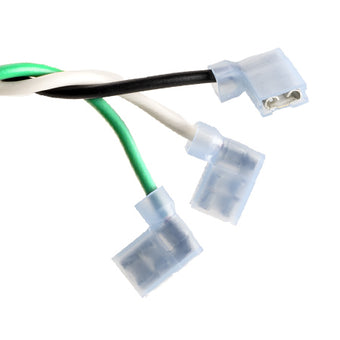

Love that I can reduce the amount of chemicals needed to maintain my spa. Having multiple connector options was a huge plus - no splicing or extra connectors required!

C
Chris
Nice O3 System

Works as advertised. Easy to install. Nice build quality.

R
Ryan
Great Product

Easy to install, great customer service!

R
Ryan
Very easy to install, works really good

Puts out a lot. I hope it lasts.

C
Clyde S.

Eco spa 3person does this work on

SpaDepot.com

This ozonator kit will work great on your 3-person ECO-Tub.
