HydroQuip Heater Kit 5.5kW Titanium - Replaces Brett Aqualine/Len Gordon

BX5965
Save $-299.95
/
Free Shipping
Need Help? Send Photos!
  • Order Soon - Only 12 Available
  • Backordered, shipping soon
Select Title

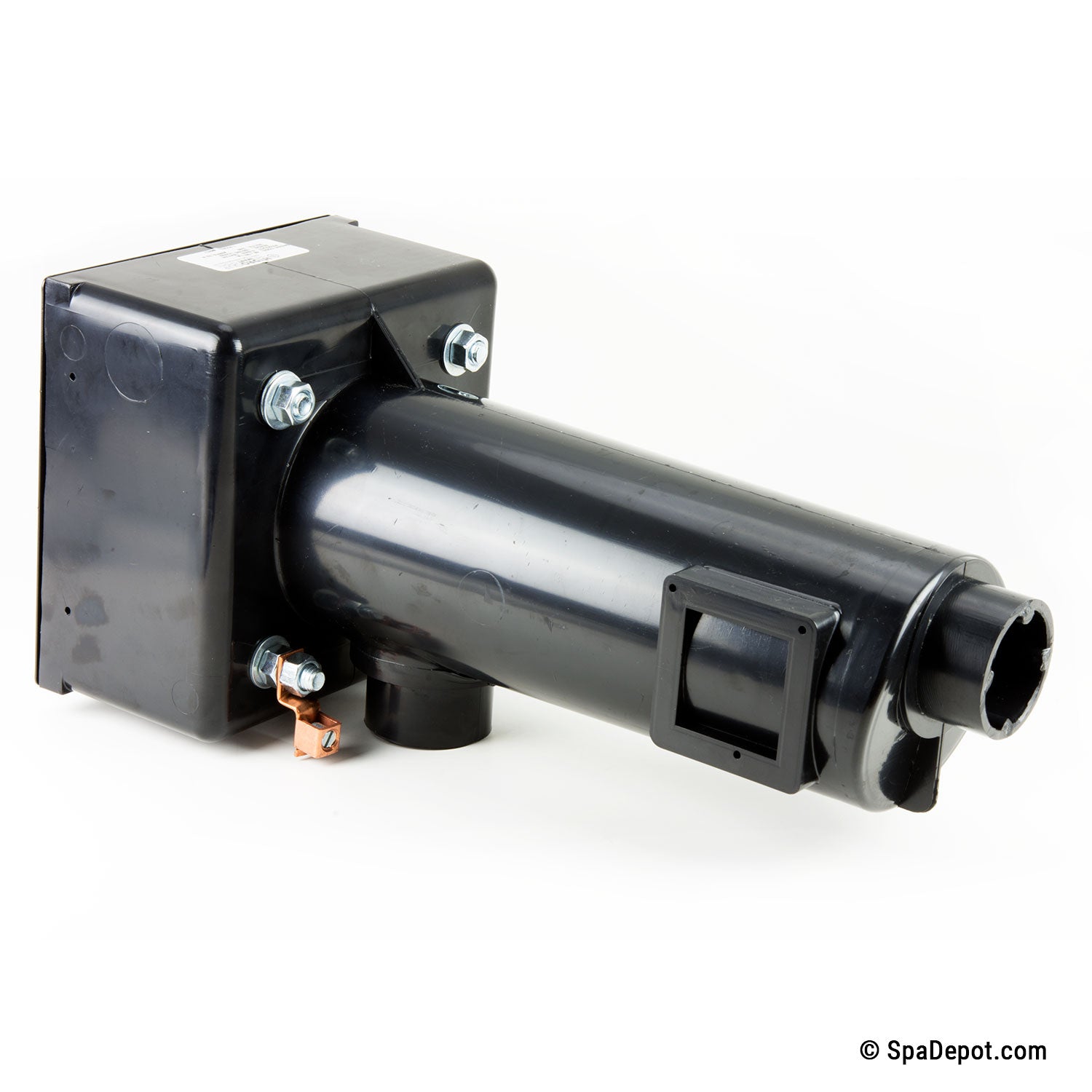

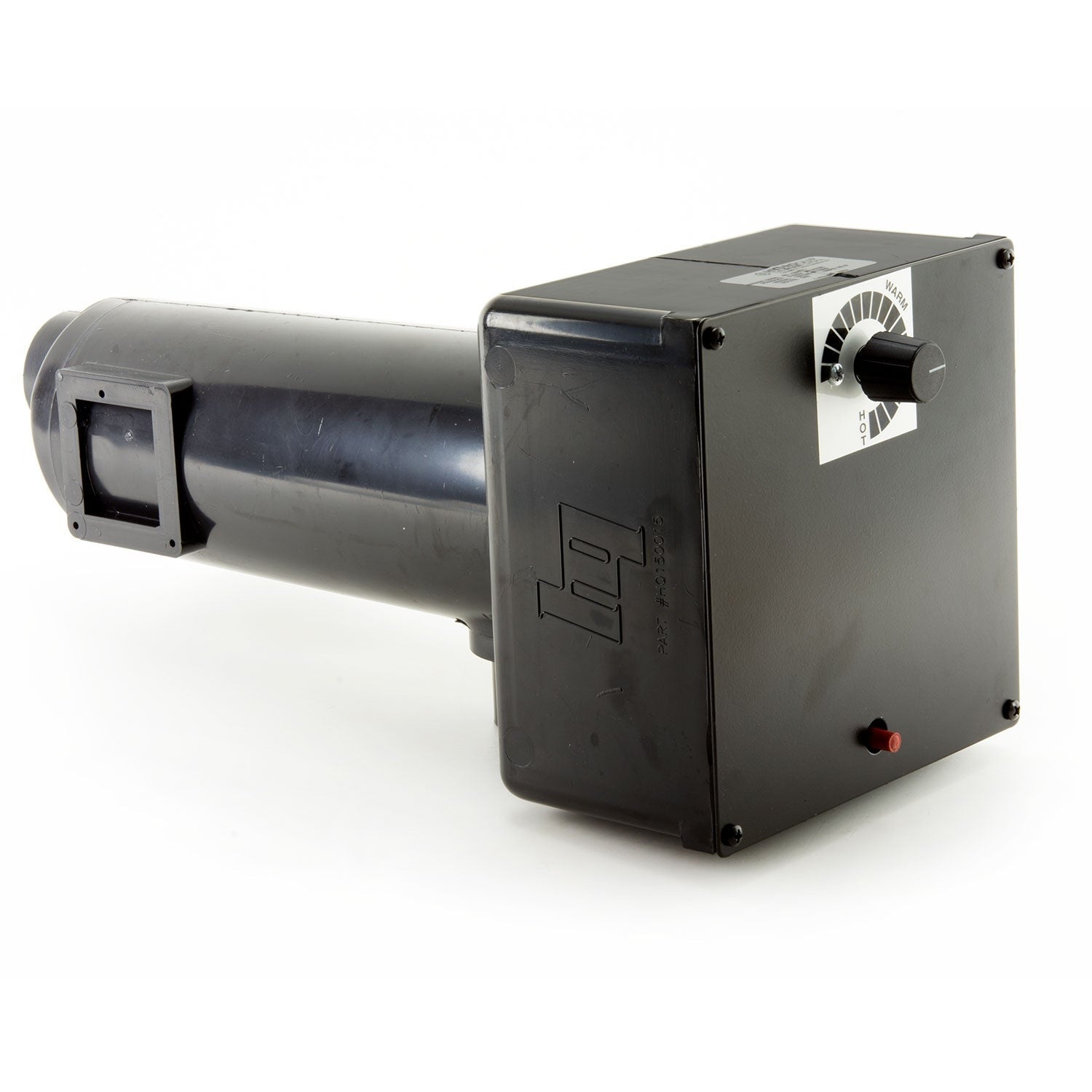

HydroQuip 5.5kW ABS Spa Heater Assembly replacement for Brett Aqualine/Len Gordon style. Includes Plumbing Kit with (2) heater unions, pipe union & short section, PVC elbow, street ell.

  • 5" x 5" Plate Titanium heater element

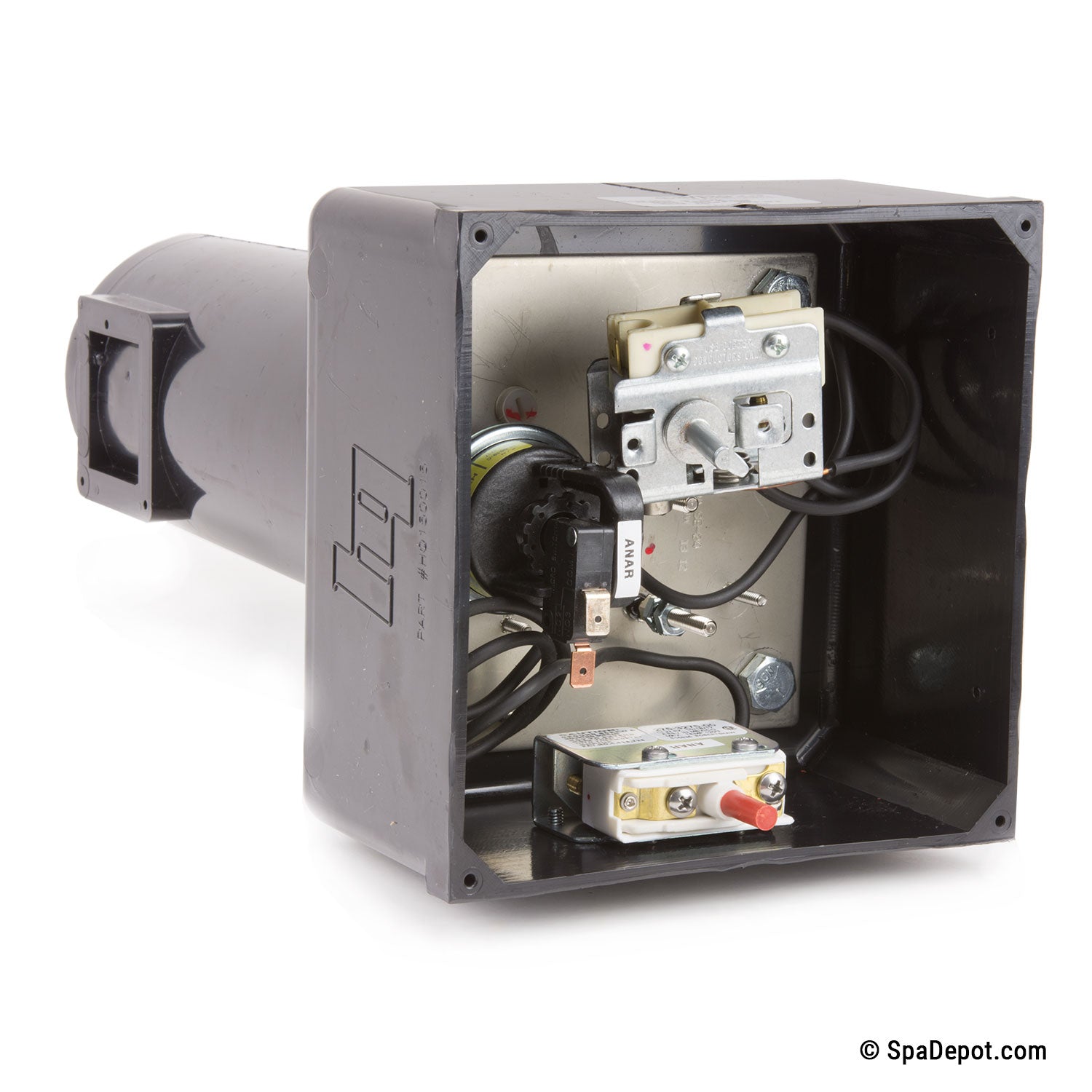

  • Includes Thermostat, Hi-Limit, Pressure Switch

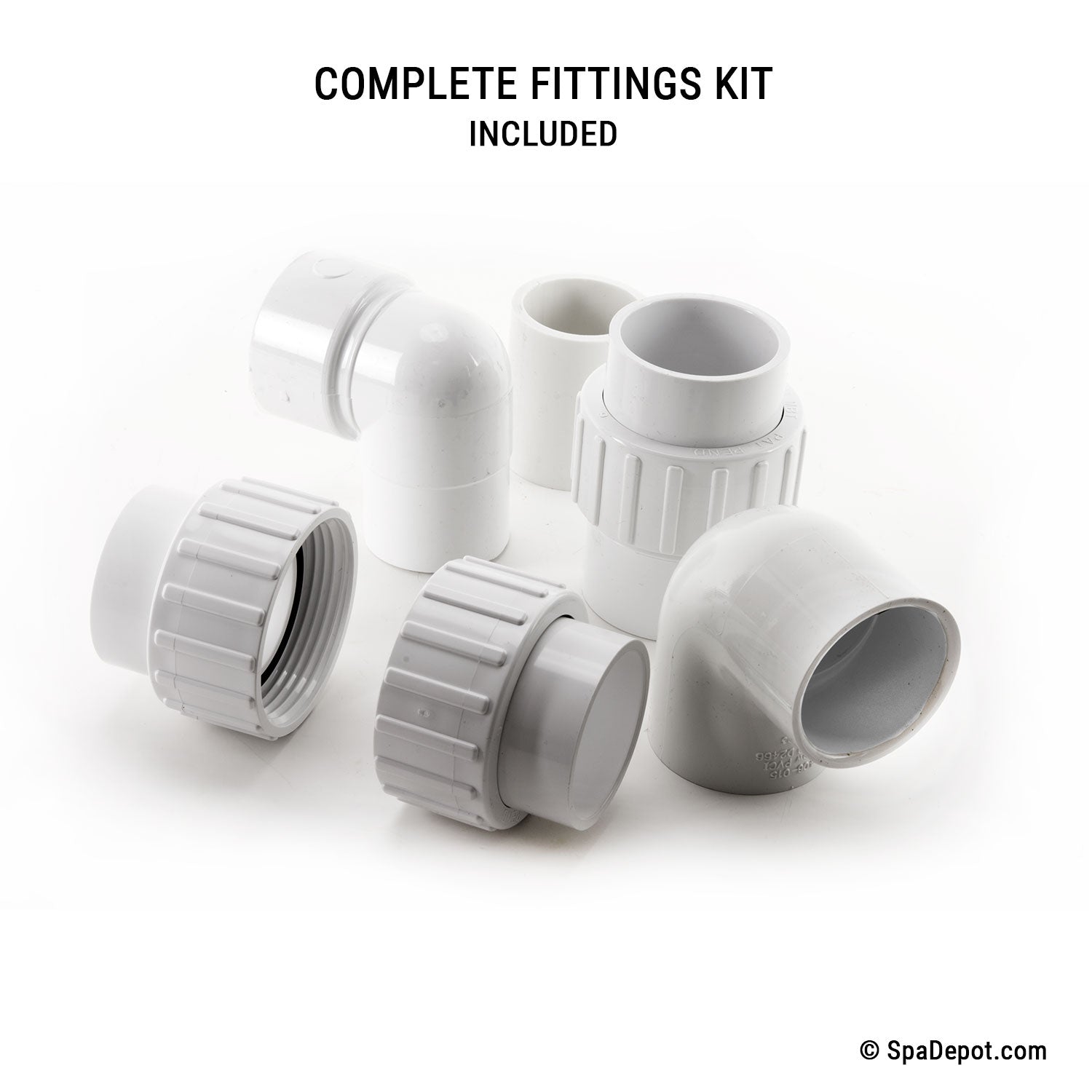

  • Complete Plumbing Kit included
  • May be operated at 240V or 120V

Product Notes: 1½" plumbing. Adjustable thermostat, resettable hi-limit. EM201/203/700.

Spa Pressure Switch Adjustment Instructions

Details

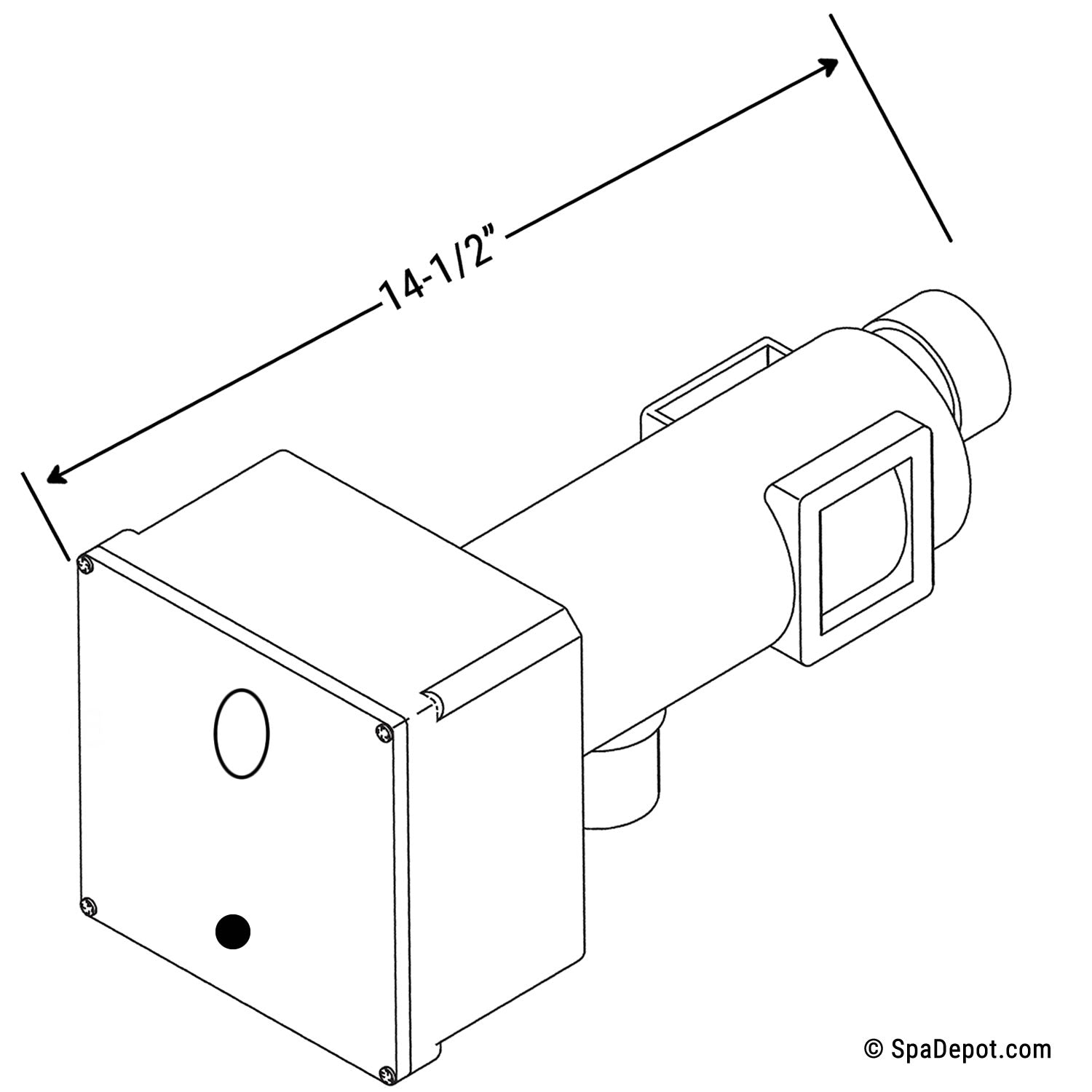

Length: 14½”

Connection: 1½” Spigot, Fittings Kit included

Voltage: 240V/120V

Wattage: 5.5kW @ 240V - 1.375kW @ 120V Titanium

Sensors: High-Limit & Pressure Switch Included

Replacement Element: BX5002 5x5 Plate Heater Element

Replaces Part Numbers: 48-0017A, 22-0135, 90-221111, 22-1BAQ-00-1111, 90-220142, 22-0142, 611514

Warranty: 1 year Limited Warranty
Need Help? Send Photos!
Often bought together:
O-ring for 5"x5" Flange Heater Element
O-ring for 5"x5" Flange Heater Element
BX9614
Quick View
PVC Pro Solvent Cement Kit
PVC Pro Solvent Cement Kit
KT1010
Quick View
Flex Pipe 1.5" - 10 ft. Roll
PVC Flex Pipe 1.5" - 10 ft. Roll
BX95150
Quick View
Flex Pipe 1.5"x 6" Short Section
PVC Flex Pipe 1.5"x 6" Short Section
BX95151
Quick View
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
Heater Element 5"x5" Plate - 5.5kW@240V / 1.4kW@120V Titanium
BX5002
Quick View
Wire-Rope Plastic Pipe Saw
Wire-Rope Plastic Pipe Saw
MT1087
Quick View
Spa System Flush - Hot Tub Cleaner
Spa System Flush Hot Tub Cleaner
MT1028
Quick View
  • 5 stars: 2 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
B
Bill D.
Was easy to install and has worked great.

Was easy to install and has worked great for the last 3 months.

T
Tim
Brett Aqualine Heater

Exact replacement part. Easy to install. Comes with Temp Thermostat, Pressure switch, Hi Temp Limit...

R
RL

Since this heater housing is ABS and the plumbing fittings are PVC - what type of glue should be used? Should it just be PVC glue, or a transition cement like Oatey or Weldon 794?

SpaDepot.com

It's no problem to use regular pvc cement for this application.

R
Richard K.

Hot tub no heat. BrettAqualine model# EM-501T 40 amp 240V. Are parts available? It’s 40 years old I’m told. Help me help a friend. Thanks.

SpaDepot.com

Parts are definitely available for this heater. Give us a call and we'll be happy to troubleshoot the issue with you and make sure you get the correct parts to repair the spa.

G
Gary B.

I have an old Coleman hot tub with a Brett Aqualine 47-320-100 heater. Is the BX5965 the correct replacement part?

SpaDepot.com

This heater is a great replacement option for your Brett Aqualine manifold.
