Flo-Thru Heater for Balboa Value/LE 5.5kW

BX5960
Flo-Thru Heater for Balboa Value/LE 5.5kW
Flo-Thru Heater for Balboa Value/LE 5.5kW
Flo-Thru Heater for Balboa Value/LE 5.5kW
Flo-Thru Heater for Balboa Value/LE 5.5kW

Flo-Thru Heater for Balboa Value/LE 5.5kW

BX5960
Regular price $149.95
/
Qualifies for Free Shipping Free standard shipping to US contiguous 48 states for $100+ merchandise total.
  • Low stock - 7 items left
  • Inventory on the way
Ships next business day.

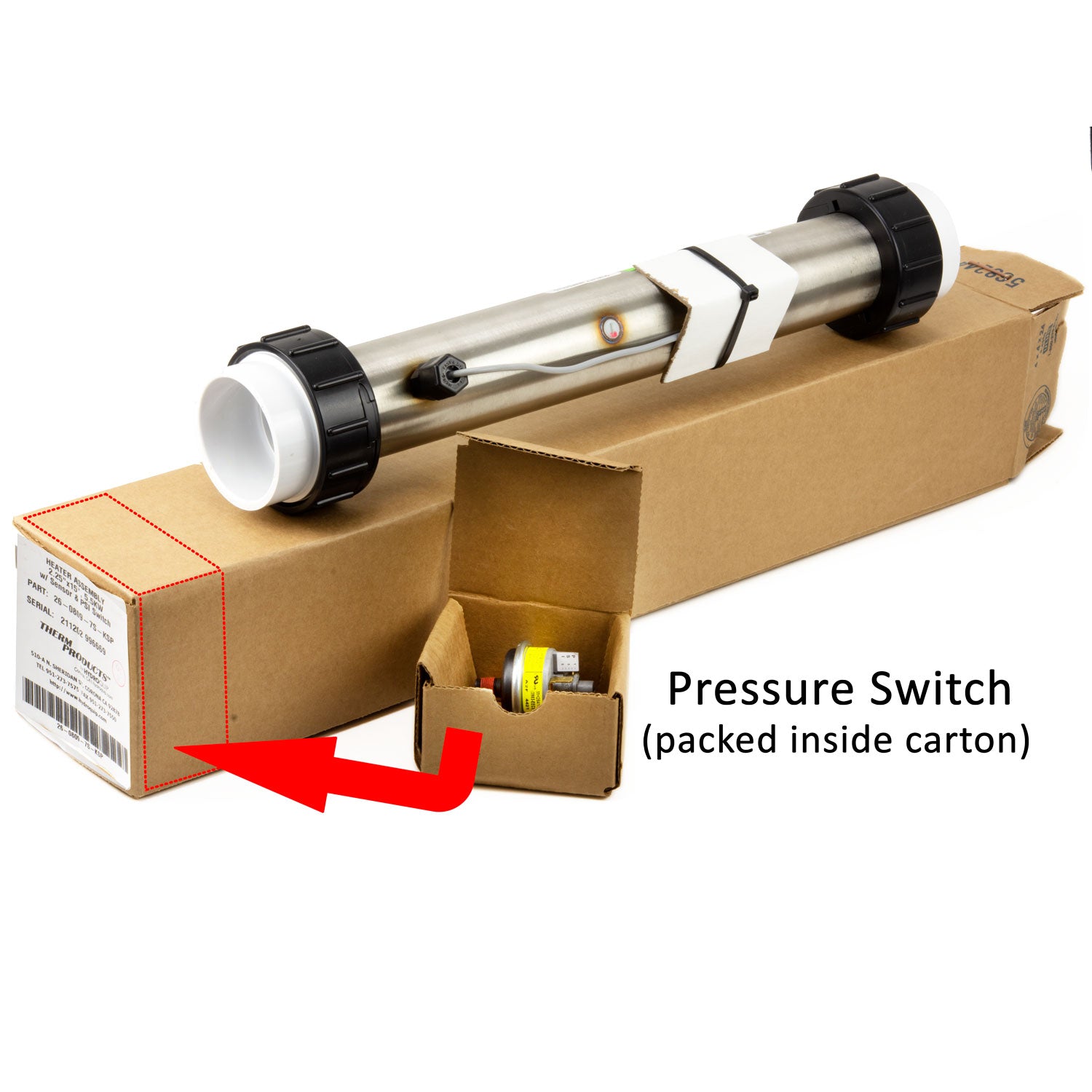

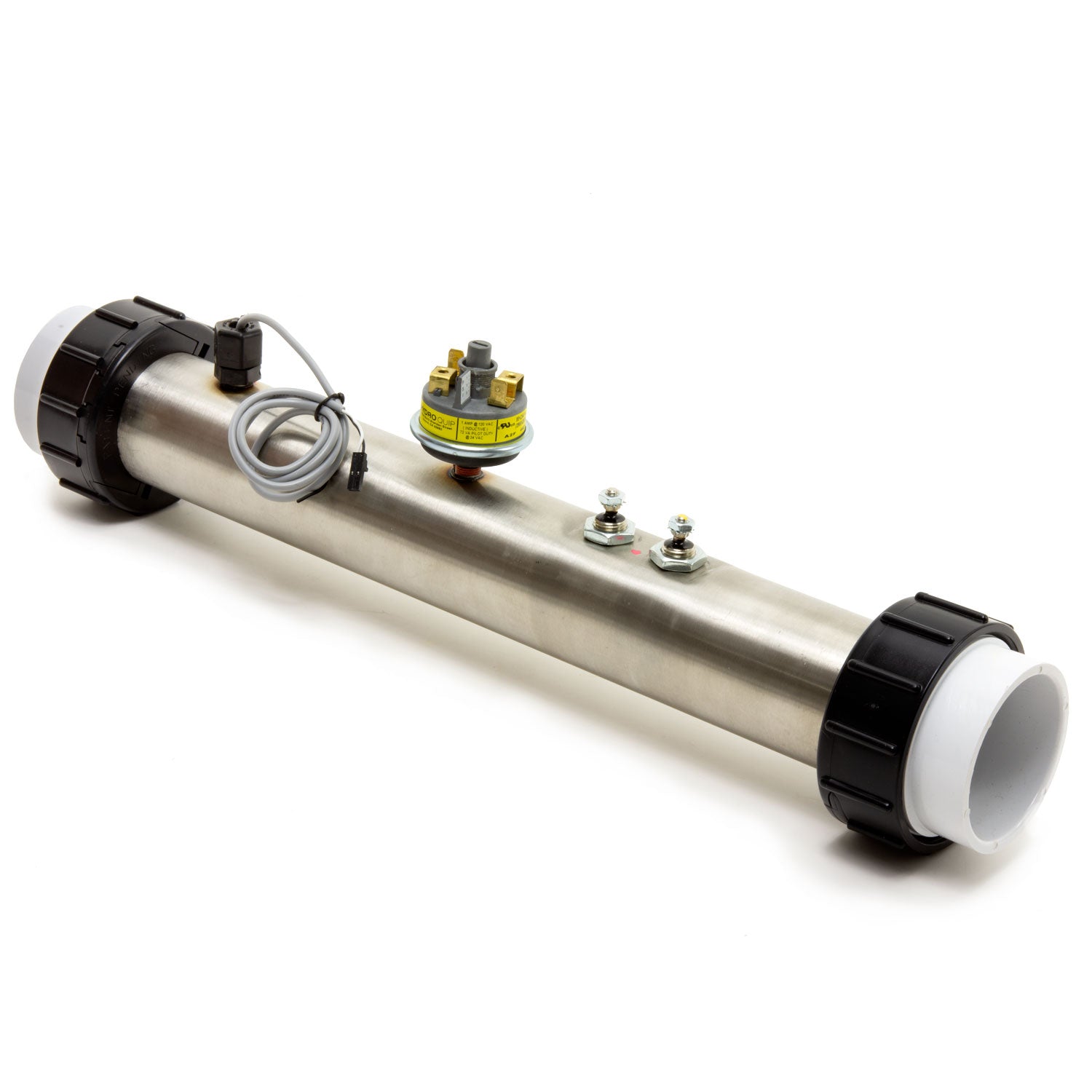

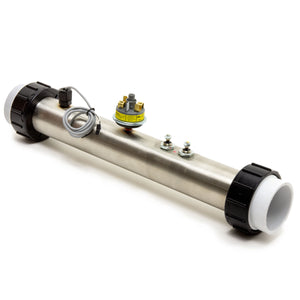

Premium flow-through replacement Hot Tub Heater Assembly by HydroQuip exclusively for use with Balboa® brand Value/LE systems. 100% guaranteed to equal or outperform OEM.

  • 5.5kW@240V heater element

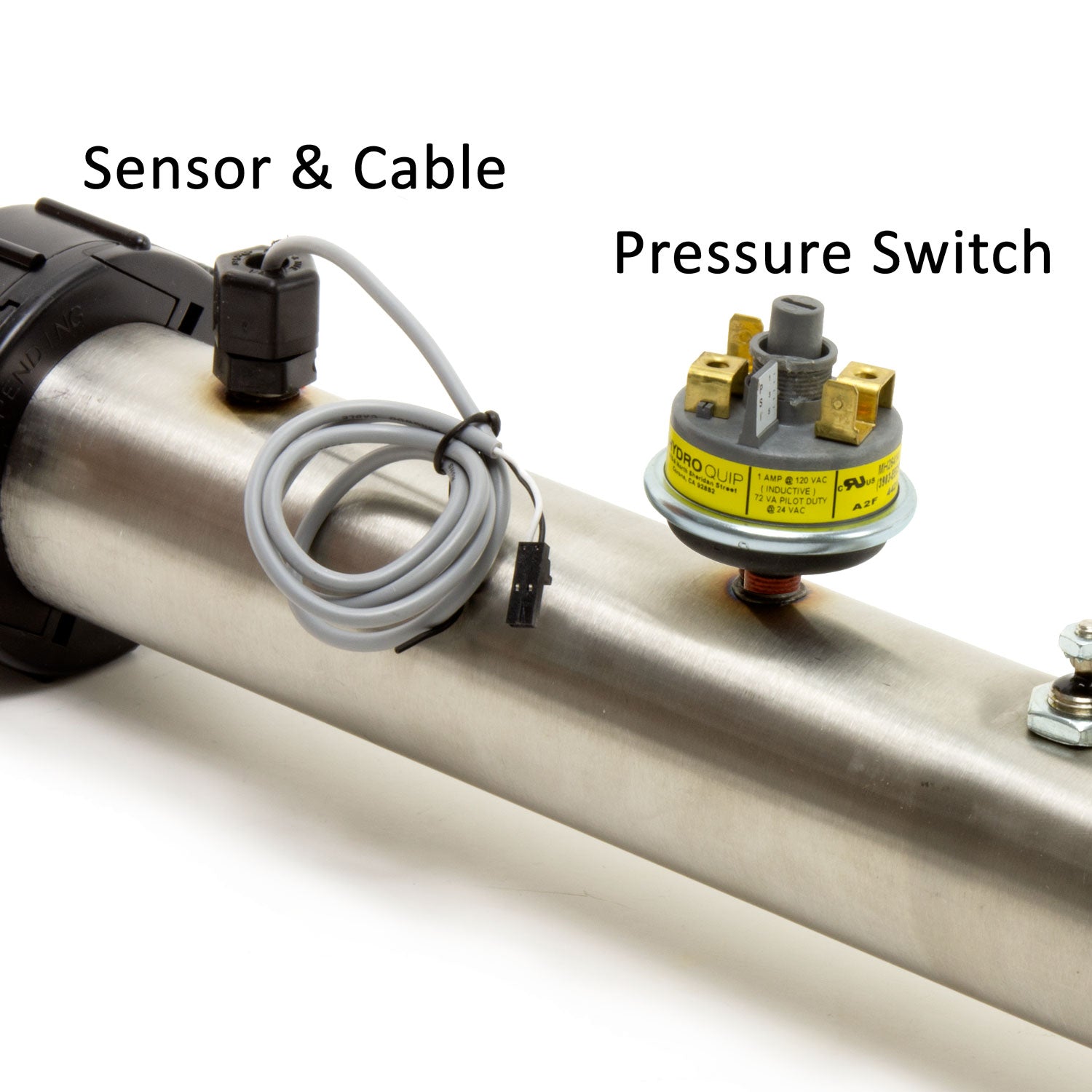

  • Pressure Switch, Sensor w/24" cable & board connector
  • Therm Products by HydroQuip

Product Notes: Also for 2002+ Jacuzzi R574/R576 - 100% compatible replacement part.  Balboa® is a trademark of Balboa Water Group. Jacuzzi® is a trademark of Jacuzzi Brands, LLC.

Spa Pressure Switch Adjustment Instructions

Details:

Length: 15” Stainless Steel Tube (not including union length)

Connection: 2” Slip (Easily Convertible to 1-1/2” Plumbing)

Voltage: 240V

Wattage: 5.5kW

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Hi-Limit Sensor: Included, w/24” Cable and Board Connector

Pressure Switch: Included. Adjustable 1-5 PSI

Replacement Element: BX5000 Flow-Thru Spa Heater Element

Replaces Part Numbers: 53349, 58019, 58026, 58048, 58066, 58074, C2550-0809-TPS, 2-00-0139, 26-0809-7S-KSP. For Balboa Value, 1000LE, 2000LE & R574/576 systems with pressure switch.

Warranty: 1 year Limited Warranty

Customer Reviews

Based on 7 reviews
71%
(5)
0%
(0)
14%
(1)
0%
(0)
14%
(1)
s
shawn c.
Perfect fit and easy install

Perfect fit and easy to install will but from here again for any needs o have

J
Jim s.r.s.r.g.
Easy install...all good

Tub much better with HOT water!!

D
Del
I would probably not buy this product again.

We installed this heater and it fit perfectly. Ran it about 4 hours and the heating element burned out. We had good water flow and pressure was about 5 lbs. Element was pulling 21.4 amps. I own a HVAC company and we work on all kinds of hydronic systems. I'm saying we have the experience with all kinds of hydronic systems and there was no problem with the installation. Part has a 1 year warranty which is good. Lets see if they will honor it. On the plus side, the shipping time was excellent and got to us a day earlier then expected.

J
John
Does not fit properly in Balboa Value 2000 series controller

I have ordered this part number before and successfully installed it in my Spa which has a Balboa 2000 LE Value controller. The heater assembly I received this time has a larger pressure sensor module and would not fit properly in the controller. I got it in and working BUT I could not fit the cover on with this heater installed. Also, I could connect only one of the two clamps that hold the heater in place. I am concerned that with time and vibration the heater element will loosen and leak or break since it is not connected as it should be. I would not recommend this heater for my system or if your system does not have extra space around the pressure sensor

S
Steve
Great experience

Spa heater was a perfect fit, shipping was fast and price was right.
