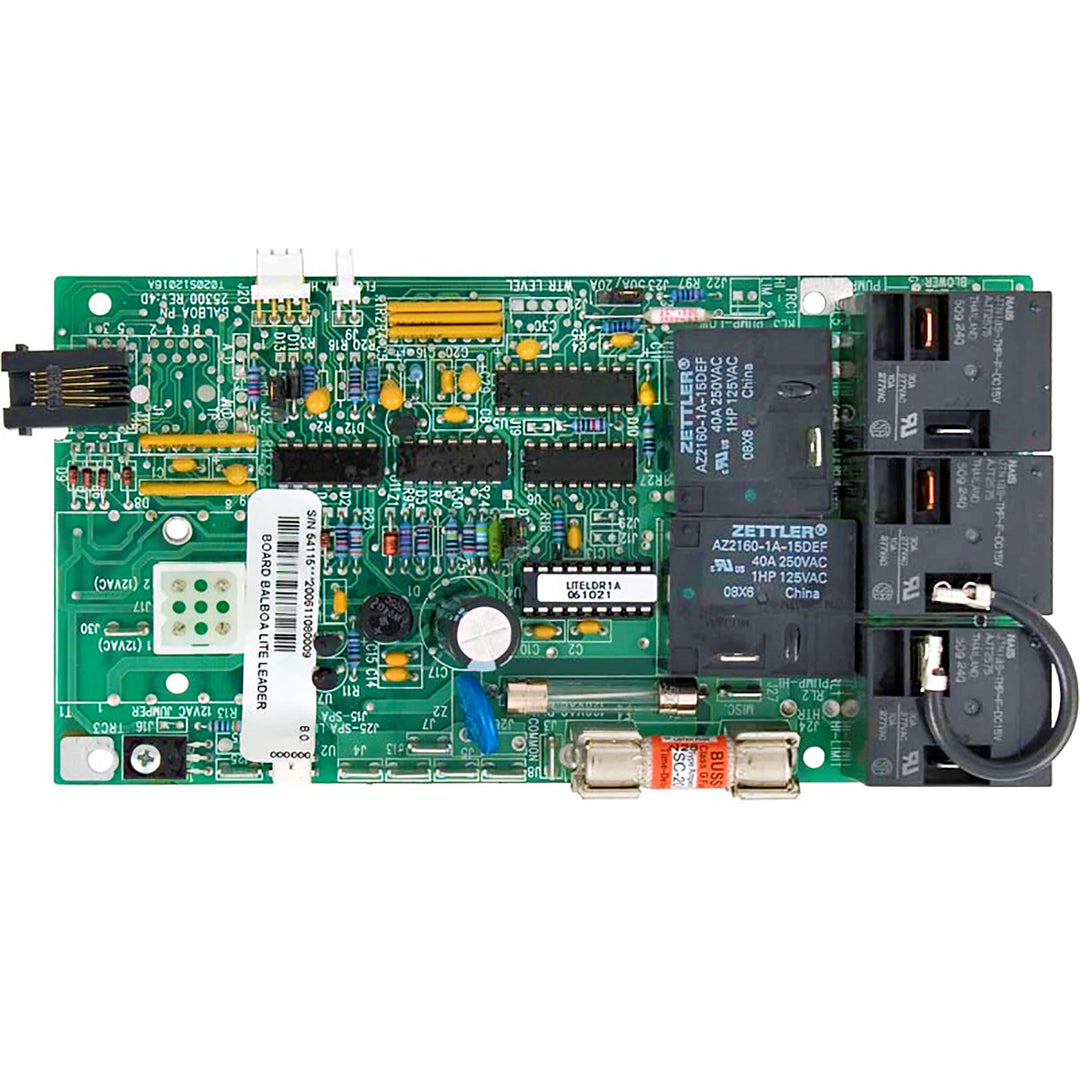

Balboa Lite Leader 1500-1 Spa Control Circuit Board (54115) Pre-Configured

HQ0034
Save $-269.95
/
Free Shipping
US-48 Only
Need Help? Send Photos!

Balboa Lite Leader replacement circuit board - confirm compatibility by matching Spa Control Model ID Label. Our exclusive FREE pre-configuration service saves time. Just let us know your spa's service voltage:

How about a complete easyPak from $398.95?

Spa Packs
View Products

Please select

$49.95
36 LED Bulb
36 LED Lightshow
Replaces Standard Bulb
Select Title
Need Help? Send Photos!
Installation Complexity Level 7

Pre-Configured Printed Circuit Board (PCB) for Balboa Lite Leader hot tub control systems. Spa Depot exclusively configures settings, based on your service voltage, at no extra charge.

Product Notes: Electrical or physical damage due to improper installation or incorrect PCB selection voids the manufacturer's warranty and for providing accurate pre-configuration instruction. Customer is responsible for determining and selecting the correct PCB model. PCBs cannot be returned or exchanged. Keypad not included. 1-yr. factory limited warranty.

 ATTENTION: If you do not have the skills, knowledge, and tools required to troubleshoot your existing system and install this replacement part correctly, engage the services of a qualified professional.

CONFIRM SYSTEM MODEL: Incompatible boards often look nearly identical. Match the Model Number from the Control System's top ID Label (see illustration).

Associated Reference Numbers: 33-0031, 33-0031-K, 33-54115-K, 3-60-0054HQ, 51937, 52083, 52936, 54115, 54152, 59-138-1049, 59-355-1049, 610993, 9710-18, BAL54115, C1500-1, ELE09102220.

Compatible Keypads: 54116, 51705, 52223, 609625, 80160.

Chip Numbers: 1500-1R1A, 1500-1R1B, 1500-1R1C, DAK25R1A, DAK25R1B, DAK25R1C, LITELDR1A, LTLDBLR1A, MOON30R1A, MOON30R1B, MOON30R1C.

Balboa Circuit Board Installation Directions

CALIFORNIA WARNING

Often bought together:
EasyPak BP100 controller
easyPak Powered by Balboa BP100 Pre-Configured Compact Mini+ Spa Control: Remote Heater
EP0100
Quick View
Balboa Pressure Switch Cable 21223
Balboa Pressure Switch Cable 21223
BX9405
Quick View
Sensor Assembly Set for Balboa® 30337
HydroQuip Sensor Assembly Set Replacement for Balboa 30337
BX9651
Quick View
Balboa Lite Leader Flo-Thru Heater Assembly 4.0kW
HydroQuip Heater Replacement for Lite Leader Controls
BX5966
Quick View
SC-20 Fuse, Class G Time Delay - 20A
Spa Circuit Board Fuse - SC-20 Slow Blow
BX9973
Quick View
Main System Fuse, Time Delay - 300mA
Spa Circuit Board Fuse - T300mA Slow Blow
BX9423
Quick View
Cord 4-Wire AMP 14/4 72"
Jet Pump Cord 2-Spd 14/4 - 72" AMP
BX4901
Quick View

This spa circuit board effectively replaces old boards, with customers reporting "works perfectly" and easy installation. Customers praised fast delivery and helpful technical support. One shopper experienced component stability issues requiring fuse replacement. Most found it a "perfect match" for 17-22 year old spas, restoring full functionality.

  • 5 stars: 20 (95%)
  • 4 stars: 1 (5%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
F
Frederick B.
New part works perfectly

New part works perfectly. Package arrived ahead of schedule. Our 20 year old hot tub is up and running.

S
Scott S.
Perfect replacement

After diagnosing that the problem with our spa was the circuit board I found this replacement. Price was good and delivery was fast. It was a pretty simple swap (making sure to take my time with the cables). I fired it up and it worked right from the start. It's been over two weeks now without an issue. Highly recommended.

M
Mark B.
Works great!

Improved ckt. board for my 20yo. Viking spa. Mounted and wired exactly the same as original board. Very happy with SpaDepot for getting me back in my bubbly tub.

P
Patrick D.
I'm glad I bought this product.

I'm glad your ""chat now"" agent recommended the right board to me, since this was my first board replacement and I was unsure. I got it installed and it works great. The problem was a relay switch; you should sell relay switches.

D
DIY A.
Fair Price, Competent Help

An employee I chatted with was helpful and pleasantly accommodated my questions.

B
Bob B.
Not sure of the quality

Installed the board according to the wiring schematic. Some of the components aren't very ""stable"".. The main fuse blew. Had to replace it twice and then checked wiring again. Finally got it working.

R
Robert G.
Perfect replacement board.

Took a couple of pictures replacement was pretty quick. SpaDepot wins! Best price and free shipping. Already have recommended!

D
David H.
Received in 2 days. Perfect match, easy install.

Ordered on a Wednesday (competitive price), free shipping, received that Friday (2 days to Northern California). I installed it myself with basic tools, just keep track of which wire goes where. The part is a perfect match, perfect fit, no problems with the removal or install, and now my 22 year old Caldera spa is working perfectly.

S
S
It fixed my problem

The old board did not energize the heater. This new one fixed the problem

H
Heather K.
Just what we needed

Product was just as described. Arrived earlier than expected. Will definitely purchase from here again in the future!

D
David W.
Great parts great prices

Great communication and fast shipping

E
Edie
Exactly like original! Spa works perfectly!

Our 17 year old spa works like new now!

R
Rondem
Just as expected

Great to order from, fast shipping and easy installment.

S
Steve
Wow it was perfect my help from spa depot told what i needed

Installation was simple and perfect fit

K
Kevin N.S.
I would buy tis product again

Got exactly what I ordered and received it sooner than I expected.

W
William F.
5 stars across the board

Simple ordering and received the part within 48 hours. And the part fit and worked perfectly.

T
Tim
control board

thanks for the technical support for instructing me on how to check a part number on my old control board for a replacement, great price and speedy delivery, tub is up and running, thanks.

T
Ted K.
Great replacement board

I ordered this board to replace my old balboa board. With your techs help over the phone,this was an easy install.My hot tub is up and running smoothly.

c
c b.
perect match for old circuit board

replaced old circuit board and new one works perfect thank you

M
Mark
Balbo Circuit Board

Excellent customer service and products, asked and answered questions so we got the correct part at a great price in a reasonable time. Great people great prices. Compare and this is were you'll buy. Mark

D
David R.
Nice

Board came quickly and all components fit perfectly and all worked as advertised . Thank you David Roethlisberger

D
Don A.

Looking for a Balboa Lite Leader control board. Board serial # 54115....1502170041 Chip LITELDRIA 20150217 2 speed motor
any other info needed please contact I could send pictures Thanks for your help

SpaDepot.com

This is the correct replacement circuit board for your LITELDR1A chipset.

T
Tom

I have a Balboa circuit board 54114-H with clip#20091028 Do have a board that will replacement this one ? The date 8/11/00 My board has no power 220v to the heater. heater is new

SpaDepot.com

54114-H should be the control system number (Lite Leader in this case). This is the replacement board for Lite Leader controls. Give us a call so we can get a little more information to ensure you get the correct board.

C
Customer

Balboa Circuit Board for Lite Leader Control Systems - 54115 Are all the boards testing and working 100 percent?

SpaDepot.com

All PCB's are bench tested at the manufacturer before distribution.

J
Jim B.

My spa is not heating up to temp and I suspect it's a relay in the circuit board. If this sounds right, is this the proper replacement circuit board. My board # is Litieldr1a 060724. Thank you for your help

Jim

SpaDepot.com

This is the correct replacement board for your chip number. To confirm your board is bad, increase the heat to 104°, confirm the pump is running and the topside control displays no error codes. Now, test voltage across the 2 heater element terminals. If you find no voltage, the board is bad. As always, we're happy to walk you through the test in real time, just give us a call.
