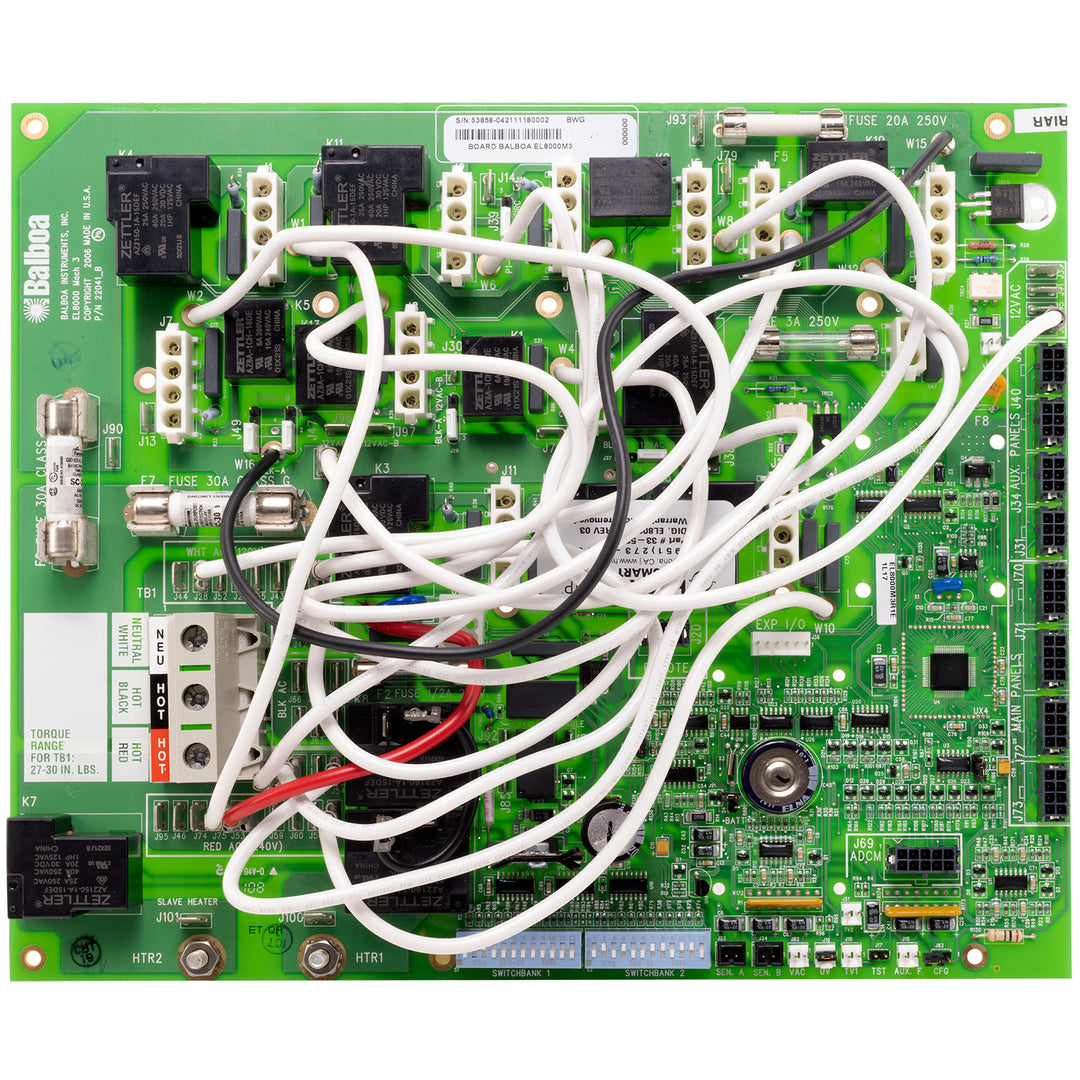

Balboa EL8000 M3 Spa Control Circuit Board - 53858

Name: Balboa EL8000 M3 Spa Control Circuit Board - 53858
Brand: SpaDepot
SKU: HQ0168
Price: 418.95 USD
Availability: InStock

HQ0168

Save $-418.95

/

Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.

Delivery to US-48 Only Sorry, delivery unavailable to Alaska, Hawaii, or Canada.

Balboa Model EL8000 Mach 3 replacement circuit board - confirm compatibility by matching Chip Number and/or Part Number to guarantee the existing control keypad and other components function properly.

How about a complete easyPak from $398.95?

View Products

$6.95

Heater Power Cables

Element to Circuit Board - Pair

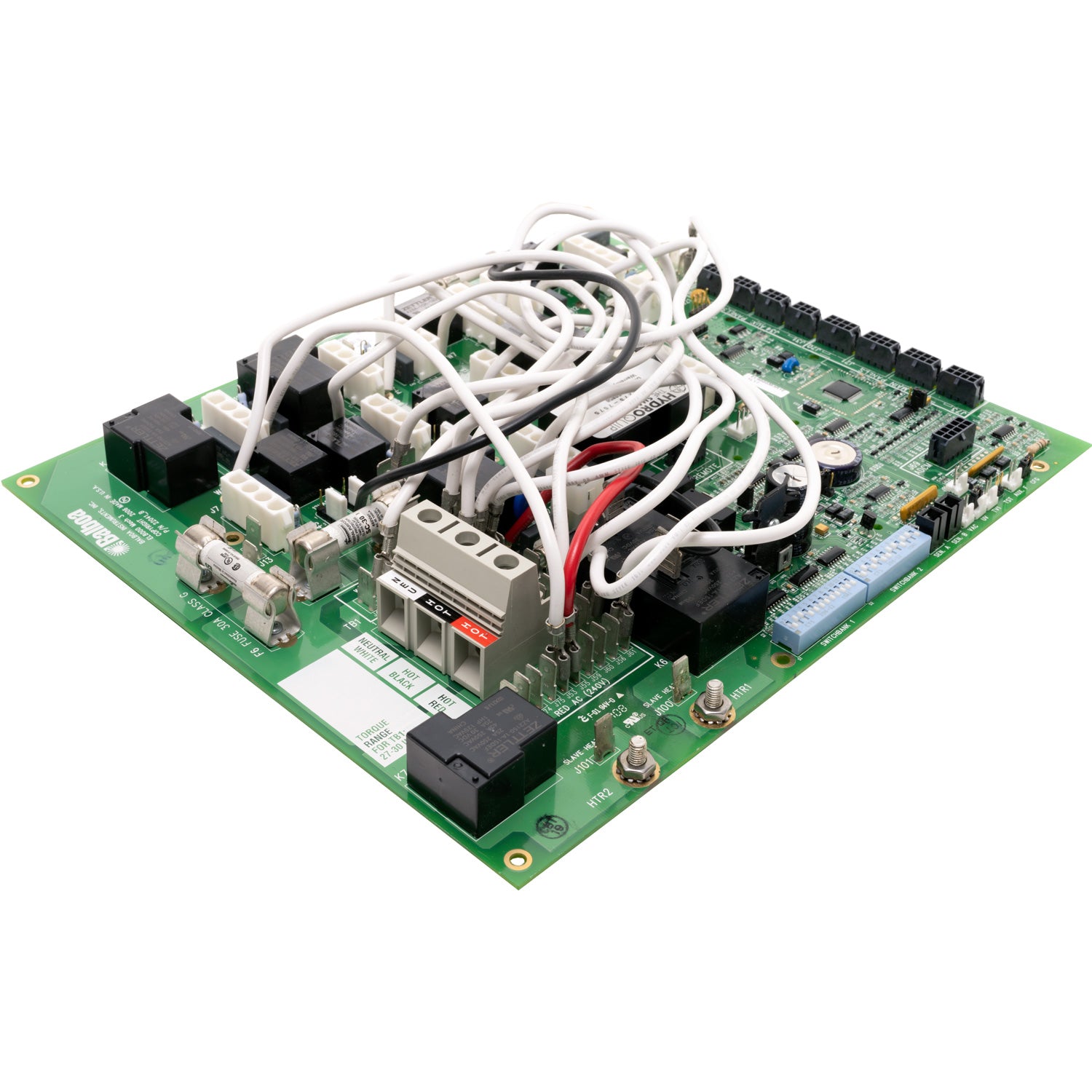

Balboa^® Printed Circuit Board (PCB) for Balboa Model EL8000 M3 hot tub control systems. Supports 2-speed primary, secondary, & tertiary pumps, blower, circulation (circ) pump, ozonator/UVC, stereo, mister, & light/fiber optics.

Product Notes: This circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. Electrical or physical damage due to improper installation or incorrect PCB selection voids the manufacturer's warranty. Customer is responsible for determining and selecting the correct PCB model. PCBs cannot be returned or exchanged. 1-yr. factory limited warranty.

ATTENTION: If you do not have the skills, knowledge, and tools required to troubleshoot your existing system and install this replacement part correctly, engage the services of a qualified professional.

Associated Reference Numbers: 106980, 106-980, 109218, 109-218, 33-53858-K, 52680, 52888-01, 53858, 53858-02, 53858-03, 53858-04, 54118, 54289, 54290-03, 54422, 56324, 91-265, 951210, 9710-94, 9710-105, X801070.

Compatible Keypads: 52654-01, ML900.

Chip Number: EL8000M3R1E

Replaces These Chip Numbers: EL8000M3R1B, EL8000M3R1E, EL8000R1A, EL8000R1B, CAT800R1A, CAT800R1B, CAT8020M2R1A, CAT800M2R1B, CAT800M3R1A, CAT800M3R1B.

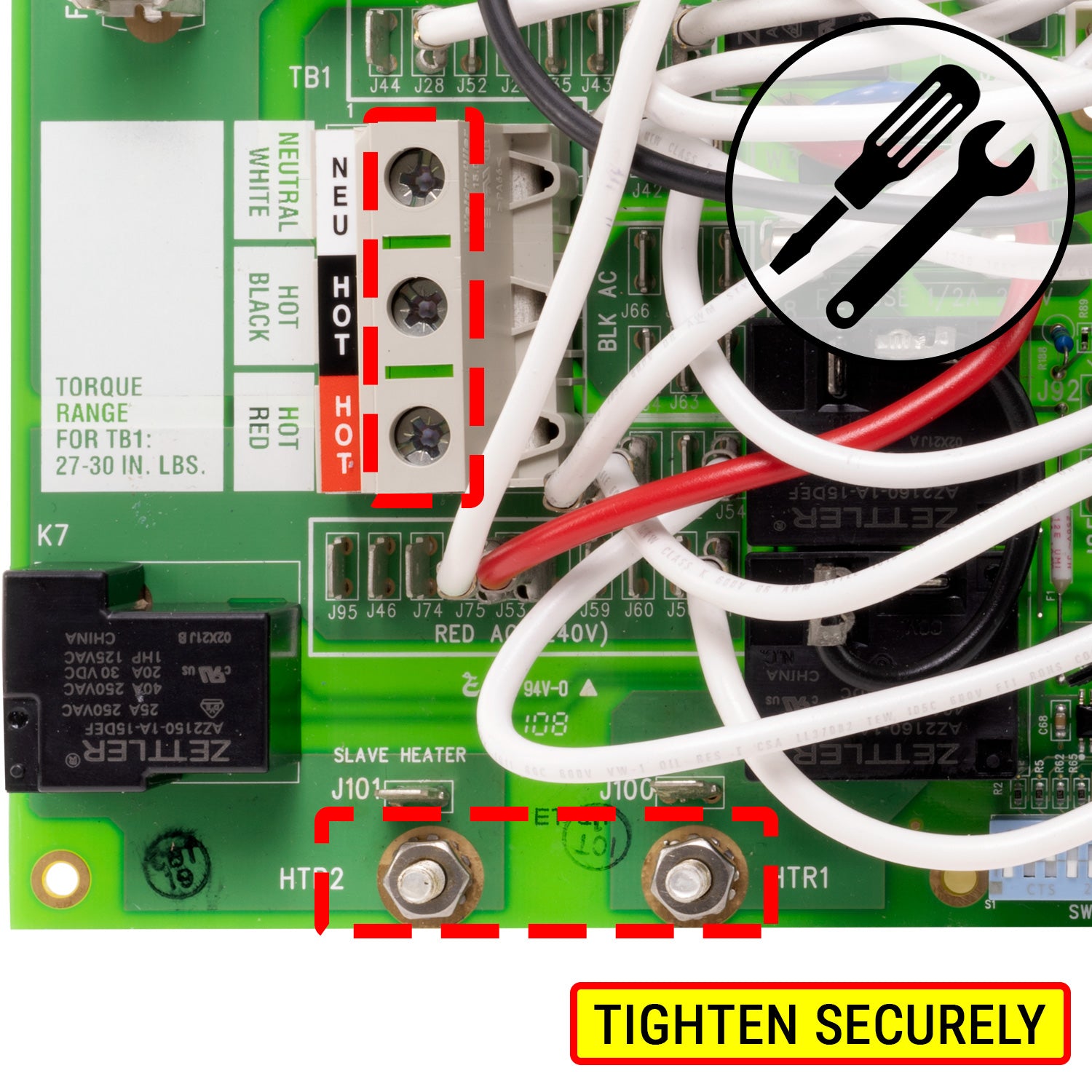

Balboa Circuit Board Installation Directions
