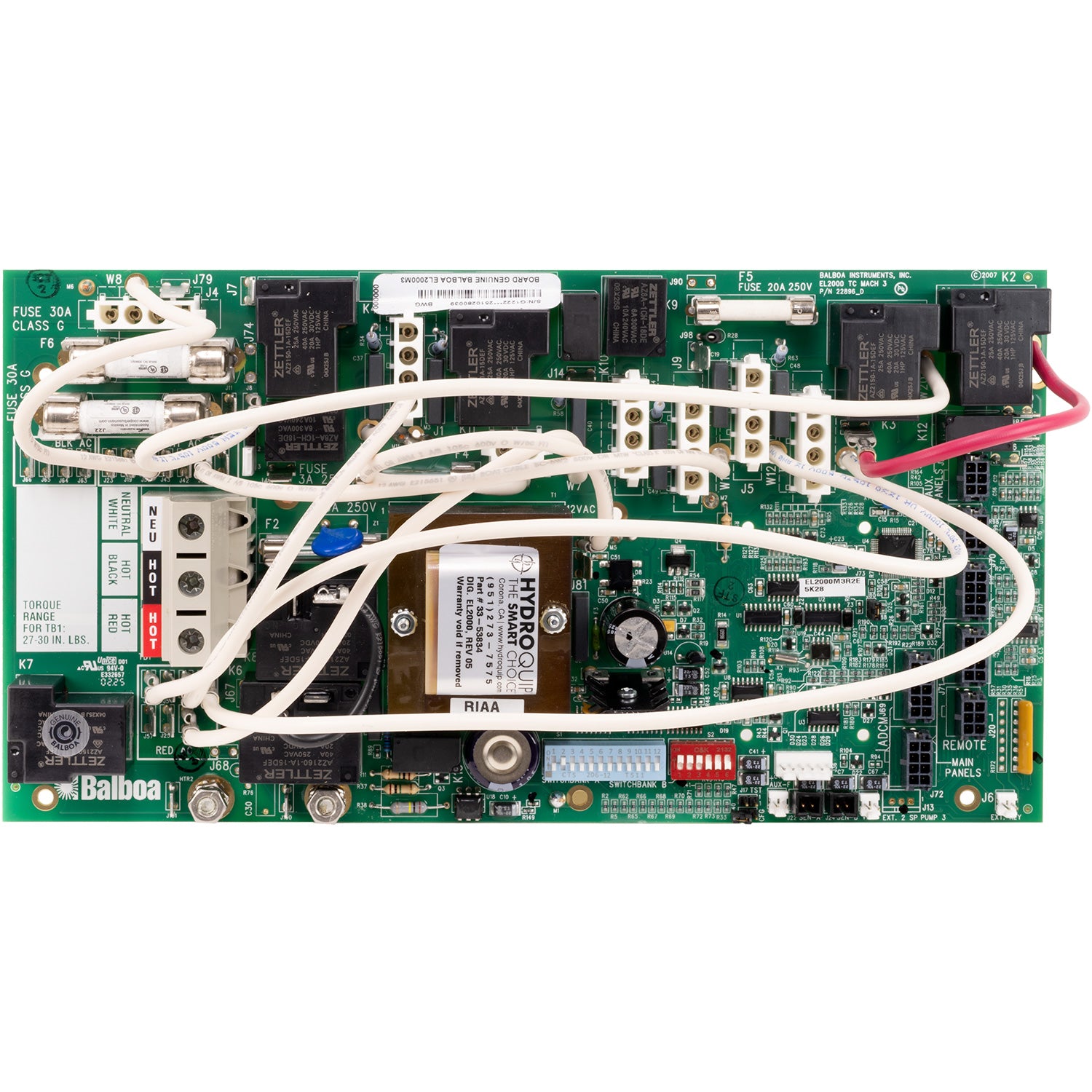

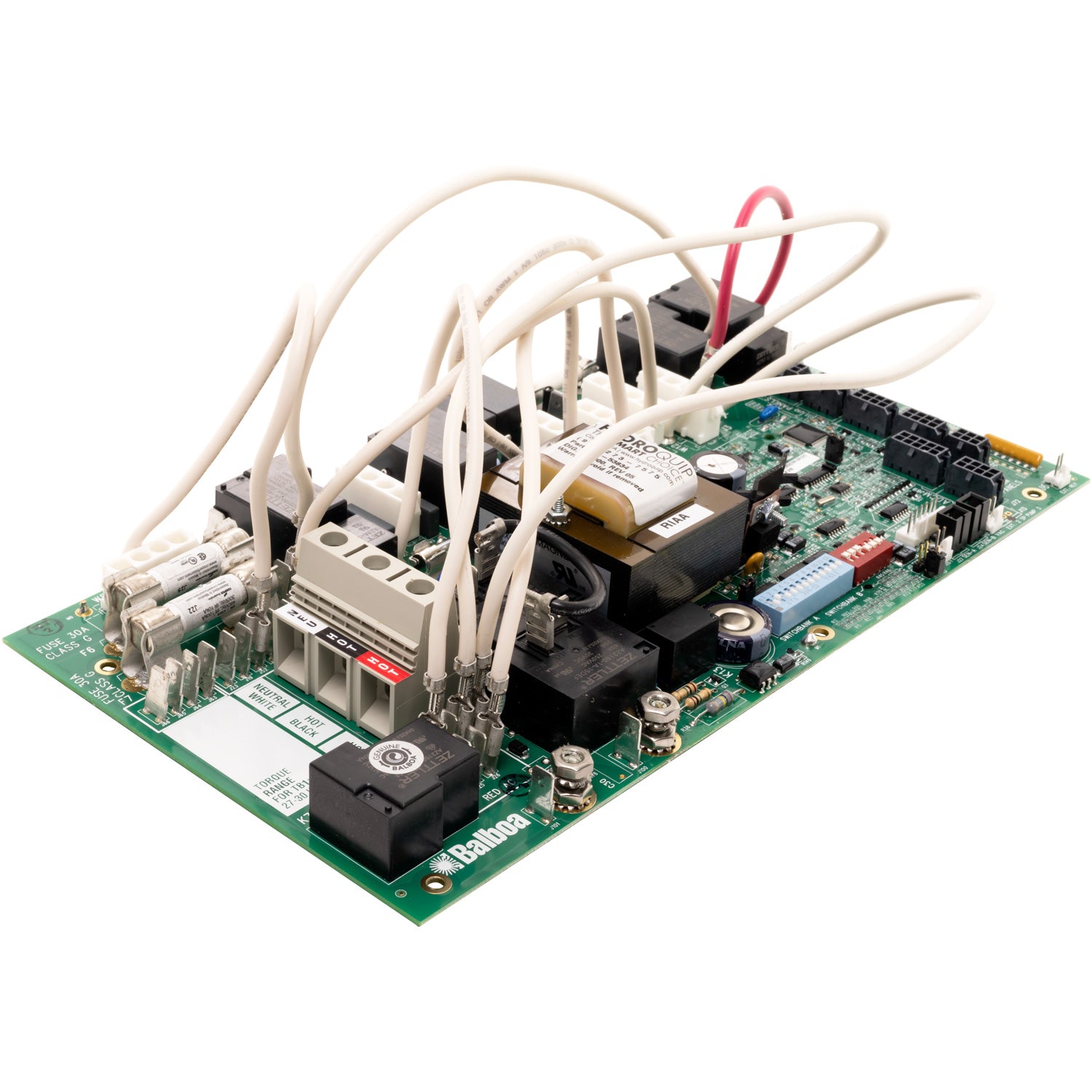

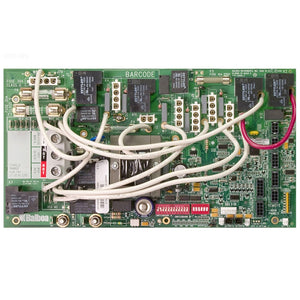

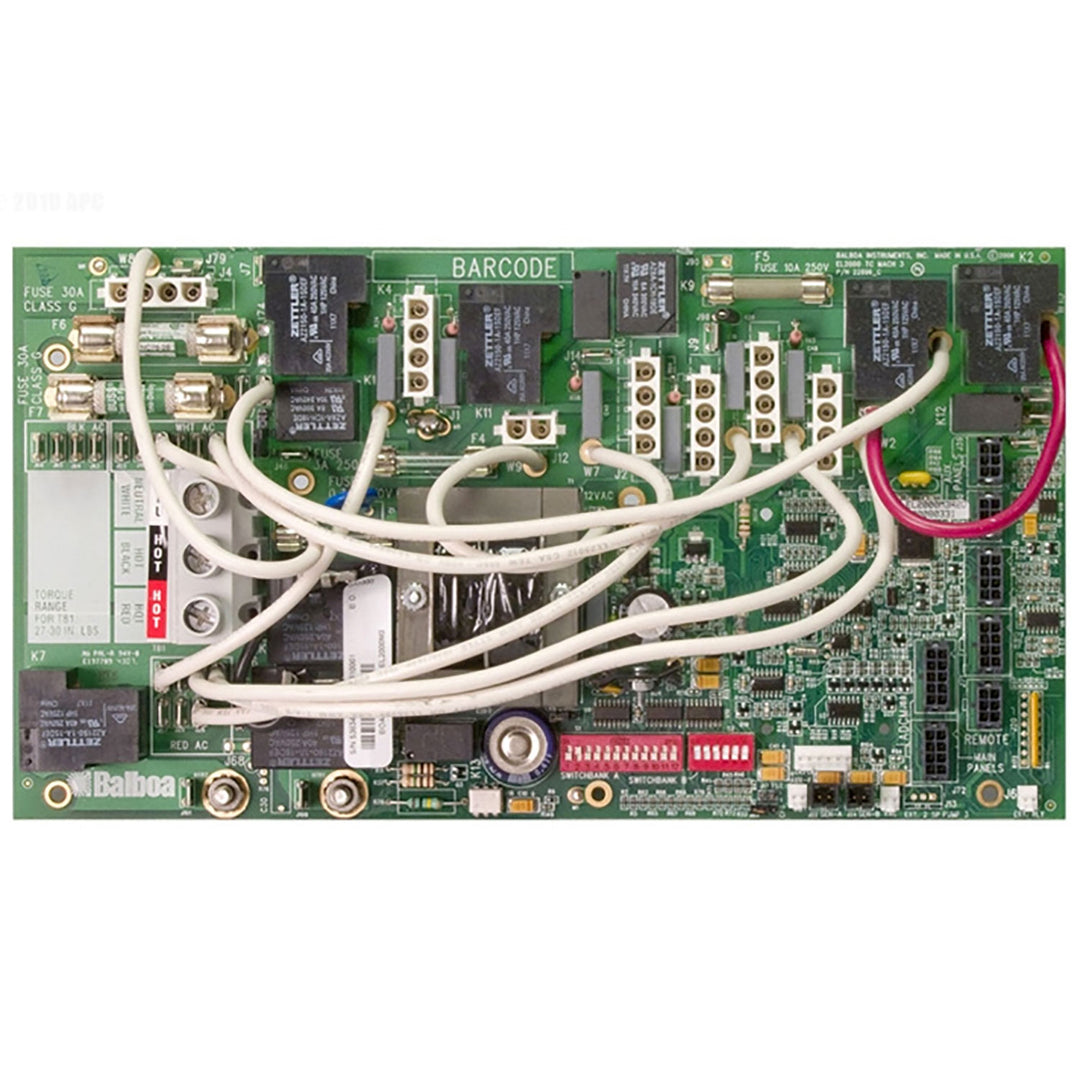

Balboa EL2000 M3 Spa Control Circuit Board - 53834-05

HQ0035
Save $-418.95
/
Free Shipping
US-48 Only
Need Help? Send Photos!

Add to Order (recommended):

$6.95
Heater Cables: Element to Circuit Board - Pair
Heater Power Cables
Element to Circuit Board - Pair
Select Title
Installation Complexity Level 7

Balboa® Printed Circuit Board (PCB) for Balboa Model EL2000 M3 hot tub control systems. Supports a 2-speed primary and secondary pump, blower, circulation (circ) pump, ozonator/UVC, stereo & light.

Product Notes: Electrical or physical damage due to improper installation or incorrect PCB selection voids the manufacturer's warranty. Customer is responsible for determining and selecting the correct PCB model. PCBs cannot be returned or exchanged. 1-yr. factory limited warranty.

 ATTENTION: If you do not have the skills, knowledge, and tools required to troubleshoot your existing system and install this replacement part correctly, engage the services of a qualified professional.

Associated Reference Numbers: 33-53834-K, 53834, 53834-01, 53834-02, 53834-03, 53834-04, 53834-05, 59-138-1017, EL2000M3, G1222, TS2000.

Compatible Keypads: 52654, 52649, 52684, ML400, ML700, ML900.

Chip Number: EL2000M3R2E

Replaces These Chip Numbers: BF05R2A, BF05R2B, EL2000M3R2A, EL2000M3R2B, EL2000M3R2C, EL2000M3R2D, EL2000M3R2E, EL2000UR2C, FWEL2KM3R1A, TS2000R2A, TS2000R2B.

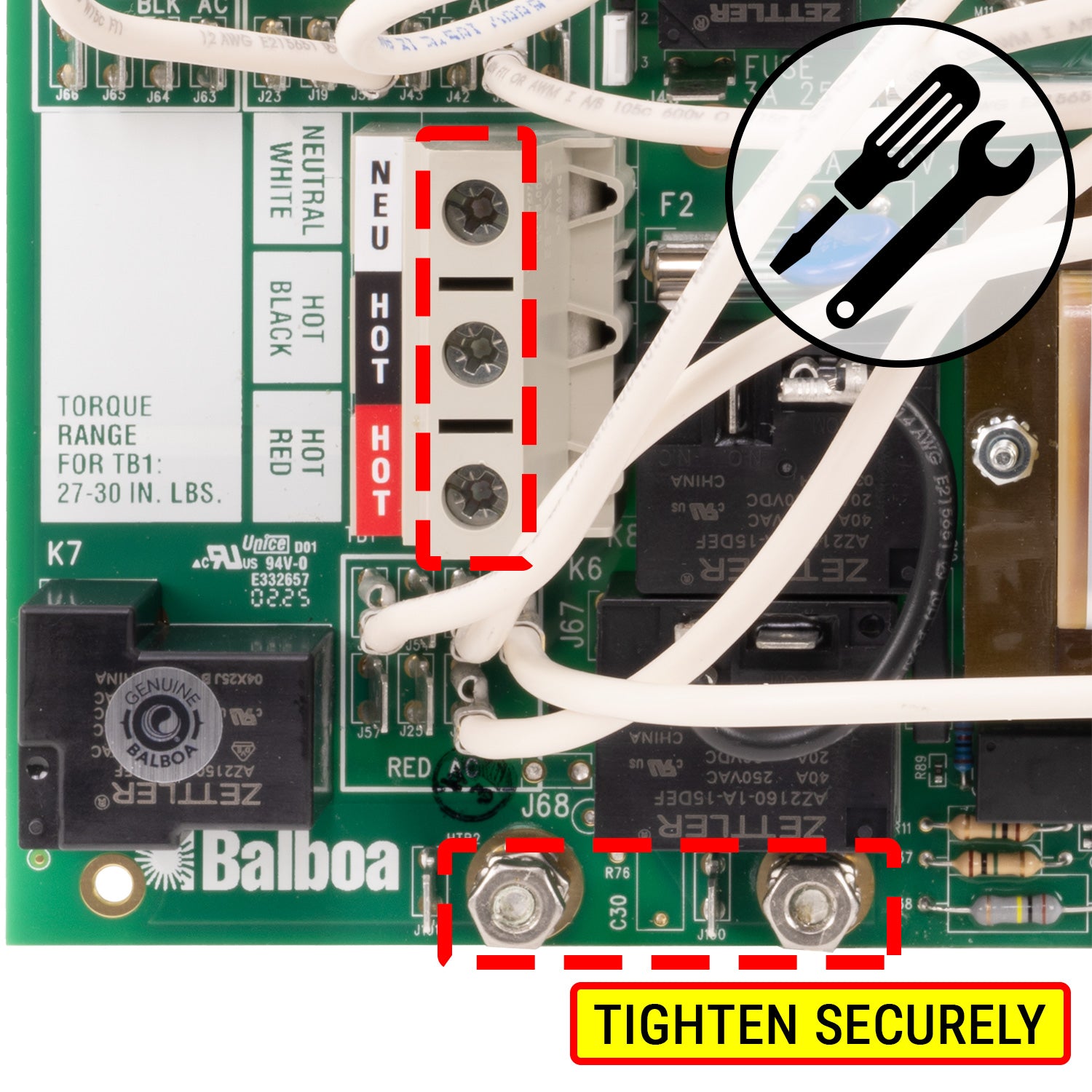

Balboa Circuit Board Installation Directions
Need Help? Send Photos!

CALIFORNIA WARNING

Often bought together:
EP7001 easyPak spa control system
easyPak Powered by Balboa BP7 Pre-Configured Spa Control
EP7001
Quick View
SC-30 Fuse, Class G Time Delay - 30A
Spa Circuit Board Fuse - SC-30 Slow Blow
BX9975
Quick View
SC-25 Fuse, Class G Time Delay - 25A
Spa Circuit Board Fuse - SC-25 Slow Blow
BX9974
Quick View
Hi Limit/Temp Sensor Assembly for Balboa M7 Systems 32016
HydroQuip Hi Limit/Temp Sensor Kit Replacement for Balboa M7 32016
BX9983
Quick View
Main System Fuse, Time Delay - 300mA
Spa Circuit Board Fuse - T300mA Slow Blow
BX9423
Quick View
Cord 4-Wire AMP 14/4 72"
Jet Pump Cord 2-Spd 14/4 - 72" AMP
BX4901
Quick View
Cord 3-Wire AMP 14/3 72"
Jet Pump Cord 1-Spd 14/3 72" AMP
BX4900
Quick View

Spa circuit board replacement praised for perfect compatibility with older models. Customers said it's an "exact replacement" that "worked great" and "performs perfectly." Easy installation noted. Helpful website details for verification and good pricing highlighted. Works with 2016+ thermal spas.

  • 5 stars: 7 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
s
sean g.
Perfect match

Was a perfect match for a 2016 thermal spa. I never thought I would find a replacement.

K
Kevin F.

Worked great

J
Joel J.
Old hot tub reboot

The circuit board came just as described. Easily installed along with new topside controls, and a few frozen pipes repaired the old spa is like a new one again!

G
GP
right item every time.

They helped me pick out the right replacement circuit board, fit perfect, works great.

J
J D.
perfect match and good detail on website to verify fit

Electronic control board for a spa some very specific fit. Price was good but most importantly the details to match up the board was excellent.

B
BSE
kodos

I have purchased items from you in the past I haven't ever had a complaint. I especial like your product lay out and how everything is up to date, and easy to find. every time I have searched the internet for different items I come back to you. you have the best quality and the best prices, also most other companies aren't stocking parts for older spas, you haven't disappointed me. I will continue to do business with you in the future. thank you;

L
Linda B.
exact replacement....performs perfectly

It's a circuit board

V
Vicki

Balboa EL2000 M3 Spa Control Circuit Board - 53834-05. is there a kit that replaces this board topside and heater. that would work with a cal spa 7000

SpaDepot.com

Our EasyPak BP7 control system is a great replacement for your current EL based system. Email us (help@spadepot.com) a picture of your current system/heater/keypad and we'll be happy to walk you through the best selection for your particular tub!

D
Dan F.

I have compared this to my current hot tub's circuit board which is a EL2000 M3 and I'm worried because I've noticed the fuse in the top right corner is a different amperage than the current one. Mine says it's a 20A 250V while this one says it's a 10A. Can you confirm it's the right board and why those might be different. Thanks.

SpaDepot.com

In order to confirm the correct board for your spa, we need the chip number. Please give us a call when you have a moment and we can walk you through how to find that and recommend the correct replacement board.
