Balboa EL2000 M2 Spa Control Circuit Board - 59003

Name: Balboa EL2000 M2 Spa Control Circuit Board - 59003
Brand: SpaDepot
SKU: HQ0167
Price: 398.95 USD
Availability: InStock

HQ0167

Save $-398.95

/

Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.

Delivery to US-48 Only Sorry, delivery unavailable to Alaska, Hawaii, or Canada.

Balboa Model EL2000 Mach 2 replacement circuit board - confirm compatibility by matching Chip Number and/or Part Number to guarantee existing control keypad and other components function properly.

How about a complete easyPak from $398.95?

View Products

$6.95

Heater Power Cables

Element to Circuit Board - Pair

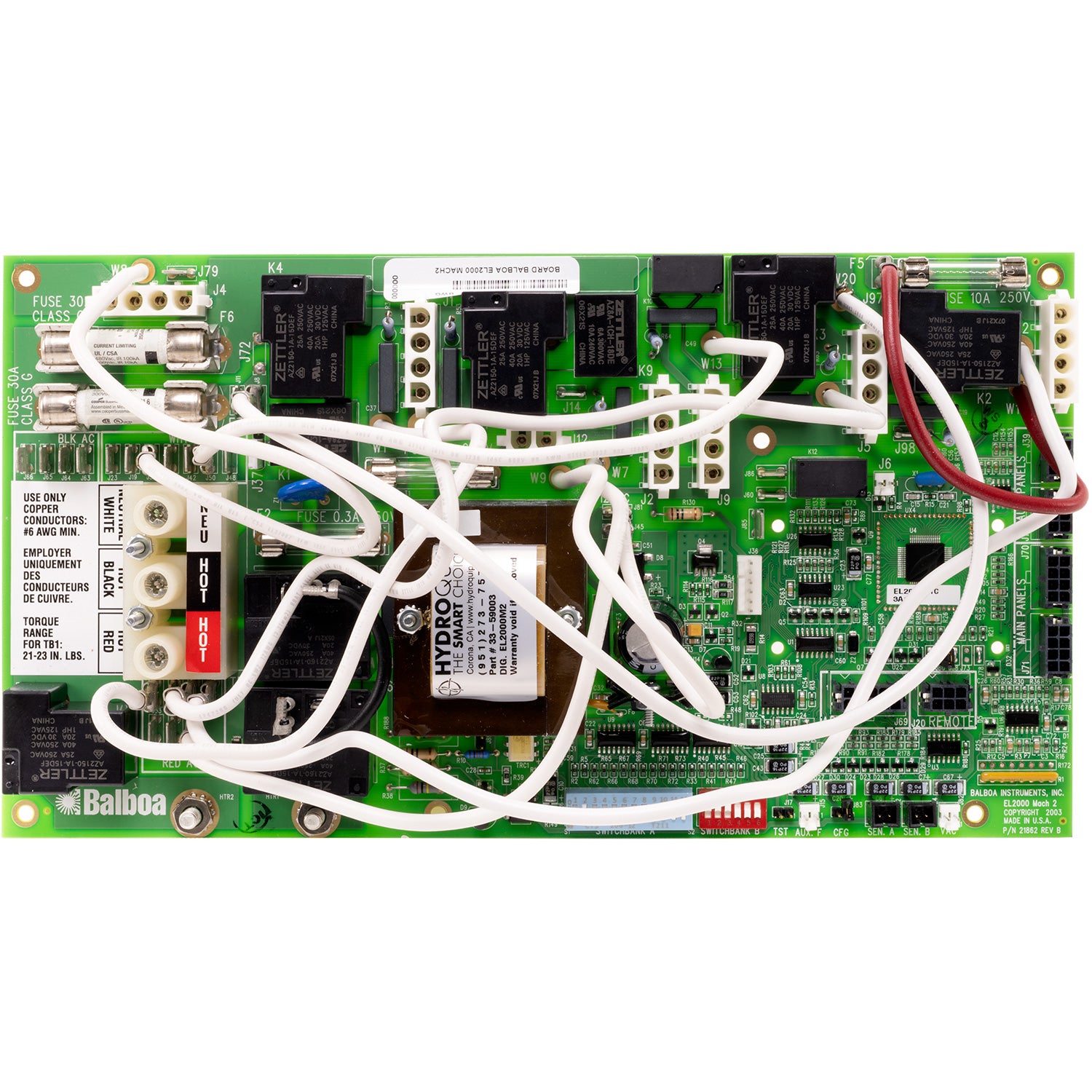

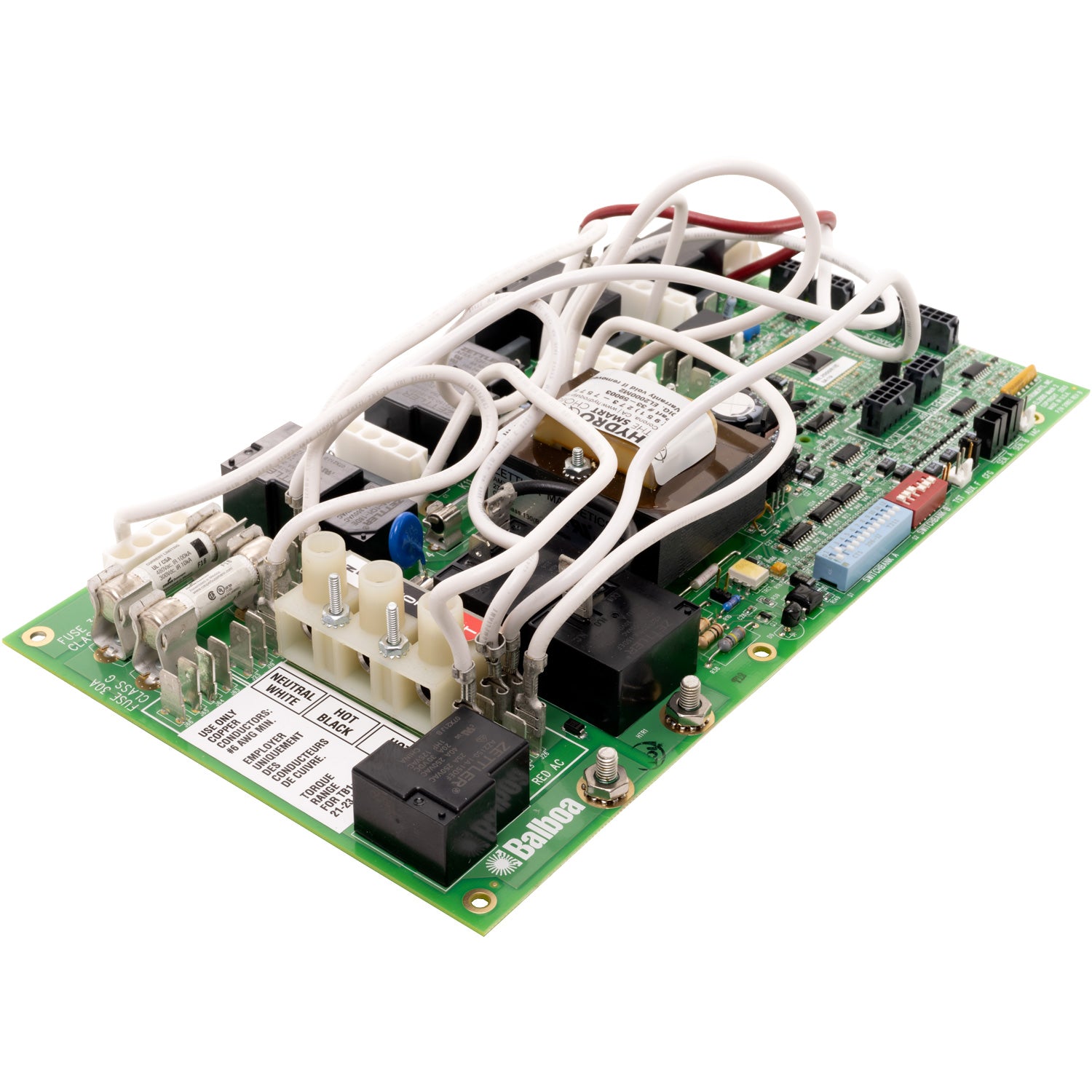

Balboa^® Printed Circuit Board (PCB) for Balboa Model EL2000 M2 hot tub control systems. Supports a 2-speed primary and secondary pump, blower, circulation (circ) pump, ozonator/UVC, stereo & light/fiber optics.

Product Notes: Not for use in metal enclosure box. This circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. Electrical or physical damage due to improper installation or incorrect PCB selection voids the manufacturer's warranty. Customer is responsible for determining and selecting the correct PCB model. PCBs cannot be returned or exchanged. 1-yr. factory limited warranty.

ATTENTION: If you do not have the skills, knowledge, and tools required to troubleshoot your existing system and install this replacement part correctly, engage the services of a qualified professional.

Associated Part Numbers: 33-0029-K, 33-59003-K, 389254, 52487, 52680, 52848, 52868, 59002-02, 59002-04, 59003, 59-138-1016, 59-138-1019, 9710-109, BB59003, BC2003, EL2000M2.

Compatible Keypads: 52958, 52684, 53392, 53649, 52654, ML200, ML400, ML550, ML700, ML900.

Chip Number: EL2000R1C.

Replaces These Chip Numbers: BF01R1A, BF01R1B, BF01R1C, BF01R1D, BF01R1E, BF01R1F, EL2000R1A, EL2000R1B, EL2000R1C, EL2000M3R2D, TS2000R2A.

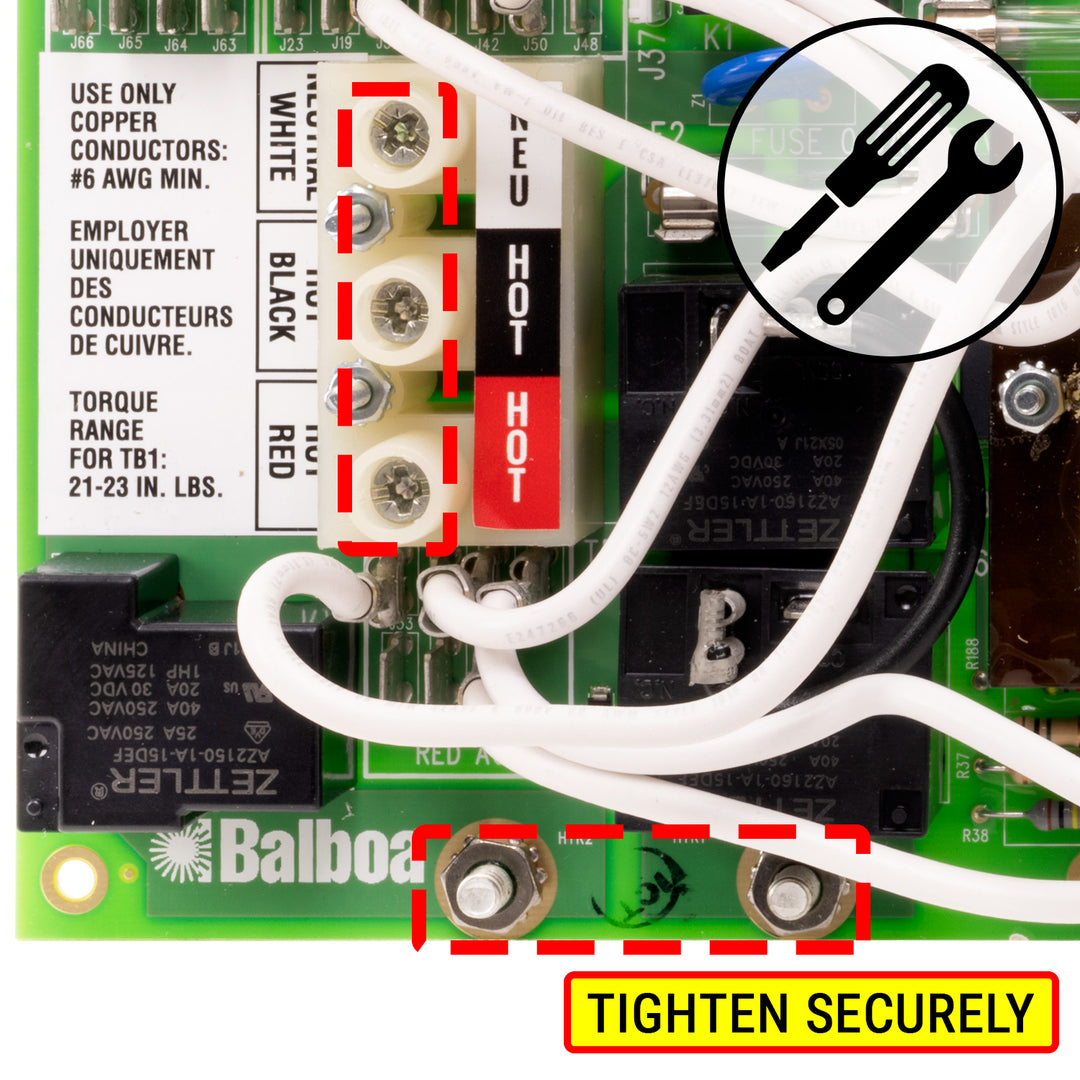

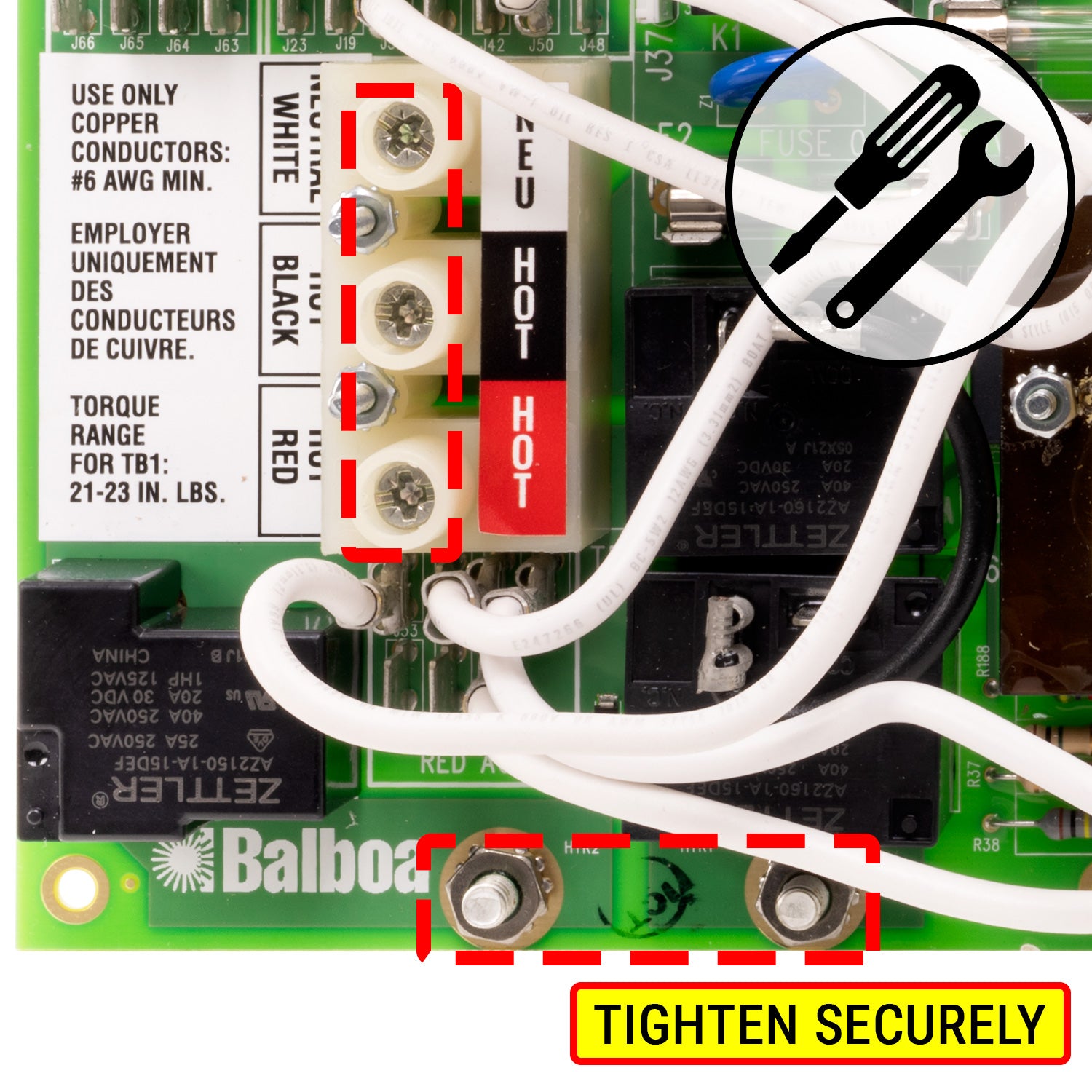

Balboa Circuit Board Installation Directions
