HydroQuip Heater Replacement for Lite Leader Controls

BX5966
Save $-168.95
/
Free Shipping
Need Help? Send Photos!

Add to Order (recommended):

$6.95
Heater Cables: Element to Circuit Board - Pair
Heater Power Cables
Element to Circuit Board - Pair
Select Title

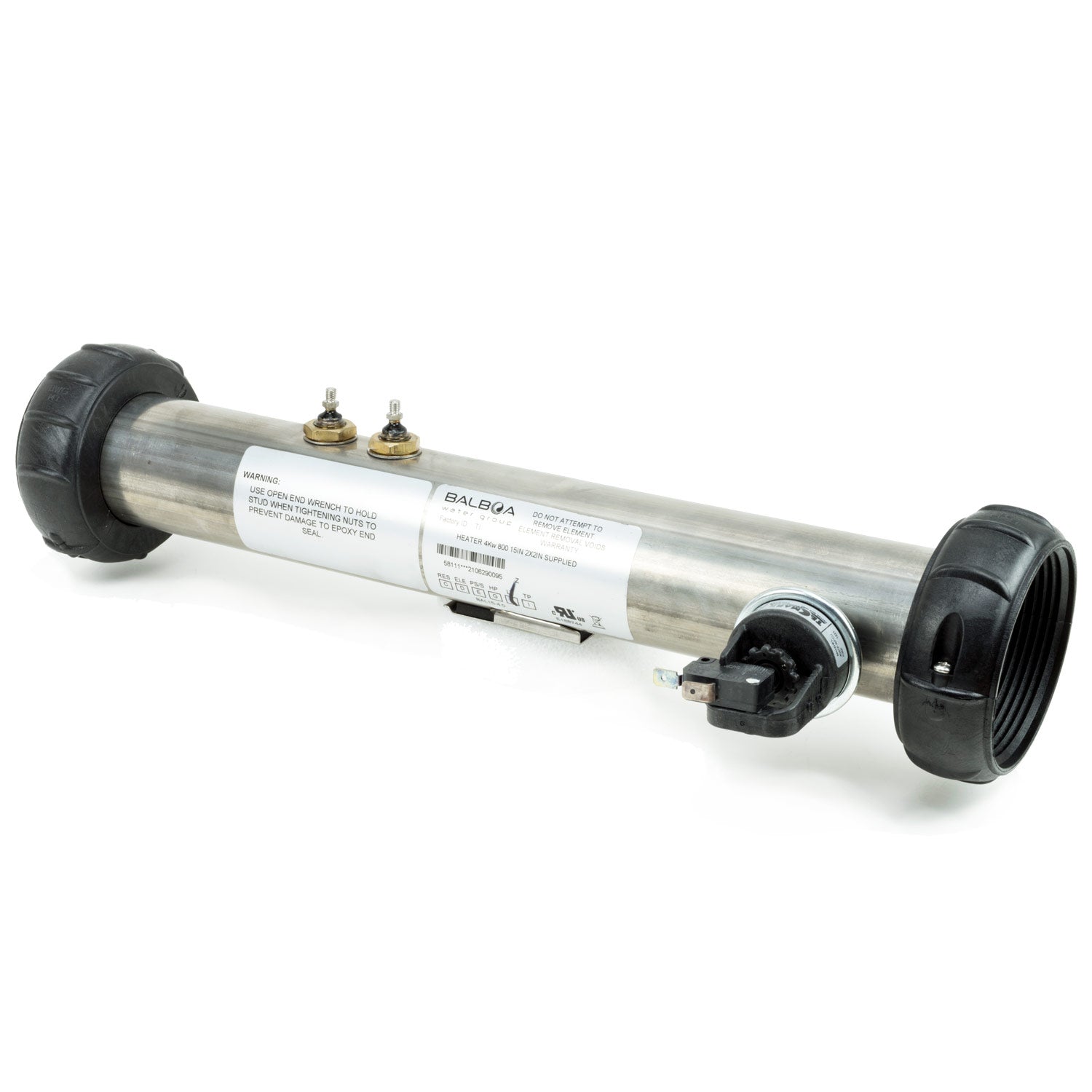

Hydroquip brand replacement for Balboa® Lite Leader heater assembly. Flow-Through Stainless Steel hot tub heater tube with pressure switch.

  • 4kW @ 240V - 1kW @ 120V
  • 2" Slip Socket (convert to 1½" with optional reducers)
  • Pressure switch included

Product Notes: Replacement for Lite Leader 1500-1, CAT100/CAT200/CAT300 and Pre-97 systems with externally mounted heaters. UL Recognized.

Spa Pressure Switch Adjustment Instructions

Details

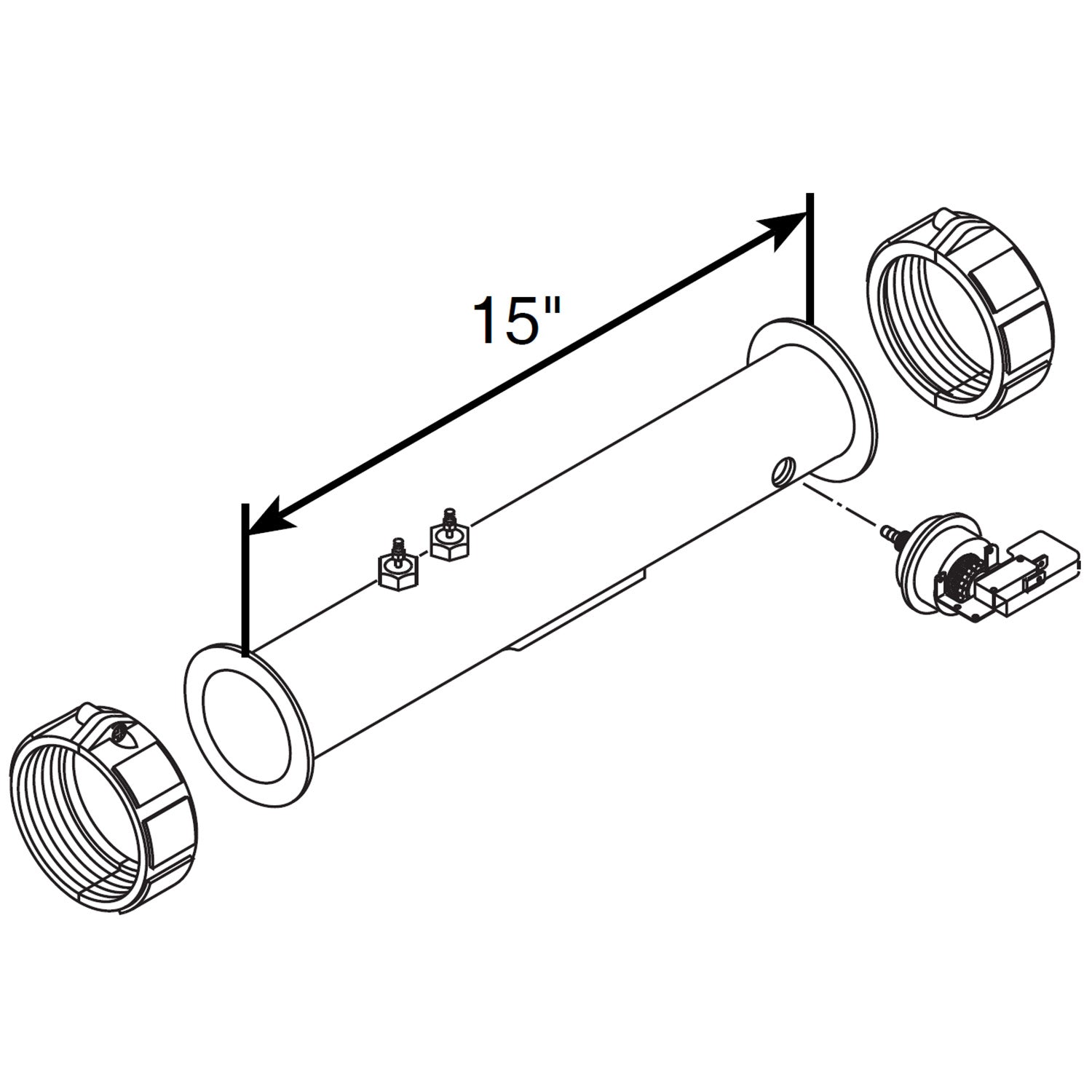

Length: 15” Stainless Steel Tube (not including union length)

Connection: 2" Slip Socket (Easily Convertible to 1½" Plumbing)

Voltage: 240V/120V

Wattage: 4.0kW @ 240V – 1.0kW @ 120V

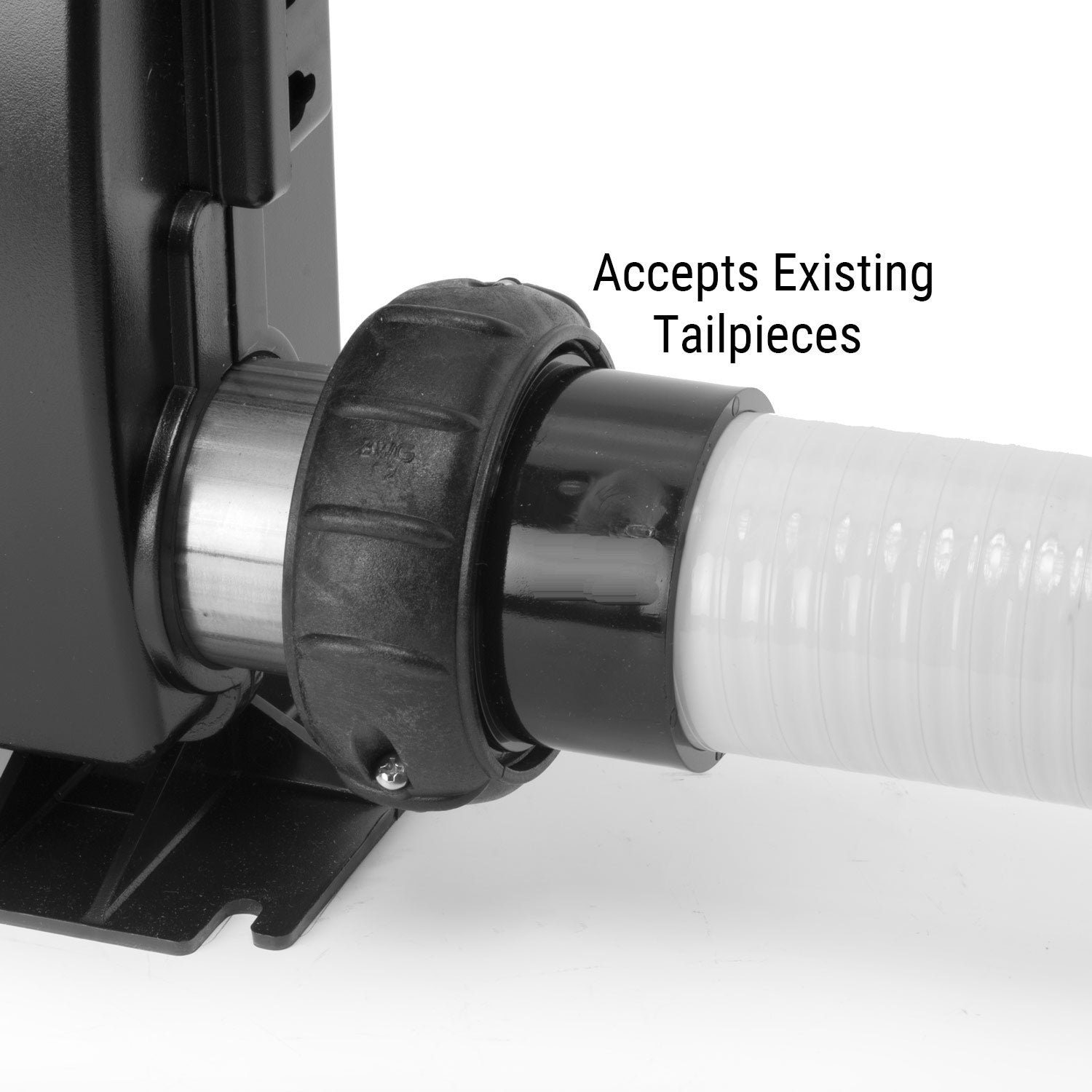

Unions: (2) 2” Split Nuts, (2) Gaskets and (2) Tailpieces included

Pressure Switch: Included

Thermowell Housing:  External w/Cover

Replacement Element: 4.0kW BX5000 Flow-Thru Spa Heater Element

Replaces Part Numbers: 58009, 50067, 50080, 50134, 50150, 58081, 58111, 50142, C2400-0535, C2400-0535-TPS, C2550-0535, G7416, 26-0535-5S-K, 26-0535-5S-KP, 26-0535-5S-KP01, 26-0535-7S-KP01, 46-238-1304
Need Help? Send Photos!
Often bought together:
Sensor Assembly Set for Balboa® 30337
HydroQuip Sensor Assembly Set Replacement for Balboa 30337
BX9651
Quick View
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
Flow-Thru Universal Spa Heater Element - Titanium or Incoloy
BX5000
Quick View
Spa strap wrench
Nut Wrangler Spa & Hot Tub Wrench - Threaded Fitting Removal Tool
MT1093
Quick View
Lube Tube O-Ring/Gasket Lubricant-Sealant
Lube Tube O-Ring/Gasket Sealant
BX9912
Quick View
Reducer bushing 2 in. x 1.5 in.
Reducer Bushing 2"SP x 1.5"SS
BX9901
Quick View
Heater Union Split Nut Assembly - 2"
Heater Union Split Nut Assembly - 2"
BX9902
Quick View
Flex Pipe 2"x 6" Short Section
PVC Flex Pipe 2"x 6" Short Section
BX95201
Quick View

Customers praised this heater replacement for being "exactly as advertised" with easy installation and all necessary parts included. Most found it a "perfect fit" that works great. However, some noted compatibility issues requiring plumbing modifications and occasional pressure switch adjustments. Tech support received high marks for assistance.

  • 5 stars: 16 (84%)
  • 4 stars: 1 (5%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (5%)
  • 1 star: 1 (5%)
G
George
Same as original but with a new flow switch.

My last heater rotted out at the flow switch,this one has a plastic nipple and very interested to see how it lasts.

T
The K.
Exactly as advertised

Product was exactly as advertised. Simple replacement and so far after a month of use everything seems to be working perfectly

J
Jay
Great product

Very good good service

t
tinyque
thank you for my part it works great

This was exactly what I needed to fix my unit. Great part.

R
Rada N.
thank you , all products we got from you are perfect fit

Jacuzzi is working like new, used every day

D
Daniel G.
Truly a great buy on a great product

Complete heating unit for a spa works great

D
Doug
Great service!

Installed easily. Worked. All the parts were included. Great tech support. The best customer service. Way better than the competition.

*
*****
It didn't fit my hot tub.

I had to modify the plumbing to get it to work. It doesn't keep temperature very well.

m
mike
Heat!

Very easy replacement of old heater. Do your research to make sure it's the correct part, there are a few of them out there.

M
Mark S.
Heater works perfectly

This fit my Jacuzzi hot tub perfectly and it's back in action! 🙂

J
Joe
Right part, right price

Called spa depot therefore the correct part for the problem. Ordered it online and received it very timely. Installed entire heater assembly with pressure switch in about an hour. Make sure you have silicon gasket dealer on hand.

C
Chris B.
Great heater at a great price

Perfect fit & works great Customer service is wonderful

D
David N.
Perfect fit

Fast shipping and parts fit like a glove. Thank you SpaDepot, you guys are the only ones to have what I need.

S
SB
Easy process

Easy to find the replacement part I needed. All necessary parts were included and was able to replace it with no problems

Z
Zeb
heater assembly

Great product , but would appreciate the availability of a heater element upgrade ( ceramic, titanium)

H
Happy S.
Great site

Very knowledgeable individuals at this site. First try and got the correct part. Very satisfied.

K
Kickback i.t.h.t.
I used it because I didn't want to reorder it.

The heater works fine, but I had to take the pressure switch out and use the old one to get the spa to work.

c
charles w.
great product

Shipped as promised easy to install and boom up and running thanks

r
ricky
Fits perfect. Worked as needed.

Fits perfect. Easy to install. Comes with all the parts needed. Tech got me adjust Pressure switch to make fit with my tub.
