Balboa Circuit Board for VS501Z Control Systems - 54357-03
HQ0022

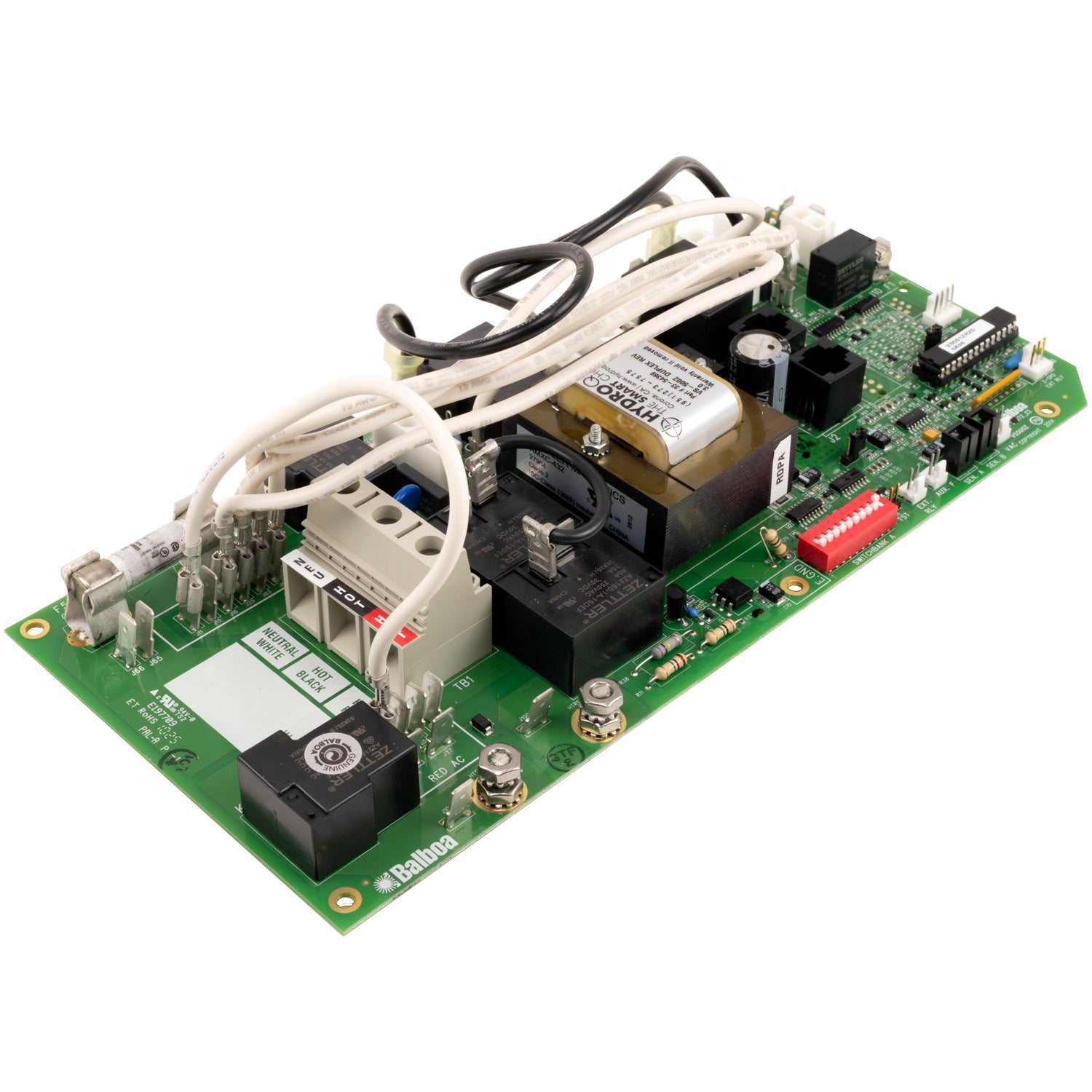

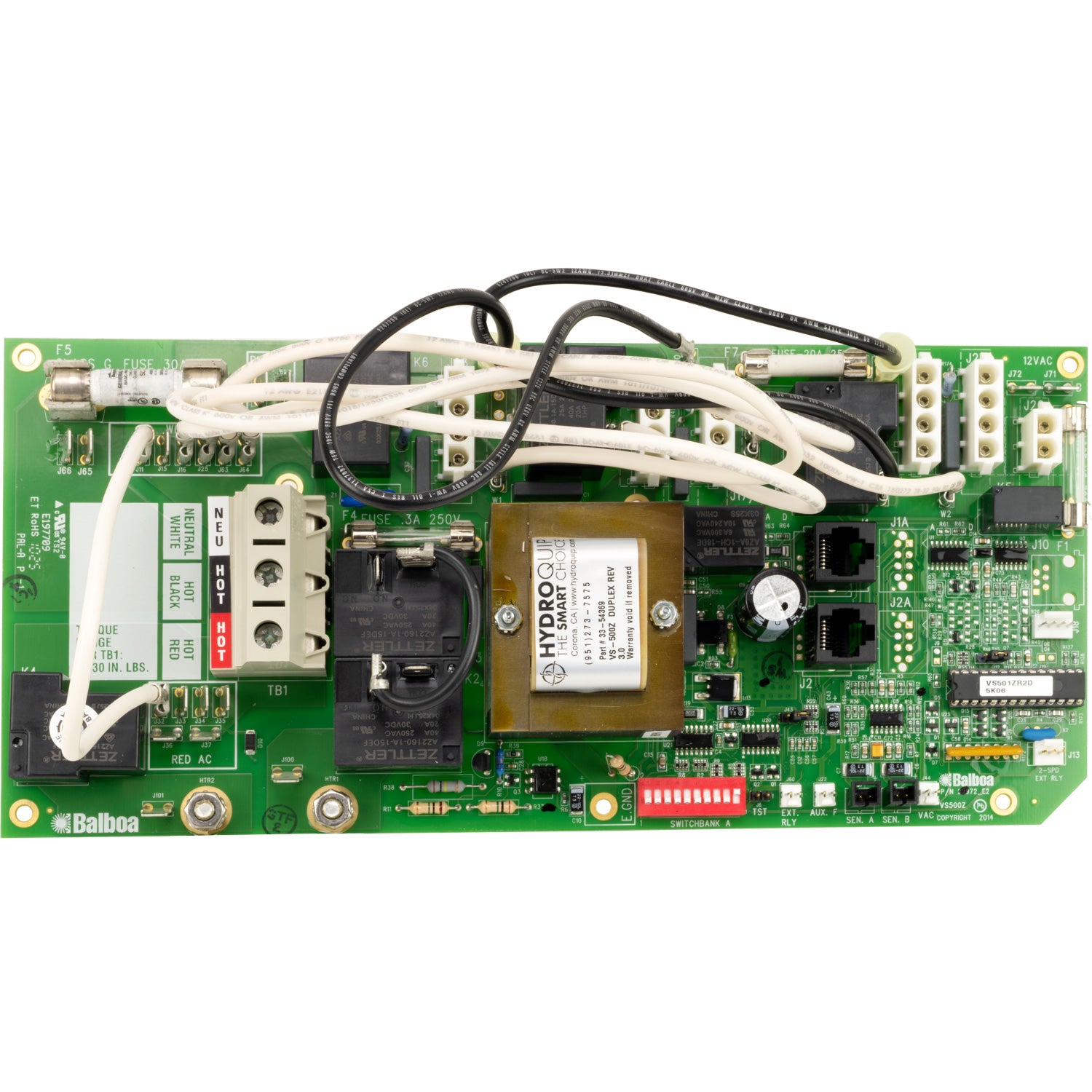

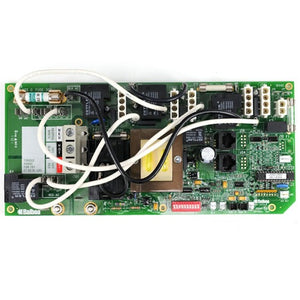

This Balboa® printed circuit board (PCB) is for VS500 & VS501Z hot tub control systems. Supports a 2-speed primary pump, 1-speed secondary pump or a blower, optional circulation (circ) pump, ozonator/UVC, stereo & light/fiber optics.
- Genuine OEM Board
- Compatible with Lite Digital or Mini Oval Digital topside control keypads

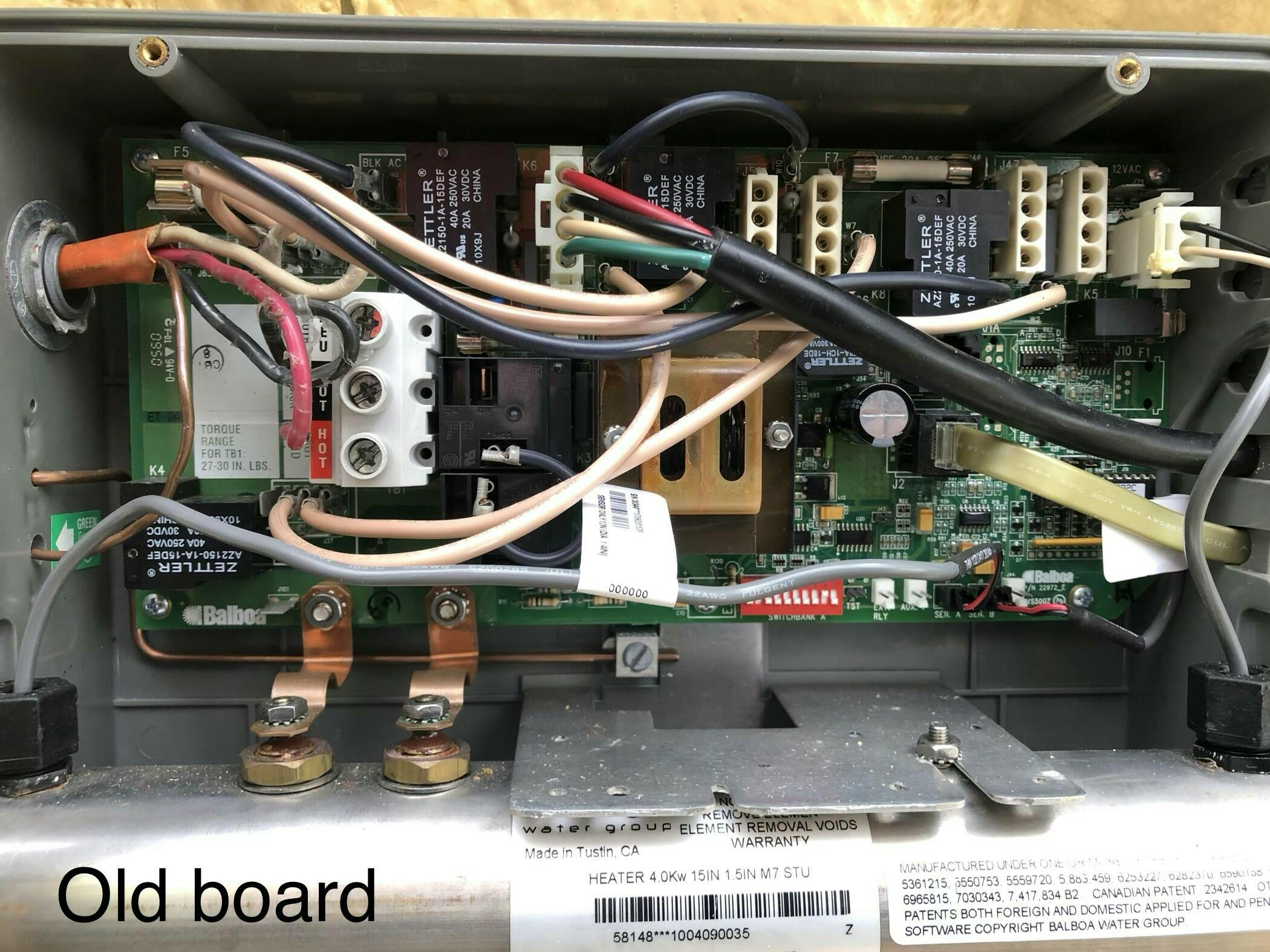

Product Notes: Ozone and circ pump must be the same voltage. Part #54357-03 is the most recent version, and replaces older version 54357. Replaces obsolete VS500 circuit board. Balboa® circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. See below for associated part and chip numbers. Circuit boards are not returnable, but are covered under warranty.

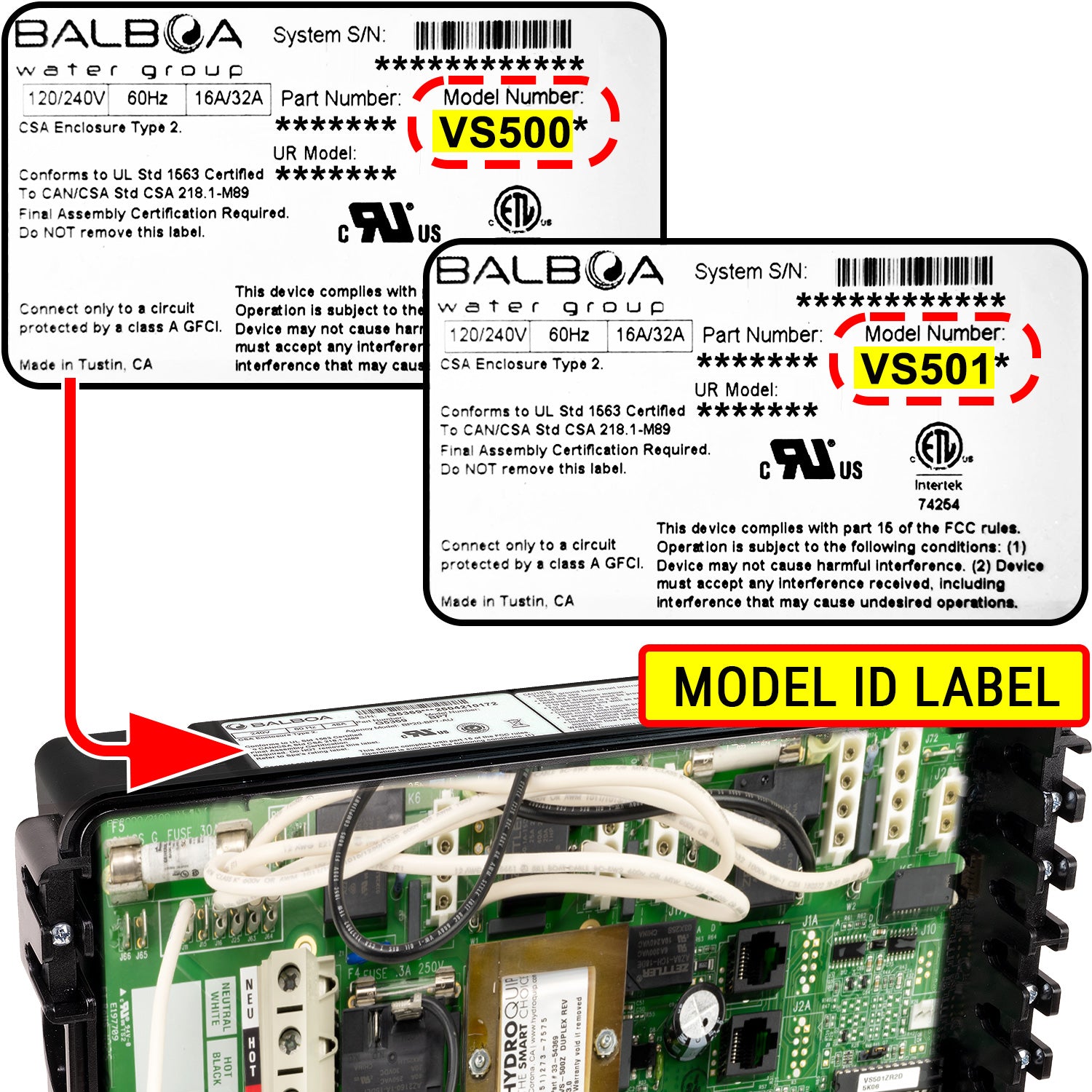

How to Find Your Circuit Board Chip Number
Primary Pump Circuit: 2-Speed - 120V/240V
Secondary Pump -OR-
Blower Circuit: 1-Speed - 120V/240V
Light Circuit:12V Spa Light or 120V Fiber Optics
Ozone/UVC Circuit: 120V/240V
Circulation Pump Circuit:120V/240V
A/V Circuit:Stereo 120V/240V
Other Circuit(s)IR receiver circuit for remote

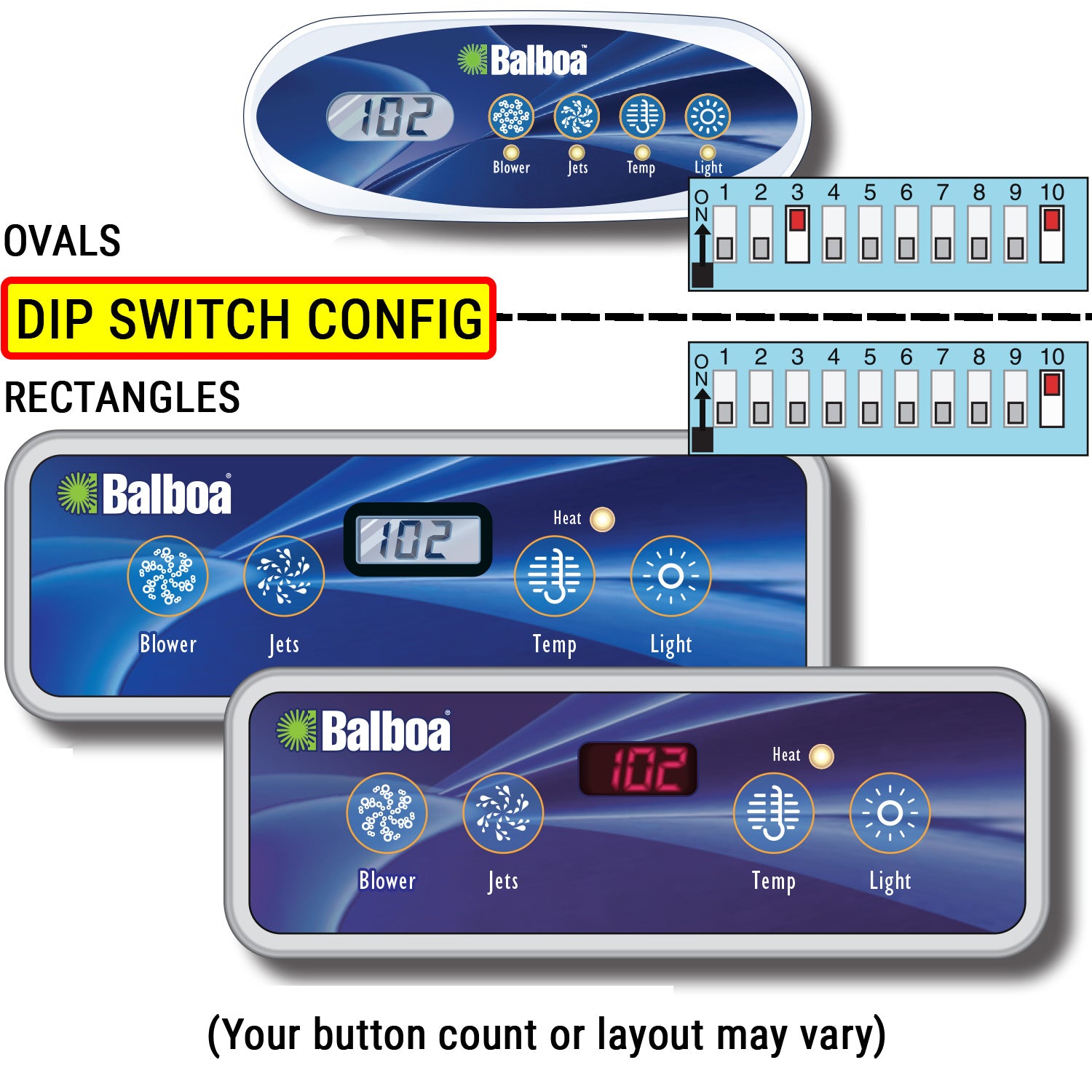

Compatible Control Keypad Type: Lite Digital, Mini Oval Digital
Compatible Keypad Part Numbers:51676, 52144, 52487, 54094, 55123
Chip Numbers: CS5100R1A, CS6200R1A, GVS501R1A, INF107R1A, MAS150, OC850R1A, SCS501R1A, SCS501R1B, SCS501R1C, TS500SR1A, TS500SR1B, TS500SR1C, VKV502R1A, VKV502R1B, VS240RR, VS240RR2A, VS240RR2B, VS240RR2C, VS501R1A, VS501R1B, VS501RR1B, VS501ZR1A, VS501ZR1B, VS501ZR1C, VS501ZR2A, VS501ZR2B, VS501ZR2C, VS501ZR2D, VZ501ZR2A, VZ501ZR2B, 100CR1A, 100CR1B, 100CR1C, 100DR1A, 100DR1B, 100DR1C, COB500R2A, CS6000R1A, FREE300R1A, GV5500R2B, GVS500R1A, GVS500R1B, GVS500R2A, GVS500R2B, KEYS1000R1A, KEYS100CR1B, KEYS100DR1A, KEYS100DR1B, LPI300AVR1A, MS360R1A, MS360R1B, MS360R1C, MVS500ZR2D, PVS500ZR1A, VKV300F4R1A, VKV500R1A, VS120RR2A, VS120RR2B, VS120RR2C, VS300AVR1A, VS300FL5R1A, VS300FL5R1B, VS300FL5R1C, VS300FLXR1A, VS500R1A, VS500R1B, VS500TM1R1A, VS500TM1R1B, VS500TM1R1C, VS500TM2R2A, VS500TM2R2B, VS500TM2R2C, VS500ZR2A, VS500ZR2B, VS500ZR2C, VS500ZR2D, VS612R1C
Cross Reference Numbers: 106983, 33-54357-K, 53609, 53989-01, 53991, 53991-01, 53991-02, 53991-03, 54294, 54294-01, 54343-01, 54357, 54357-01, 54357-02, 54357-03, 54357-2, 54381, 55033-01, 55033-02, 55036, 55191, 55228, 55372, 55405, 59-138-1683, ELE09100222, ELE09100223, ELE09907280, HQ0021, MS520, 103-983, 106-983, 33-0032B, 33-54369-K, 54359, 54369-01, 54369-02, 54369-03, 54604-01, 54646-01, 55032, 55032-01, 55032-02, 55140, 55506, 55507, 55929, 59005, 59-138-1680 ELE09100400, ELE09100411
Warranty: 1 year Limited Manufacturer’s Warranty

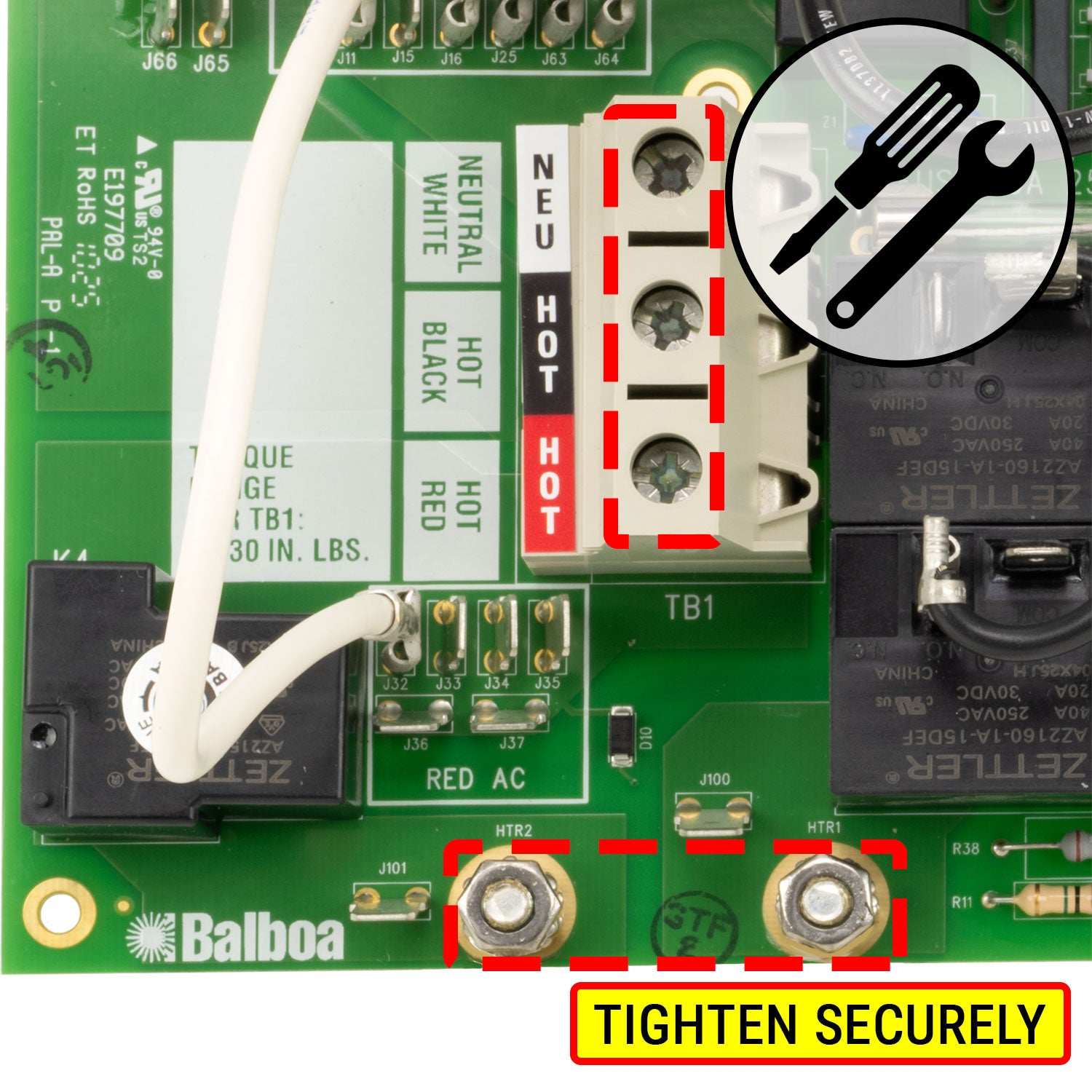

IMPORTANT: Damage due to incorrect installation is not covered under warranty.
