Balboa VS100 Spa Control Circuit Board 120V/240V Pre-Configured

Name: Balboa VS100 Spa Control Circuit Board 120V/240V Pre-Configured
Brand: SpaDepot
SKU: HQ0165
Price: 298.95 USD
Availability: InStock

HQ0165

Save $-298.95

/

Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.

Delivery to US-48 Only Sorry, delivery unavailable to Alaska, Hawaii, or Canada.

Balboa Model VS100 replacement circuit board - confirm compatibility by matching Spa Control Model ID Label. Our exclusive FREE pre-configuration service saves time. Just let us know voltage & which keypad form factor is on your spa:

How about a complete easyPak from $398.95?

View Products

Your Electrical Service* 120V (Plug & Play Spas) 240V (Hard Wired Spas) Please select

Your Keypad Configuration* Please select

Add to Order (recommended):

$79.95

Universal Ozonator

Ozone Renewal Kit

$48.95

36 LED Lightshow

Replaces Standard Bulb

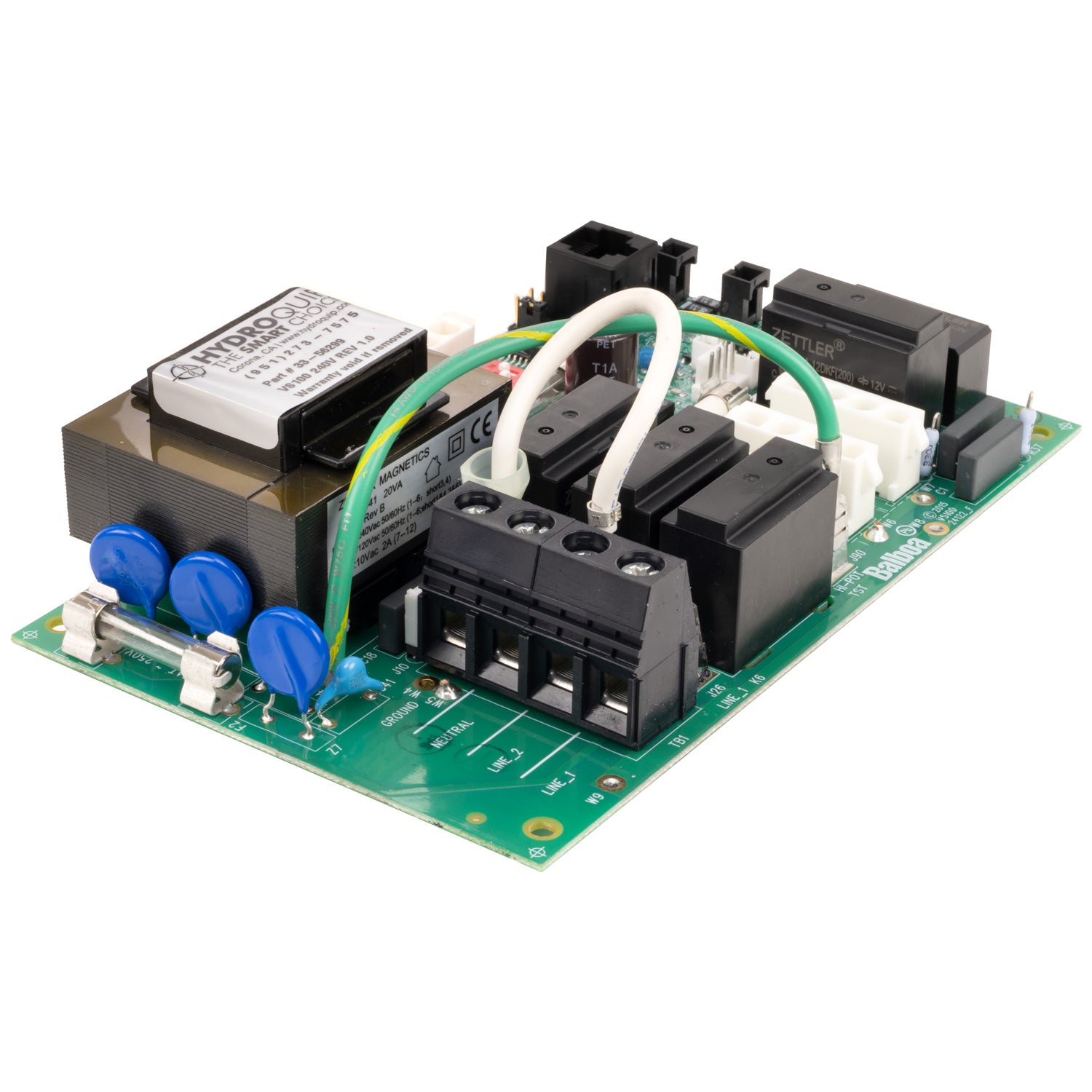

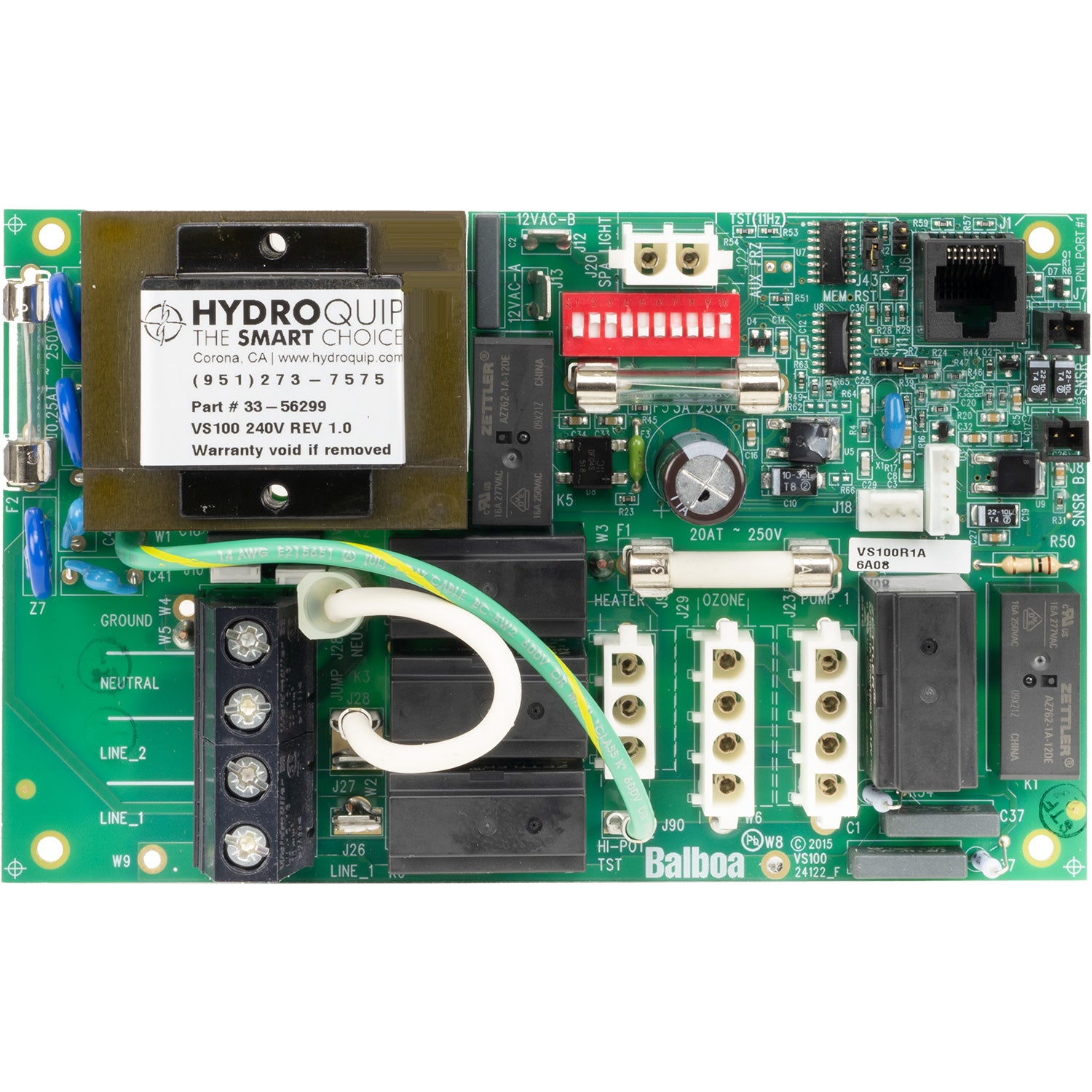

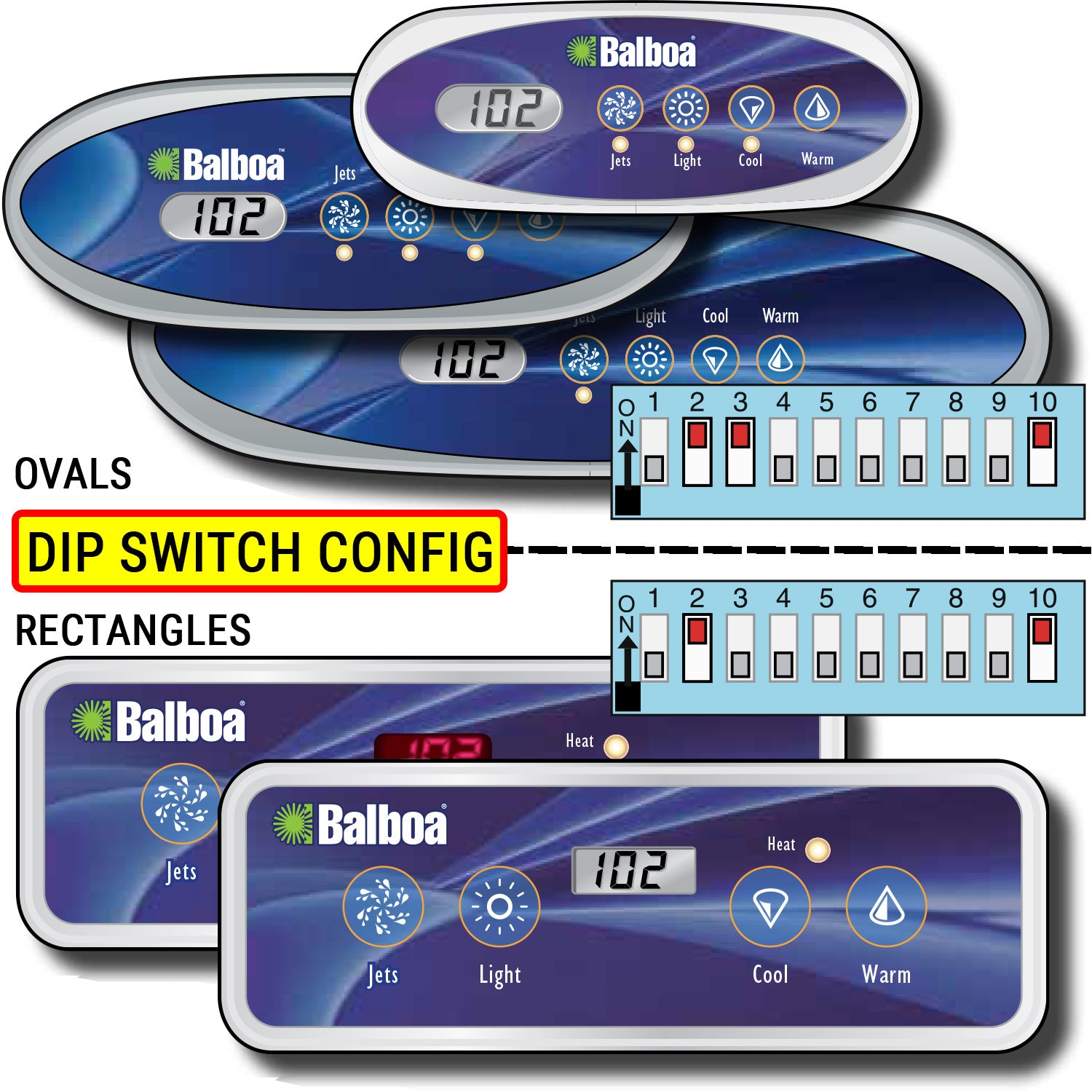

Pre-Configured Printed Circuit Board (PCB) for Balboa Model VS100 hot tub control systems. Spa Depot exclusively configures voltage & provides on-board DIP switch settings, based on your topside keypad shape, at no extra charge.

Product Notes: 120V/240V. Electrical or physical damage due to improper installation or incorrect PCB selection voids the manufacturer's warranty and for providing accurate pre-configuration instruction. Customer is responsible for determining and selecting the correct PCB model. PCBs cannot be returned or exchanged. Keypad sold separately. 1-yr. factory limited warranty.

ATTENTION: If you do not have the skills, knowledge, and tools required to troubleshoot your existing system and install this replacement part correctly, engage the services of a qualified professional.

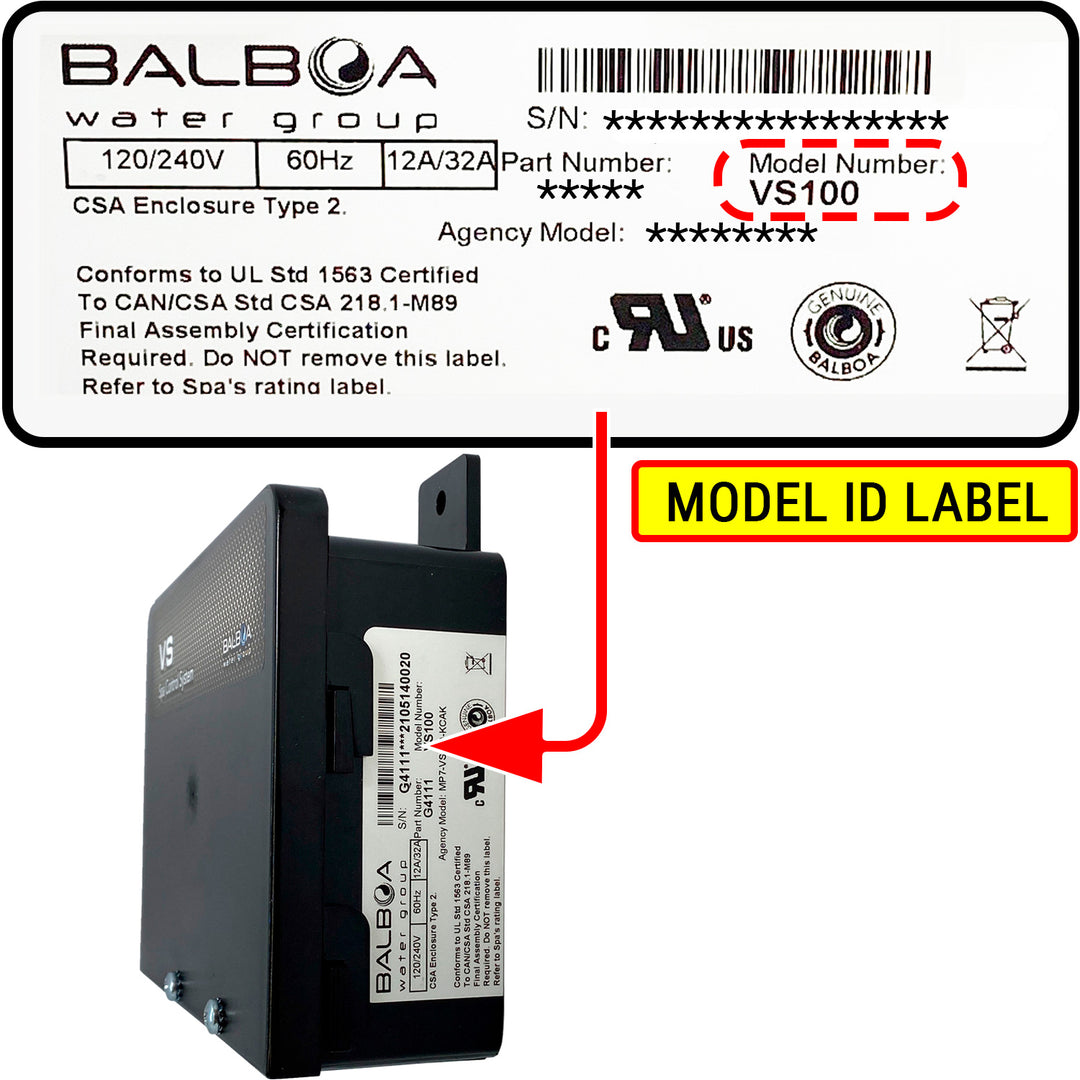

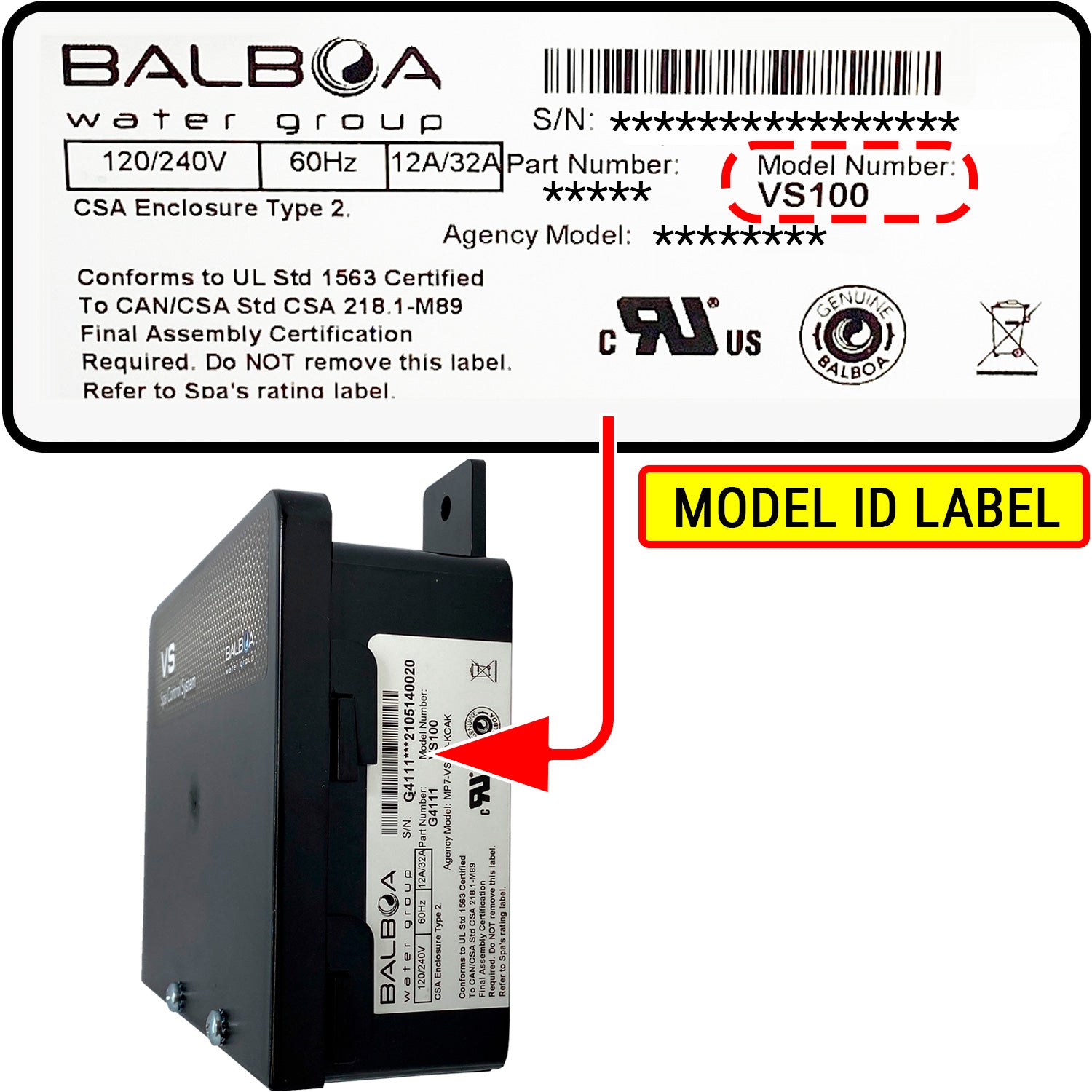

CONFIRM SYSTEM MODEL: Incompatible boards often look nearly identical. Match the Model Number from the Control System's top ID Label (see illustration).

Associated Reference Numbers: 33-56299-K, 56296, 56297, 56299, 952994, G1110, G4111, VS100, VS100R1A.

Compatible Keypads: 55123, 55080, 55081, 54665, 52345, VL200, VL240, VL260, VL401, VL403.

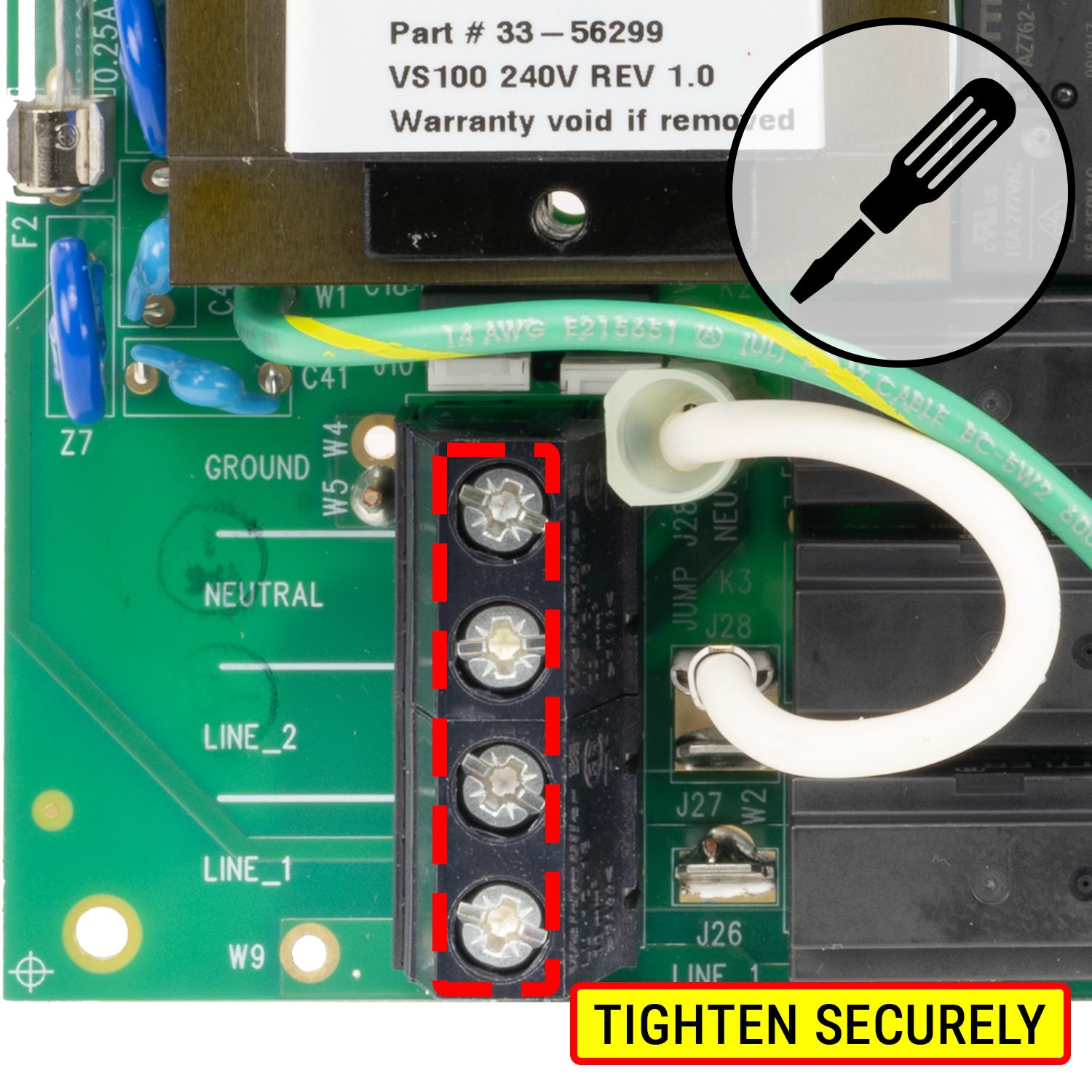

Balboa Circuit Board Installation Directions
