Balboa Circuit Board for Jacuzzi® Value Control Systems - 52213

HQ0023
Balboa Circuit Board for Jacuzzi® Value Control Systems - 52213

Balboa Circuit Board for Jacuzzi® Value Control Systems - 52213

HQ0023
/
Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.
Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.
  • In stock, ready to ship
  • Inventory on the way

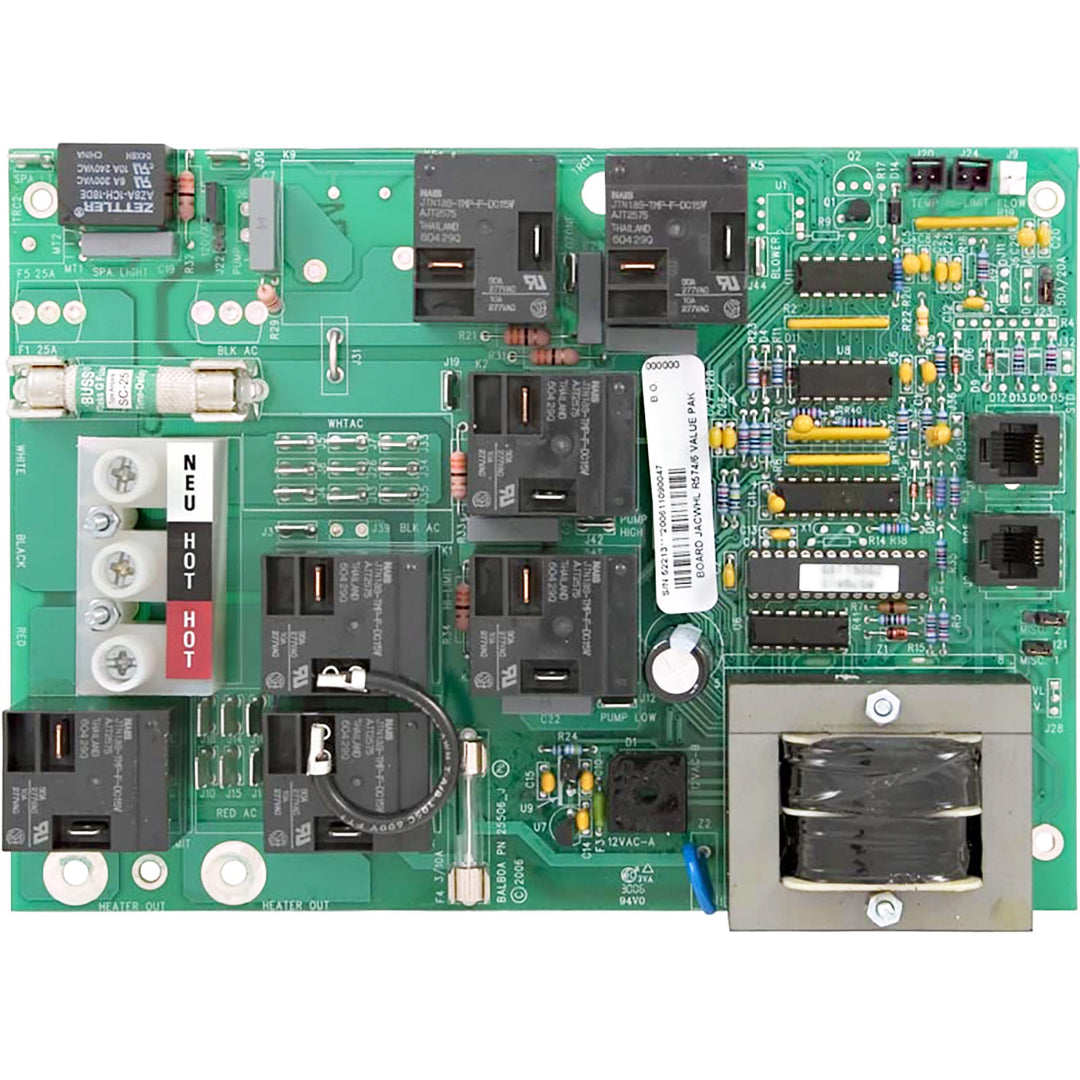

This Balboa® circuit board (PCB) supports two configurations used in Jacuzzi® Value spa controls, switched with a simple on-board jumper change. For original chip number variations of R574, this replacement board will support a single 2-speed primary pump, ozonator and light. For variations of R576, (2) 1-speed pumps with ozone and light circuits are supported (see below for configuration).

  • Genuine OEM Board
  • Compatible with Lite Digital Keypads

Product Notes: To configure the board for R574 chip numbers, the J21 jumper must be on both pins. R576 chip numbers, the J21 jumper must be placed on a single pin. Balboa® circuit boards must be identified with the chip number and/or part number to guarantee the existing control keypad and other components will function. See below for associated part and chip numbers. Circuit boards are not returnable, but are covered under warranty. Compatible with Jacuzzi® Value Systems Z-110, Z-140, Z-145, Z-150. Jacuzzi® is a registered trademark of Jacuzzi Brands, LLC.

How to Find Your Circuit Board Chip Number

Details:

Primary Pump Circuit: R574: 2-speed pump - 120V/240V
R576: 1-speed pump - 120V/240V

Secondary Pump Circuit: 1-speed pump - 120V/240V (R576 Only)

Blower Circuit(s):Not Supported

Light Circuit(s):12V Spa Light

Ozone/UVC Circuit: 120V/240V

Circulation Pump Circuit:Not Supported

Control Keypad Type: Lite Digital

Compatible Keypad Numbers:51705, 54116

Chip Numbers: R574/6R1A, R574/6R1B, R574/6R1C, R574/6R1D, R576R1A, R576R1B, R576R1C, R576R1D

Cross Reference Numbers: 33-52213, 52213, 59-138-1600, BAL52213, R574, R576, 9710-28

Warranty: 1 year Limited Manufacturer’s Warranty

IMPORTANT:   Damage due to incorrect installation is not covered under warranty.
