Balboa BP7 5.5kW Spa Control Kit - Up to 2 Pumps + Circ Pump, Upgradable to 3 Pumps

Balboa BP7 5.5kW Spa Control Kit - Up to 2 Pumps + Circ Pump, Upgradable to 3 Pumps

EP6551

Save $-498.95

Qualifies for Free Shipping Free standard delivery to contiguous US-48 for $100+ merchandise total.

Standard Delivery to US-48 Only Ground shipping only - Sorry, no delivery to Alaska, Hawaii, or Canada.

In stock, ready to ship
Backordered, shipping soon

Balboa® BP7 Series Control System Retrofit Kit is a versatile replacement controller. Comes pre-configured, at no extra cost, just for your hot tub. Patented Balboa® M-7 sensor technology eliminates the need for standard pressure or flow switches - allowing the controller's heater to be plumbed to either side of the pump.

Standard Circuits: Pump 1, Pump 2 or Blower, Circulating Pump, Ozone, Light, A/V (stereo), Heater

Optional Circuits: Pump 3 or Auxiliary

Optional Upgrades: Starburst 18 or 36 LED vivid color light (below), 72" Jet Pump Cords for selected circuits

Included with your control system:

Control System with 5.5kW@240V or 1.375kW@120V Heater
Digital Topside Keypad
Keypad Adapter Plate – neatly covers old opening
Heater Split Nuts, Tailpieces and Gaskets

Product notes: 120V or 240V convertible power. 240V systems must be connected to an approved GFCI-protected 4-wire electrical service. 120V systems must be served by a grounded, GFCI-Protected circuit, or have an optional inline GFCI cord installed, also properly grounded. Freeze & over-heat protection, filtration, and dual range temperature modes. For use in spas with at least 1.5" ID plumbing & a minimum flow rate of 23 GPM. Made in USA. UL listed. 2-year factory limited warranty.

Balboa BP7 Series Installation/Operation Manual

TP500 Topside Control Operation Guide

TP600 Topside Control Operation Guide

More information:
Hot Tub Service Wiring Explained
Spa Pack Installation

Details:

Jet Pump 1 Circuit:120V or 240V – 2 Speed pump – 12A max

Jet Pump 2 or Blower Circuit:120V or 240V – Single Speed – 12A max

Optional Jet Pump 3 or Auxiliary Circuit:120V or 240V – Single Speed – 12A max

24 Hour Circulating Pump Circuit:120V or 240V – Continuous circulation – 4A max (23GPM & 1-1/2" plumbing minimum)

Ozone Circuit:120V or 240V – Must be same voltage as circulating pump, if selected – .5A max

Light Circuit:12V – (2A) Harness available below

A/V (Stereo) Circuit: 120V or 240V – 2A max

Topside Keypad: 6 Button rectangle for 2 pump system, or 6 Button oval for 3 pump system - 7' cord

Keypad Adapter Plate: Self adhesive (optional use)

Heater:5.5kW, 15” Stainless Steel. Minimum 1-1/2" plumbing & 23GPM flow required.

Replaces:VS500, VS500Z, VS501, VS501Z, VS501SZ, VS510, VS510Z, VS510SZ and more.

You may need

Part great but Tech Support better

Had a relay stuck on the old board of a 10 year old tub. Ryan in Tech Support helped me try several things before suggesting part replacement.
Not canned BS suggestions but real stuff. Keep that guy!!!
Anyway, bought the replacement pack and installed myself.
Surprised as you know what when everything worked and no leaks!

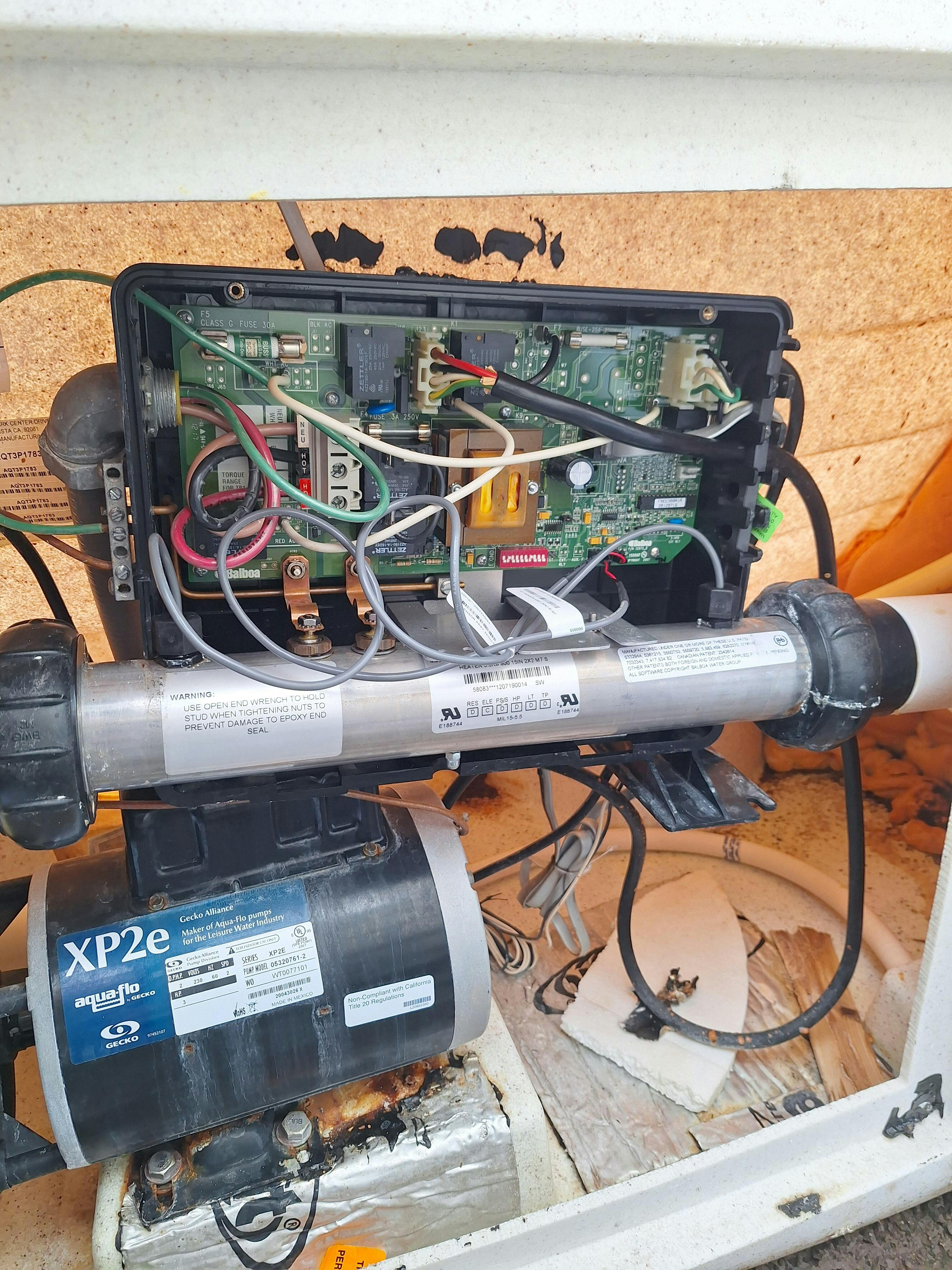

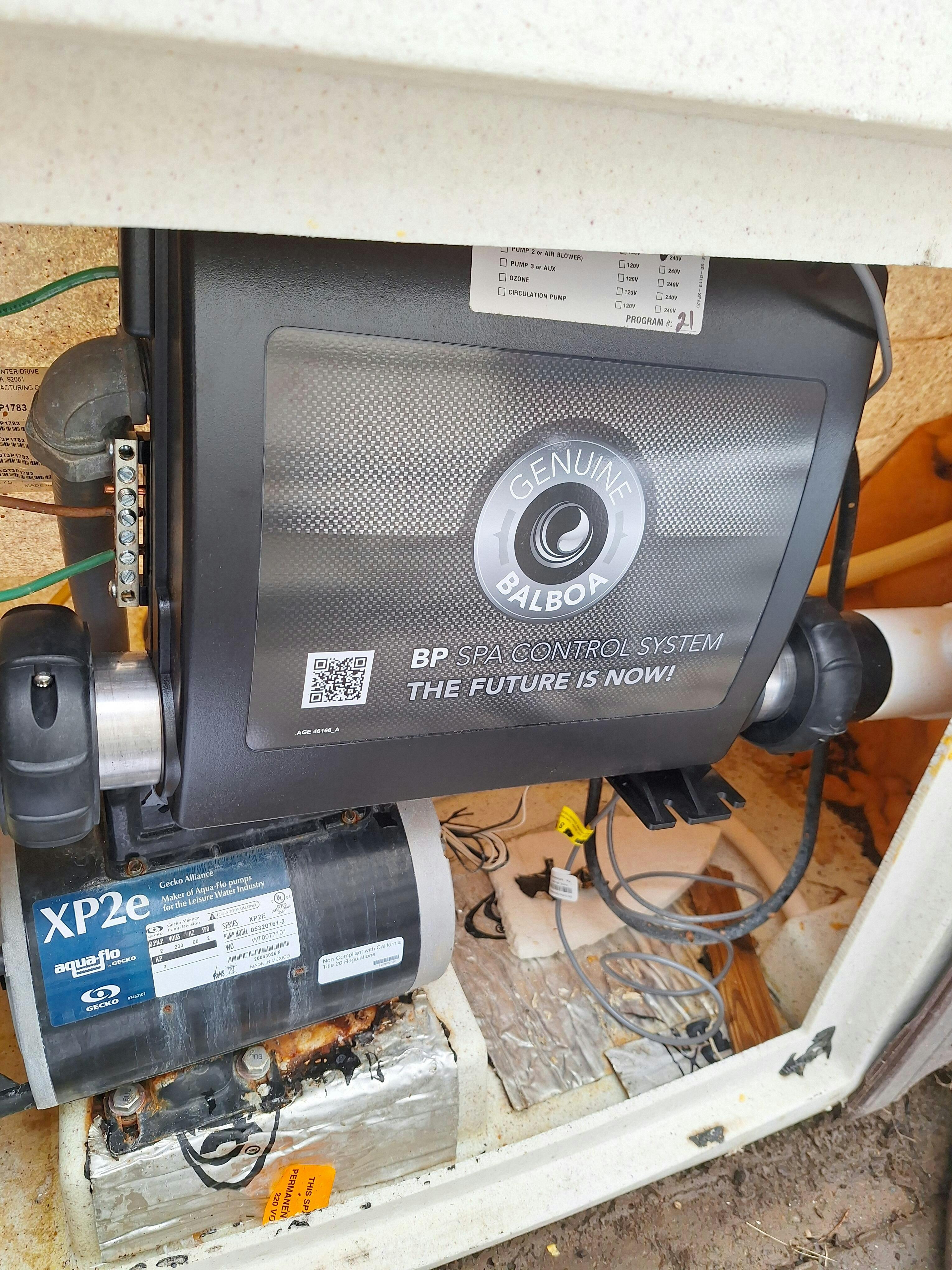

Attached old and new pics.

Uncommon these days

I ending up dealing with at least 4 different employees during my project and all of them were very nice and helpful. I find this level of customer service is pretty uncommon the days.

Super

Awesome, great company!!!

Better

better than orig. 5 K heater big diff!

As requested, i sent pictures of my actual unit, and they informed me of what unit i should purchase. With that being said, everything went great, very simple installation.

My only issue was that the control panel filler plate that was sent did not fit my unit. When i reached out about it, I was told they do not have a filler plate that i would have to make one. Considering they requested pictures of my complete unit prior to ordering that sux
