Balboa® BP7 Series Control System Retrofit Kit is a versatile replacement controller. Comes pre-configured, at no extra cost, just for your hot tub. Patented Balboa® M-7 sensor technology eliminates the need for standard pressure or flow switches - allowing the controller's heater to be plumbed to either side of the pump.
Standard Circuits: Pump 1, Pump 2 or Blower, Circulating Pump, Ozone, Light, A/V (stereo), Heater
Optional Circuits: Pump 3 or Auxiliary
Optional Upgrades: Starburst 18 or 36 LED vivid color light, 72" Jet Pump Cords for selected circuits
Included with your control system:
- Control System with 5.5kW@240V or 1.375kW@120V Heater
- Digital Topside Keypad
- Keypad Adapter Plate – neatly covers old opening
- Heater Split Nuts, Tailpieces and Gaskets
Product notes: 120V or 240V convertible power. 240V systems must be connected to an approved GFCI-protected 4-wire electrical service. 120V systems must be served by a grounded, GFCI-Protected circuit, or have an optional inline GFCI cord installed, also properly grounded. Freeze & over-heat protection, filtration, and dual range temperature modes. For use in spas with at least 1.5" ID plumbing & a minimum flow rate of 23 GPM. Made in USA. UL listed. 1-year factory limited warranty.
Jet Pump 1 Circuit:120V or 240V – 2 Speed pump – 12A max
Jet Pump 2 or Blower Circuit:120V or 240V – Single Speed – 12A max
Optional Jet Pump 3 or Auxiliary Circuit:120V or 240V – Single Speed – 12A max
24 Hour Circulating Pump Circuit:120V or 240V – Continuous circulation – 4A max (23GPM & 1-1/2" plumbing minimum)
Ozone Circuit:120V or 240V – Must be same voltage as circulating pump, if selected – .5A max
Light Circuit:12V – (2A) Harness available below
A/V (Stereo) Circuit: 120V or 240V – 2A max
Topside Keypad: 6 Button rectangle for 2 pump system, or 6 Button oval for 3 pump system - 7' cord
Keypad Adapter Plate: Self adhesive (optional use)
Heater:5.5kW, 15” Stainless Steel. Minimum 1-1/2" plumbing & 23GPM flow required.
Replaces:VS500, VS500Z, VS501, VS501Z, VS501SZ, VS510, VS510Z, VS510SZ and more.
WARNING: Cancer and Reproductive Harm
Had a relay stuck on the old board of a 10 year old tub. Ryan in Tech Support helped me try several things before suggesting part replacement.
Not canned BS suggestions but real stuff. Keep that guy!!!
Anyway, bought the replacement pack and installed myself.
Surprised as you know what when everything worked and no leaks!

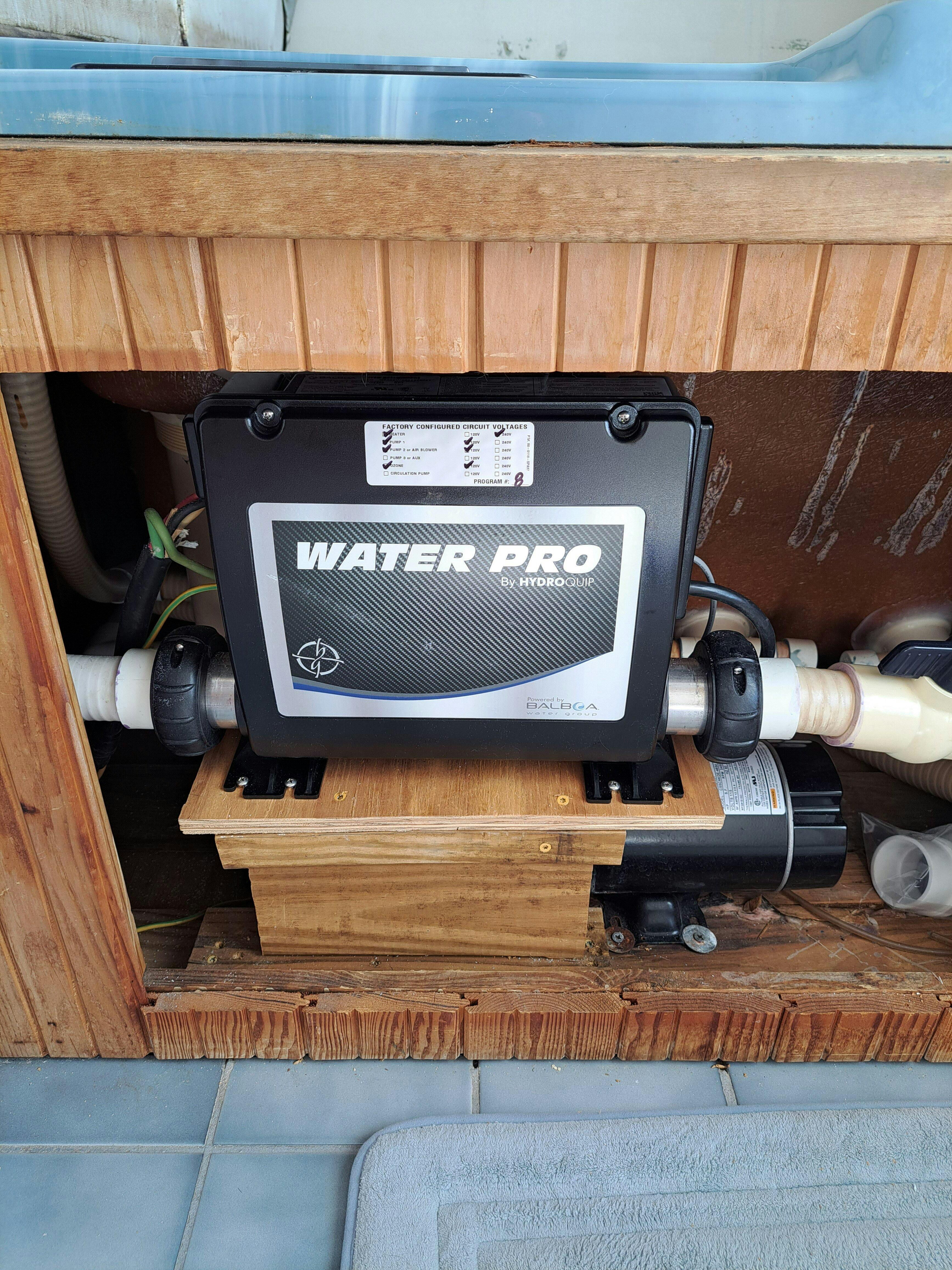

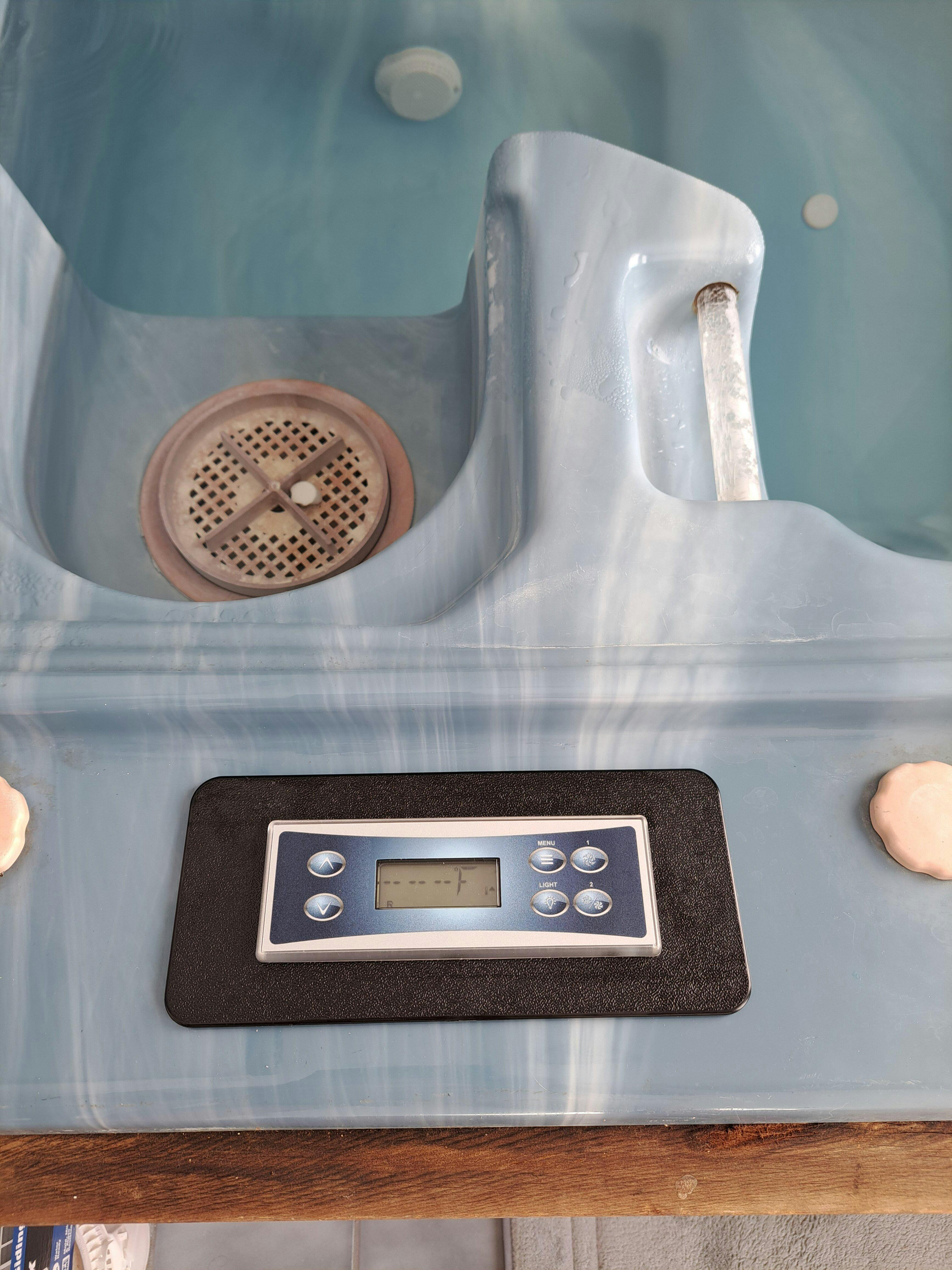

Attached old and new pics.
Staff(Thomas) helped me verify my circuit board was faulty. Staff very helpful.
Ordered BP7 and system back up.
Nice plug and play unit. Only challenge is which pump goes to pump one pump 2 and pump three. But its a super nice upgrade and as they burn out occasionally. This is working fantastic. Just wish someone could put bluetooth programming on it. The way to use the touch pad for programming just does not make a lot of since. A simple phone app would be nice. and I mean a simple hook up Not thru some main server like most heat controls in a house. Love it though so happy to have it working
I was weary about replacing my old Balboa BP spa pack, as something always seems to go awry when working on the hot tub. This unit went in with no issues. Thanks again Spa Depot!
The kit was physically easy to install, but it came from the Balboa factory configured wrong. The wiring was correct but the software configuration was wrong. After a call to SpaDepot I realized I would be able to reprogram it after installation, and I did it following the directions in the manual. I also ordered cords to connect the motors and blower to the spa pack. The cords are only 6 feet long, but I have a 7-ft spa. Had to splice one of the cords with my old cord so it could reach my 2nd pump. The blower cord barely reached. It all works great now, but these problems should not exist when spending over $600 for the product.
